Milly Mally Axel Three-Wheel Bike User Manual

1. Introduction

Thank you for choosing the Milly Mally Axel Three-Wheel Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your tricycle. Please read it thoroughly before first use and keep it for future reference.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in serious injury.

• Always supervise children when using the tricycle.
• Ensure all fasteners are securely tightened before each use.
• The tricycle is designed for children. Do not exceed the maximum weight limit (refer to product packaging for specific limits).
• Do not use the tricycle on public roads, near motor vehicles, steep inclines, or swimming pools.
• Children should always wear appropriate protective equipment, including a helmet, knee pads, and elbow pads.
• Keep small parts away from children during assembly to prevent choking hazards.
• Regularly inspect the tricycle for wear and tear, especially on wheels, pedals, and steering components. Replace damaged parts immediately.

3. Parts List

Before assembly, ensure all components are present:

• Main frame with seat
• Front wheel assembly with pedals
• Rear wheels (2x)
• Parent handle (adjustable)
• Front basket
• Rear basket
• Handlebar with bell and non-slip grips
• Foldable footrest
• Assembly hardware (screws, nuts, washers)

4. Assembly Instructions

Follow these steps to assemble your Milly Mally Axel Three-Wheel Bike. It is recommended to have two adults for easier assembly.

1. Attach the Front Wheel and Handlebar: Insert the front wheel assembly into the main frame's front fork. Secure it with the provided hardware. Attach the handlebar to the steering column, ensuring the bell is accessible and grips are firm.
2. Install Rear Wheels: Slide each rear wheel onto its axle at the back of the frame. Secure them firmly with the appropriate fasteners.
3. Mount the Seat: Position the seat onto the frame. The seat's distance from the handlebars is adjustable. Choose a comfortable position for the child and secure it.
4. Attach Baskets: Secure the front basket to the handlebar area and the rear basket to the back of the tricycle frame.
5. Install Parent Handle: Insert the adjustable parent handle into the designated slot at the rear of the tricycle. Ensure it clicks into place or is secured with a pin/screw. The length of the handle can be adjusted for adult comfort.
6. Foldable Footrest: The tricycle features a foldable footrest. Ensure it can be easily deployed and retracted.

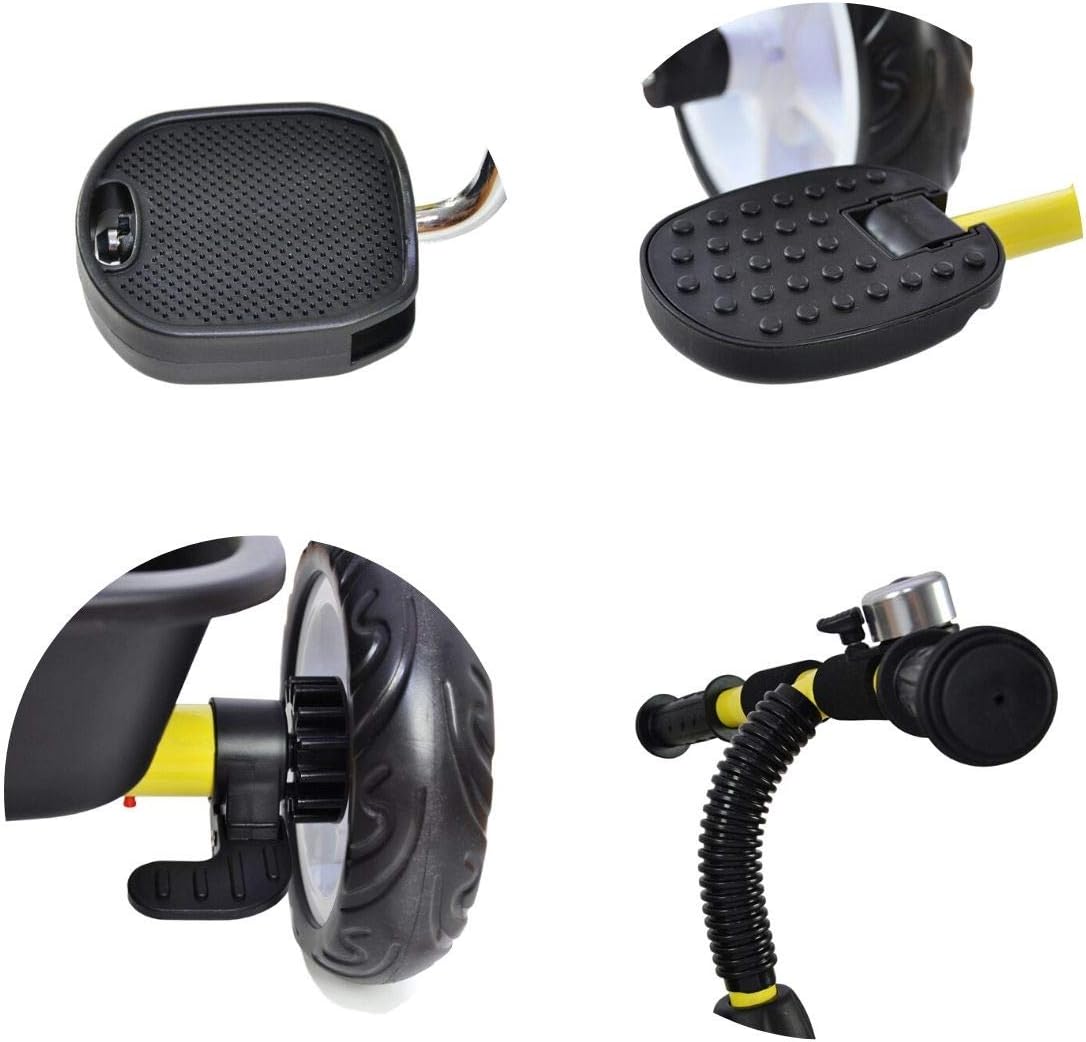

Image: Detailed view of pedals, footrest, front wheel, and handlebar with bell.

Image: Detailed view of the parent handle, its connection, rear basket, and front wheel area.

5. Operating Instructions

The Milly Mally Axel Three-Wheel Bike is designed for both child-powered riding and parent-assisted pushing.

• Child Riding: Once the child is seated and secured, they can propel the tricycle by pedaling the front wheel. The non-slip handles provide a secure grip for steering.
• Parent-Assisted Pushing: For younger children or when the child is tired, the parent handle allows an adult to push and steer the tricycle. Adjust the handle's length for comfortable use.
• "Free Wheel" Function: This function allows the child's feet to rest on the pedals without them turning when the tricycle is being pushed by the parent. This prevents the child's feet from being caught by rotating pedals. Engage or disengage this function as needed (refer to specific mechanism on the front wheel).
• Foldable Footrest: When the child is not pedaling and the tricycle is being pushed, the foldable footrest can be extended to provide a comfortable resting place for their feet. Retract it when the child is pedaling.
• Bell: The integrated bell can be used to alert others to the child's presence.

6. Maintenance

Regular maintenance ensures the longevity and safety of your tricycle.

• Cleaning: Wipe down the frame and plastic parts with a damp cloth and mild soap. Avoid harsh chemicals.
• Lubrication: Periodically check and lubricate moving parts such as wheel axles and pedal mechanisms with a suitable lubricant.
• Fasteners: Regularly check all screws, nuts, and bolts to ensure they are tight. Tighten any loose fasteners immediately.
• Tires: The EVA foam wheels are maintenance-free and do not require inflation. Inspect them for damage or excessive wear.
• Storage: Store the tricycle in a dry place, away from direct sunlight and extreme temperatures, to prevent material degradation.

7. Troubleshooting

Here are solutions to common issues you might encounter:

• Tricycle pulls to one side: Check if all wheels are securely attached and spinning freely. Ensure the handlebar is aligned correctly with the front wheel.
• Pedals not turning smoothly: Check for any obstructions around the pedal mechanism. Ensure the "free wheel" function is disengaged if the child intends to pedal. Lubricate if necessary.
• Parent handle feels loose: Ensure the parent handle is fully inserted and secured by its locking mechanism or pin.
• Squeaking noises: Identify the source of the squeak (e.g., wheels, axles, seat) and apply a small amount of lubricant.

8. Specifications

Image: Side view with parent handle height adjustments (91, 93, 95 cm).

Image: Top-down view with overall dimensions (41 cm width, 80 cm length, 47.5 cm rear width).

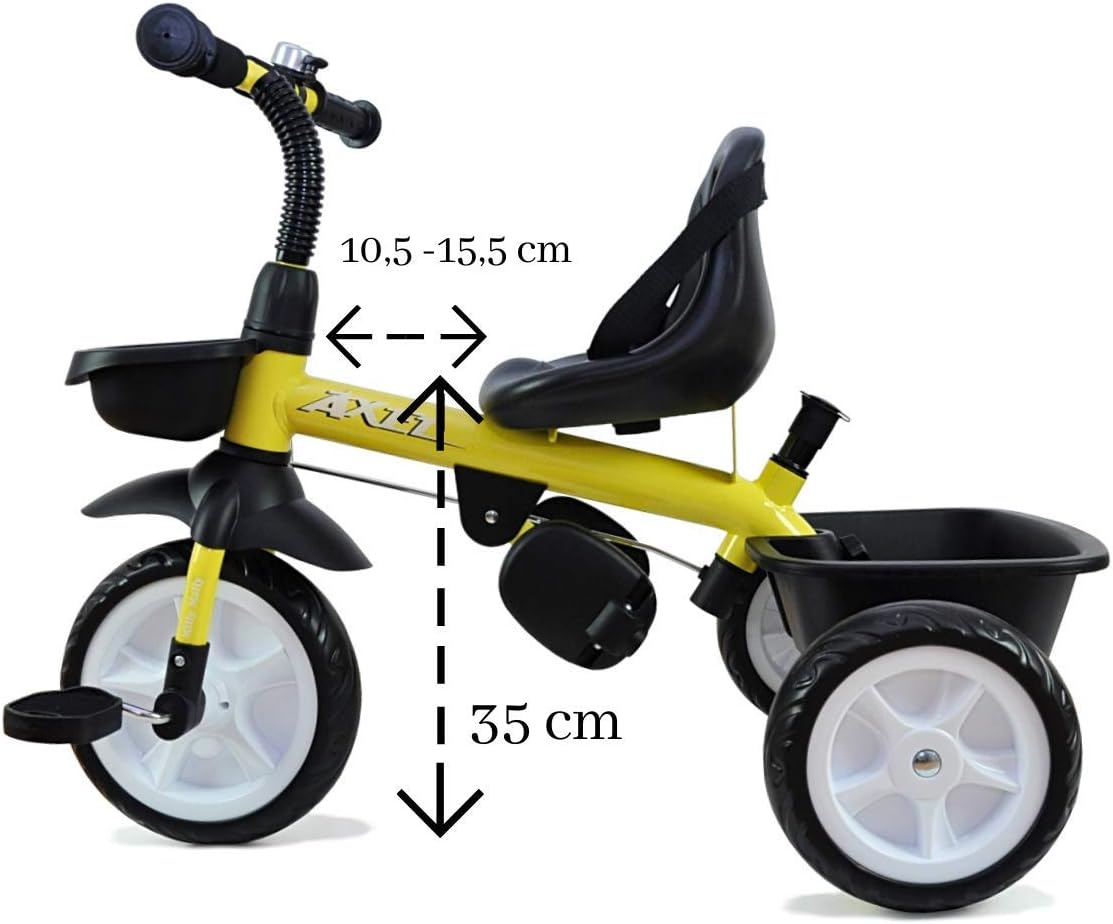

Image: Side view with seat height (35 cm) and adjustable seat distance (10.5-15.5 cm).

9. Warranty and Support

For warranty information or customer support, please refer to the documentation included with your purchase or contact Milly Mally directly through their official website or customer service channels. Please have your model number (5901761125481) and proof of purchase ready.
