Introduction
Thank you for choosing the HOMEFUN Outdoor Chaise Lounge Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new lounge chair. Please read these instructions carefully before use and retain them for future reference.
This chaise lounge features a durable cast aluminum frame, designed for long-term outdoor use. It offers five adjustable reclining positions and includes a comfortable, weather-resistant beige cushion. The integrated wheels allow for easy repositioning, making it a versatile addition to any patio or poolside area.

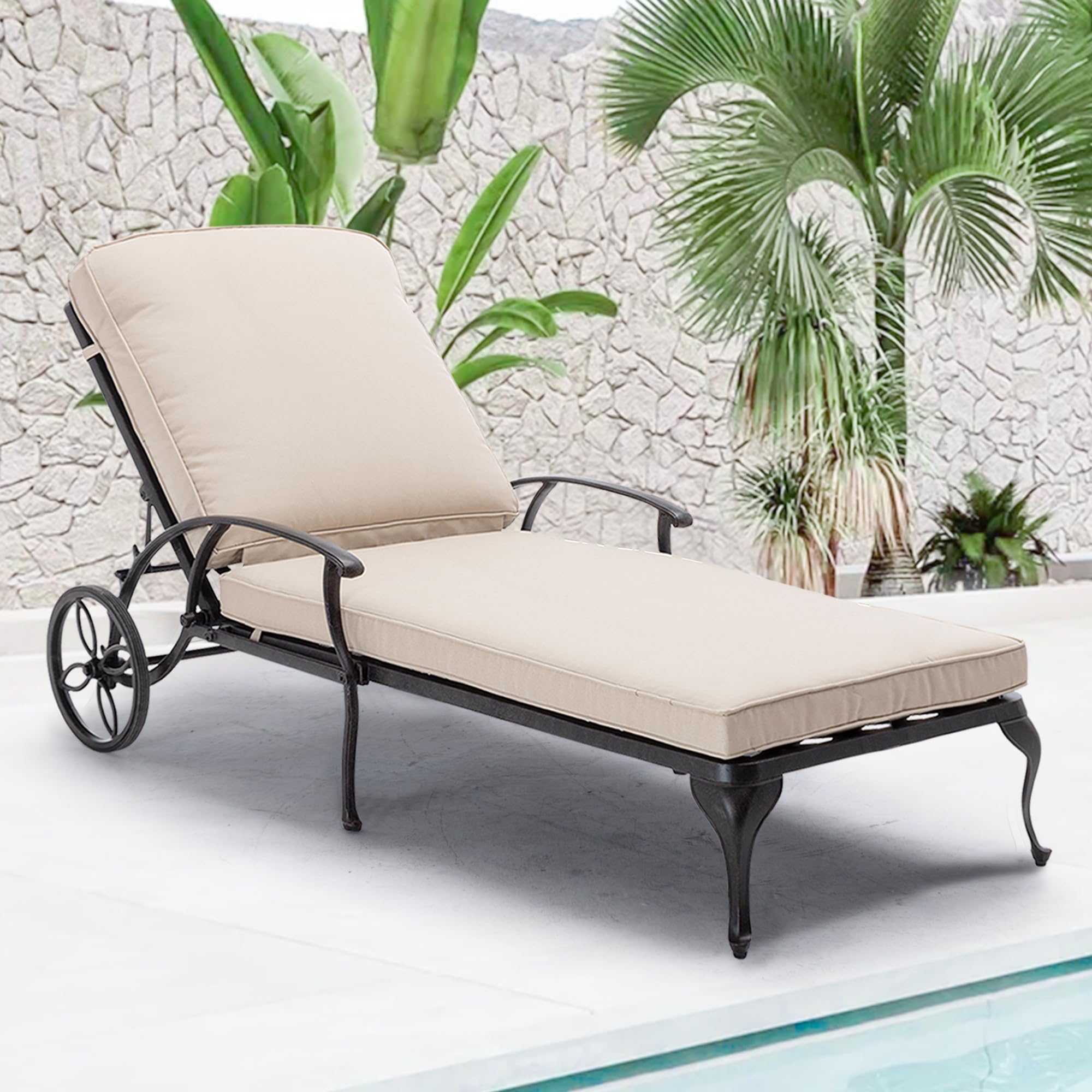

Image: The HOMEFUN Outdoor Chaise Lounge Chair with beige cushion, showcasing its design and comfort.
Safety Information
WARNING:
- This chair is intended for relaxing use only.
- Do not exceed the maximum weight capacity of 330 lbs (150 kg).
- Always use the chair on a hard, stable, and level surface to prevent tipping.
- Keep children and pets away from the chair during assembly.
- Ensure all screws and bolts are tightened securely before use.
Package Contents
Please verify that all components are present before beginning assembly:
- Backrest Frame (1)
- Seat Frame (1)
- Armrests (2)
- Front Legs (2)
- Rear Legs with Wheel Mounts (2)
- Wheel Crossbar (1)
- Wheels (2)
- Beige Cushion (1)
- Hardware Pack (screws, washers, spacers, nuts, wrench)
Setup and Assembly
Follow these steps to assemble your HOMEFUN Outdoor Chaise Lounge Chair. It is recommended to have two people for assembly.
- Attach Backrest Bracket: Install the backrest bracket to the backrest frame using two screws and two spacers. Tighten the screws securely.
- Install Crossbar: Remove the screws from the ends of the wheel crossbar.
- Attach Side Armrests: Install each side armrest to the seat frame using two screws and two spacers per armrest. Tighten the screws.
- Mount Wheels: Insert a screw through a spacer, then through the wheel, and into the wheel mount on the rear leg. Repeat for the other wheel.
- Mount Legs: Attach the front and rear legs to the seat frame using four screws per leg. Ensure two spacers are used for each screw. Tighten all screws.
- Fasten Backrest and Armrest: Connect the backrest to the armrests using screws. Ensure spacers are placed between the armrest and the backrest for proper articulation. Tighten the screws.
- Place Cushion: Position the beige cushion onto the assembled chair. Secure the cushion using the attached ties to prevent it from sliding.
Video: Detailed assembly instructions for the Outdoor Chaise Lounge Chair. This video demonstrates each step of the assembly process, from attaching the backrest to securing the cushion, ensuring a smooth setup.
Operating Instructions
Adjusting Reclining Positions
The chaise lounge offers five backrest tilting positions for optimal comfort:
- 120° or 135°: Ideal for reading or light lounging.
- 150° or 165°: Suitable for relaxing.
- 175°: Perfect for napping or lying flat.
To adjust the backrest, lift the backrest slightly and move it to the desired notch on the support frame. Ensure it locks securely into place before applying full weight.
Image: A visual guide illustrating the five adjustable reclining positions of the chaise lounge, from upright to fully reclined.
Moving the Chair
The chaise lounge is equipped with wheels on the rear legs for easy mobility. To move the chair, slightly lift the front end and roll it to your desired location. Ensure the path is clear of obstacles.
Image: Close-up view of the chaise lounge's 'humanized details', including curved armrests, adjustable foot pads, and moveable wheels, highlighting the ease of transport.
Maintenance
Cushion Care
The cushion features a detachable cover for easy cleaning. It is also splash-proof. For general cleaning, spot clean with a mild soap and water solution. Allow to air dry completely. For prolonged life, store cushions indoors during inclement weather or when not in use for extended periods.
Image: Details of the comfortable cushion, highlighting its 3.2-inch thickness, removable cover for easy cleaning, and splash-proof material.
Frame Care
The chaise lounge frame is constructed from cast aluminum with a hardened antique bronze powder coating, making it durable and rustproof. To clean the frame, wipe with a damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners. Periodically check all fasteners and tighten if necessary to ensure stability.
Troubleshooting
- Difficulty with Assembly: If you encounter difficulties during assembly, refer to the assembly video and ensure all parts are correctly oriented. Double-check that you are using the correct hardware for each step. Do not force components together.
- Unstable Chair: Ensure all screws and bolts are fully tightened. Verify that the chair is placed on a flat, even surface.
- Cushion Sliding: The cushion is designed to be secured with ties. Ensure all ties are fastened to the chair frame. If additional security is desired, non-slip pads can be placed under the cushion.
Specifications
| Feature | Detail |
|---|---|
| Brand | HOMEFUN |
| Model Name | HOMEFUN Outdoor Chaise Lounge Chair |
| Model Number | HOMEFUN-OCLC |
| Color | Beige Cushion |
| Material | Aluminum, Bronze (Frame); Polyester (Cushion) |
| Product Dimensions (D x W x H) | 45"D x 24"W x 39"H (114.3 cm x 60.96 cm x 99.06 cm) |
| Item Weight | 55.12 Pounds (25 kg) |
| Maximum Weight Recommendation | 330 Pounds (150 kg) |
| Reclining Position Count | 5 |
| Required Assembly | Yes |
| Indoor/Outdoor Usage | Outdoor |
Image: A detailed diagram illustrating the product's dimensions, including depth, width, height, cushion thickness, and maximum weight capacity of 330 lbs.
Warranty and Support
For any problems or concerns regarding your HOMEFUN Outdoor Chaise Lounge Chair, please contact HOMEFUN customer support. We are committed to assisting you with any shipment or product-related issues.
Please refer to your purchase documentation for specific warranty details and contact information.
