MELLCOM 12' x 12' Hardtop Gazebo Instruction Manual

Important Safety Information

Please ensure that the gazebo is sturdily anchored into the ground. The gazebo may heat up quickly under sunlight and reach a high temperature, which depends directly on sunlight intensity. Before installation, please check the snow capability and wind rating specifications. Always follow the installation instructions carefully.

Product Features

• Double Galvanized Steel Roof: Features three-layer protection, making it weatherproof, fade-resistant, rust-resistant, and capable of blocking bright light and 99% of UV rays. The permanent gazebo is designed to withstand heavy snow and wind. Rainwater is directed into the ground through eaves leakage holes, reducing issues during the rainy season. This design extends the gazebo's life and maintains its condition.

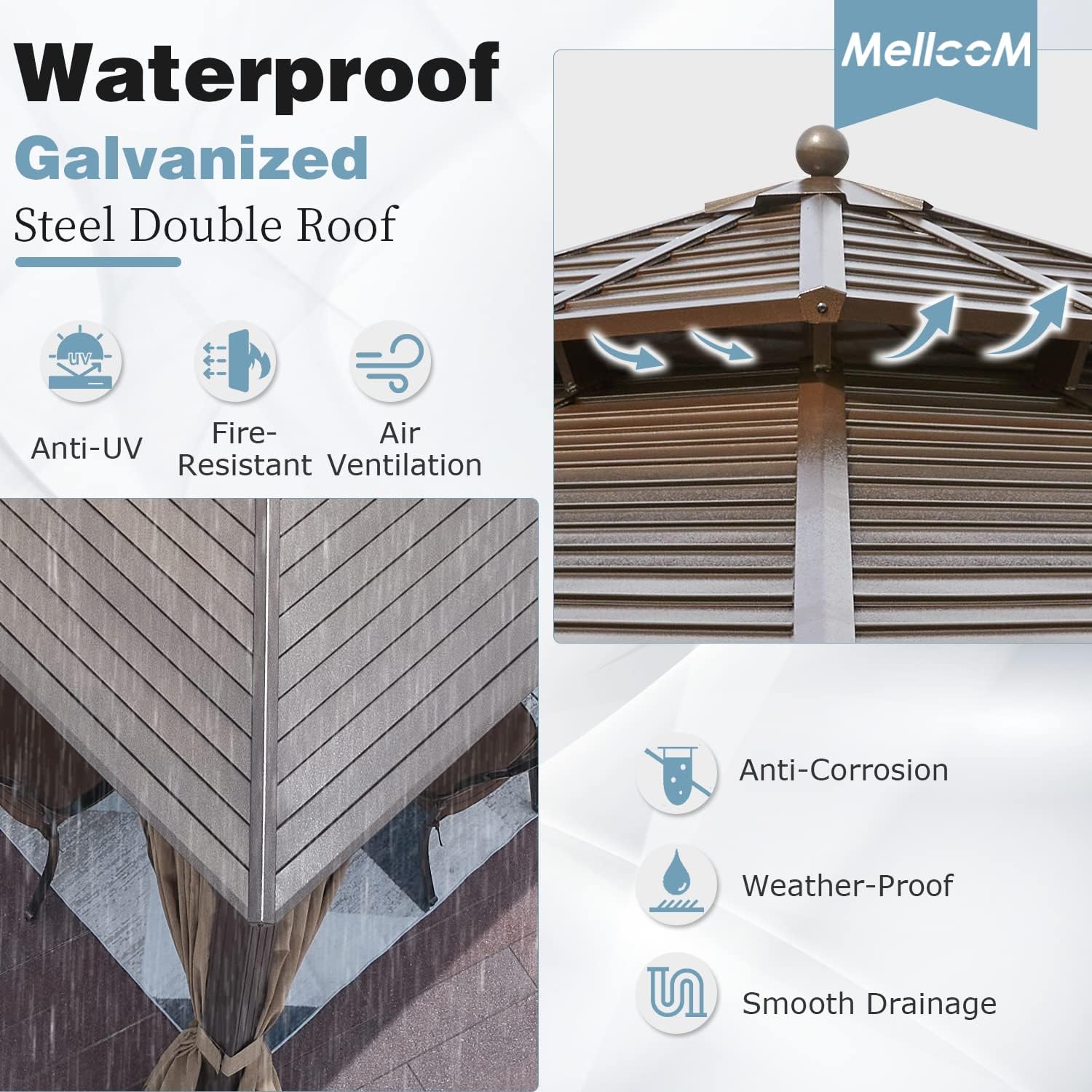

  Image: Detail of the galvanized steel double roof, highlighting its protective layers and ventilation features.
• Rustproof Aluminum Frame: Equipped with powder-coated triangular aluminum frames and pre-drilled bases, ensuring stability, durability, and adaptability to various ground conditions and weather.

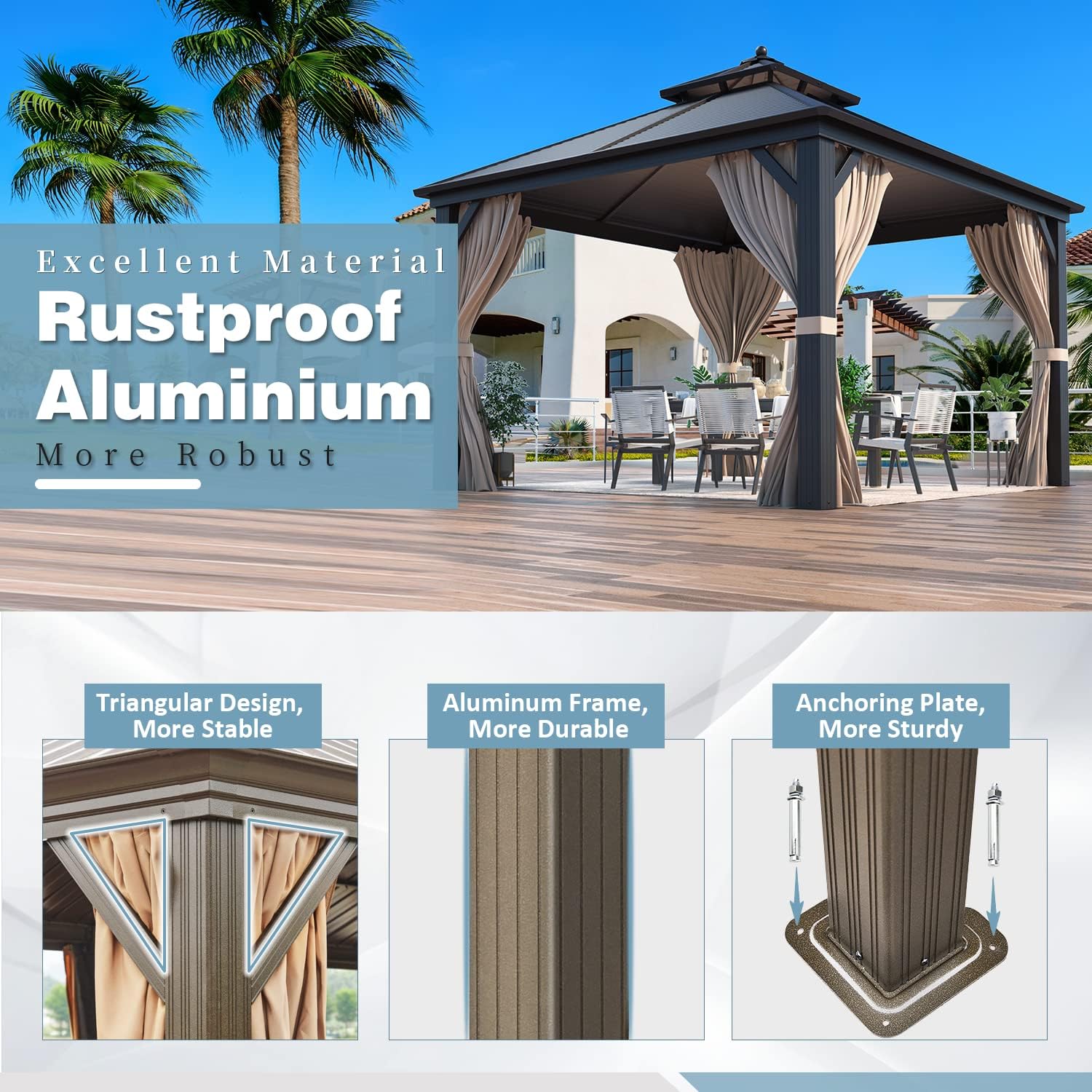

  Image: Comparison illustrating the robust 4x4 inch aluminum frame columns for enhanced stability.

• Netting & Curtains & Hooks: Includes removable zippered double-layer waterproof curtains and netting for privacy, good ventilation, and cozy surroundings. Sturdy hooks are provided for hanging lights and fans.


  Image: Interior view of the gazebo, showcasing the dual-layer curtains and netting, along with integrated hooks for accessories.
• Spacious Design: The 12 x 12 FT horizontal strip aluminum gazebo offers ample space for outdoor furniture, suitable for courtyards, backyards, and swimming pool areas.

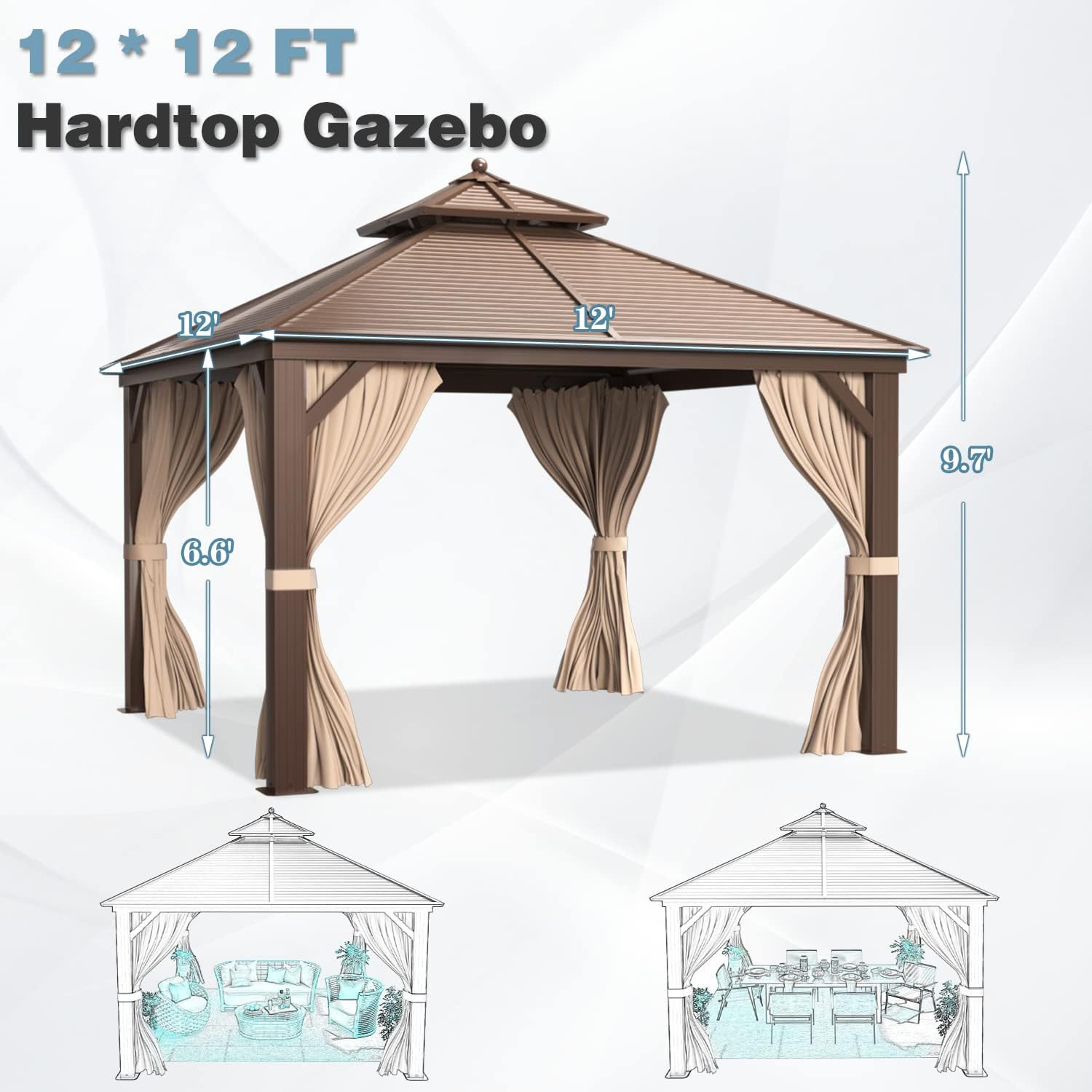

  Image: Dimensional diagram of the 12x12 FT gazebo, illustrating its spacious design.

Setup Instructions

The patio gazebo comes in a total of 4 boxes. Please ensure all boxes are received before beginning assembly. We recommend that 3-5 people work together to assemble the gazebo, which will take approximately 4-6 hours following the instructions.

Assembly Overview

The assembly process involves several key stages, starting with the base and progressing to the roof and accessories. Detailed visual guides are available to assist you.

Step-by-Step Assembly Video (Example)

Key Assembly Stages:

1. Base and Post Assembly: Securely attach the base plates to the main support posts.
2. Horizontal Frame Construction: Connect the horizontal beams that form the perimeter of the gazebo.
3. Roof Frame Assembly: Construct the inner and outer roof frames, ensuring all support beams are correctly aligned and fastened.
4. Roof Panel Installation: Carefully install the galvanized steel roof panels, ensuring proper overlap and secure fastening to prevent leaks.
5. Curtain and Netting Installation: Attach the curtain and netting tracks, then hang the removable zippered curtains and mosquito nets.

For a comprehensive visual guide, please refer to the official assembly videos provided by the manufacturer.

Operating Instructions

Curtains and Netting:

The gazebo is equipped with double-layer curtains and netting. The inner layer consists of mosquito netting, and the outer layer provides privacy and sun protection. Both layers feature zippers, allowing them to be opened, closed, or tied back independently. Use the integrated straps to secure the curtains and netting to the posts when not in use.

Accessory Hooks:

Utilize the sturdy hooks located on the interior roof structure to hang lights, fans, or other decorative items. Ensure that any hung items do not exceed the weight capacity of the hooks.

Maintenance

General Care:

• Regularly inspect all bolts and connections to ensure they remain tight and secure.
• Clean the galvanized steel roof and aluminum frame periodically with mild soap and water to remove dirt and debris. Avoid abrasive cleaners.
• Ensure the gazebo remains sturdily anchored to the ground, especially in areas prone to strong winds or heavy weather.

Curtain and Netting Care:

• The removable curtains and netting can be cleaned according to their fabric care instructions.
• In extreme weather conditions (e.g., very strong winds, heavy snow), it is advisable to remove or securely tie back the curtains and netting to prevent damage.

Troubleshooting

Stability Issues:

If the gazebo feels unstable, re-check all anchor points and frame connections. Ensure the pre-drilled bases are properly secured to a level surface. In areas with high winds, consider additional anchoring methods.

Water Leakage:

Verify that all roof panels are correctly installed with proper overlap and that all screws are tightened. Ensure the eaves leakage holes are clear of debris to allow for proper rainwater drainage.

Curtains/Netting Not Functioning Smoothly:

Check the tracks for any obstructions or damage. Ensure the hooks are properly seated in the tracks and that the zippers are clean and free of debris.

Specifications

Warranty and Support

MELLCOM offers excellent after-sales service for this product. If you have any questions, concerns, or require assistance with your gazebo, please feel free to contact MELLCOM customer support directly. Refer to your purchase documentation for specific warranty details and contact information.
