Landa Pressure Washer Trigger Gun Instruction Manual

1. Introduction

This instruction manual provides essential information for the proper installation, operation, and maintenance of your Landa Pressure Washer Trigger Gun. Please read this manual thoroughly before using the product to ensure safe and efficient operation and to prevent damage to the unit or injury to yourself or others. Keep this manual for future reference.

The Landa trigger gun is designed to meet the rigorous demands of high-pressure cleaning professionals, offering durability and performance. It is a standard component on many Landa pressure washer systems.

2. Safety Information

WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

Always wear appropriate personal protective equipment (PPE), including eye protection, gloves, and protective clothing, when operating a pressure washer.
Never point the trigger gun at people, pets, or electrical outlets. The high-pressure spray can cause severe injury.
Ensure all connections are secure before operating the pressure washer. Leaking connections can reduce pressure and cause hazards.
Do not operate the trigger gun if it is damaged or malfunctioning. Contact a qualified service technician for repairs.
Keep children and bystanders away from the operating area.
Always release pressure in the system before disconnecting the trigger gun or any hoses.

3. Product Overview

The Landa Pressure Washer Trigger Gun is a robust component designed for high-pressure cleaning applications. It features durable construction suitable for professional use.

Landa Pressure Washer Trigger Gun, front view — Figure 1: Front view of the Landa Pressure Washer Trigger Gun. This image shows the overall design of the trigger gun, including the handle, trigger, and nozzle connection point.

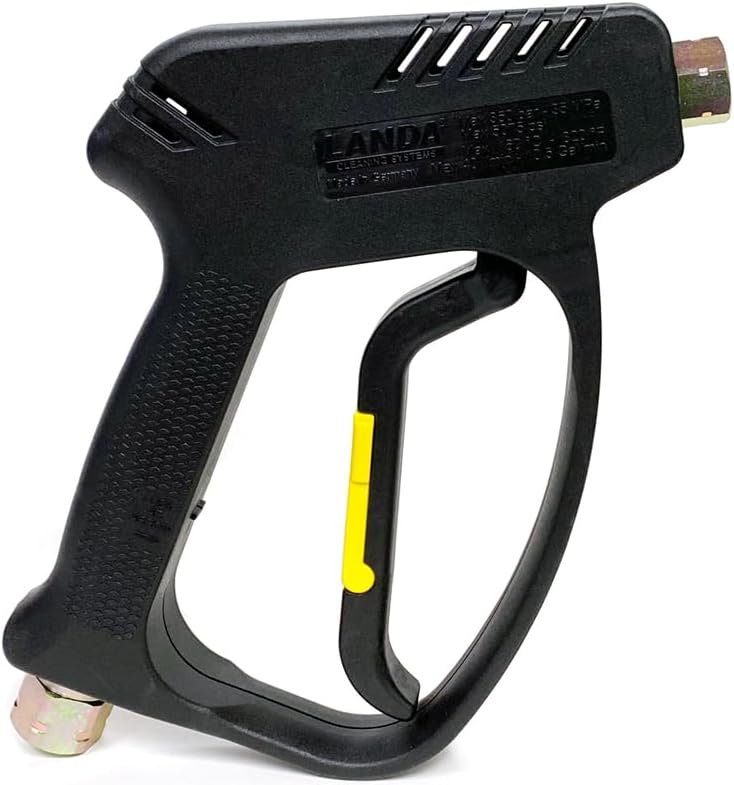

Landa Pressure Washer Trigger Gun, side view — Figure 2: Side view of the Landa Pressure Washer Trigger Gun. This view highlights the ergonomic grip and the yellow safety lock mechanism on the trigger.

Landa Pressure Washer Trigger Gun, close-up of specifications — Figure 3: Close-up view of the Landa Pressure Washer Trigger Gun showing engraved specifications. This image clearly displays the maximum pressure, temperature, and flow rate ratings directly on the gun's body.

4. Setup

Proper setup is crucial for safe and effective operation.

Inspect Components: Before each use, inspect the trigger gun, hoses, and all connections for any signs of damage, wear, or leaks. Do not use if damaged.
Connect Inlet Hose: Connect the high-pressure hose from your pressure washer pump to the 3/8" FPT inlet of the trigger gun. Ensure the connection is tight and secure to prevent leaks under high pressure.
Connect Outlet Nozzle/Wand: Attach your desired spray nozzle or wand to the 1/4" FPT outlet of the trigger gun. Twist or click into place securely, depending on your accessory type.
Water Supply: Ensure your pressure washer has an adequate and continuous water supply.

5. Operating Instructions

Follow these steps for safe operation of your Landa Pressure Washer Trigger Gun:

Start Pressure Washer: Turn on your pressure washer according to its manufacturer's instructions. Allow the system to build pressure.
Engage Trigger: Aim the nozzle away from yourself and others. Squeeze the trigger to begin the flow of high-pressure water.
Safety Lock: The trigger gun features a safety lock (often a yellow lever) to prevent accidental discharge. Engage this lock when the gun is not in use or when moving the unit. Disengage it before operating.
Control Spray: Maintain a firm grip on the gun. Adjust your distance from the cleaning surface to control the intensity of the spray.
Shut Down: To stop operation, release the trigger. To completely shut down, turn off the pressure washer and release any remaining pressure in the system by squeezing the trigger until water stops flowing.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your trigger gun.

Rinse After Use: After each use, flush the trigger gun with clean water to remove any chemical residues or debris.
Inspect Connections: Regularly check the inlet and outlet connections for wear, corrosion, or damage. Replace O-rings or fittings as needed.
Storage: Store the trigger gun in a clean, dry place, protected from freezing temperatures. Disconnect it from the pressure washer and hoses for storage.
Lubrication: Periodically apply a small amount of silicone grease to O-rings and threaded connections to ensure smooth operation and prevent seizing.

7. Troubleshooting

This section addresses common issues you might encounter with your Landa Pressure Washer Trigger Gun.

Problem	Possible Cause	Solution
No water flow or low pressure from gun	Clogged nozzle Kinked hose Air in the system Loose connections	Clean or replace nozzle Straighten hose Bleed air by running water through the system without the engine on Tighten all connections
Water leaking from connections	Loose fittings Worn or damaged O-rings	Tighten connections securely Inspect and replace O-rings if necessary
Trigger is stiff or stuck	Internal debris or corrosion Lack of lubrication	Flush the gun with clean water Apply silicone grease to moving parts (if accessible and recommended by manufacturer) If problem persists, professional service may be required

If you experience issues not covered here, or if troubleshooting steps do not resolve the problem, please contact Landa customer support or a certified service technician.

8. Specifications

Key technical specifications for the Landa Pressure Washer Trigger Gun:

Maximum PSI: 5000
Maximum GPM: 10.5
Maximum Temperature: 320° F (160° C)
Inlet Connection: 3/8" FPT (Female Pipe Thread)
Outlet Connection: 1/4" FPT (Female Pipe Thread)
Item Weight: 1.25 pounds
Color: Black
Power Source: Manual (operates with pressure washer)
Manufacturer: Landa

9. Warranty and Support

For information regarding warranty coverage, service, or technical support for your Landa Pressure Washer Trigger Gun, please refer to the official Landa website or contact Landa customer service directly. Keep your purchase receipt as proof of purchase.

You can visit the Landa Store on Amazon for more product information and support resources.
