1. Introduction
Thank you for choosing the EGO POWER+ HT2410E Cordless Hedge Trimmer. This manual provides essential information for the safe operation, maintenance, and optimal performance of your new tool. Please read it thoroughly before first use and keep it for future reference. This package includes the HT2410E hedge trimmer, a 56V battery, and a standard charger.
2. Safety Information
Always prioritize safety when operating power tools. Failure to follow these instructions may result in serious injury or property damage.
General Safety Warnings:
- Read all instructions: Familiarize yourself with the controls and proper use of the hedge trimmer.
- Wear appropriate personal protective equipment (PPE): Always wear safety glasses or goggles, hearing protection, heavy-duty gloves, and sturdy footwear.
- Keep bystanders away: Do not allow children or untrained persons to operate the hedge trimmer. Maintain a safe distance from others and pets.
- Inspect the work area: Before starting, check the hedge for foreign objects such as wires, fences, or hidden debris that could damage the blade or cause kickback.
- Avoid dangerous environments: Do not use the hedge trimmer in wet conditions or in the presence of flammable liquids or gases.
- Maintain good footing and balance: Do not overreach. Always ensure stable footing, especially when working on slopes.
- Secure the battery: Ensure the battery pack is securely latched into the tool before operation.
- Blade safety: The blades are very sharp. Handle with extreme care. Never touch the blades when the tool is running.
- Transport and storage: Always engage the blade sheath when transporting or storing the hedge trimmer.
3. Product Features
The EGO POWER+ HT2410E Cordless Hedge Trimmer is designed for efficient and powerful hedge maintenance. Key features include:
- Ready-to-use Pack: HT2410E hedge trimmer delivered with a 56-volt battery and a standard CH2100 battery charger.
- Powerful Electric Motor: High-performance, low-noise electric motor for efficient cutting.
- High Cutting Speed: Achieves 3000 strokes per minute for quick and clean cuts.
- Precision Blade: Laser-cut and diamond-ground blade for superior sharpness and durability.
- Generous Blade Length: 60 cm blade for wider cutting swaths.
- Excellent Cutting Capacity: Capable of cutting branches up to 26 mm in diameter.
4. Components and Assembly
Familiarize yourself with the main parts of your EGO POWER+ HT2410E hedge trimmer.
Figure 4.1: The EGO POWER+ HT2410E Cordless Hedge Trimmer, showing its main body, blade, and handles. This is the complete tool ready for use.

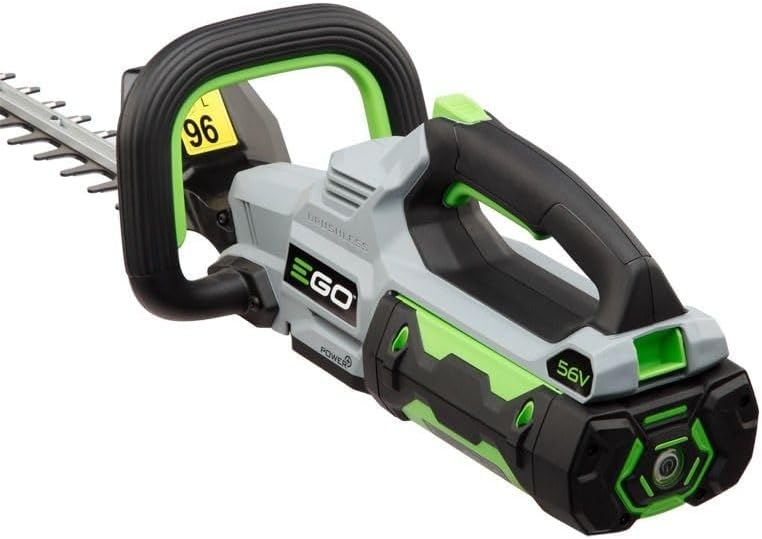

Figure 4.2: A close-up view of the hedge trimmer's handle and control area, highlighting the ergonomic design and power switch. The sound level sticker (96dB) is visible.
Figure 4.3: Detailed view of the hedge trimmer's double-sided blade and the protective tip guard. The sharp teeth are clearly visible, designed for precise cutting.
Assembly:
The EGO POWER+ HT2410E hedge trimmer comes largely pre-assembled. Detailed assembly and setup instructions are available in the included French language manual provided by our technical team. Key steps include:
- Battery Charging: Before first use, fully charge the 56V battery using the supplied CH2100 charger. Refer to the charger's manual for specific charging instructions.
- Battery Installation: Align the battery with the battery port on the hedge trimmer and slide it in until it clicks securely into place. Ensure it is firmly seated.
- Blade Sheath Removal: Carefully remove the blade sheath before operation. Always replace it when the tool is not in use or during transport.
5. Operating Instructions
Follow these steps for safe and effective operation of your hedge trimmer.
Starting and Stopping:
- To Start: Ensure the battery is installed. Press and hold the safety switch (usually on the front handle) and then squeeze the trigger switch (on the rear handle). The blade will begin to move.
- To Stop: Release the trigger switch. The blade will stop. Always release the safety switch as well.
Cutting Techniques:
For best results and safety, use proper cutting techniques.
Figure 5.1: A user demonstrating the proper technique for trimming a low hedge, holding the hedge trimmer horizontally for an even cut. Safety glasses are worn.
Figure 5.2: A user trimming the side of a taller hedge, holding the hedge trimmer vertically. This illustrates the versatility of the tool for different hedge shapes and sizes.
- Horizontal Cutting: For the top of hedges, hold the trimmer horizontally and sweep across the top in smooth, even strokes.
- Vertical Cutting: For the sides of hedges, hold the trimmer vertically and sweep upwards or downwards, maintaining a slight angle for a clean finish.
- Avoid Overloading: Do not force the trimmer through thick branches. If the blade slows down, reduce the cutting load.
- Clean Cuts: Use the full length of the blade for efficient cutting.
6. Maintenance
Regular maintenance ensures the longevity and performance of your hedge trimmer.
- Blade Cleaning: After each use, disconnect the battery and carefully clean the blades with a stiff brush to remove sap and debris.
- Blade Lubrication: Apply a light machine oil or blade lubricant to the blades after cleaning to prevent rust and ensure smooth operation.
- Battery Care: Store the battery in a cool, dry place away from direct sunlight. Do not store fully discharged. Charge it periodically if not used for extended periods.
- Tool Cleaning: Wipe down the exterior of the tool with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Storage: Always attach the blade sheath before storing the hedge trimmer. Store in a dry, secure location out of reach of children.
7. Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hedge trimmer does not start. | Battery not installed correctly or discharged. Safety switch/trigger not engaged. | Ensure battery is fully charged and securely latched. Fully engage both safety switch and trigger. |
| Blades are not cutting efficiently. | Blades are dull or dirty. Cutting too thick material. | Clean and lubricate blades. If dull, consider professional sharpening. Reduce cutting load. |
| Tool stops during operation. | Overload protection activated. Battery low. | Release trigger, remove battery, wait a few moments, then reinsert. Charge battery if low. |
If the problem persists after attempting these solutions, please contact customer support.
8. Specifications
Technical specifications for the EGO POWER+ HT2410E Cordless Hedge Trimmer:
| Feature | Specification |
|---|---|
| Manufacturer | EGO POWER+ |
| Model Number | HT2410E (Kit Model: PACK-HT2411E) |
| Power Source | Battery Powered |
| Voltage | 56 Volts |
| Wattage | 1120 Watts |
| Motor Type | Brushless |
| Engine Speed | 3000 strokes/min |
| Blade Length | 60 Centimeters |
| Blade Material | Alloy Steel (Laser-cut and diamond-ground) |
| Cutting Capacity (Tooth Spacing) | 2.6 Centimeters (26 mm) |
| Weight (Tool only) | 2.8 Kg |
| Weight (Item, likely with battery) | 7.6 Kilograms |
| Color | Grey |
| Battery/Charger Included | Yes |
| Warranty | 5 years |
9. Warranty Information
The EGO POWER+ HT2410E Cordless Hedge Trimmer comes with a 5-year warranty. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the documentation included with your product or visit the official EGO POWER+ website.
10. Customer Support
For any questions, technical assistance, or service needs regarding your EGO POWER+ HT2410E hedge trimmer, please contact the authorized after-sales service team. This service is provided by an internal team at Tondeuse-et-compagnie, trained and approved by the manufacturer to intervene on the brand's products.
For further support, you may also visit the official EGO POWER+ website or contact your local dealer.
