1. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- This appliance has a safety power cut-off feature when the outer pot is detached.
- Ensure proper ventilation around the appliance during use.
2. Product Overview
The Aucma 5.8QT Digital Air Fryer utilizes dynamic airflow technology to circulate 360° hot air, allowing for cooking with significantly less oil compared to traditional deep frying. It features a large capacity suitable for family meals and a user-friendly digital touch screen with multiple cooking presets.
Key Features:
- 5.8QT Capacity: Generous size for various cooking needs.
- Digital Touch Screen: Easy-to-read display for intuitive operation.
- 9 Cooking Presets: Pre-programmed settings for common dishes.
- Adjustable Temperature: Range from 104°F to 400°F (40°C to 200°C).
- 60-Minute Timer: With automatic shut-off for precise cooking.
- Pre-heat Function: Ensures the unit reaches the desired temperature before cooking.
- Non-stick Basket: Detachable and dishwasher-safe for easy cleaning.
- Safety Features: Automatic shut-off upon cooking completion, power cut-off when the outer pot is detached, and overheating protection.
Image: The Aucma 5.8QT Digital Air Fryer in red, shown with a basket of cooked french fries.
Image: A diagram demonstrating the 360-degree hot air circulation technology within the air fryer, cooking food evenly.
Image: A visual representation of the nine preset cooking functions available on the air fryer's digital display, including options for French fries, fish, shrimp, steak, cake, drumstick, vegetable, chicken wing, and pizza.
3. Setup and First Use
Unpacking:
- Remove all packaging materials, stickers, and labels from the appliance.
- Remove the basket and outer pot from the air fryer.
Cleaning Before First Use:
- Wash the basket and outer pot with hot water, dish soap, and a non-abrasive sponge.
- Wipe the inside and outside of the appliance with a damp cloth.
- Ensure all parts are completely dry before use.
Placement:
- Place the air fryer on a stable, horizontal, and heat-resistant surface.
- Ensure there is at least 4 inches (10 cm) of free space on the back and sides, and above the appliance, for proper air circulation.
- Do not place the appliance against a wall or other appliances.
4. Operating Instructions
General Operation:
- Plug the power cord into a grounded wall outlet.
- Carefully pull the outer pot out of the air fryer.
- Place the ingredients into the basket. Do not exceed the MAX fill line.
- Slide the outer pot back into the air fryer. Ensure it clicks into place.
- Press the power button to turn on the appliance.
- Setting Temperature and Time:
- Use the temperature control buttons (up/down arrows) to set the desired cooking temperature (104°F - 400°F).
- Use the timer control buttons (up/down arrows) to set the desired cooking time (up to 60 minutes).
- Using Presets:
- Press the preset menu button to cycle through the 9 available cooking presets. Each preset has a default time and temperature.
- You can adjust the time and temperature of a selected preset if needed.
- Press the start/pause button to begin cooking.
- Some ingredients may require shaking halfway through the cooking time. Pull out the outer pot, shake the contents, and then slide it back in. The air fryer will resume cooking automatically.
- When the cooking time is complete, the air fryer will beep and automatically shut off.
- Carefully pull out the outer pot and transfer the cooked food to a plate.
Pre-heat Function:
The built-in pre-heat function ensures the unit heats to the desired temperature before you begin to cook, which can improve cooking results. To use, set your desired temperature and time, then activate the pre-heat option if available on the display, or simply allow the unit to run for 3-5 minutes before adding food.

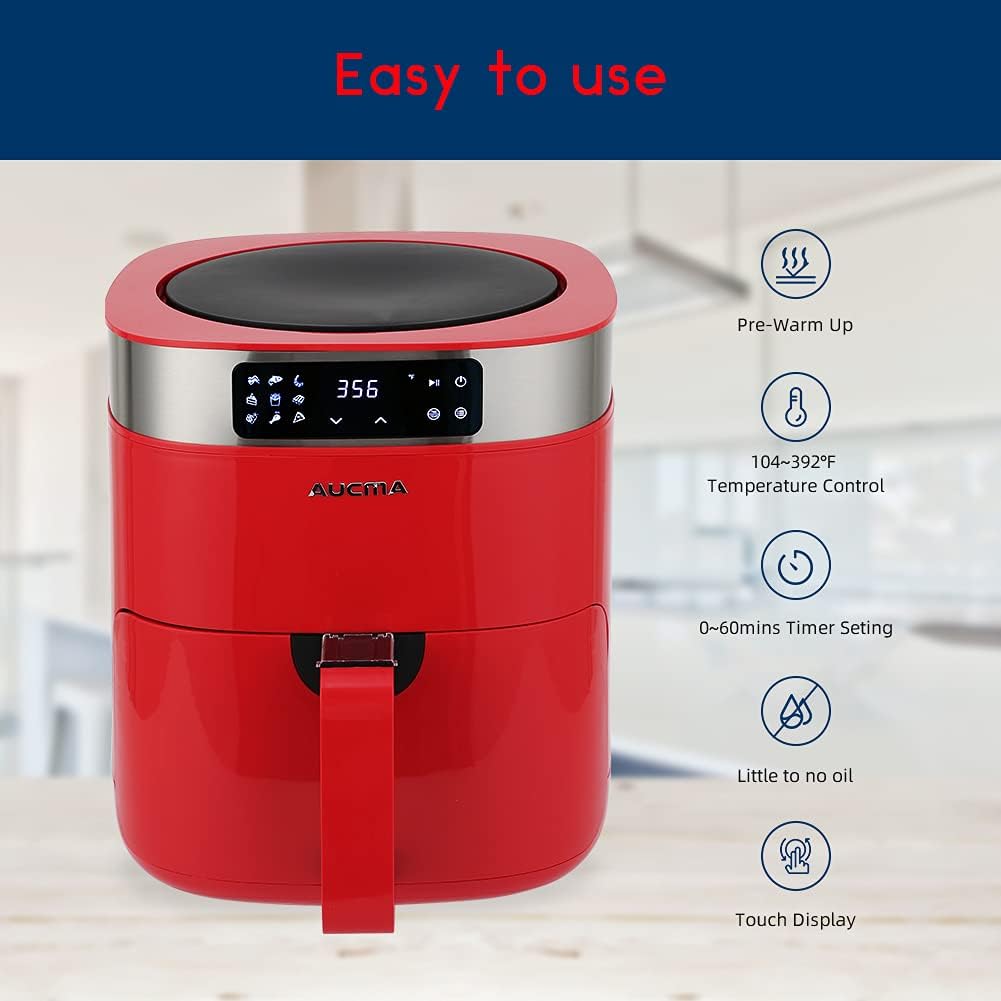

Image: The air fryer's digital display highlighting its user-friendly features: Pre-Warm Up, 104-392°F Temperature Control, 0-60mins Timer Setting, Little to no oil cooking, and Touch Display.
5. Cooking Guide
The following table provides general guidelines for cooking various foods. Cooking times and temperatures may vary based on food quantity, size, and desired crispness. Always ensure food is cooked to a safe internal temperature.
| Food Item | Temperature | Time | Notes |
|---|---|---|---|
| French Fries (frozen) | 380°F (193°C) | 15-20 min | Shake halfway |
| Chicken Wings | 375°F (190°C) | 20-25 min | Flip halfway |
| Steak | 400°F (200°C) | 10-15 min | Flip halfway, adjust for doneness |
| Fish Fillets | 350°F (175°C) | 12-18 min | Adjust for thickness |
| Shrimp | 370°F (188°C) | 8-12 min | Shake halfway |
| Vegetables (chopped) | 375°F (190°C) | 10-15 min | Shake halfway |
6. Maintenance and Cleaning
Clean the air fryer after every use.
Cleaning the Basket and Outer Pot:
- Unplug the air fryer and allow it to cool completely before cleaning.
- Remove the outer pot and basket.
- The non-stick outer pot and basket with Teflon coating are detachable and dishwasher safe. They can also be washed by hand with hot water, dish soap, and a non-abrasive sponge.
- For stubborn food residue, soak the basket and outer pot in hot water with some dish soap for about 10 minutes.
Cleaning the Main Unit:
- Wipe the exterior of the air fryer with a damp cloth. Do not immerse the main unit in water or any other liquid.
- Clean the inside of the appliance with a damp cloth and a mild detergent.
- Clean the heating element with a cleaning brush to remove any food residue.
Image: The detachable air fryer basket being cleaned under running water, demonstrating its ease of washing.
7. Troubleshooting
If you encounter any issues with your Aucma Air Fryer, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance is not plugged in. | Ensure the power cord is securely plugged into a grounded wall outlet. |
| Outer pot is not inserted correctly. | Push the outer pot completely into the appliance until it clicks into place. | |
| Food is not cooked evenly. | Too much food in the basket. | Cook smaller batches for more even results. |
| Food was not shaken or flipped. | Shake or flip ingredients halfway through cooking time. | |
| White smoke comes from the appliance. | Greasy residue from previous use. | Clean the basket and outer pot thoroughly after each use. |
| Excess oil dripping onto the heating element. | Remove excess oil from food before air frying. | |
| Food is not crispy. | Not enough oil or incorrect temperature/time. | Lightly brush or spray food with oil. Adjust temperature or increase cooking time. |
8. Specifications
- Brand: Aucma
- Model: B08CB2B3VJ
- Capacity: 5.8 Quarts (5.49 Liters)
- Color: Red
- Material: Plastic
- Product Dimensions: 26.6"D x 12.4"W x 11.4"H
- Item Weight: 14.97 pounds
- Wattage: 1500 Watts
- Control Method: Touch
- Max Temperature Setting: 400°F (200°C)
- Special Features: Automatic Shut-Off, 9 Preset Programs, Pre-warm Up, Non-stick Coating, Dishwasher Safe (basket/pot)
9. Warranty and Support
Aucma is committed to providing a one-year 100% satisfaction guarantee for replacement or refund. For warranty claims or support inquiries, please contact Aucma customer service through the retailer where the product was purchased or refer to the official Aucma website for contact information.
