1. Introduction
Thank you for choosing the BLACK+DECKER 1400W BW15 High-Pressure Washer. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new pressure washer. Please read these instructions carefully before use and keep them for future reference.
2. Important Safety Information
WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Always wear appropriate personal protective equipment, including safety glasses, hearing protection, and protective clothing.
- Never direct the water jet at people, animals, electrical equipment, or the appliance itself.
- Ensure the power supply matches the voltage specified on the product label.
- Do not operate the pressure washer if the power cord or other important parts are damaged.
- Keep children and pets away from the operating area.
- Always disconnect the power plug from the socket before performing any cleaning or maintenance.
3. Product Overview and Components
Familiarize yourself with the main components of your BLACK+DECKER BW15 High-Pressure Washer:
- Main Unit: Contains the motor and pump.
- High-Pressure Hose: Connects the main unit to the spray gun.
- Spray Gun: Controls the water flow and pressure.
- Adjustable Nozzle: Allows for varying spray patterns.
- Detergent Bottle: For applying cleaning solutions.
- Water Inlet Filter: Prevents debris from entering the pump.
- Wheels: For easy portability.
- On/Off Rotary Switch: To power the unit.
Figure 3.1: Front view of the pressure washer, showing its compact design, rubber wheels, and rotary on/off switch.

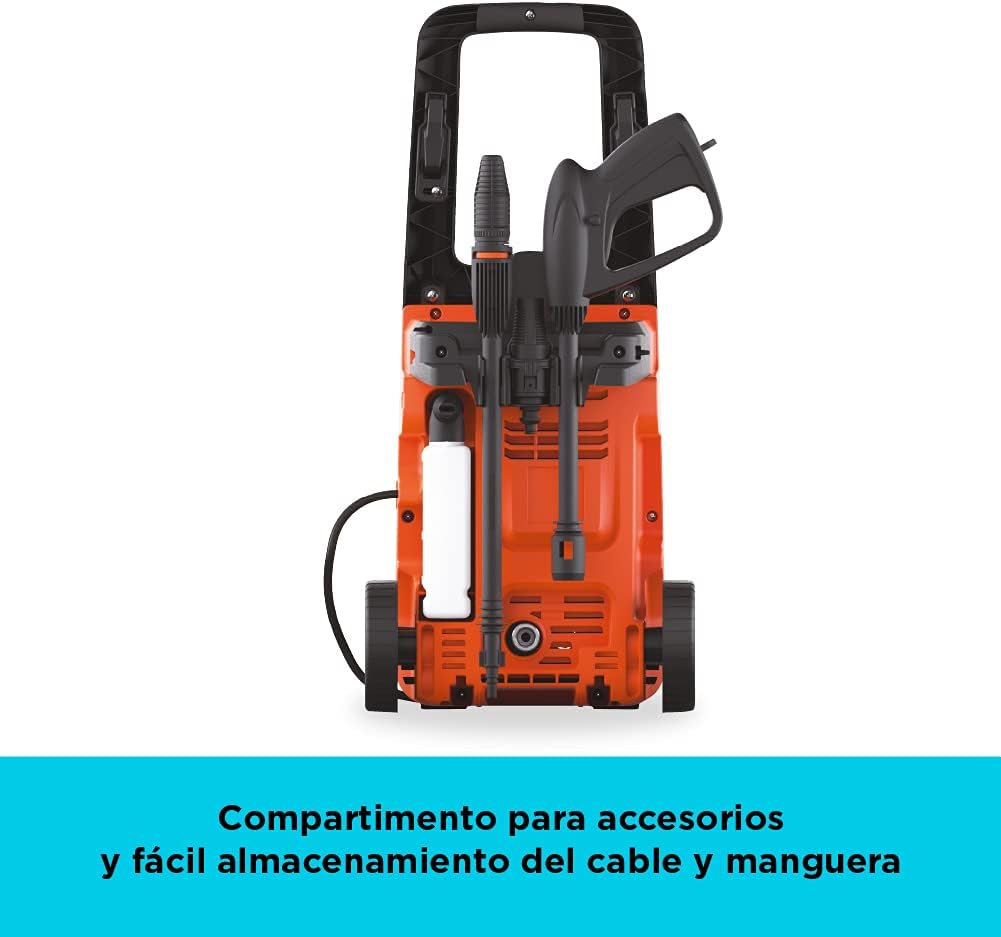

Figure 3.2: Rear view of the pressure washer, illustrating the accessory compartment and integrated storage for the cable and hose.
Figure 3.3: Side view of the pressure washer, highlighting the quick-connect device with an integrated impurity filter.
4. Setup Instructions
Follow these steps to set up your pressure washer before first use:
- Attach Wheels: If not already attached, secure the rubber wheels to the base of the unit.
- Connect High-Pressure Hose: Connect one end of the high-pressure hose to the outlet on the pressure washer and the other end to the spray gun. Ensure connections are tight.
- Connect Water Supply: Attach a garden hose (not included) to the water inlet on the pressure washer. Ensure the water inlet filter is in place. Connect the other end of the garden hose to a water tap.
- Connect Spray Lance/Nozzle: Attach the desired spray lance or adjustable nozzle to the spray gun.
- Fill Detergent Bottle (Optional): If using detergent, fill the detergent bottle with an appropriate pressure washer detergent and attach it to the spray gun.
- Power Connection: Plug the power cord into a grounded electrical outlet.
5. Operating Instructions
Before operating, ensure all connections are secure and the water supply is turned on. Never run the pump dry.
- Purge Air: Squeeze the trigger on the spray gun to allow water to flow through the system and expel any air. Continue until a steady stream of water emerges.
- Turn On: Turn the rotary On/Off switch to the 'On' position. The motor will start.
- Begin Cleaning: Direct the spray gun at the surface to be cleaned, maintaining a safe distance. Adjust the nozzle for the desired spray pattern (e.g., wide fan for general cleaning, narrow jet for stubborn dirt).
- Apply Detergent (if applicable): If using the detergent bottle, the pressure washer will operate at a lower pressure to allow for effective detergent application.
- Rinse: After applying detergent, remove the detergent bottle and rinse the surface with high-pressure water.
- Total Stop System (TSS): The unit features a Total Stop System (TSS) which automatically shuts off the pump when the trigger is released, saving energy and prolonging pump life. The pump restarts when the trigger is squeezed again.
Figure 5.1: The pressure washer in action, showcasing its 1400W power and 1740 PSI pressure for effective cleaning.
Video 5.1: A close-up demonstration of the BLACK+DECKER pressure washer's features and operation, provided by Amazon Mexico.
6. Maintenance
Regular maintenance ensures optimal performance and extends the life of your pressure washer.
- Clean Water Inlet Filter: Regularly check and clean the water inlet filter to prevent blockages.
- Drain Water: After each use, disconnect the water supply and run the pressure washer for a few seconds to drain any remaining water from the pump and hose. This is especially important in freezing temperatures.
- Clean Nozzles: Clear any blockages in the nozzle using the provided nozzle cleaning tool.
- Storage: Store the pressure washer in a dry, frost-free location. Wind the high-pressure hose and power cord neatly and store accessories in their designated compartments.
7. Troubleshooting
If you encounter issues, refer to the table below for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start | No power supply; On/Off switch off; Thermal overload. | Check power connection; Turn switch to 'On'; Allow motor to cool down. |
| Low pressure | Insufficient water supply; Clogged nozzle; Air in pump. | Check water tap; Clean nozzle; Purge air from system. |
| Water leaks | Loose connections; Damaged O-rings. | Tighten connections; Replace damaged O-rings. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | BLACK+DECKER |
| Model Number | BW15-B3 |
| Power | 1400 W |
| Flow Rate | 6.5 Liters per minute |
| Hose Length | 6 Meters |
| Weight | 3 Kilograms |
| Dimensions (L x W x H) | 26.4 x 29.7 x 46 cm |
| Power Source | AC/DC |
9. Warranty and Support
For warranty information and customer support, please refer to the documentation included with your product or visit the official BLACK+DECKER website. Keep your purchase receipt as proof of purchase for any warranty claims.
