1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your LifeSmart BCM100D QuickLink Curtain Motor Kit. Please read this manual thoroughly before using the product to ensure proper function and safety.
2. Product Features
- Silent and vibration-free motor operation.
- Curtain can be opened and closed manually.
- Easy installation and assembly.
- Maximum supported load of 50 kg.
- Option to choose between side or central opening configurations.
3. Package Contents
The LifeSmart BCM100D QuickLink Curtain Motor Kit includes the following components:

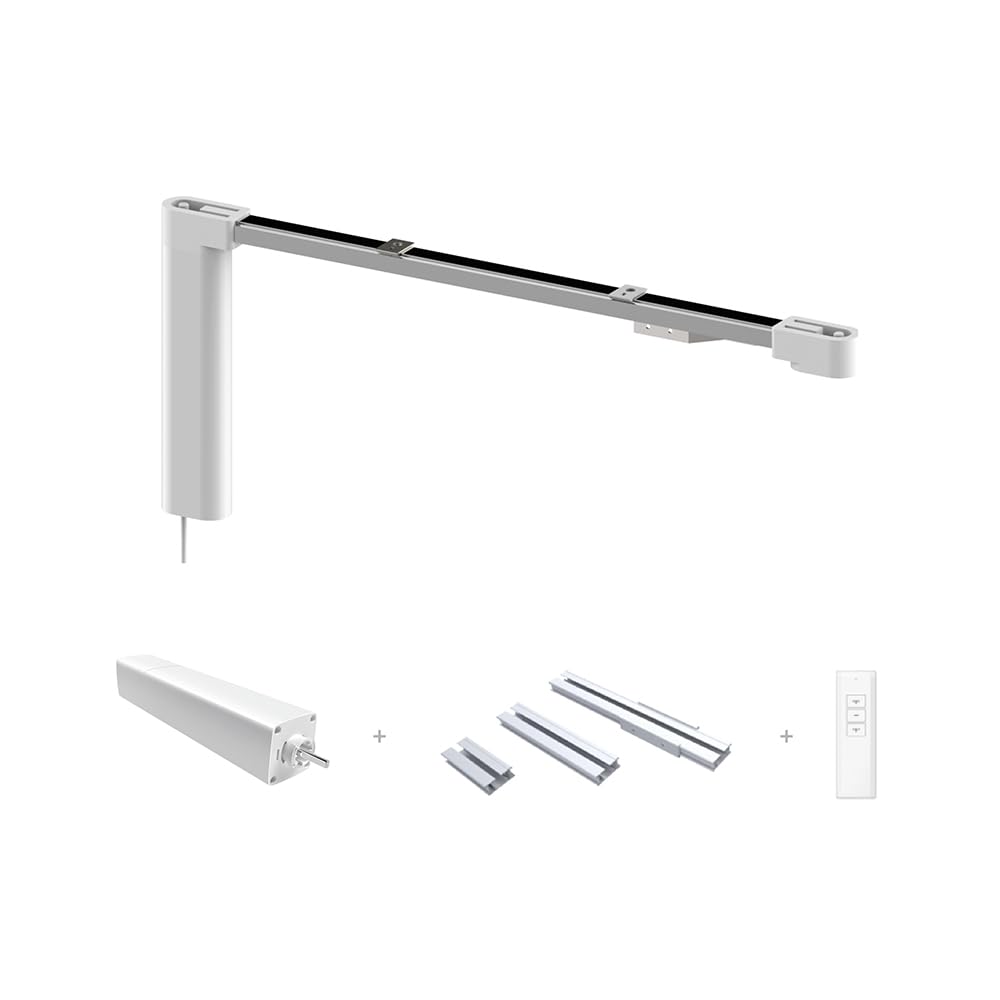

Image 1: Overview of the LifeSmart BCM100D QuickLink Curtain Motor Kit, showing the motor unit, various track sections, and the remote control.
- Curtain Motor Unit
- Curtain Track Sections (various lengths)
- Track Connectors
- Mounting Brackets
- Remote Control
- Power Cable
- User Manual (this document)
Image 2: Front view of the LifeSmart BCM100D motor unit, highlighting its compact design.
Image 3: Side view of the LifeSmart BCM100D motor unit, showing its elongated form factor.
Image 4: Various lengths of curtain track sections included in the kit, designed for modular assembly.
Image 5: Close-up of the track connectors, used to join multiple track sections securely.
Image 6: A mounting bracket for the curtain track, designed for secure installation.
Image 7: The remote control unit, featuring buttons for curtain operation.
4. Setup and Installation
The LifeSmart BCM100D is designed for easy installation. Ensure the mounting surface can support the maximum load of 50 kg, including the curtain and the motor kit. Follow these general steps:
- Measure and Plan: Determine the desired length and configuration (side or central opening) for your curtain track.
- Assemble Tracks: Connect the track sections using the provided connectors to achieve the required length.
- Mount Brackets: Securely attach the mounting brackets to the wall or ceiling at appropriate intervals.
- Install Motor: Integrate the motor unit into the track system according to the specific instructions provided in the separate installation guide (if applicable).
- Attach Curtains: Hang your curtains onto the track runners.
- Power Connection: Connect the motor to a suitable power outlet (100 V ~ 240 V AC, 50/60 Hz).
- Test Operation: Use the remote control to test the curtain's movement.
If you are unsure about any installation steps, it is recommended to consult a qualified professional.
5. Operating Instructions
The BCM100D curtain motor offers both manual and remote-controlled operation.
5.1 Remote Control Operation
Use the provided remote control to operate the curtain motor. The buttons typically correspond to:
- Open: Fully opens the curtain.
- Close: Fully closes the curtain.
- Stop/Pause: Stops the curtain at its current position.
Refer to the remote control's specific instructions for pairing and advanced functions.
5.2 Manual Operation
In case of power outage or if you prefer manual control, the curtain can be opened and closed by gently pulling the curtain fabric. The motor is designed to allow manual movement without resistance.
6. Maintenance
To ensure the longevity and optimal performance of your LifeSmart BCM100D QuickLink Curtain Motor Kit, follow these maintenance guidelines:
- Regular Cleaning: Periodically wipe the motor unit and tracks with a dry, soft cloth to remove dust and debris. Avoid using abrasive cleaners or solvents.
- Track Inspection: Inspect the curtain tracks for any obstructions or damage that might hinder smooth curtain movement.
- Power Cord Check: Ensure the power cord is not damaged or frayed.
- Battery Replacement: If the remote control's range or responsiveness decreases, replace its batteries as per the remote's instructions.
7. Troubleshooting
If you encounter issues with your curtain motor kit, refer to the following common troubleshooting steps:
- Motor Not Responding:
- Check if the motor is properly connected to a power source.
- Ensure the remote control batteries are not depleted.
- Verify that the remote control is paired with the motor.
- Curtain Movement is Jerky or Stops:
- Inspect the curtain tracks for any obstructions or debris.
- Ensure the curtain weight does not exceed the maximum supported load of 50 kg.
- Check if the track sections are properly aligned and connected.
- Unusual Noises:
- Inspect the tracks and motor for any loose parts or foreign objects.
- Ensure the motor is securely mounted.
If the problem persists after attempting these steps, please contact customer support.
8. Specifications
| Parameter | Value |
| Model Number | BCM100D |
| Transmission Distance | Up to 100 meters (open field) |
| Frequency | 433 MHz |
| Wireless Protocol | CoSS |
| Operating Voltage | 100 V ~ 240 V AC, 50/60 Hz |
| Power Consumption | 40 W |
| Operating Temperature | -5 °C to +45 °C |
| Operating Humidity | 5% to 90% |
| Dimensions (Motor Unit) | 50 x 50 x 270 mm |
| Weight (Motor Unit) | 4 kg |
| Maximum Supported Load | 50 kg |
9. Warranty and Support
Warranty: If products are found to be defective, customers have 30 days from the date of purchase to return them for a 100% refund of the product price.
Technical Support: For any technical inquiries, assistance with installation, or troubleshooting beyond the initial 30-day period, please contact our customer support team. We are committed to providing quality products and excellent service to ensure your satisfaction.
