1. Introduction
Thank you for choosing the Hisense BSA5222AX Multifunction Steam Oven. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read it thoroughly before first use and keep it for future reference.
Figure 1: Front view of the Hisense BSA5222AX Oven.
2. Important Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, burns, or injury. This oven is designed for domestic use only.
- Read all instructions carefully before operating the oven.
- Ensure the oven is properly installed and grounded by a qualified technician.
- Do not touch hot surfaces. Use oven mitts or pot holders.
- Do not allow children to operate or play with the oven. The oven features a child safety lock.
- Never use the oven for heating the room.
- Do not store flammable materials in or near the oven.
- Always disconnect the power supply before cleaning or servicing.
- Use only recommended accessories.
3. Product Features
The Hisense BSA5222AX oven is designed with advanced features for optimal cooking performance and ease of use:
- Multifunction Oven with Steam Add: This oven includes a steam cooking program, allowing you to manually add 2 liters of water for simple and healthy cooking.
- 71 Liter Capacity with Even Bake: The interior shape is inspired by traditional wood-fired ovens, ensuring uniform baking results across all dishes.
- Steam Clean Function: Utilizes the power of steam to effectively remove grease and stains, simplifying the cleaning process.
- Telescopic Guides: For easy and safe insertion and removal of baking trays and racks.
- Double Glazed Armored Door: Features a removable heat reflector for easy cleaning and enhanced safety.
Figure 2: Key features of the Hisense BSA5222AX Oven.
4. Installation
The Hisense BSA5222AX is an integrated oven designed for seamless integration into your kitchen cabinetry. Professional installation is highly recommended to ensure proper functionality and safety.
4.1 Dimensions and Clearance
Ensure your cabinet opening meets the required dimensions for proper ventilation and fit. The oven dimensions are approximately 59.7 cm (Width) x 54.7 cm (Depth) x 59.5 cm (Height).

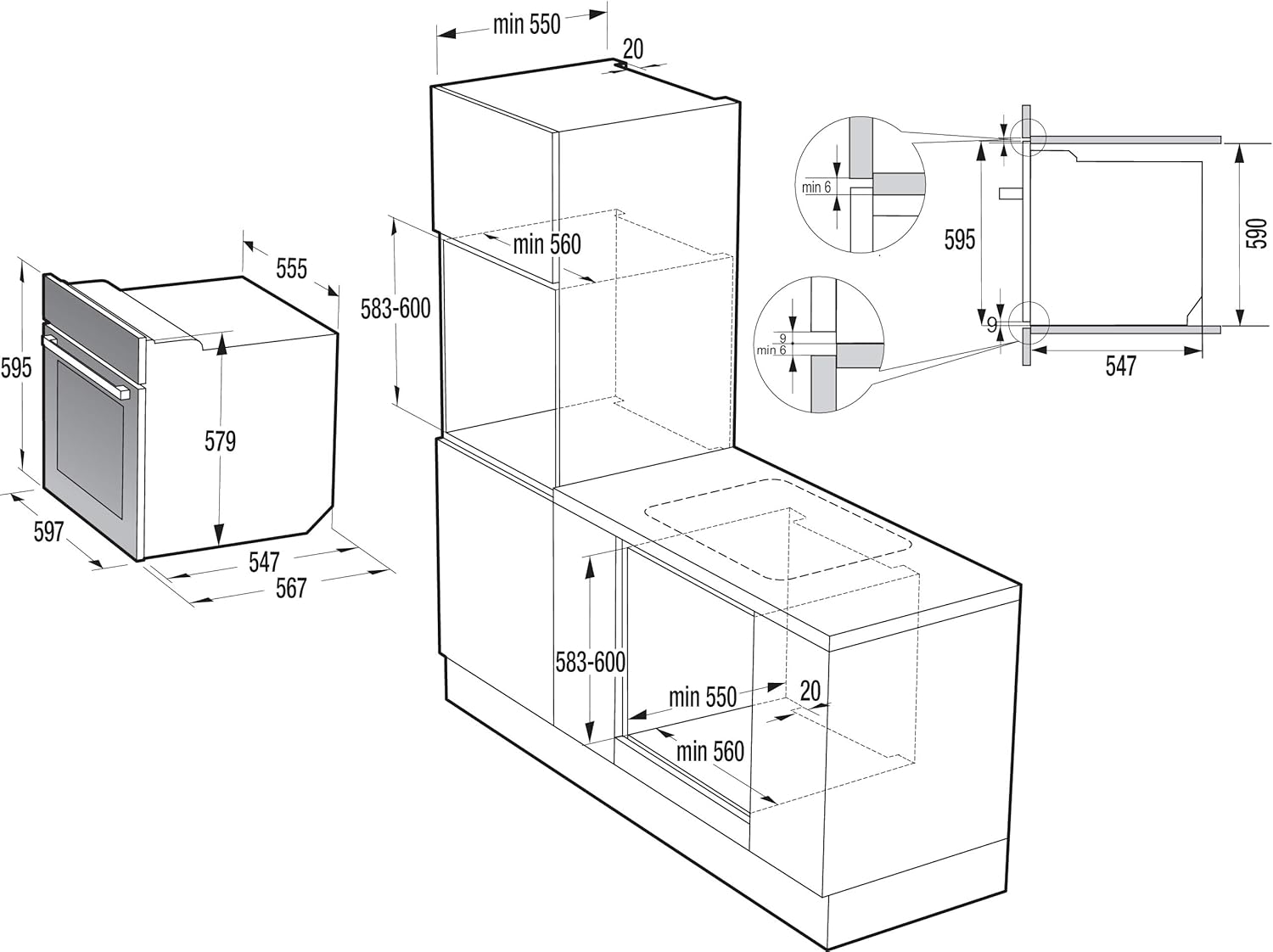

Figure 3: Installation dimensions and clearances.
4.2 Electrical Connection
The oven operates on an electrical power supply with a wattage of 3300W. A dedicated circuit is recommended. Consult a qualified electrician for connection to the main power supply.
5. Operating Instructions
Your Hisense oven features intuitive controls for various cooking functions. The control panel includes two rotary knobs and a digital display with touch controls.
Figure 4: Oven Control Panel.
5.1 Basic Operation
- Turn the left rotary knob to select the desired cooking function.
- Turn the right rotary knob to set the desired temperature.
- Use the touch controls on the digital display to set cooking time, activate special functions, or adjust settings.
5.2 Steam Add Function
The Steam Add function is ideal for baking bread, pastries, and other dishes that benefit from a moist environment. It helps achieve a crispy crust and a soft, fluffy interior.
- Place your food in the oven.
- Manually add approximately 200 ml of water to the designated tray at the bottom of the oven cavity.
- Select one of the three "Steam Add" programs using the function knob.
- Set the desired temperature. The oven will create a humid environment for optimal results.
Video 1: Demonstrates the Hisense oven's Steam Add function for perfect bread baking, showing how to add water and the resulting texture compared to conventional baking.
5.3 Even Bake Technology
The Even Bake technology ensures uniform heat distribution throughout the oven cavity, inspired by traditional wood-fired ovens. This results in perfectly cooked dishes with consistent browning and texture.
Video 2: Illustrates the Even Bake technology in Hisense ovens, showcasing how hot air circulates freely to ensure uniform cooking and perfect results.
6. Maintenance and Cleaning
Regular cleaning and maintenance will prolong the life of your oven and ensure optimal performance.
6.1 Steam Clean
The Steam Clean function makes cleaning effortless. Simply pour water into the oven cavity and activate the Steam Clean program. The steam will loosen baked-on food residues, making them easy to wipe away.
6.2 General Cleaning
- Always ensure the oven is cool before cleaning.
- Wipe the interior with a damp cloth and mild detergent after each use.
- The double glazed door's removable heat reflector allows for easy access and thorough cleaning of the glass panels.
- Clean the exterior with a soft cloth and non-abrasive cleaner.
7. Troubleshooting
If you encounter any issues with your oven, please refer to the following common problems and solutions before contacting customer service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven not heating | Power supply issue, incorrect settings, or tripped circuit breaker. | Check power connection, ensure oven is plugged in, verify settings, and check your home's circuit breaker. |
| Uneven cooking | Improper rack placement, overloaded oven, or issues with Even Bake function. | Ensure food is placed centrally, avoid overcrowding, and verify Even Bake is selected for appropriate dishes. |
| Oven light not working | Bulb needs replacement. | Refer to the maintenance section for instructions on replacing the oven light bulb. |
| Steam function not working | Insufficient water added, or incorrect program selected. | Ensure 200ml of water is added to the tray and the correct Steam Add program is chosen. |
8. Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Hisense |
| Model Number | BSA5222AX |
| Product Dimensions (W x D x H) | 59.7 x 54.7 x 59.5 cm |
| Product Weight | 29.8 kg |
| Capacity | 71 Liters |
| Color | Inox (Stainless Steel) |
| Heating Method | Solo (Multifunction) |
| Fuel Type | Electric |
| Installation Type | Integrated |
| Wattage | 3300 W |
| Defrost System | Auto-defrost |
| Lock Type | Child Safety Lock |
9. Warranty and Support
Hisense products come with a standard manufacturer's warranty. For detailed warranty information, service requests, or technical support, please refer to the warranty card included with your product or visit the official Hisense website.
What's in the Box: Oven, User Manual.
