1. Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your SANODESK 32x20 Gas-Spring Lifting Mobile Standing Desk. Please read this manual thoroughly before use to ensure proper function and safety.

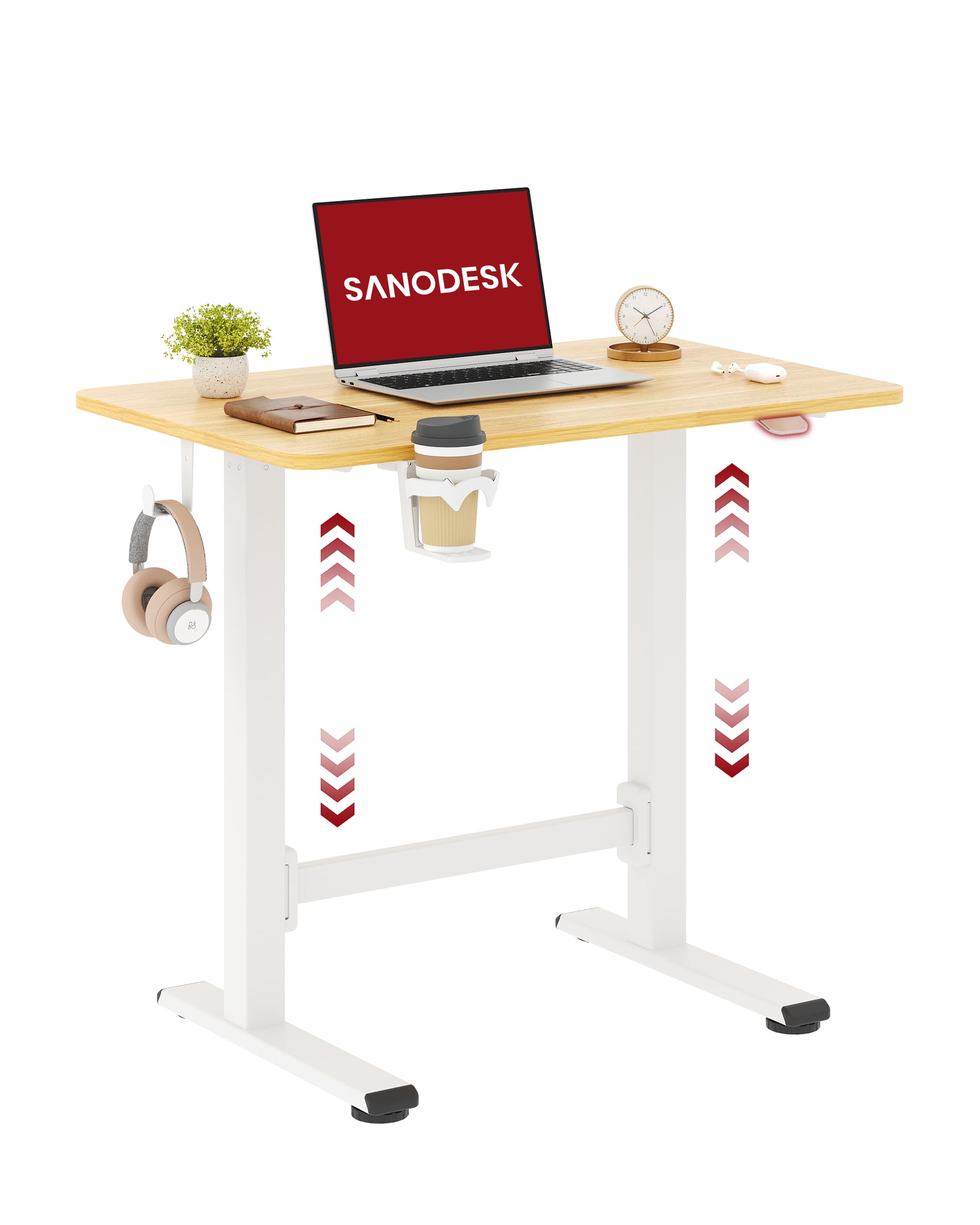

Image: The SANODESK 32x20 Gas-Spring Lifting Mobile Standing Desk in a home office setting.
2. Safety Information
- Ensure all components are securely fastened before use.
- Do not exceed the maximum static load capacity of 154 lbs (70 kg) or dynamic load capacity of 33 lbs (15 kg) when moving.
- Keep hands and fingers clear of moving parts during height adjustment.
- Use on a level surface to prevent tipping.
- This desk is designed for indoor use only.
- Do not allow children to operate the desk without adult supervision.
Image: Detailed dimensions and load capacities of the SANODESK mobile standing desk.
3. Package Contents
Verify that all parts are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- Desktop (One-Piece)
- Desk Legs (2)
- Base Feet (2)
- Gas Spring Lifting Mechanism
- Hardware Kit (screws, wrenches)
- Cup Holder
- Headphone Hook
- Assembly Manual
Image: All components included for the 5-minute quick setup, including the desktop, legs, and hardware.
4. Assembly Instructions
Follow these steps for quick and easy assembly. All necessary tools are provided.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
- Attach Legs to Desktop: Align the desk legs with the pre-drilled holes on the underside of the desktop. Secure them using the provided screws and wrench.
- Install Base Feet: Attach the base feet to the bottom of the desk legs, ensuring they are firmly secured. The rear feet include hidden casters for mobility.
- Mount Accessories: Attach the cup holder and headphone hook to the desired locations on the side of the desktop.
- Final Check: Verify that all screws are tightened and the desk is stable before placing any items on it.
Image: A user assembling the desk, demonstrating the straightforward setup process.
5. Operating Instructions
5.1 Height Adjustment
The SANODESK features a gas-spring lifting mechanism for smooth and effortless height adjustment. The desk can be adjusted from 27.6 inches to 45 inches.
- To Raise: Gently lift the desktop while pressing the height adjustment lever (if applicable, typically located under the desktop). The gas spring will assist in raising the desk.
- To Lower: Apply slight downward pressure on the desktop while pressing the height adjustment lever. The desk will smoothly lower to your desired height.
Image: Illustration comparing SANODESK's easy gas-spring adjustment to other desks requiring bending.
5.2 Mobility
This mobile workstation is equipped with two hidden casters on the rear feet, allowing for easy movement.
- To Move: Slightly tilt the desk backward to engage the rear casters. You can then roll the desk to your desired location.
- To Secure: Once in position, lower the desk back onto all four feet to ensure stability.
Image: A person easily moving the desk, highlighting the two rear hidden casters.
5.3 Versatile Use
The SANODESK mobile standing desk is designed for various environments and activities, including use with walking pads or treadmills.
Image: The desk positioned over a walking pad for active work.
Image: Examples of the desk's versatility in kitchen, balcony, living room, bedroom, yoga, and home office.
For a visual demonstration of the gas-spring lift mechanism, please watch the following video:
Video: Demonstration of the gas-spring lift mechanism for the SANODESK standing desk.
6. Maintenance
- Cleaning: Wipe the desktop and frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals.
- Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
- Gas Spring Care: The gas spring mechanism is maintenance-free. Do not attempt to lubricate or disassemble it.
- Avoid Water: Protect the desktop from prolonged exposure to water to prevent material damage.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Desk is unstable or wobbles. | Loose screws or uneven surface. | Ensure all assembly screws are tightened. Place the desk on a level floor. |
| Difficulty adjusting height. | Adjustment lever not fully engaged or desk overloaded. | Press the adjustment lever firmly. Reduce weight on the desktop if exceeding dynamic load capacity. |
| Desk does not roll smoothly. | Casters are not engaged or obstructed. | Tilt the desk backward to fully engage the rear casters. Check for debris around the casters. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | SANODESK |
| Model | 32x20 |
| Product Dimensions (D x W x H) | 19.7"D x 31.5"W x 28"H (Minimum) |
| Adjustable Height Range | 27.6" to 45" |
| Static Load Capacity | 154 lbs (70 kg) |
| Dynamic Load Capacity (while moving) | 33 lbs (15 kg) |
| Desktop Material | Wood (Maple Top) |
| Frame Material | Alloy Steel (White Frame) |
| Special Features | Gas-Spring Lift, Mobile (2 Rear Wheels), One-Piece Desktop, Cup Holder, Headphone Hook |
| UPC | 840521544191 |
9. Warranty and Support
For warranty information or technical support, please refer to the warranty card included with your product or visit the official SANODESK website. You may also contact SANODESK customer service directly for assistance.
Manufacturer: SANODESK
Contact: Please refer to the contact information provided in your product packaging or on the official SANODESK website.
