ARIEL Taylor 43 Inch Bathroom Vanity Instruction Manual

Important Safety Information

Please read all instructions carefully before assembly and installation. Failure to follow these instructions may result in injury or damage to the product.

• Always use proper lifting techniques when handling the vanity to avoid injury.
• Be cautious of sharp edges, especially the 1.5-inch thick mitered edge countertop, to prevent cuts.
• Ensure all connections are secure and watertight during installation to prevent leaks.
• Do not overtighten fasteners, as this may damage the materials.

Product Overview

The ARIEL Taylor 43 Inch Bathroom Vanity is a high-quality fixture designed for durability and functionality. It features a solid hardwood construction base cabinet, ensuring longevity and stability. The vanity is topped with a pure white quartz countertop with a 1.5-inch mitered edge, known for its resistance to scratches, chips, and cracks. It includes a right rectangular single sink, two soft-closing doors, and five soft-closing drawers for ample storage.

The vanity is finished with premium Sherwin Williams PU paint for lasting color retention and includes solid wood dovetail drawer boxes, avoiding MDF, staples, or dowels for superior craftsmanship.

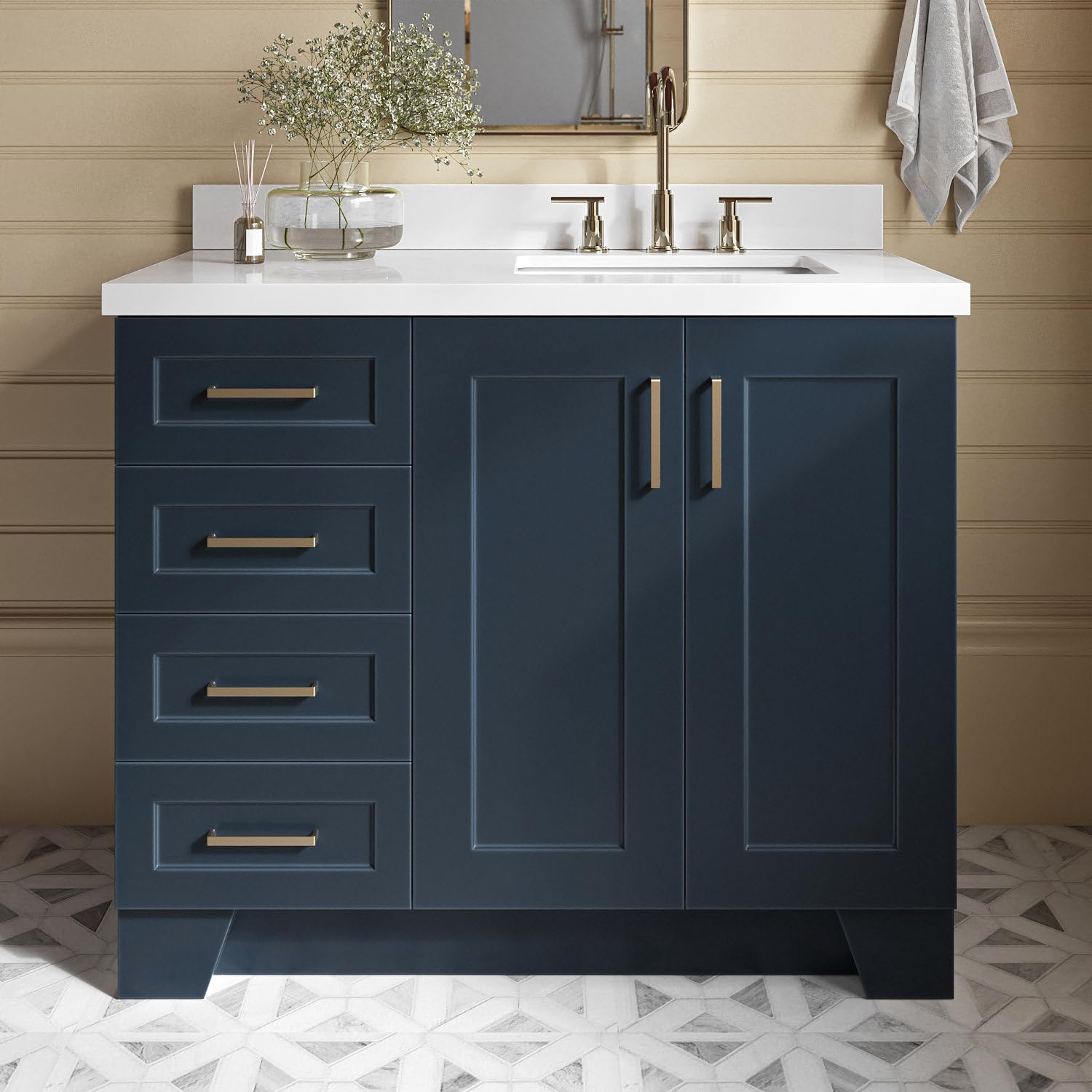

Figure 1: Front view of the ARIEL Taylor 43 Inch Bathroom Vanity.

What's Included & Not Included

Included Components:

• Fully assembled vanity base cabinet
• Satin brass hardware (handles)
• White quartz countertop with 1.5-inch mitered edge
• Right rectangular single sink
• Matching backsplash

Not Included:

• Faucets
• Drain assembly
• Vanity mirror
• Vanity lights

Figure 2: Visual representation of included and not included items.

Specifications

Setup and Installation

The vanity base cabinet arrives fully assembled. The sink and countertop are not attached and require assembly. Follow these steps for proper installation:

1. Prepare the Area: Ensure the installation area is clean, level, and has appropriate plumbing connections.
2. Attach Sink to Countertop: Apply silicone sealant around the top edge of the sink basin. Carefully align the sink with the pre-marked position on the underside of the countertop and press firmly. Secure the sink using the provided undermount clips. Allow adequate drying time for the silicone (12-24 hours).
3. Position Countertop: Apply a bead of silicone sealant along the top edges of the vanity base cabinet. Carefully lift and place the countertop with the attached sink onto the vanity base, ensuring proper alignment.
4. Install Backsplash: Apply silicone sealant to the back edge of the countertop where the backsplash will sit, and also to the back of the backsplash itself. Carefully place the backsplash against the wall and countertop, pressing firmly to secure.
5. Connect Plumbing: Install your chosen faucet and drain assembly (not included) according to their respective manufacturer's instructions. Connect the water supply lines and drain pipes, ensuring all connections are watertight.
6. Level the Vanity: Use the hidden leveling feet at the bottom of the vanity to adjust for any uneven flooring, ensuring the vanity is stable and level.

Figure 3: Solid hardwood construction for durability.

Figure 4: Key features designed for simplified installation.

Installation Video Guide:

Operating Instructions

The ARIEL Taylor vanity is designed for ease of use with its soft-closing doors and drawers. These features ensure quiet operation and extend the lifespan of the cabinet components.

• Doors: Gently push the doors to close them. The soft-closing hinges will engage to prevent slamming.
• Drawers: Push the drawers inward to close. The soft-closing slides will ensure a smooth and silent closure. The solid wood dovetail drawer boxes provide robust storage.

Figure 5: Vanity with doors and drawers open, showcasing storage capacity.

Figure 6: Detail of solid wood dovetail drawer construction.

Soft-Closing Feature Demonstration:

Maintenance and Care

Proper care will ensure the longevity and appearance of your ARIEL Taylor vanity.

• Cleaning: Wipe with a damp cloth for general cleaning. Avoid abrasive cleaners or harsh chemicals that can damage the finish or countertop.
• Countertop Care: The pure white quartz countertop is highly resistant to stains and scratches. For best results, wipe up spills promptly. Use mild soap and water for cleaning.
• Wood Finish: Avoid prolonged exposure to moisture. Use a soft, dry cloth for dusting.
• Hardware: Clean brass hardware with a soft, damp cloth. Avoid chemical cleaners that may tarnish the finish.

Figure 7: Close-up of the durable white quartz countertop and sink.

Troubleshooting

If you encounter any issues with your vanity, please refer to the following common solutions:

• Leaking Faucet/Drain: Check all plumbing connections for tightness. Ensure plumber's putty or thread sealant was used correctly during installation.
• Drawers/Doors Not Closing Smoothly: Verify that the vanity is level. Check for any obstructions in the drawer slides or door hinges. Adjustable hinges allow for minor door alignment corrections.
• Scratches on Countertop: While quartz is highly scratch-resistant, deep scratches can occur from sharp objects. Minor scratches may be buffed out with specialized quartz repair kits.

For persistent issues, please contact customer support.

Warranty and Support

The ARIEL Taylor 43 Inch Bathroom Vanity is covered by a 3-year limited warranty. This warranty covers manufacturing defects and ensures reliable performance under normal use.

For warranty claims, technical assistance, or any questions regarding your product, please contact ARIEL customer support. Our USA-based customer support team is available to assist you.

Please retain your proof of purchase for warranty validation.
