Schulte D369106-F 41 1710 Walk-In Shower Wall Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Schulte D369106-F 41 1710 Walk-In Shower Wall. This fixed panel shower wall, featuring Fog Decor safety glass, is designed to offer a modern and accessible showering experience. Please read these instructions carefully before beginning installation to ensure proper setup and long-term satisfaction.

Schulte D369106-F 41 1710 Walk-In Shower Wall installed in a modern bathroom.

2. Safety Information

Your safety is paramount. Please observe the following safety guidelines:

• Always wear appropriate personal protective equipment (PPE) during installation, including safety glasses and gloves.
• Handle glass panels with extreme care. Safety glass, while robust, can break if impacted at the edges or corners.
• Ensure the installation surface is level and structurally sound to support the weight of the shower wall.
• Do not use abrasive cleaners or tools that could scratch or damage the glass or profiles.
• This product is designed for domestic use. Any modifications or improper use may void the warranty and pose safety risks.

This product is designed for easy access, suitable for individuals with reduced mobility.

3. Setup and Installation

Careful installation is crucial for the stability and longevity of your shower wall. It is recommended that installation be performed by two people.

3.1. Unpacking and Inspection

• Carefully unpack all components and check against the packing list.
• Inspect all parts for any damage. Do not proceed with installation if any components are damaged.
• Ensure you have all necessary tools, including a drill, level, measuring tape, screwdriver, and sealant.

3.2. Preparing the Installation Area

• Clean the wall and floor surfaces where the shower wall will be installed.
• Ensure the floor is level and the wall is plumb. Mark the desired position of the wall profile.

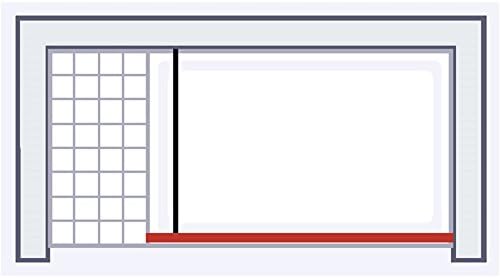

Top-down diagram illustrating the layout of a walk-in shower with a fixed panel.

3.3. Mounting the Wall Profile

• Position the clip-on wall profile against the marked line on the wall.
• Mark the drilling points through the profile. Drill holes and insert wall plugs suitable for your wall type.
• Secure the wall profile using the provided screws.

Close-up view of the clip-on wall profile, showing how the glass panel is securely inserted.

3.4. Inserting the Glass Panel

• Carefully lift the glass panel and insert its edge into the mounted wall profile.
• Ensure the glass is fully seated and level.

3.5. Securing with the Fixing Bar

• Attach the fixing bar to the top edge of the glass panel and secure it to the opposite wall. This provides stability.
• The shower wall can be mounted on either the left or right side to suit your bathroom layout.

Diagram illustrating that the shower wall can be mounted on either the left or right side, offering flexible installation options.

3.6. Sealing

• Apply a high-quality silicone sealant along the exterior joints between the wall profile and the wall, and between the glass panel and the shower tray/floor.
• Allow the sealant to cure completely before using the shower (refer to sealant manufacturer's instructions).

Schulte products are designed for easy assembly.

4. Operation

The Schulte D369106-F 41 1710 is a fixed walk-in shower wall, meaning it does not have moving parts for entry or exit. Simply walk into the designated shower area. Ensure the shower head is positioned to minimize water splashing outside the enclosure.

5. Maintenance

Regular cleaning and proper care will preserve the appearance and functionality of your shower wall.

5.1. Daily Cleaning

• After each use, rinse the glass panel with clear water to remove soap residue.
• Use a squeegee or a soft cloth to wipe down the glass and profiles to prevent water spots and limescale buildup.

5.2. Anti-Limescale Treatment (FIXIL)

Your shower wall features a factory-applied FIXIL anti-limescale treatment. This 'lotus effect' coating causes water to bead and run off, significantly reducing limescale and dirt adhesion, making cleaning easier.

The FIXIL anti-limescale treatment ensures water beads off the glass, simplifying cleaning.

5.3. Periodic Cleaning

• For more thorough cleaning, use a mild, non-abrasive bathroom cleaner.
• Apply the cleaner with a soft sponge or cloth, then rinse thoroughly with water.
• Do not use: Abrasive cleaners, scouring pads, harsh chemicals, or cleaners containing ammonia, bleach, or strong acids, as these can damage the glass, profiles, and the FIXIL coating.

Schulte products are designed for easy cleaning.

6. Troubleshooting

• Water Leakage: Check the silicone seals around the wall profile and the base of the glass panel. Reapply sealant if necessary. Ensure the shower tray or floor is properly sloped towards the drain.
• Limescale Buildup: Even with FIXIL treatment, hard water can leave residue. Increase the frequency of daily squeegeeing. For stubborn spots, use a mild limescale remover specifically designed for glass, and always rinse thoroughly.
• Glass Scratches: Avoid using abrasive cleaning tools or materials. If scratches occur, they cannot be removed.

7. Specifications

8. Warranty and Support

Schulte products are manufactured in Germany to high-quality standards, ensuring durability and reliability.

Proudly Made in Germany.

For specific warranty details, please refer to the documentation included with your product or visit the official Schulte website. Schulte is committed to providing first-class after-sales service.

If you encounter any issues or require assistance, please contact Schulte customer support through their official channels. When contacting support, please have your model number (D369106-F 41 1710) and purchase information readily available.
