1. Introduction
Thank you for purchasing the DEERC DE42 1/18 Scale RC Off-Road Jeep. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new remote control car. Please read it thoroughly before use and keep it for future reference.
The DEERC DE42 RC Off-Road Jeep navigating challenging terrain, showcasing its robust design and off-road capabilities.
2. Safety Information
Important Safety Notice:
- Recommended age for this product is 6 years and above.
- The included lithium-ion battery has an energy density below 400Wh/L and is exempt from PSE regulations.
- Always supervise children during operation.
- Do not operate near people, pets, or obstacles to prevent accidents.
- Avoid operating in wet conditions or near water to prevent damage to electronic components.
- Ensure the battery is correctly installed and charged according to instructions.
- Remove batteries from the car and remote control when not in use for extended periods.
3. Package Contents
Please check the package contents upon unboxing:
- DEERC DE42 RC Off-Road Jeep (1 unit)
- 2.4GHz Remote Control (1 unit)
- Rechargeable Battery (1 unit)
- USB Charging Cable (1 unit)
- User Manual (This document)
4. Specifications
| Feature | Detail |
|---|---|
| Brand | DEERC |
| Model Number | DE42 |
| Scale | 1:18 |
| Power Source | Battery Powered |
| Operation Mode | RC (Remote Control) |
| Recommended Age | 6 years and above |
| Material Type | Acrylonitrile Butadiene Styrene (ABS), Polyvinyl Chloride (PVC) |
| Product Dimensions | 28 x 17 x 14.5 cm (Car body: 31.5 x 19.3 x 13.4 cm) |
| Battery Type | Lithium Polymer (LiPo) |
| Operation Time | Up to 80 minutes (per battery) |
| Control Frequency | 2.4GHz |
Visual representation of the DEERC DE42 RC car with key dimensions and feature icons, including 2.4GHz control, 1:18 scale, turning, forward/backward, headlights, auto mode, storage, and 80-minute playtime.
5. Setup
5.1 Charging the Battery
- Connect the rechargeable battery to the USB charging cable.
- Plug the USB charging cable into a compatible USB power adapter (e.g., computer USB port, wall adapter).
- The indicator light on the USB cable will show the charging status (refer to the cable's specific instructions for light indications).
- Once fully charged, disconnect the battery from the charging cable.
The included high-quality rechargeable battery provides up to 80 minutes of operation time per charge.
5.2 Installing Batteries
- RC Car: Open the battery compartment on the underside of the car. Connect the charged battery to the car's power connector. Securely close the battery compartment.
- Remote Control: Open the battery compartment on the back of the remote control. Insert 2x AA batteries (not included), ensuring correct polarity (+/-). Close the compartment.
5.3 Pairing the Remote Control
- Turn on the RC car.
- Turn on the remote control.
- The indicator light on the remote control will flash and then become solid, indicating successful pairing.
- If pairing fails, turn off both devices and repeat the steps.
The 2.4GHz radio system allows multiple DEERC RC cars to be operated simultaneously without interference, perfect for family fun.
6. Operating Instructions
6.1 Basic Controls
- Forward/Backward: Push the left joystick forward or backward.
- Turn Left/Right: Push the right joystick left or right.
- Headlights: Press the headlight button on the remote control to turn the headlights on or off.
- Automatic Mode: Press the automatic mode button on the remote control for the car to perform pre-programmed movements.

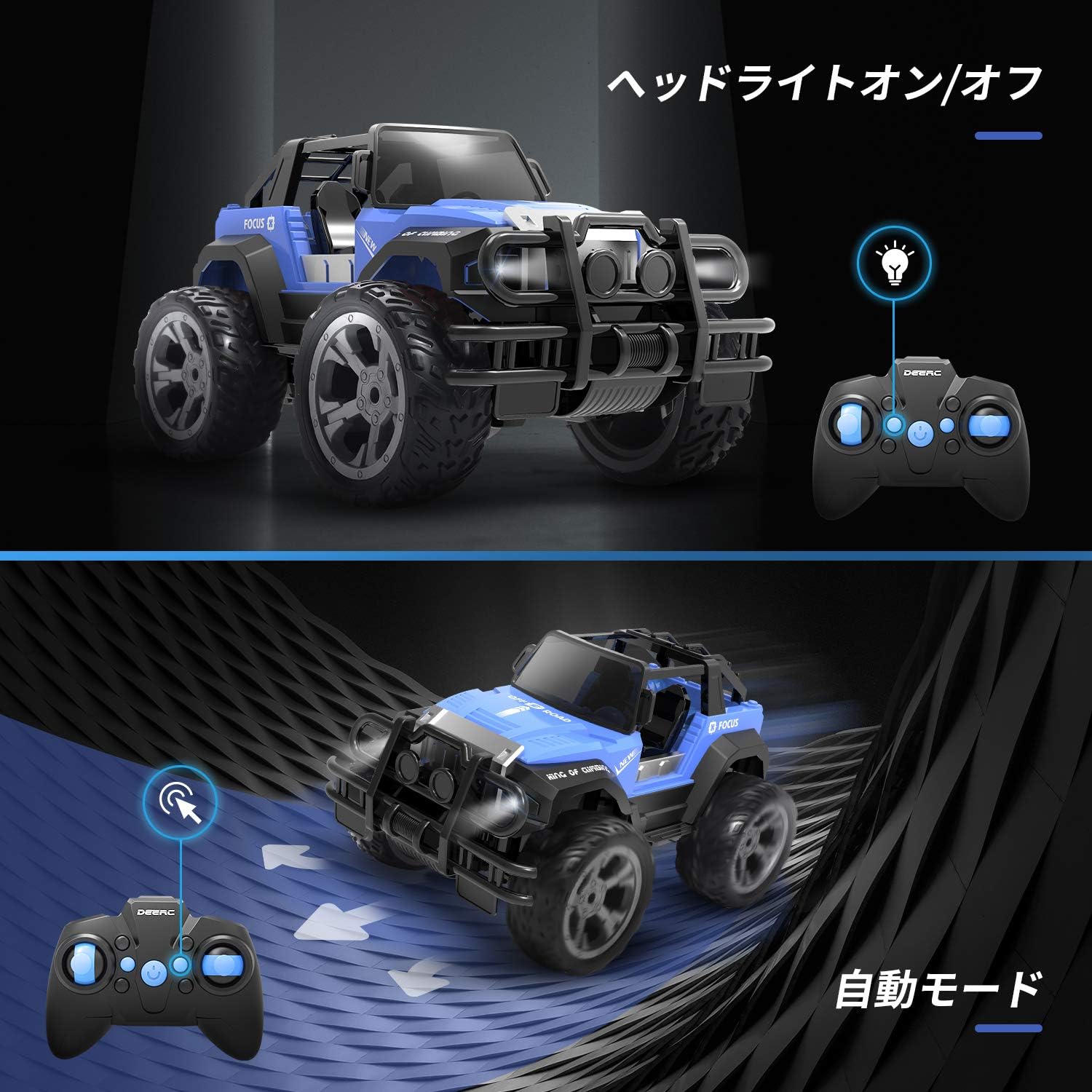

The remote control features dedicated buttons for headlight control and activating the automatic driving mode.
6.2 Terrain Adaptability
The DE42 is designed for various terrains thanks to its durable PVC tires with strong grip and shock-resistant system. It can operate on:
- Soil
- Sand
- Wet Ground
- Grass
- Mountain Roads
- Rocky Surfaces
- Over small obstacles
The DEERC DE42 is built to handle diverse environments, from sandy beaches to rocky paths, providing versatile play options.
The anti-slip tires provide superior grip and stability on various surfaces.
7. Maintenance
- Cleaning: Use a soft, dry cloth to wipe down the car after use. Do not use water or chemical cleaners.
- Storage: Store the car and remote control in a cool, dry place away from direct sunlight. Remove all batteries if storing for an extended period.
- Battery Care: Always fully charge the battery before use. Do not overcharge or completely discharge the battery.
- Tire Inspection: Regularly check tires for wear and tear.
Detailed views of the DEERC DE42's features, including the rear storage case, durable TPR anti-slip tires, and the robust anti-collision bumper, all designed for longevity and performance.
The rear of the DEERC DE42 features a functional storage case, ideal for carrying small accessories or spare parts.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Car does not respond to remote control. | Low battery in car or remote; Not paired; Interference. | Charge car battery, replace remote batteries; Re-pair car and remote; Move to an area with less interference. |
| Car runs slowly or inconsistently. | Low car battery; Obstruction in wheels/gears. | Charge car battery; Check and clear any obstructions. |
| Car pulls to one side. | Steering trim needs adjustment. | Adjust the steering trim dial on the remote control or the trim adjustment on the car's underside until it drives straight. |
The trim function allows for fine-tuning of the steering to ensure the car drives straight.
9. Warranty and Support
DEERC Toys is committed to providing high-quality products and customer service. We offer a quality assurance and warranty service for this product.
If you encounter any issues or have questions regarding your DEERC DE42 RC Off-Road Jeep, please contact us through your order details page on Amazon. We will provide appropriate support to resolve your concerns.
For further assistance, please refer to the contact information provided with your purchase or visit the official DEERC store on Amazon.
- Manufacturer: DEERC Toys
- Contact: Via Amazon 'Order Details'
