Frigidaire EFR753
Frigidaire EFR753 Retro Refrigerator with Top Freezer User Manual
Model: EFR753-BLACK
Capacity: 7.5 Cubic Feet
Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Frigidaire EFR753 Retro Refrigerator with Top Freezer. Please read all instructions carefully before use to ensure proper functioning and longevity of your appliance.
Important Safety Instructions
To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
- Read all instructions before using the appliance.
- Ensure the refrigerator is properly grounded.
- Do not store explosive substances, such as aerosol cans with a flammable propellant, in this appliance.
- Unplug the appliance from the power outlet before cleaning or performing any maintenance.
- Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.
- Do not damage the refrigerant circuit.
- Supervise children to ensure they do not play with the appliance.
- Allow the refrigerator to stand upright for at least 4 hours before connecting to a power source to allow refrigerants to settle.
Setup Guide
Unpacking
Carefully remove all packaging materials, tape, and internal packing from the refrigerator. Dispose of packaging materials responsibly and in accordance with local regulations.
Placement
Position the refrigerator on a flat, stable surface. Ensure adequate ventilation around the unit. A minimum of 5 inches of clearance is recommended around the sides and back for proper air circulation. The overall dimensions of the unit are approximately 23 inches deep, 23.5 inches wide, and 57 inches high.
Image Description: A black Frigidaire EFR753 Retro Refrigerator with arrows indicating its dimensions: 55.5 inches in height, 23.2 inches in width, and 21.5 inches in depth.
The refrigerator features two front-mount adjustable leveling legs and two castors mounted at the back to allow for easy movement and stable positioning on various surfaces.
Power Connection
Connect the refrigerator to a dedicated 120 Volt, corded electric outlet. As a safety measure, it is crucial to allow the appliance to stand upright for at least 4 hours before plugging it in. This allows the refrigerants to settle properly within the system, preventing potential damage.
Operating Instructions
Temperature Control
The refrigerator features an adjustable thermostat for precise temperature management. For initial chilling or when first plugging in the unit, set the control knob to '5' for maximum cooling. For typical residential or office use, a setting of '3' is generally appropriate. Adjust the setting as needed based on the contents, ambient room temperature, and desired cooling performance.
Image Description: An open Frigidaire EFR753 Retro Refrigerator interior, highlighting features such as the 1.7 cu. ft. freezer compartment, interior lighting, adjustable glass shelves, transparent door shelves, crisper bin, and a 7-level temperature control dial.
Storage Capacity and Organization
This refrigerator offers a generous 7.5 cubic feet of cooling space. It includes three adjustable glass refrigerator shelves and one adjustable/removable wire freezer shelf to provide maximum and versatile storage space. A transparent crisper bin is provided to keep vegetables fresh and easily accessible. Full-width door bins offer additional storage for tall bottles and other beverage items.
Image Description: The interior of the Frigidaire EFR753 Retro Refrigerator, fully stocked with various food items, beverages, and produce, demonstrating its storage capabilities.
Door Reversibility
The reversible door hinge allows you to change the door's opening direction (left or right-handed) to best suit your space and kitchen layout. Refer to the detailed instructions in the full product manual for the door reversal procedure.
Image Description: A close-up view of the reversible door hinge on the Frigidaire EFR753 Retro Refrigerator, showing the metal bracket and screws that allow the door to be re-positioned for left or right-handed opening.
Quiet Operation
This upright fridge freezer combo is designed with practicality in mind, including quiet operation for a peaceful living area, making it suitable for various settings like kitchens, offices, dorms, or garages.

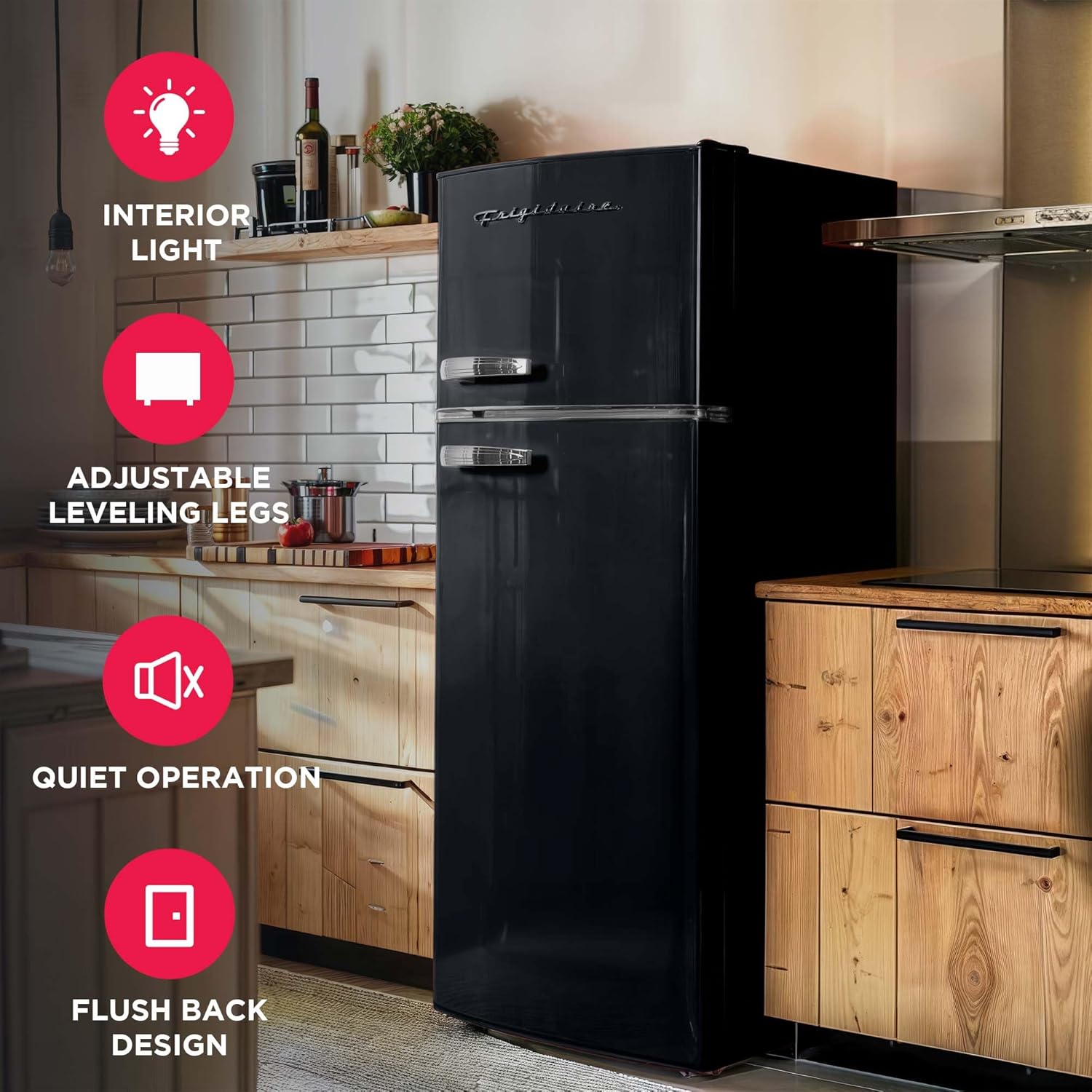

Image Description: A black Frigidaire EFR753 Retro Refrigerator positioned in a modern kitchen with light wood cabinets and white subway tile backsplash, showcasing its sleek design.
Care and Maintenance
Defrosting
This appliance features a manual defrost system. Regular defrosting of the freezer compartment is necessary to maintain optimal efficiency and prevent excessive ice buildup. Refer to the full product manual for detailed defrosting instructions.
Cleaning
To clean the interior, first unplug the refrigerator. Wipe all surfaces with a soft, damp cloth and plain water. For removable shelves and bins, wash them with mild soap and water, rinse thoroughly, and dry completely before returning them to the unit. For exterior cleaning, use a soft, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
Image Description: A close-up view of the chrome trim and handles on the black Frigidaire EFR753 Retro Refrigerator, highlighting its sleek retro design elements.
Troubleshooting Guide
Before contacting customer support, please refer to the following table for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | Power supply issue, temperature setting too high, door not closed properly. | Check power connection, adjust thermostat to a lower setting, ensure door is fully closed and sealed. |
| Excessive noise | Refrigerator not level, items vibrating inside, normal compressor noise. | Adjust leveling legs to ensure stability, rearrange items inside, note that some compressor noise is normal. |
| Excessive ice buildup in freezer | Manual defrost needed, door not sealed properly, frequent door opening. | Perform manual defrost as per instructions, check door gasket for proper seal, minimize door opening. |
| Unpleasant odor inside | New appliance odor, food spoilage, strong-smelling foods. | Wipe interior with a damp cloth and water, ensure food is properly stored in sealed containers, use an odor absorber. |
| Unit arrived with dents or cosmetic damage | Shipping or handling damage. | Document the damage with photos and contact customer support immediately for assistance. |
Product Specifications
| Feature | Detail |
|---|---|
| Product Dimensions (D x W x H) | 23"D x 23.5"W x 57"H |
| Brand | Frigidaire |
| Total Capacity | 7.5 Cubic Feet |
| Configuration | Freezer-on-Top |
| Color | Black |
| Special Feature | Retro Design |
| Installation Type | Freestanding |
| Number of Doors | 2 |
| Defrost System Type | Manual |
| Voltage | 120 Volts |
| Freezer Capacity | 1 Cubic Feet |
| Fresh Food Capacity | 6.5 Cubic Feet |
| Door Material Type | Stainless Steel |
| Model Name | EFR753-BLACK |
| UPC | 058465816704 |
| Manufacturer | Curtis International Ltd. |
Warranty and Customer Support
Warranty Information
This Frigidaire EFR753 Retro Refrigerator comes with a 1 Year Manufacturer Limited Warranty. Please refer to the warranty card included with your product for full terms, conditions, and registration details. Keep your proof of purchase for warranty claims.
Customer Support
For any questions, technical assistance, or warranty claims, please contact Frigidaire customer support. You may also refer to the manufacturer, Curtis International Ltd., for product-specific inquiries. Contact information can typically be found on the product packaging or the official brand website.
Product Overview Video
Video Description: An official product video titled "FRIGIDAIRE Retro Fridge/Freezer Combo" by Curtis International LTD, showcasing the features and design of the Frigidaire EFR753 Retro Refrigerator.
