Fazley FLP-DIY Black Electric Guitar Kit Instruction Manual

Introduction

This manual provides comprehensive instructions for assembling, operating, and maintaining your Fazley FLP-DIY Black Electric Guitar Kit. This kit is designed for enthusiasts who wish to build their own electric guitar. Please read all instructions carefully before beginning assembly to ensure proper construction and optimal performance.

Assembly Instructions

The Fazley FLP-DIY kit requires assembly of various components. Follow these steps carefully.

1. Component Inspection

Before starting, unpack all components and verify that all parts are present and undamaged. Familiarize yourself with the guitar body, neck, and hardware.

Image: Front view of the pre-finished black electric guitar body, showing routed cavities for pickups and controls.

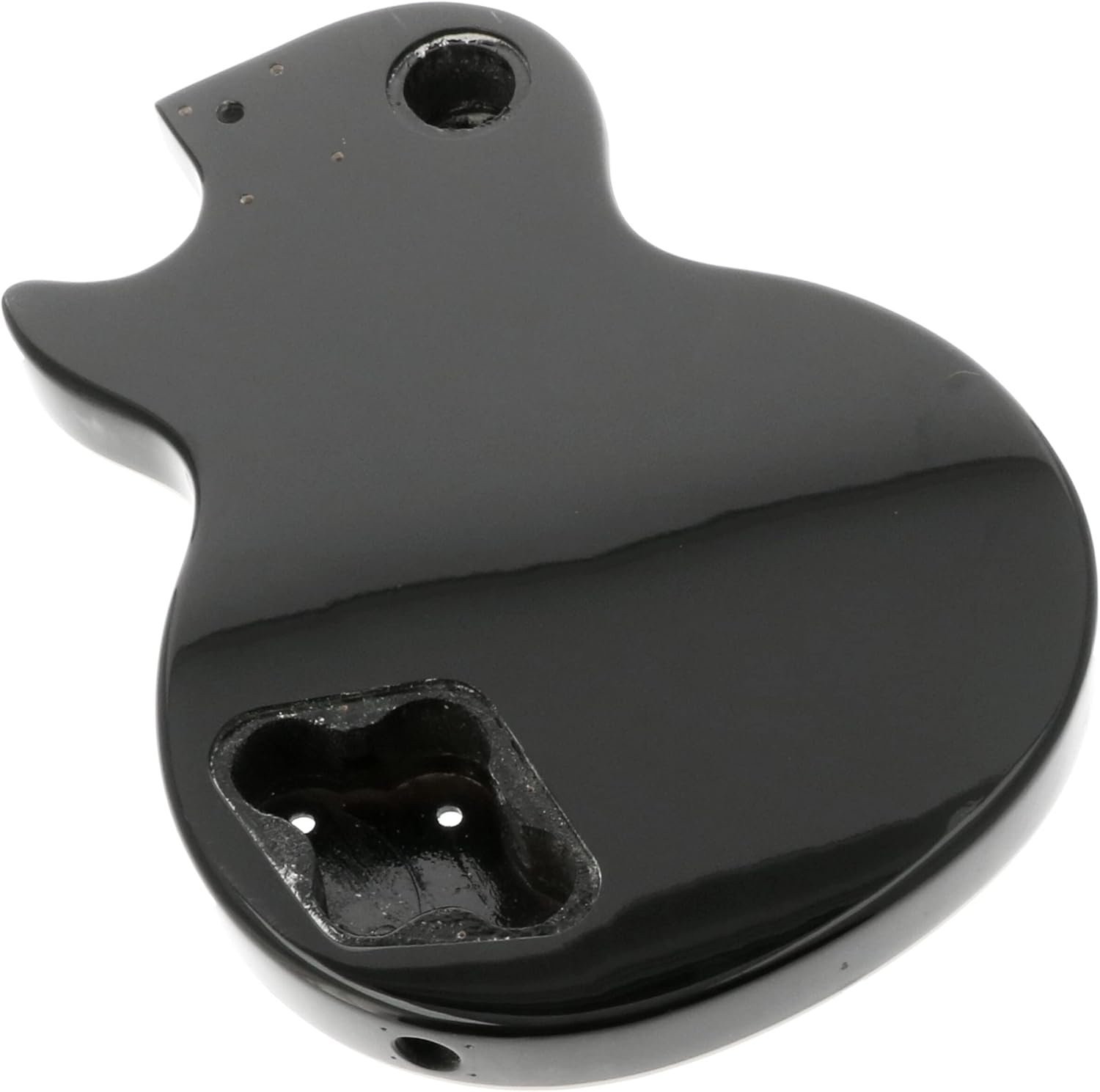

Image: Rear view of the pre-finished black electric guitar body, showing the control cavity.

Image: Front view of the guitar neck, featuring a dark fretboard with trapezoid position markers.

Image: Rear view of the guitar neck, showing the headstock with pre-drilled holes for tuning machines.

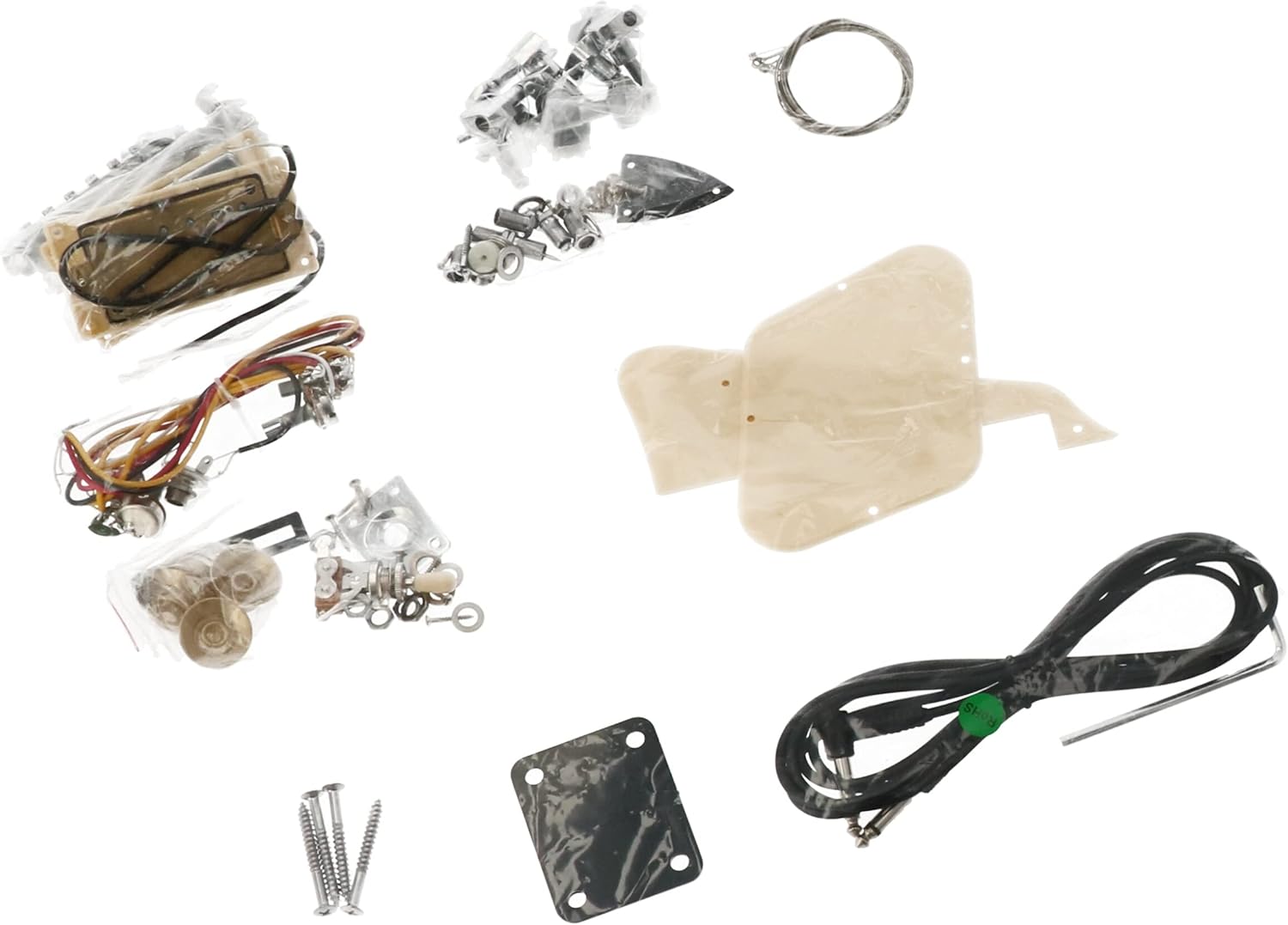

Image: A collection of all included hardware and electronic components, such as pickups, tuning pegs, bridge pieces, and wiring harnesses.

2. Neck Attachment

Align the neck with the neck pocket on the guitar body. Secure the neck using the provided screws and neck plate. Ensure a snug fit without overtightening.

3. Tuning Machine Installation

Mount the tuning machines onto the headstock. Fasten them securely with the included screws and bushings. Ensure they are oriented correctly for string winding.

4. Bridge and Tailpiece Installation

Insert the bridge posts and tailpiece posts into their respective holes on the guitar body. Place the bridge and tailpiece onto the posts. Do not tighten fully yet, as adjustments will be made later.

5. Electronics Wiring

This step requires careful attention. Install the pickups into their cavities. Wire the pickups, potentiometers (volume/tone controls), selector switch, and output jack according to standard electric guitar wiring diagrams. Soldering is required for this step. If you are unfamiliar with guitar wiring, it is recommended to consult online resources or a qualified technician for guidance.

Ensure all connections are secure and insulated to prevent short circuits and unwanted noise.

6. Stringing and Initial Setup

Install the guitar strings. Tune the guitar to standard pitch. Perform initial adjustments for string height (action) at the bridge and intonation. Further setup may be required for optimal playability.

Operating Your Electric Guitar

Tuning

Use an electronic tuner to accurately tune your guitar. Standard tuning from thickest to thinnest string is E-A-D-G-B-e.

Amplification

Connect your guitar to an amplifier using a standard instrument cable. Adjust the volume and tone controls on the guitar and amplifier to achieve your desired sound.

Pickup Selector

The pickup selector switch allows you to choose between different pickups (neck, bridge, or both) to vary your guitar's tone.

Maintenance

Cleaning

Regularly wipe down the guitar body, neck, and strings with a soft, clean cloth. Use guitar-specific cleaning products for the finish and fretboard as needed. Avoid abrasive cleaners.

String Replacement

Replace strings regularly, typically every 1-3 months depending on usage, or when they sound dull or show signs of corrosion. Replace one string at a time to maintain neck tension.

Storage

Store your guitar in a stable environment, away from extreme temperature changes and humidity fluctuations, to prevent damage to the wood.

Troubleshooting

• No Sound: Check all cable connections (guitar to amp, power to amp). Ensure the guitar's volume knob is turned up and the pickup selector is engaged. Verify all wiring connections inside the guitar are correct and soldered properly.
• Buzzing/Humming: This can be caused by improper grounding in the wiring, unshielded cavities, or external electrical interference. Review your wiring connections.
• Poor Tuning Stability: Ensure tuning machines are securely fastened. Check that strings are properly wound around the tuning posts. A properly cut nut and bridge setup are also crucial.
• Fret Buzz: This often indicates low string action or uneven frets. Adjust the bridge saddle height or consult a guitar technician for fret leveling if necessary.

Specifications

Warranty and Support

For warranty information or technical support regarding your Fazley FLP-DIY Electric Guitar Kit, please contact the manufacturer directly or refer to the retailer's return policy. Ensure you retain your proof of purchase.
