Joydeem Compact Multifunction Hot Plate IT-6099B User Manual

1. Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Please read all instructions carefully before operating this appliance.

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse the main unit, cord, or plug in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to 'OFF', then remove the plug from the wall outlet.
• Do not use the appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface during operation.

2. Product Components

The Joydeem Compact Multifunction Hot Plate IT-6099B includes the following main components:

• Main Unit with Temperature Control Slider
• Grill Plate
• Deep Pot (4L capacity)
• Takoyaki Pan
• Glass Lid

Figure 2.1: Front view of the appliance with temperature control.

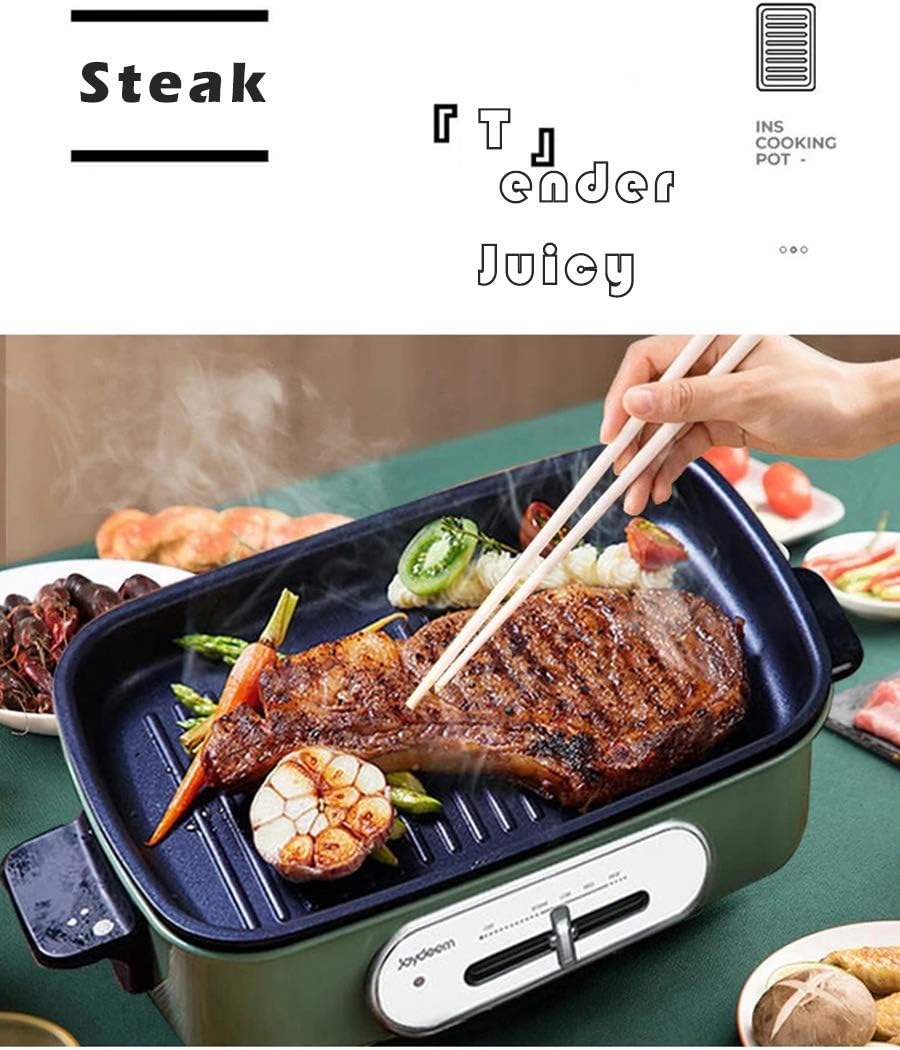

Figure 2.2: Appliance with the grill plate.

Figure 2.3: Appliance with the deep pot for hot pot or stewing.

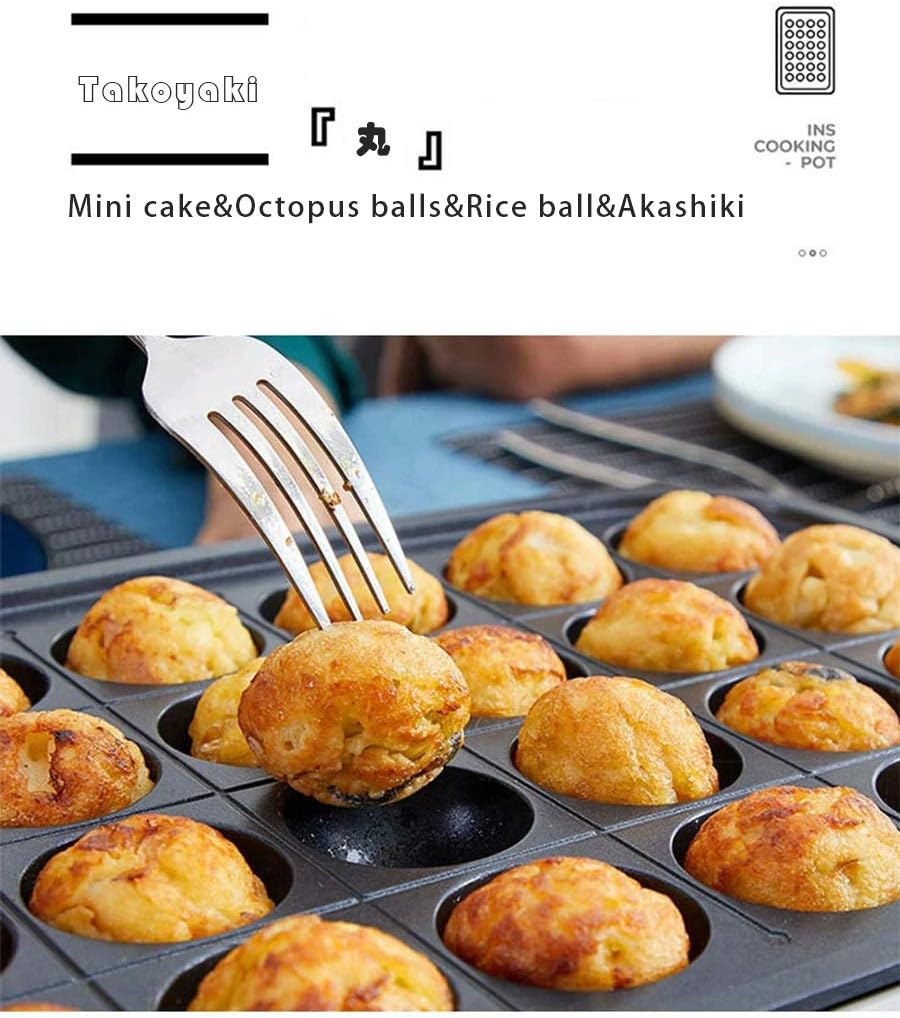

Figure 2.4: Appliance with the Takoyaki pan.

3. Setup

1. Unpack: Carefully remove the appliance and all its components from the packaging. Retain packaging for future storage or transport if desired.
2. Clean: Before first use, wash the removable cooking plates (grill plate, deep pot, Takoyaki pan) and the glass lid with warm, soapy water. Rinse thoroughly and dry completely. Wipe the main unit with a damp cloth; do not immerse the main unit in water.
3. Placement: Place the main unit on a stable, flat, dry, and heat-resistant surface, ensuring adequate ventilation around the appliance.
4. Assemble: Insert the desired clean and dry cooking plate (grill plate, deep pot, or Takoyaki pan) into the main unit. Ensure it is seated correctly.

4. Operating Instructions

This appliance offers versatile cooking options. Always ensure the temperature control slider is in the 'OFF' position before plugging in or unplugging the unit.

General Operation:

1. Ensure the chosen cooking plate is correctly installed in the main unit.
2. Insert the temperature control slider into its slot on the main unit.
3. Plug the power cord into a standard 110V electrical outlet.
4. Slide the temperature control to your desired setting (WARM, LOW, MED, HIGH). The indicator light will illuminate.
5. Allow the appliance to preheat for approximately 5-10 minutes, or until the indicator light turns off, signaling it has reached the set temperature.

Cooking Functions:

4.1 Grilling (Steak, BBQ, Pan-Frying)

Use the grill plate for searing, grilling, and pan-frying. The non-stick surface ensures easy food release.

• Install the grill plate.
• Preheat the appliance to MED or HIGH.
• Add a small amount of cooking oil if necessary, then place food items like steak, chicken, or vegetables directly onto the grill plate.
• Cook to desired doneness, turning food as needed.

Figure 4.1: Grilling steak and vegetables.

4.2 Hot Pot / Boiling / Stewing

The deep pot is ideal for preparing hot pot, boiling soups, or stewing dishes.

• Install the deep pot.
• Add water, broth, or other liquids and desired ingredients.
• Cover with the glass lid.
• Set the temperature to HIGH for boiling, then reduce to MED or LOW for simmering.

Figure 4.2: Hot pot preparation in the deep pot.

4.3 Steaming

Steam fish, dumplings, or vegetables using the deep pot and a suitable steaming rack (not included, but compatible).

• Install the deep pot.
• Add approximately 2-3 cups of water to the bottom of the deep pot.
• Place a steaming rack (if available) into the pot, ensuring it is above the water level.
• Place food on the steaming rack.
• Cover with the glass lid and set the temperature to HIGH until water boils, then reduce to MED for steaming.

Figure 4.3: Steaming fish in the deep pot.

4.4 Takoyaki / Octopus Balls

Prepare delicious Takoyaki or other spherical snacks with the dedicated Takoyaki pan.

• Install the Takoyaki pan.
• Preheat the appliance to MED or HIGH.
• Lightly oil each mold.
• Pour Takoyaki batter into each mold, filling about two-thirds. Add octopus pieces or other fillings.
• Cook until the edges are firm, then use a skewer or pick to turn the balls, cooking until golden brown and cooked through.

Figure 4.4: Cooking Takoyaki in the specialized pan.

5. Temperature Control

The Joydeem Compact Multifunction Hot Plate features a 4-gear temperature control slider for precise heat management:

• OFF: Turns the appliance off.
• WARM: Maintains food at a warm serving temperature.
• LOW: Suitable for gentle simmering or keeping food warm.
• MED: Ideal for general cooking, sautéing, and moderate grilling.
• HIGH: For rapid heating, boiling, and high-temperature grilling/searing.

Figure 5.1: Temperature control slider with various settings.

6. Cleaning and Maintenance

Proper cleaning and maintenance will extend the life of your appliance.

1. Unplug and Cool: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
2. Remove Cooking Plates: Carefully remove the cooking plate (grill, deep pot, or Takoyaki pan) and the glass lid from the main unit.
3. Wash Removable Parts: Wash the cooking plates and glass lid with warm, soapy water using a soft sponge or cloth. The non-stick ceramic coating is easy to clean. Rinse thoroughly and dry completely before storing or reassembling. Do not use abrasive cleaners, metal scrubbers, or harsh chemicals, as these can damage the non-stick surface.
4. Clean Main Unit: Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit, power cord, or temperature control slider in water or any other liquid.
5. Storage: Ensure all parts are completely dry before storing the appliance in a cool, dry place.

Figure 6.1: Cleaning the non-stick cooking plate.

7. Troubleshooting

If you encounter issues with your Joydeem Compact Multifunction Hot Plate, refer to the following common problems and solutions:

• Appliance not turning on:
  • Ensure the power cord is securely plugged into a working 110V electrical outlet.
  • Verify that the temperature control slider is correctly inserted and set to a position other than 'OFF'.
• Food not cooking evenly:
  • Allow sufficient time for the appliance to preheat before adding food.
  • Ensure the temperature setting is appropriate for the food being cooked.
  • Distribute food evenly across the cooking surface.
• Food sticking to the cooking plate:
  • Ensure the non-stick coating is intact and not damaged.
  • Use a small amount of cooking oil or spray before adding food, especially for grilling.
  • Avoid using metal utensils that can scratch and damage the non-stick surface. Use heat-resistant plastic, silicone, or wooden utensils.
• Smoke or unusual odor during first use:
  • It is normal for a new appliance to emit a slight odor or smoke during its first few uses as manufacturing residues burn off. Ensure good ventilation.
  • If smoke or odor persists after initial uses, unplug the appliance and contact customer support.

8. Specifications

9. Warranty and Support

This Joydeem appliance comes with a limited warranty. Please refer to the product packaging or contact the manufacturer for specific warranty terms and conditions.

For any questions, concerns, or support needs regarding your Joydeem Compact Multifunction Hot Plate IT-6099B, please contact our customer service team. We are committed to providing assistance and ensuring your satisfaction.

Contact information can typically be found on the product packaging or the official JOYDEEM website.
