JOYOUNG DJ10U-K61 Automatic 4-in-1 Soy Milk Maker User Manual

1. Introduction

Thank you for choosing the JOYOUNG DJ10U-K61 Automatic 4-in-1 Soy Milk Maker. This versatile appliance is designed to simplify your daily routine by offering four primary functions: soy milk making, coffee brewing, juice making, and hot water dispensing. With its automatic self-cleaning feature and variable capacity, the DJ10U-K61 provides convenience and efficiency for various beverage preparations.

Please read this manual thoroughly before initial use to ensure proper operation, maintenance, and to maximize the lifespan of your appliance.

An overview of the JOYOUNG DJ10U-K61, a multi-functional appliance capable of making soy milk, coffee, juice, and hot water. It features a sleek white design with a transparent glass jug and water reservoir.

2. Important Safety Instructions

To prevent injury or damage to the appliance, always observe basic safety precautions when using electrical appliances. This includes, but is not limited to, the following:

• Read all instructions carefully before operating the appliance.
• Ensure the appliance is connected to a 120V/60Hz power supply.
• Do not immerse the main machine in water or other liquids.
• Keep hands and utensils out of the grinding compartment during operation.
• Always add ingredients strictly according to the instructions to prevent overflowing, nozzle clogging, or poor crushing results.
• Do not operate the appliance if the power cord or plug is damaged.
• Unplug the appliance from the outlet when not in use and before cleaning.
• Exercise caution when handling hot liquids and steam.

3. Product Components

Familiarize yourself with the parts of your JOYOUNG DJ10U-K61:

• Main machine: The primary unit containing the motor and heating elements.
• Waste tank: Collects liquid byproducts during operation and cleaning.
• Glass pot jug and lid: The container for collecting prepared beverages.
• Water reservoir: Holds water for various functions.
• Grinding compartment lid: Covers the grinding area.
• Steam valve: Releases steam during operation.
• Coffee filter: Used specifically for coffee brewing.
• Measuring cup: For accurate ingredient measurement.

A detailed view of the steam valve located on the top of the JOYOUNG DJ10U-K61, an important safety and operational component.

4. Setup and Initial Use

Before first use, unpack all components and wash the glass pot jug, lid, coffee filter, and measuring cup with warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the main machine with a damp cloth.

1. Place the main machine on a stable, flat, and heat-resistant surface.
2. Ensure the waste tank is correctly inserted into its designated slot.
3. Fill the water reservoir with clean water up to the desired level, observing the minimum and maximum marks.
4. Connect the power cord to a suitable electrical outlet. The appliance is now ready for operation.

5. Operating Instructions

The JOYOUNG DJ10U-K61 offers multiple functions for various beverages. Always ensure the water reservoir is filled and the waste tank is empty before starting a new cycle.

5.1. Soy Milk Making

1. Add pre-soaked or dry soybeans to the grinding compartment.
2. Select the desired capacity (300ml, 500ml, 800ml, or 1000ml) if applicable for your model.
3. Press the 'Soy Milk' function button. The machine will automatically process and dispense soy milk into the glass pot jug.

5.2. Coffee Brewing

The coffee function defaults to 300ML capacity.

1. Place the coffee filter into the grinding compartment.
2. Add ground coffee to the filter.
3. Press the 'Coffee' function button.

5.3. Juice Making

The juice function defaults to 500ML capacity. Ensure fruits are cut into small pieces.

1. Add cut fruits or vegetables to the grinding compartment.
2. Important: Do not put in too much fibrous material to avoid clogging the pulp nozzle.
3. Press the 'Juice' function button.

5.4. Hot Water Dispensing

The hot water function defaults to 500ML capacity.

1. Ensure the glass pot jug is in place.
2. Press the 'Hot Water' function button.

The JOYOUNG DJ10U-K61 in operation, dispensing freshly prepared soy milk into a glass, demonstrating its primary function.

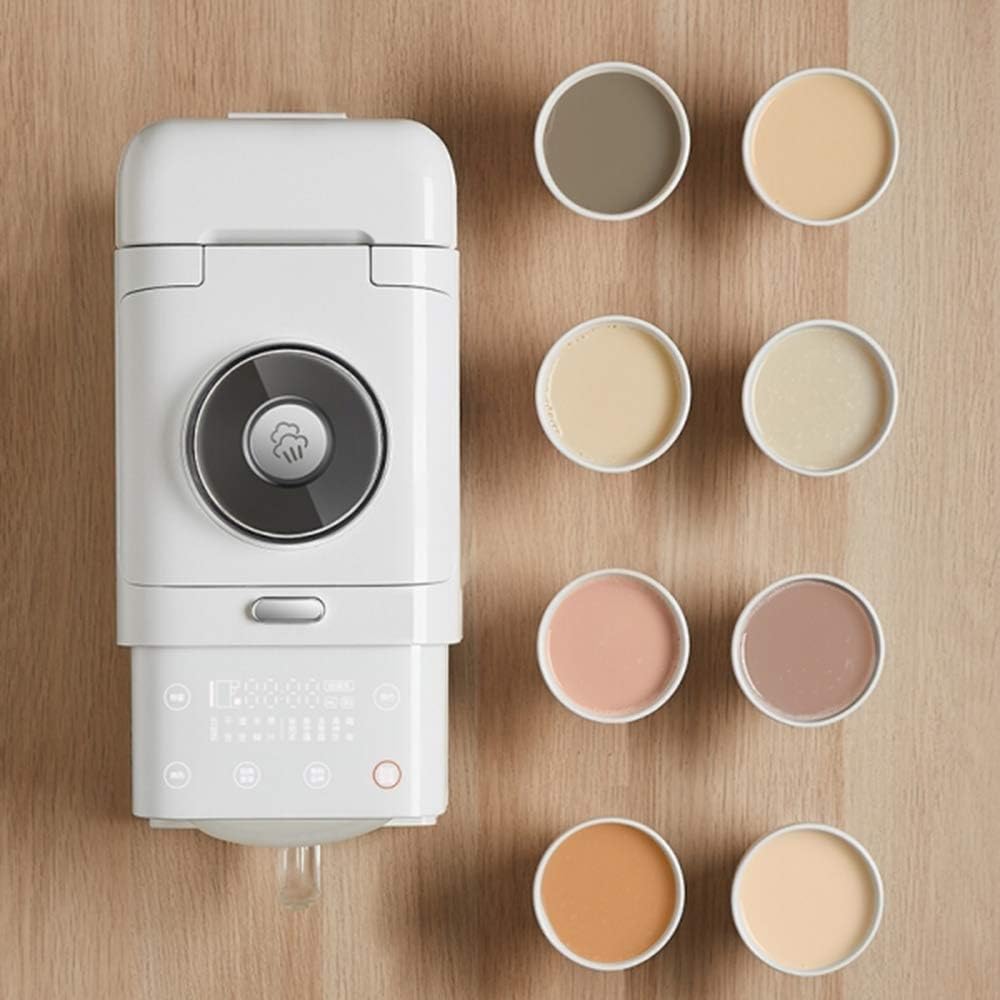

An overhead view showcasing different types of beverages, such as soy milk, coffee, and juice, that can be prepared using the JOYOUNG DJ10U-K61, highlighting its multi-functionality.

6. Maintenance and Cleaning

The JOYOUNG DJ10U-K61 features an automatic self-cleaning function. Regular cleaning ensures optimal performance and hygiene.

6.1. Automatic Self-Cleaning

After each use, the appliance will initiate a self-cleaning cycle. Ensure the waste tank is empty before this cycle begins.

6.2. Manual Cleaning

• Waste Tank: The waste liquid in the tank should be dumped promptly after each use to prevent overflowing and maintain hygiene. Remove the tank, empty its contents, and wash it with warm, soapy water.
• Glass Pot Jug: Wash with warm, soapy water and rinse thoroughly.
• Grinding Compartment: After the self-cleaning cycle, if any residue remains, carefully wipe it with a damp cloth.
• Exterior: Wipe the exterior of the main machine with a soft, damp cloth. Do not use abrasive cleaners or immerse the main unit in water.

A hand demonstrating the removal of the transparent waste tank from the side of the JOYOUNG DJ10U-K61, essential for proper maintenance and disposal of liquid byproducts.

7. Troubleshooting

If you encounter issues with your JOYOUNG DJ10U-K61, refer to the following common problems and solutions:

• E10 Error: This error indicates that the drain valve is blocked or has a foreign object stuck in it. Please clean the drain valve. Power off the machine, then clean the valve. If the alarm persists, contact customer support for repair.
• Overflowing: Ensure ingredients are added strictly according to the manual's guidelines and do not exceed the maximum fill lines for each function.
• Clogging of Nozzle: When using the juice function, cut fruits into small pieces and avoid excessive fibrous materials.
• Poor Crushing: Ensure ingredients are prepared as recommended (e.g., pre-soaking soybeans if required for specific recipes).

8. Product Specifications

9. Warranty and Support

The JOYOUNG DJ10U-K61 comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use conditions.

For warranty claims, technical support, or any inquiries regarding your appliance, please contact the seller or manufacturer directly. Refer to your purchase documentation for specific contact details.
