Aurlane PACM106 Structura P106 Bathroom Cabinet Instruction Manual

Introduction

Thank you for choosing the Aurlane PACM106 Structura P106 Bathroom Cabinet. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new bathroom furniture. Please read these instructions carefully before beginning assembly or use, and retain this manual for future reference.

Safety Information

• Always handle components with care. This product contains heavy parts; seek assistance when lifting or moving to prevent injury.
• Ensure all mounting hardware is securely fastened. Loose connections can lead to instability and potential hazards.
• Keep small parts and packaging materials away from children to prevent choking hazards.
• Do not stand or climb on the cabinet. It is designed for storage and basin support only.
• If professional installation is required for plumbing or electrical connections (for lighting, if applicable), always consult a qualified professional.
• Avoid exposing the cabinet to excessive moisture or direct water spray, as this may damage the materials.

Package Contents

Please verify that all components are present and undamaged before proceeding with installation.

• 1 x Bathroom Cabinet (MDF and melamine brown oak finish, with matt black lacquered aluminum legs)
• 1 x Black Resin Basin (stone effect, with overflow)
• 1 x Mirror (with matt black lacquered aluminum frame and shelf)
• Assembly hardware (screws, brackets, etc.)

Setup and Assembly

The main cabinet unit is delivered assembled. Installation primarily involves positioning the cabinet, installing the basin, and mounting the mirror.

1. Unpacking

Carefully remove all components from their packaging. Lay them out on a clean, soft surface to prevent scratches. Inspect all parts for any damage. If any part is damaged or missing, do not proceed with assembly and contact customer support.

2. Positioning the Cabinet

Place the assembled cabinet in its desired location. Ensure the floor is level. The cabinet features matt black lacquered aluminum legs for stability.

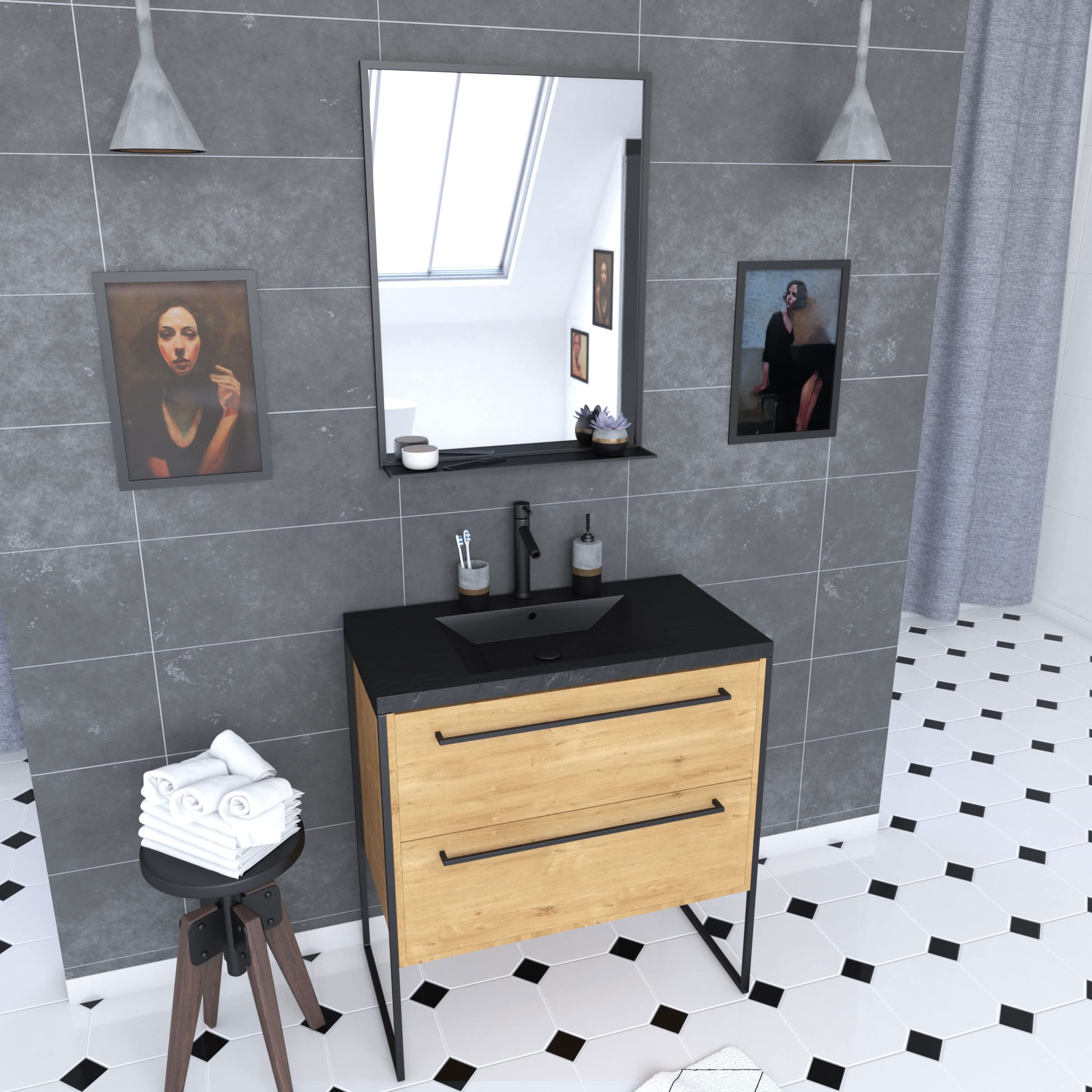

Image: Front view of the Aurlane PACM106 Structura P106 Bathroom Cabinet, showcasing its design and two drawers.

3. Installing the Basin

1. Carefully place the black resin basin onto the top of the cabinet. Ensure it is centered and aligned with the cabinet's edges.
2. Connect the plumbing for the drain and water supply to the basin. Note: Tap is not included. Ensure all connections are watertight to prevent leaks.
3. Apply a bead of silicone sealant around the edges where the basin meets the cabinet for a secure and waterproof seal. Allow adequate time for the sealant to cure as per manufacturer instructions.

4. Mounting the Mirror

The mirror comes with a matt black lacquered aluminum frame and an integrated shelf. Refer to the diagram below for dimensions and component identification.

Image: Detailed diagram illustrating the dimensions of the cabinet (80x50x81 cm) and mirror (80x60x10 cm), and identifying key components such as the matt black lacquered aluminum frame and shelf, black resin basin with stone effect and overflow, full extension soft-close drawers, and matt black lacquered aluminum legs. It also notes that the tap is not included.

1. Determine the desired height for the mirror above the basin. Mark the wall where the mounting points for the mirror will be.
2. Drill pilot holes at the marked locations, ensuring they are appropriate for your wall type (e.g., drywall, tile, concrete). Insert wall anchors if necessary.
3. Securely attach the mirror to the wall using the provided mounting hardware. Ensure it is level and stable.
4. The mirror includes a shelf for additional storage. Ensure it is clear of obstructions.

Operating Instructions

Using the Drawers

The cabinet features two drawers with full extension and soft-close mechanisms. To open, gently pull the drawer handle. To close, push the drawer until the soft-close mechanism engages, allowing it to close smoothly and quietly.

Image: The Aurlane PACM106 Structura P106 Bathroom Cabinet with its top drawer open, revealing storage space and the black resin basin.

Using the Mirror Shelf

The integrated shelf on the mirror provides convenient storage for small bathroom essentials. Avoid placing excessively heavy items on the shelf to maintain stability.

Maintenance and Care

Regular cleaning and proper care will help maintain the appearance and longevity of your bathroom cabinet.

Cleaning the Cabinet

• Wipe surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner.
• Avoid using harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the melamine finish and aluminum legs.
• Immediately wipe away any spilled liquids to prevent water damage or staining.

Cleaning the Basin

• Clean the resin basin with a soft cloth and a non-abrasive bathroom cleaner.
• Rinse thoroughly with water after cleaning to remove any cleaner residue.
• Avoid strong acids or alkalis, as these can damage the stone effect finish.

Cleaning the Mirror

• Use a standard glass cleaner and a lint-free cloth for the mirror surface.
• Wipe the aluminum frame and shelf with a soft, damp cloth.

Troubleshooting

• Wobbly Cabinet: Ensure the cabinet is placed on a level surface. Adjust the feet if necessary to stabilize.
• Drawer Not Closing Smoothly: Check for any obstructions within the drawer slides. Ensure the drawer is properly seated on its runners. The soft-close mechanism requires a gentle push to engage.
• Water Leaks from Basin: Verify all plumbing connections are tight and properly sealed. Check the silicone sealant around the basin for any gaps or cracks.
• Mirror Appears Uneven: Re-check the wall mounting points and adjust as needed to ensure the mirror is level.

Specifications

Warranty and Support

For warranty information or technical support, please refer to the documentation provided at the point of purchase or contact your retailer. Keep your purchase receipt as proof of purchase.
