Introduction
Thank you for choosing OMIKA Battery Operated String Lights. This manual provides detailed instructions for the safe and efficient use of your 15-foot, 30-LED string lights, featuring 24 color-changing options, remote control, and timer functions. These lights are designed for both indoor and outdoor decorative purposes, offering versatile power options via 3 AA batteries or USB.
Product Features
- 24 Color Changing Options: Enjoy a wide spectrum of colors, including Red, White, and Blue, along with 128 dynamic modes to create various lighting effects.
- Dual Power Source: Operates with 3 AA batteries (not included) or via a 5V USB power source (power bank, computer, wall charger).
- Remote Control with Timer: Easily control power, select from 128 lighting modes, adjust brightness, and set a timer for 4, 6, or 8 hours of automatic operation.
- Wide Application: Suitable for decorating bedrooms, camping areas, balconies, living rooms, porches, bars, and for special occasions like Christmas, Halloween, and parties.
- IP65 Waterproof Rating: The battery box is IP65 rated, meaning it is protected from dust and low-pressure water jets. While suitable for outdoor use, avoid submerging the battery box in water.

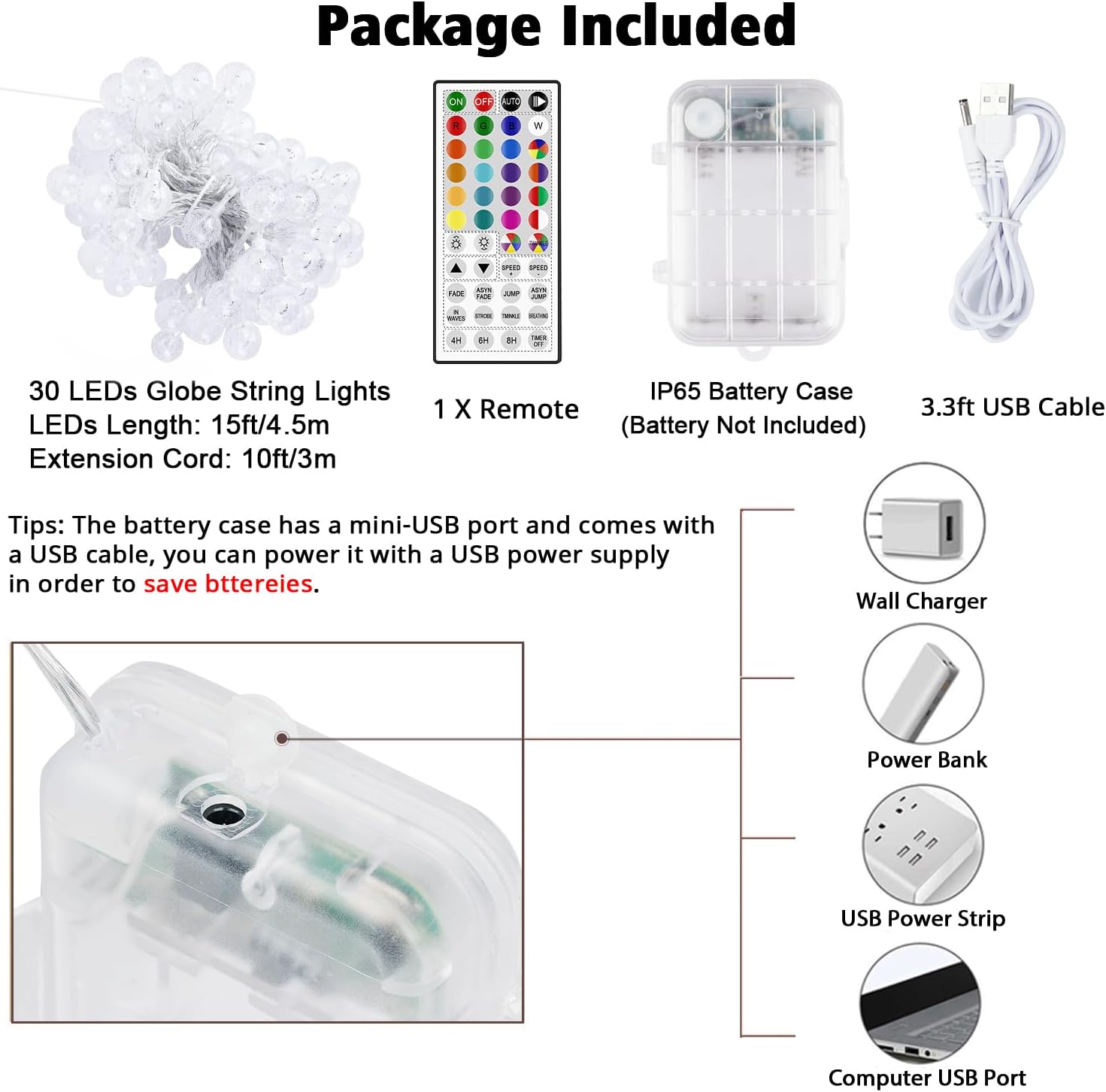

Package Contents
Please check the package to ensure all items are present:
- 1 x 15FT 30 LED Globe String Lights
- 1 x Remote Control (with 1 CR2 battery included)
- 1 x Waterproof Battery Box (requires 3 AA batteries, not included)
- 1 x 3.3ft USB Cable
Setup Instructions
- Insert Batteries (Optional): Open the waterproof battery box. Insert 3 AA batteries (not included) according to the polarity markings. Close the battery box securely to maintain its IP65 waterproof rating.
- Connect USB Power (Optional): Alternatively, connect the provided USB cable to the mini-USB port on the battery box and plug the other end into a 5V USB power source (e.g., wall adapter, power bank, computer USB port).
- Placement: Carefully uncoil the string lights. Place or hang the lights in your desired indoor or outdoor location. Ensure the battery box or USB connection point is protected from extreme weather if using outdoors, despite its waterproof rating.
- Remote Control Battery: The remote control comes with a CR2 battery pre-installed. Remove the plastic tab from the battery compartment before first use.
Operating Instructions
Use the included remote control to operate the string lights. Ensure the remote is pointed towards the battery box/receiver for optimal functionality.
Remote Control Functions:
- ON/OFF: Press the ON button to turn the lights on, and OFF to turn them off.
- Color Selection: Use the color buttons (R, G, B, W, and other color squares) to select a fixed color.
- Dynamic Modes: Press the FADE, JUMP, ASYN FADE, ASYN JUMP, TWINKLE, BREATHING, IN WAVES, STROBE buttons to cycle through 128 different dynamic lighting effects.
- Brightness Adjustment: Use the Brightness +/- buttons to increase or decrease the light intensity. There are 4 levels of brightness (100%, 75%, 50%, 25%).
- Speed Adjustment: Use the SPEED +/- buttons to adjust the speed of dynamic modes.
- Timer Function: Press 4H, 6H, or 8H to activate the timer. The lights will automatically turn on for the selected duration each day and then turn off. To deactivate the timer, press the TIMER OFF button.
Note: The button on the battery box can turn the lights on and cycle through colors, but it does not turn them off or control all functions. Use the remote for full control.
Maintenance
- Cleaning: Gently wipe the lights with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Storage: When not in use, carefully coil the string lights and store them in a cool, dry place away from direct sunlight and moisture. Remove batteries if storing for extended periods to prevent leakage.
- Waterproof Rating: The battery box has an IP65 rating, meaning it is protected from dust and low-pressure water jets. While suitable for outdoor use, avoid submerging the battery box in water.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. |
|
|
| Remote control is not responding. |
|
|
| Lights are dim or flickering. |
|
|
Specifications
- Brand: OMIKA
- Model Number: BG-QCTB-BO-02
- Color: 24 Colors Changing
- Length: 15 Feet (4.5 meters)
- LED Quantity: 30 LEDs
- Light Source Type: LED
- Power Source: 3 x AA Battery Operated (Not Included) & 5V USB Powered
- Voltage: 4.5 Volts
- Wattage: 3 watts
- Material: Copper, Plastic
- Indoor/Outdoor Usage: Indoor, Outdoor
- Special Features: Battery Operated & USB Powered, Dynamic Modes, Timer Settings
- Control Method: Remote Control
- Waterproof Rating: IP65 (battery box)
Warranty and Support
OMIKA products are designed for quality and reliability. For any questions, concerns, or support regarding your OMIKA Battery Operated String Lights, please refer to the seller's contact information on your purchase platform or visit the official OMIKA store for assistance. Please retain your proof of purchase for any warranty claims.
