George Kovacs Cosmet P8151-681 6-Light Pendant Instruction Manual

1. Introduction

Thank you for choosing the George Kovacs Cosmet P8151-681 6-Light Pendant. This contemporary lighting fixture features a unique design with thin metal rods in a coal black finish, accented with aged brass and white glass orb shades. It is designed to provide both functional illumination and a modern aesthetic to your living space. This manual provides essential information for safe installation, operation, and maintenance of your new pendant light.

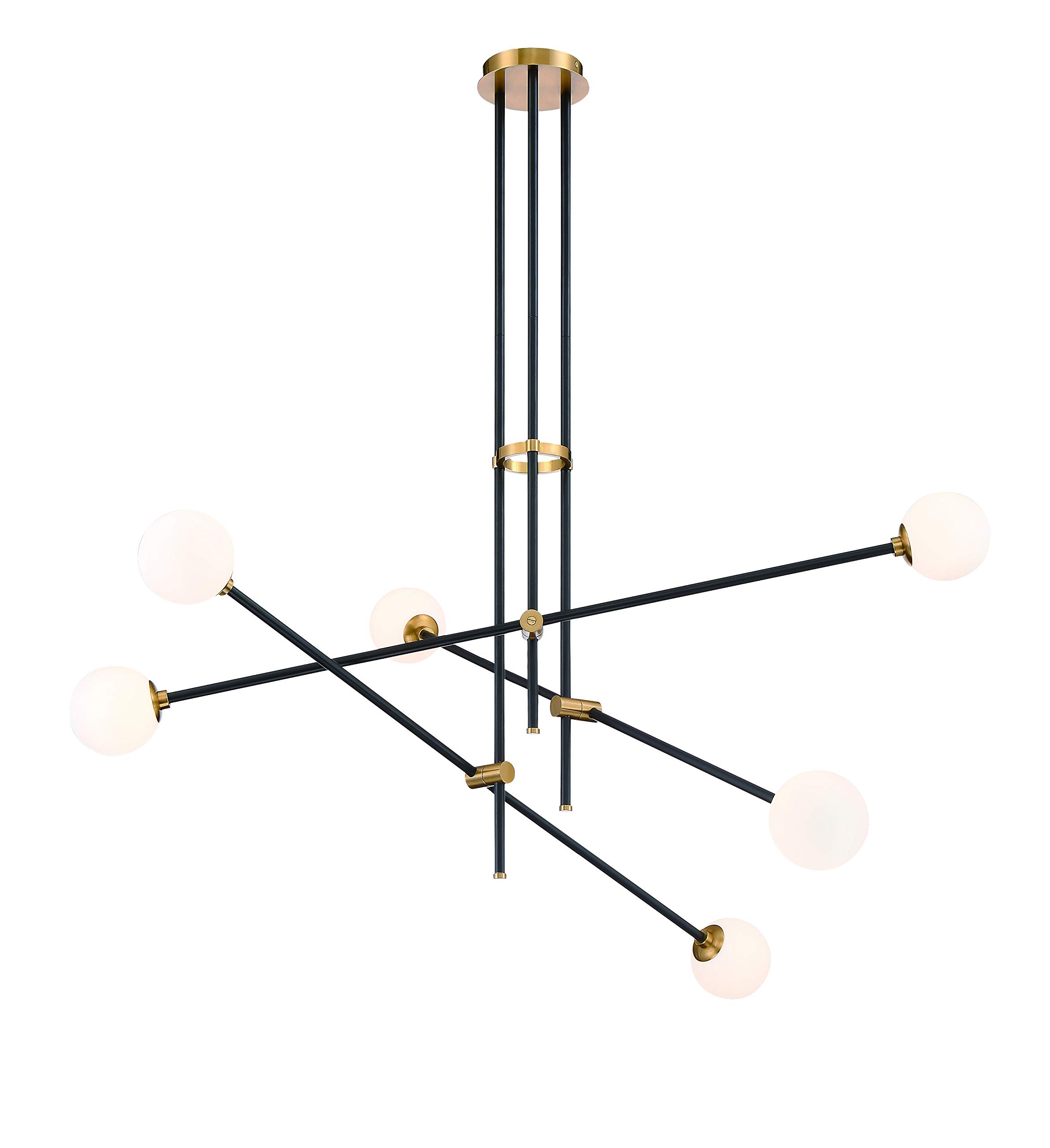

Figure 1: George Kovacs Cosmet P8151-681 6-Light Pendant in Coal/Aged Brass finish.

2. Important Safety Information

Please read all instructions carefully before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be fatal or cause serious damage to property. All wiring must be in accordance with national and local electrical codes. If you are unfamiliar with wiring, consult a qualified electrician. Always disconnect power at the main circuit breaker before installation or maintenance.

• WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installing or servicing.
• CAUTION: Use only with specified bulb type and wattage.
• Do not install this fixture in wet locations. This fixture is designed for indoor use only.
• Ensure all connections are secure and properly insulated.
• Keep flammable materials away from the light fixture when in operation.

3. Setup & Installation

Installation of the George Kovacs Cosmet P8151-681 pendant light is designed to be straightforward. However, if you are not comfortable with electrical wiring, it is recommended to seek professional assistance. The fixture is a semi-flush mount type and includes all necessary mounting hardware.

3.1 Unpacking

• Carefully remove all components from the packaging.
• Inspect the fixture for any damage. Do not install if damaged.
• Verify all parts listed in the "Included Components" section are present.

3.2 Tools Required (Not Included)

• Screwdriver (Phillips and Flathead)
• Wire Strippers
• Electrical Tape
• Ladder

3.3 Installation Steps

1. Turn off power: Locate the circuit breaker controlling the light fixture and turn it off.
2. Prepare mounting: Attach the mounting bracket to the junction box in the ceiling using the provided screws.
3. Wire connections: Connect the fixture's wires to the household electrical wires according to local codes (typically black to black, white to white, and ground to ground). Secure connections with wire nuts and electrical tape.
4. Mount the fixture: Carefully lift the fixture and secure it to the mounting bracket.
5. Install bulbs: Insert the six 40-watt 2-pin G4 base T4 dimmable bulbs into their sockets.
6. Restore power: Turn the power back on at the circuit breaker.

Note: The installation process is generally straightforward, with some users reporting completion in approximately 15 minutes.

4. Operation

The George Kovacs Cosmet pendant light is designed for simple operation and offers adjustable features to customize your lighting experience.

4.1 Turning On/Off

Operate the light fixture using a standard wall switch connected to the circuit. The fixture is compatible with touch control systems if integrated into your home's electrical setup.

4.2 Adjusting Light Arms

The design of the Cosmet pendant allows for adjustment of the light arms. You can manually reposition the arms to change the angle and direction of the light, customizing the aesthetic and illumination spread to suit your preference. Gently move the arms to achieve the desired configuration.

4.3 Dimming Functionality

This fixture is dimmable. To utilize the dimming feature, ensure you have a compatible dimmer switch installed and are using the included 40-watt 2-pin G4 base T4 dimmable bulbs.

5. Maintenance

Regular maintenance will help preserve the appearance and functionality of your George Kovacs Cosmet pendant light.

5.1 Cleaning

• Always disconnect power before cleaning.
• For the metal frame (coal black and aged brass finishes), wipe with a soft, dry cloth. Do not use abrasive cleaners or polishes as they may damage the finish.
• For the white glass orb shades, gently wipe with a soft, damp cloth. Mild soap can be used if necessary, followed by a dry cloth to prevent water spots.

5.2 Bulb Replacement

• Always disconnect power before replacing bulbs.
• Allow bulbs to cool completely before handling.
• This fixture uses six 40-watt 2-pin G4 base T4 dimmable halogen bulbs.
• To replace, gently pull the old bulb straight out from its socket. Insert the new bulb by pushing its pins straight into the socket.
• Ensure replacement bulbs match the specified type and wattage to maintain proper operation and safety.

6. Troubleshooting

If you experience issues with your pendant light, refer to the following common problems and solutions:

7. Specifications

8. Warranty & Support

For warranty information or technical support regarding your George Kovacs Cosmet P8151-681 pendant light, please contact the manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: George Kovacs

For further assistance, you may visit the George Kovacs Store on Amazon.
