1. Introduction
The THE MAGIC SCENT TMS-100 is a sophisticated waterless cold air diffuser designed to disperse fragrance evenly across spaces up to 1000 sq. ft. Ideal for both residential and commercial environments, this smart scent machine offers customizable settings for a consistent and pleasant aroma experience.

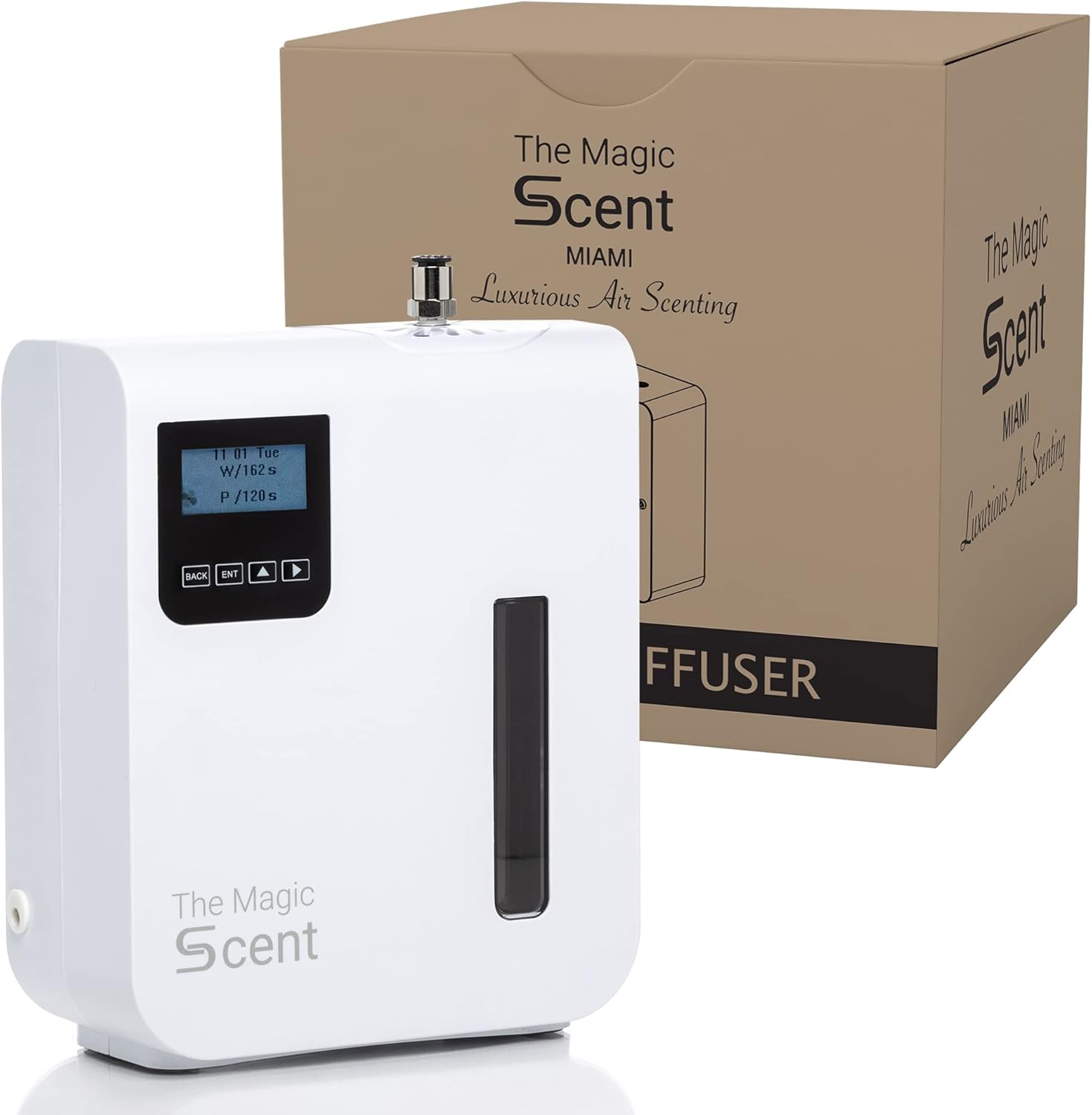

Figure 1: The TMS-100 Scent Air Machine and its packaging.
2. Important Safety Information
Warning: Avoid direct skin contact with undiluted essential oils. Keep out of reach of children and pets. Ensure proper ventilation during use. Do not ingest essential oils. Always follow the instructions provided with your essential oils.
3. Product Components
Your TMS-100 Scent Air Machine package includes the following main components:
- Diffuser Unit with built-in 24-Hour Smart Operation System and display.
- POM Material Diffuser Head for long-lasting performance.
- PET Material Oil Bottle for anti-corrosion.
- Power Adapter.

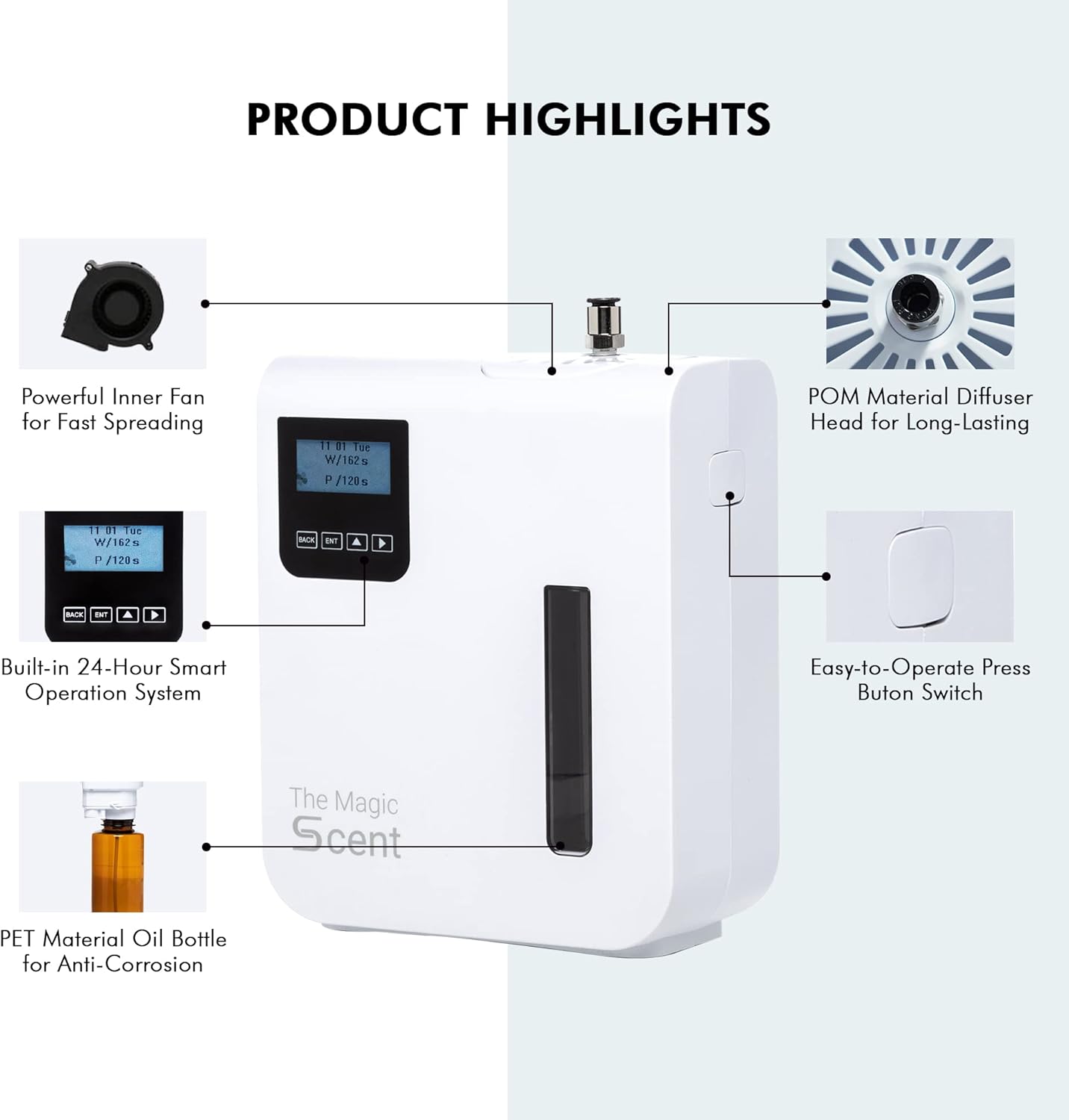

Figure 2: Key components and features of the TMS-100 Diffuser.
4. Setup Guide
Follow these steps to set up your TMS-100 Scent Air Machine:
- Unpack and Place: Carefully remove the diffuser from its packaging. Place the unit on a stable, flat surface in your desired location. Ensure adequate space around the unit for optimal scent dispersal.
- Access Oil Bottle: Open the top cover of the diffuser unit. Locate and remove the empty oil bottle and its attached diffuser head.
- Prepare Scent Oil: Unscrew the diffuser head from the empty bottle. Open your desired THE MAGIC SCENT aroma oil bottle.
- Fill Oil Bottle: Carefully pour the scent oil from your refill bottle into the diffuser's PET material oil bottle. Do not overfill.
- Reassemble: Reattach the diffuser head securely to the filled oil bottle. Ensure it is tightly sealed to prevent leaks.
- Insert Bottle: Place the filled oil bottle back into the diffuser unit, ensuring it sits correctly in its designated slot.
- Close Unit and Power On: Close the top cover of the diffuser unit. Connect the power adapter to the unit and then plug it into a suitable electrical outlet. The unit will power on.
Video: A demonstration of how to set up and fill your THE MAGIC SCENT Scent Diffuser with aroma oil.
5. Operating Instructions
The TMS-100 features a user-friendly interface for programming your scenting schedule.
- Power On/Off: Once plugged in, the unit will typically power on automatically. Use the control panel buttons (BACK, ENT, arrows) to navigate the menu and power settings.
- Setting Schedules: Utilize the built-in 24-hour smart operation system to program specific operating times and days. Refer to the on-screen prompts and the detailed instructions in the PDF user manual for precise programming steps.
- Adjusting Scent Intensity: The diffuser allows for adjustable scent intensity. You can typically set the duration of scent dispersal and the pause interval between cycles. For optimal economy, a common setting is 10 seconds of work followed by 110 seconds of pause, which can be repeated throughout the programmed operating hours.
- Continuous Operation: Note that the unit does not feature an auto-shutoff function, allowing for continuous operation during programmed times.
Figure 3: The control panel and internal fan, which improves diffusion for optimal economy.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your diffuser.
- Exterior Cleaning: Wipe the exterior of the diffuser with a soft, dry cloth to remove dust and smudges. Do not use abrasive cleaners or immerse the unit in water.
- Oil Bottle and Diffuser Head Cleaning: If changing scents or if the scent output seems diminished, you may clean the oil bottle and diffuser head. Empty any remaining oil. Pour a small amount of rubbing alcohol into the bottle and run the diffuser for 10-15 minutes in a well-ventilated area to clear the nozzle. Then, empty the alcohol and refill with your desired scent.
- Oil Replacement: When the oil level is low, follow the steps in the Setup Guide to refill or replace the oil bottle.
Figure 4: Ensure to use high-quality aroma oils for best results and to maintain your diffuser.
7. Troubleshooting
If you encounter issues with your diffuser, try the following solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No scent/mist output | Oil bottle empty or low; nozzle clogged; unit not powered on. | Refill oil bottle; clean nozzle/diffuser head with rubbing alcohol; ensure power connection and unit is turned on. |
| Unit not turning on | Power adapter not connected; power outlet issue. | Check power adapter connection; try a different power outlet. |
| Loud motor noise | Unit not stable; internal obstruction. | Ensure unit is on a flat, stable surface; contact customer support if noise persists. |
| Weak scent output | Low oil level; nozzle partially clogged; incorrect intensity setting. | Refill oil; clean nozzle; adjust scent intensity settings on the control panel. |
8. Technical Specifications
| Feature | Detail |
|---|---|
| Brand | THE MAGIC SCENT |
| Model Name | TMS-100 |
| Recommended Uses | Home, Office |
| Special Feature | Adjustable |
| Power Source | Corded Electric |
| Capacity | 300 Milliliters |
| Floor Area Coverage | 1000 Square Feet |
| Product Dimensions | 2.7"L x 7.8"W x 9.3"H |
| Runtime | 10 hours (per cycle, programmable) |
| Wattage | 12 watts |
| Auto Shutoff | No (operates based on programmed schedule) |
| Item Weight | 3.56 pounds |

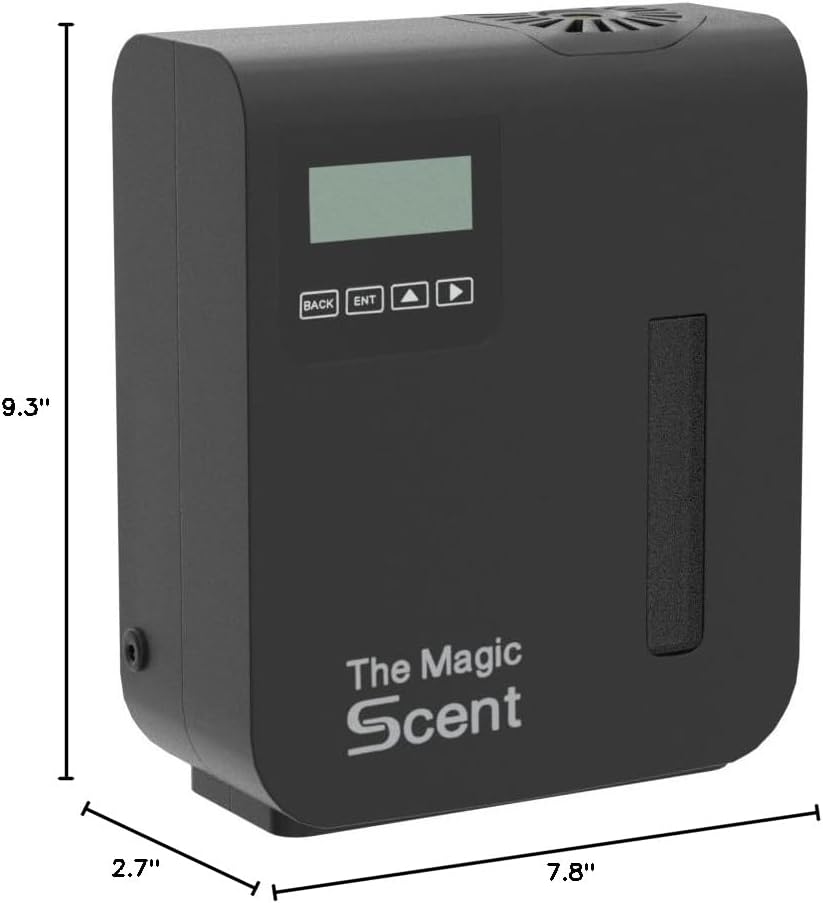

Figure 5: Product dimensions for placement and planning.
9. Warranty and Support
For warranty information and customer support, please refer to the official THE MAGIC SCENT website or contact their customer service directly. Keep your purchase receipt for any warranty claims.
A detailed User Manual in PDF format is also available for download: User Manual (PDF)
