1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your LEONLITE 7 Inch LED Hardscape Lights. These low-voltage landscape lights are designed for outdoor use, offering versatile illumination for various hardscape applications.

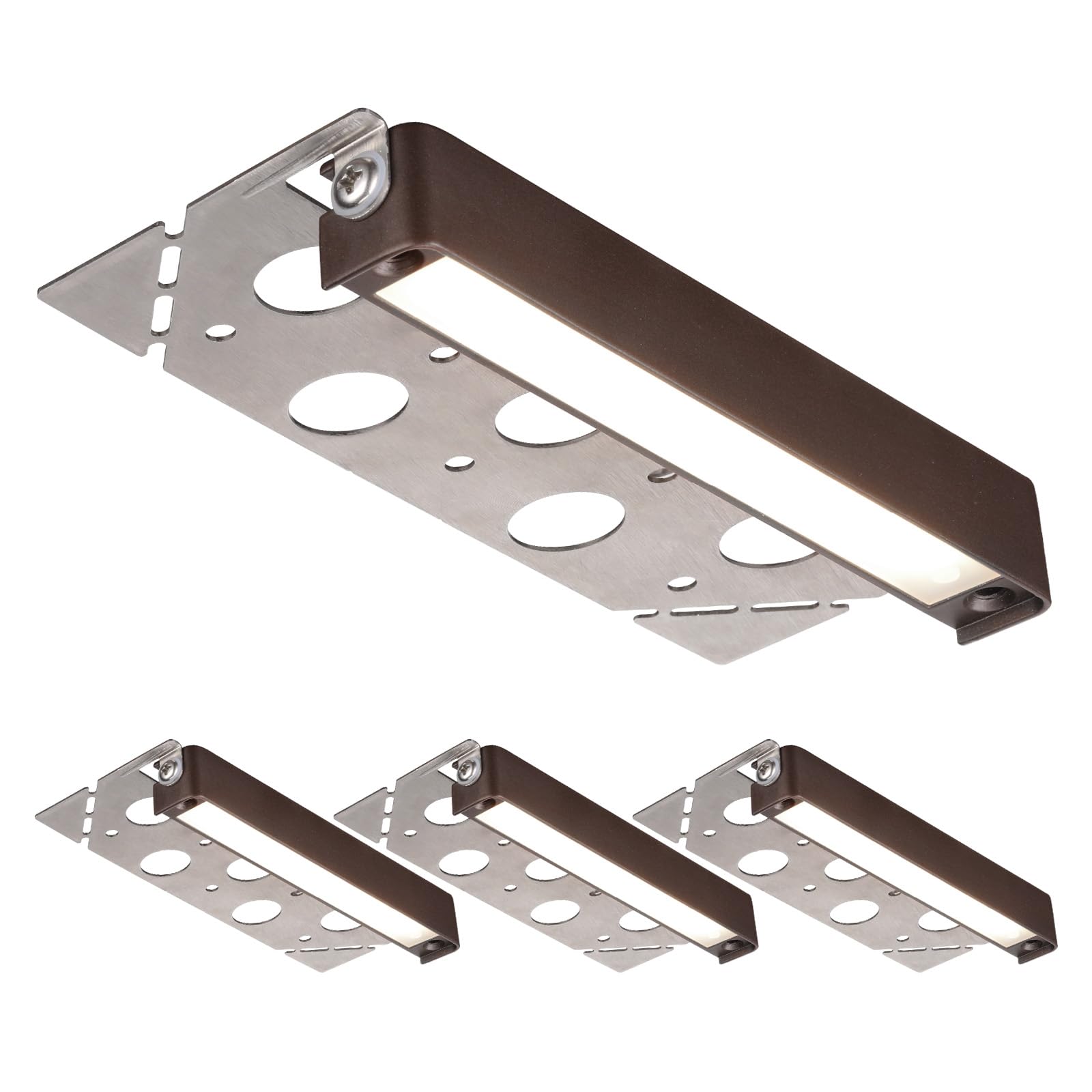

Image 1: LEONLITE 7 Inch LED Hardscape Lights, 4-pack overview.
2. Safety Information
- Always disconnect power before installation or servicing.
- Ensure the power source is 12-24V AC/DC low voltage. Do not connect directly to 120V AC.
- Consult a qualified electrician if you are unsure about wiring or installation procedures.
- Do not modify the product in any way, as this may void the warranty and create safety hazards.
- Keep children and pets away from the installation area.
3. Package Contents
Verify that all components are present before beginning installation:
- 4 x LEONLITE 7 Inch LED Hardscape Lights
- Mounting Hardware (screws, anchors)
- Waterproof Wire Connectors
- User Manual
Note: An extra low voltage transformer is needed but not included. Other accessories not included in the package need to be purchased separately.
Image 2: Contents included in the LEONLITE 7 Inch LED Hardscape Light package.
4. Specifications
| Feature | Specification |
|---|---|
| Brand | LEONLITE |
| Model Number | 89566 |
| Color Temperature | 5000K Daylight |
| Material | Aluminum, Stainless Steel |
| Product Dimensions | 6.85"L x 2.87"W x 0.91"H |
| Power Source | 12-24V AC/DC Low Voltage |
| Wattage Options | 3W, 4W, 5W (selectable) |
| Brightness (Lumens) | 156lm (3W), 208lm (4W), 260lm (5W) |
| Waterproof Rating | IP65 |
| Working Temperature | -4℉ to 104℉ |
| Lifespan | 30,000 hours |
| Certifications | ETL Listed |
Image 3: Detailed dimensions and components of the hardscape light.
5. Installation
The LEONLITE hardscape lights offer both surface mount and recessed installation options to suit various outdoor structures.
5.1 Choosing a Mounting Method
These lights are designed for flexibility. The mounting plate can be detached for surface mounting on wooden decks or existing hardscapes, or used for conventional recessed installation beneath capstones or retaining wall blocks.
Image 4: Visual guide for surface and recessed mounting options.
5.2 Detaching the Mounting Plate
For surface mounting or specific recessed applications, the metal mounting plate can be detached from the light fixture. Simply remove the two screws securing the light to the plate.
Image 5: Steps to detach the mounting clamp for varied installations.
5.3 Wiring and Power Supply
Connect the lights to a 12-24V AC/DC low voltage transformer (not included). Use the provided waterproof wire connectors to ensure secure and weather-resistant connections. Ensure proper polarity when connecting to the transformer.
5.4 Installation Video Guide
Watch this video for a visual demonstration of the product features and installation process:
Video 1: Overview of LEONLITE 7 Inch 3W/4W/5W Dimmable LED Hardscape Light features and installation methods.
6. Operation
6.1 Wattage Selection
The lights feature a selectable wattage option (3W, 4W, 5W) to adjust brightness according to your needs. This can be set during installation to optimize energy consumption and light output.
Image 6: Illustrates the 3-wattage selectable feature for different brightness levels.
6.2 Rotatable Design
For non-surface mounting installations, the light fixture can be rotated 180 degrees, allowing you to direct the light precisely where needed. This feature helps in achieving optimal illumination and glare reduction.
Image 7: Demonstrates the rotatable design for adjustable lighting direction.
7. Maintenance
- Regularly clean the light fixtures with a soft, damp cloth to remove dirt and debris.
- Do not use abrasive cleaners or solvents, as these can damage the finish or electrical components.
- Periodically inspect wiring and connections for any signs of wear, damage, or corrosion. Replace any damaged components immediately.
- Ensure the IP65 waterproof rating is maintained by properly sealing all connections.
Image 8: Hardscape lights demonstrating their IP65 waterproof rating in outdoor conditions.
8. Troubleshooting
- Lights not turning on: Check the power supply to the transformer. Ensure all wire connections are secure and properly sealed. Verify the transformer is functioning correctly.
- Lights flickering: This may indicate an unstable power supply or loose connections. Inspect all wiring and ensure the transformer is providing consistent voltage.
- Uneven brightness: Confirm that all lights are set to the desired wattage. Check for any obstructions blocking the light output.
- Water intrusion: Although rated IP65, improper installation or damaged seals can lead to water entry. Inspect all seals and connections, and re-seal if necessary using appropriate waterproof sealant.
9. Warranty and Support
LEONLITE provides a 3-year warranty for these LED Hardscape Lights, ensuring quality and safe use. For technical support, warranty claims, or any inquiries, please contact LEONLITE customer service through their official channels.
Please retain your proof of purchase for warranty validation.
