1. Introduction
Thank you for choosing the KUTCHINA Wales Dlx 90 Auto Clean Kitchen Chimney. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new appliance. Please read this manual thoroughly before using the chimney and keep it for future reference.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.
- Ensure the power supply voltage matches the rating indicated on the appliance.
- Do not allow children to operate or play with the appliance.
- Disconnect the power supply before cleaning or performing any maintenance.
- Do not operate the chimney if the power cord or plug is damaged.
- Ensure proper ventilation in the kitchen during operation.
- Avoid direct flame exposure to the chimney.
- This appliance is designed for domestic kitchen use only.
3. Product Overview
The KUTCHINA Wales Dlx 90 is a 90 cm wall-mounted kitchen chimney designed for 2-4 burner stoves, featuring advanced auto-clean functionality and high suction capacity.
Key Features:
- Size: 90 cm, suitable for 2-4 burner stoves.
- Suction Capacity: 1400+50 M³/hr for efficient smoke and odor removal.
- Auto Clean Functionality: Inbuilt system for easy maintenance.
- Filterless Technology: Enhances suction and reduces cleaning effort.
- Controls: Intuitive touch interface.
- Lighting: Power-saving LED lights.
- Motor: High-capacity motor with copper windings for durability.
- Oil Collector: Separate oil collector for convenient disposal.
Figure 3.1: Front view of the KUTCHINA Wales Dlx 90 Auto Clean Kitchen Chimney.
Figure 3.2: Illustration of the chimney's filterless technology, showing smoke being drawn upwards.

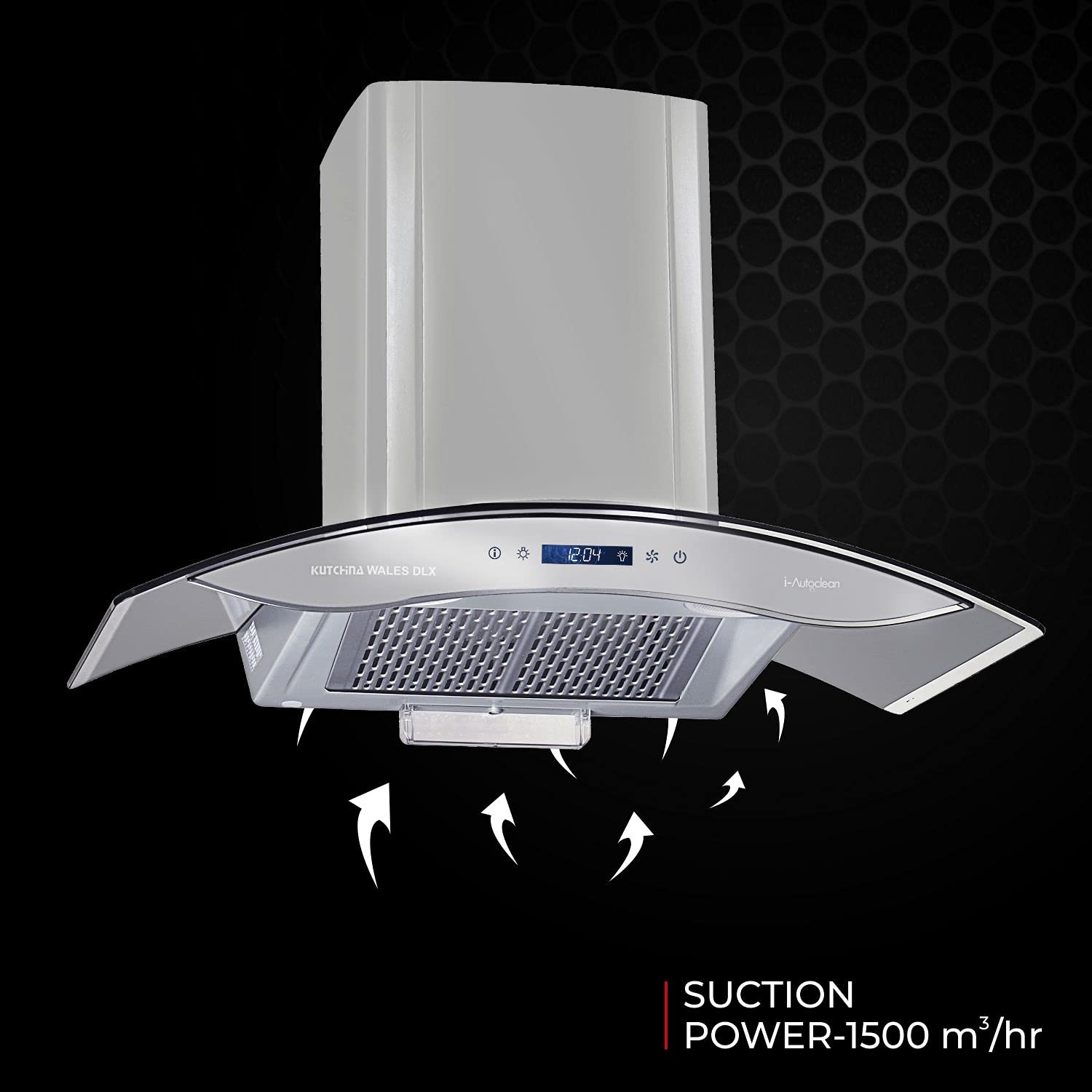

Figure 3.3: Visual representation of the chimney's powerful suction, indicating 1500 m³/hr capacity.
Figure 3.4: Diagram highlighting key features: Filterless Technology, iAutoclean, LED Panel, and Separate Oil Collector.
Figure 3.5: Image illustrating the touch-free cleaning feature of the chimney.
4. Setup and Installation
The KUTCHINA Wales Dlx 90 is a wall-mounted chimney. Proper installation is crucial for optimal performance and safety. It is highly recommended to arrange for professional installation.
- Pre-Installation Check: Ensure the wall is strong enough to support the chimney's weight (approximately 23 kg). Verify the availability of a suitable power outlet.
- Mounting Height: Install the chimney at the recommended height above the cooking surface, typically between 65 cm to 75 cm, to ensure effective suction and safety.
- Ducting: If using a ducted setup, ensure the ducting is correctly sized and routed to an external vent with minimal bends to maximize airflow.
- Electrical Connection: Connect the chimney to a grounded electrical outlet. Do not use extension cords.
- Professional Assistance: For installation, please register at 18004197333 to schedule a service appointment.
5. Operating Instructions
The KUTCHINA Wales Dlx 90 features a user-friendly touch control panel.
Control Panel Functions:
- Power Button: Press to turn the chimney ON/OFF.
- Speed Control: Adjust the suction speed (3 levels available) to match your cooking needs. Use lower speeds for light cooking and higher speeds for heavy frying or grilling.
- Light Button: Press to turn the LED lights ON/OFF, illuminating your cooking area.
- Auto Clean Button: Activate the auto-clean cycle. The chimney will run a self-cleaning process to melt and collect oil residues.
- Motion Sensor: Some models may feature motion sensor controls for hands-free operation. Refer to the specific model's features for details.
Usage Tip: For best results, turn on the chimney a few minutes before you start cooking and let it run for a few minutes after you finish to ensure all smoke and odors are cleared.
6. Maintenance
Regular maintenance ensures the longevity and efficiency of your KUTCHINA chimney.
Auto Clean Function:
- Activate the auto-clean function regularly, depending on your cooking frequency (e.g., once a week for moderate use).
- The auto-clean cycle heats the internal components, causing accumulated oil to melt and drip into the oil collector.
Cleaning the Oil Collector:
- The separate oil collector should be emptied and cleaned periodically.
- Carefully remove the oil collector, dispose of the collected oil, and wash the collector with warm soapy water. Rinse thoroughly and dry before reinserting.
Exterior Cleaning:
- Wipe the exterior surfaces of the chimney with a soft cloth dampened with mild detergent.
- Do not use abrasive cleaners, steel wool, or harsh chemicals, as these can damage the finish.
7. Troubleshooting
If you encounter issues with your chimney, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chimney not turning on | No power supply; loose plug; tripped circuit breaker. | Check power connection; ensure plug is secure; reset circuit breaker. |
| Low suction power | Oil collector full; ducting obstruction; incorrect speed setting. | Empty and clean oil collector; check ducting for blockages; increase fan speed. |
| Unusual noise during operation | Loose components; motor issue; foreign object in fan. | Ensure all parts are secure; contact customer support if noise persists. |
| Lights not working | LED bulb failure; electrical connection issue. | Check light button; contact customer support for bulb replacement. |
If the problem persists after attempting these solutions, please contact KUTCHINA customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | KUTCHINA |
| Model Number | Wales Dlx |
| Size | 90 cm |
| Mounting Type | Wall Mount |
| Suction Capacity | 1400+50 M³/hr |
| Controls Type | Touch |
| Number Of Speeds | 3 |
| Light Source | LED |
| Material | Copper (Motor Windings) |
| Item Weight | 23000 Grams |
| Included Components | Chimney |
9. Warranty and Support
KUTCHINA provides comprehensive warranty and support for your chimney.
- Motor Warranty: Lifetime warranty (9 years) on the motor.
- Product Warranty: 1 year warranty on the overall product.
- Installation & Service: For installation requests or any service-related queries, please register at 18004197333.
