Landi CT03BB Bluetooth Headset User Manual

1. Introduction

This manual provides comprehensive instructions for the Landi CT03BB Bluetooth Headset. Designed for hands-free communication, this wireless earpiece offers advanced lossless audio technology with a built-in microphone and dynamic speaker, minimizing sound distortion for clear conversations. Its ergonomic design ensures comfortable wear for extended periods, making it suitable for business, driving, and office environments. The headset features intuitive controls for managing calls and music, and supports voice assistant activation.

Image 1.1: Front view of the Landi CT03BB Bluetooth Headset, showcasing its sleek black and blue design with an earhook.

Image 1.2: The Landi CT03BB Bluetooth Headset highlighting its digital noise reduction capabilities for high-quality calls.

2. Package Contents

Please verify that all items listed below are included in your package. If any items are missing or damaged, please contact customer support.

Image 2.1: Visual representation of the items included in the product package.

• Landi CT03BB Bluetooth Headset
• USB Charging Cable
• Earhooks (various sizes)
• Earbuds (various sizes)
• Headset Instructions (this manual)

3. Setup

3.1 Charging the Headset

Before first use, fully charge the headset. Connect the provided USB charging cable to the headset's charging port and plug the other end into a USB power source (e.g., computer USB port, wall adapter). The LED indicator will show charging status. A full charge typically takes approximately 2 hours.

The headset is equipped with a Lithium Polymer battery.

3.2 Power On/Off

• To Power On: Press and hold the Multi-function button for approximately 3 seconds until the LED indicator flashes blue and you hear a power-on prompt.
• To Power Off: Press and hold the Multi-function button for approximately 5 seconds until the LED indicator flashes red and you hear a power-off prompt.

3.3 Bluetooth Pairing

To connect your headset to a device (e.g., smartphone, tablet, laptop), follow these steps:

1. Ensure the headset is powered off.
2. Press and hold the Multi-function button for about 5-7 seconds until the LED indicator flashes red and blue alternately, indicating pairing mode.
3. On your device, enable Bluetooth and search for available devices.
4. Select "CT03BB" or "Landi Headset" from the list of found devices.
5. Once connected, the LED indicator on the headset will flash blue slowly, and you will hear a connection prompt.

Image 3.1: Diagram illustrating the Bluetooth connectivity of the headset with various devices such as smartphones, tablets, laptops, and music players.

3.4 Connecting Two Devices Simultaneously

The CT03BB headset supports connecting to two Bluetooth devices at the same time. Follow these steps:

1. Pair the headset with the first device (Device A) as described in Section 3.3.
2. Once connected, disconnect Device A's Bluetooth or turn off the headset.
3. Pair the headset with the second device (Device B).
4. After Device B is successfully connected, re-enable Bluetooth on Device A. The headset should automatically reconnect to Device A, allowing both devices to be connected simultaneously.

4. Operating Instructions

4.1 Call Management

• Answer/End Call: Press the Multi-function button once.
• Reject Call: Press and hold the Multi-function button for approximately 2 seconds.
• Redial Last Number: Double-press the Multi-function button.
• Mute/Unmute: During a call, press the Volume Down button for 2 seconds to mute the microphone. Repeat to unmute.

4.2 Music Control

• Play/Pause: Press the Multi-function button once.
• Next Track: Press and hold the Volume Up button for 2 seconds.
• Previous Track: Press and hold the Volume Down button for 2 seconds.
• Volume Up: Short press the Volume Up button.
• Volume Down: Short press the Volume Down button.

4.3 Voice Assistant Activation

To activate your device's voice assistant (Siri, Google Assistant, Cortana), press the Multi-function button three times quickly.

5. Wearing the Headset

The Landi CT03BB headset is designed for comfort and versatility. It features an extendable and flexible earhook that can be adjusted up to 3mm to fit various ear sizes. The earhook is also 360 degrees rotatable, allowing the earpiece to be worn comfortably on either the right or left ear. Weighing only 0.35oz (approximately 13 grams), with a soft earplug, it ensures comfortable wearing for extended periods.

Image 5.1: Side profile of the headset, showing the earhook and main body.

Image 5.2: Top view of the headset, highlighting the control button layout.

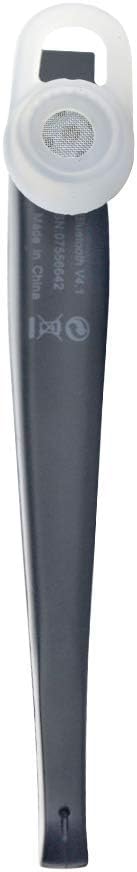

Image 5.3: Bottom view of the headset, showing the charging port and additional details.

6. Maintenance

Proper maintenance will extend the lifespan of your headset:

• Cleaning: Use a soft, dry cloth to clean the headset. Do not use abrasive cleaners or solvents.
• Storage: Store the headset in a cool, dry place away from direct sunlight and extreme temperatures.
• Water Exposure: The headset is not waterproof. Avoid exposure to water, rain, or excessive moisture.
• Charging: Use only the provided charging cable or a certified equivalent. Do not overcharge the battery.

7. Troubleshooting

If you encounter issues with your Landi CT03BB Bluetooth Headset, please refer to the following common problems and solutions:

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact the seller/manufacturer directly. Keep your proof of purchase for warranty claims.

Manufacturer: Dongguan xunze Electronic Co., Ltd
