1. Introduction
This manual provides essential information for the safe and efficient operation of your BAOSHISHAN Electric Fabric Rotary Cutter. Please read all instructions carefully before use and retain this manual for future reference.
2. Important Safety Information
Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury.
- Blade Hazard: The rotary blade is extremely sharp. Always handle with care.
- Keep Hands Clear: Never place hands or fingers near the blade while the machine is operating.
- Safety Guard: Ensure the safety guard is properly in place before operation.
- Power Off Before Maintenance: Always turn off the power supply and remove the battery pack before installing, removing, or maintaining the tool.
- Secure Storage: After use, store the rotary cutter in a safe place to prevent children from coming into contact with it.
- Material Thickness: Do not exceed the maximum cutting thickness of 27mm (1.06 inches) to prevent damage to the tool or material.
- Battery Pack: Ensure the battery pack is fully loaded and correctly inserted. Do not force the installation of the battery pack.
- Environmental Conditions: Avoid using the machine in wet conditions or near flammable liquids.
- Personal Protective Equipment: Always wear safety glasses when cutting materials to avoid injury from flying debris.
3. Package Contents
Your BAOSHISHAN Electric Fabric Rotary Cutter package includes the following items:
- Electric Rotary Cutter Unit
- Rechargeable 12V Li-ion Batteries (x2)
- Battery Charger
- Spare Blade
- Screwdriver
- Lubricant Bottle (empty, for user-supplied oil)
- Whetstone (pre-installed for sharpening)
- Instruction Manual
- Storage Case
Image: The BAOSHISHAN Electric Fabric Rotary Cutter and its complete set of accessories neatly organized within its durable storage case.
4. Product Overview
The BAOSHISHAN Electric Fabric Rotary Cutter is designed for efficient and precise cutting of various flexible and soft materials. Key features include:
- Powerful Motor: Enables cutting of 10-20 layers of fabric up to 27mm (1.06 inches) thick.
- Adjustable Speed: 5-gear speed regulation to suit different materials and cutting needs.
- Ergonomic Design: Comfortable grip and smooth rollers for precise control.
- Integrated Safety: All-inclusive plastic shell, adjustable safety guard, and LED light for visibility.
- Built-in Sharpener: Whetstone for quick blade sharpening without removal.
Image: A detailed view of the electric rotary cutter, highlighting its ergonomic handle, circular blade, and safety features.
5. Setup
5.1 Charging the Battery
- Connect the charger to a power outlet.
- Insert the 12V Li-ion battery into the charging dock.
- The indicator light on the charger will show charging status (e.g., red for charging, green for charged).
- Allow the battery to fully charge before first use.
5.2 Installing/Removing the Battery Pack
- To install: Align the front and rear directions of the battery pack with the grooves in the housing. Slide it in place until it clicks.
- To remove: Press the buttons on both sides of the pack and pull the pack out of the tool.
Warning: Ensure the battery pack is fully loaded and correctly inserted. Do not force the installation of the battery pack. If the battery pack is difficult to insert, it may be improperly inserted.
6. Operating Instructions
6.1 Basic Operation
- Ensure the battery is fully charged and correctly installed.
- Unlock the safety switch (usually a sliding button or lever).
- Press the power switch/trigger to start the machine.
- Gently push the cutter in the desired direction. The rollers under the base assist in smooth movement.
- Adjust the speed using the 5-gear speed regulation button as needed for different materials.
- For straight cuts, it is recommended to draw a line with chalk or other markers before cutting.
Image: The electric rotary cutter effortlessly cutting through multiple layers of fabric, demonstrating its efficiency.
6.2 Cutting Various Materials
This tool is suitable for cutting flexible and soft materials with a maximum thickness of 27mm (1.06 inches), such as leather, carpet, cloth, and similar materials.
- Fabrics: Easily cuts cotton, wool, silk, chemical fiber, and multilayer fabrics.
- Leather: Suitable for various types of leather.
- Carpet: Can cut through thick carpet.
- Cardboard: Effective for cutting cardboard.

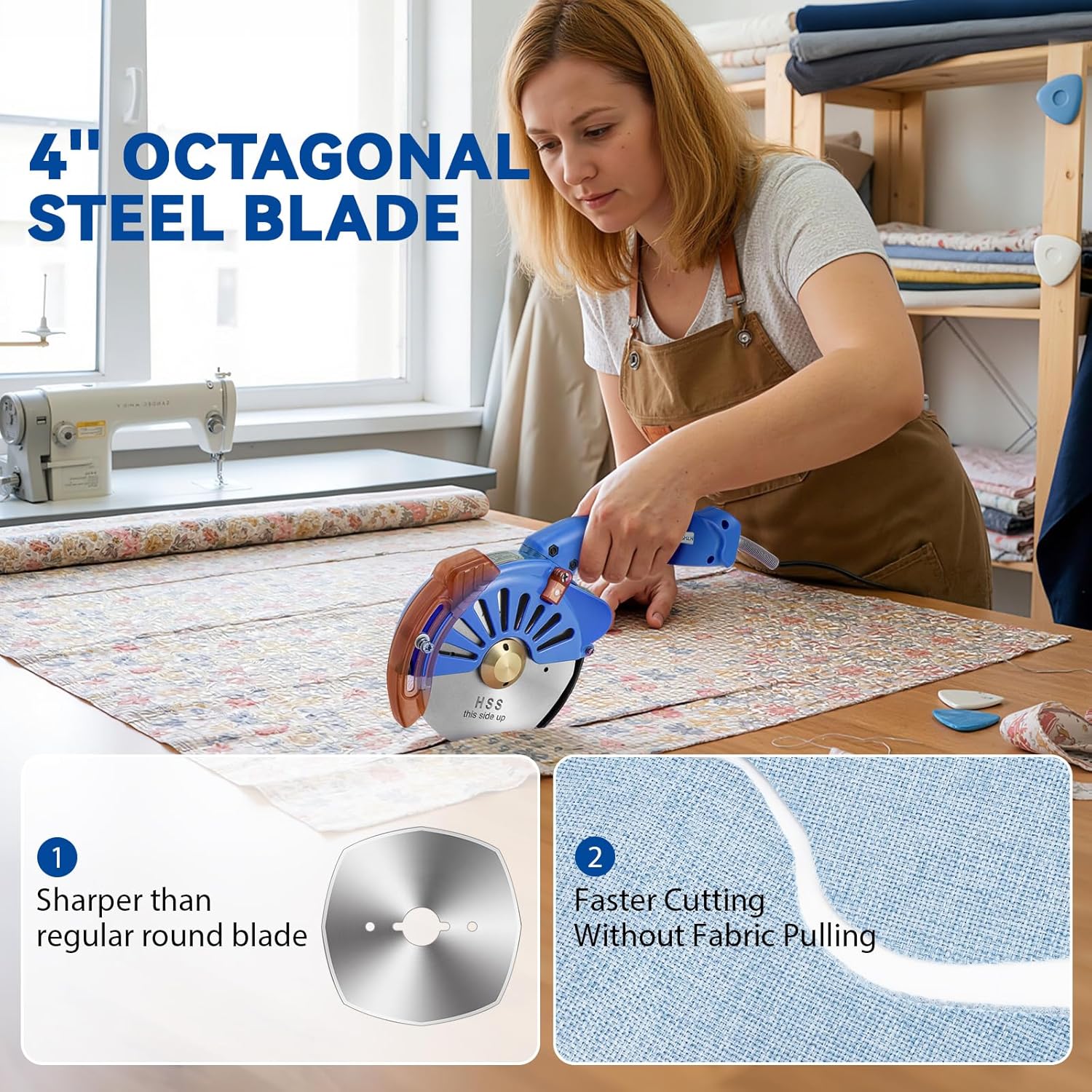

Image: The rotary cutter shown cutting different materials including cotton, leather, carpet, and silk, illustrating its versatility.
6.3 Official Product Video: Cutting and Repairing
Video: This official BAOSHISHAN video demonstrates the electric rotary cutter in action, showcasing its cutting capabilities on various materials and basic repair/maintenance procedures.
6.4 Official Product Video: Rotary Scissors in Use
Video: This video from SENCAN POWER TOOLS (a seller of similar products) demonstrates the rotary scissors cutting matte velvet, carpet, KT board, and paperboard, highlighting its versatility across different materials.
7. Maintenance
7.1 Sharpening the Blade
The cutter features a built-in whetstone for convenient blade sharpening:
- While the machine is running, press the whetstone button for 3 seconds.
- The blade will be sharpened, maintaining its cutting efficiency.
7.2 Replacing the Blade
To replace the blade, refer to the detailed instructions and diagrams in the included instruction manual. Always ensure the power is off and the battery is removed before attempting blade replacement.
7.3 Lubrication
Regular lubrication of moving parts is recommended to maintain optimal performance and extend the product's lifespan. Use the provided lubricant bottle with appropriate oil (not included) and apply as directed in the manual.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | BAOSHISHAN |
| Model Number | FBA-CJH-SXL-67A |
| Item Weight | 2.42 pounds (1.1 Kilograms) |
| Blade Material | Stainless Steel |
| Handle Material | Plastic |
| Max Cutting Thickness | 27mm (1.06 inches) |
| Power Source | 12V Li-ion Battery |
9. Warranty and Support
The BAOSHISHAN Electric Fabric Rotary Cutter comes with a 1-year warranty. For any problems with the electric scissors, such as failure, lack of parts, or damaged packaging, please contact BAOSHISHAN customer support. Online technical guidance is available at any time, with issues typically resolved within 24 hours.
10. Troubleshooting
If you encounter any issues with your electric rotary cutter, please refer to the following general troubleshooting steps:
- Machine Not Starting:
- Ensure the battery is fully charged.
- Verify the battery pack is correctly inserted and clicked into place.
- Check that the safety lock is disengaged.
- Poor Cutting Performance:
- Sharpen the blade using the built-in whetstone (refer to Section 7.1).
- Check if the blade needs replacement (refer to Section 7.2).
- Ensure the material thickness does not exceed the maximum capacity.
- Unusual Noise/Vibration:
- Turn off the machine immediately and inspect for any obstructions or loose parts.
- Ensure proper lubrication (refer to Section 7.3).
- Overheating:
- Allow the machine to cool down if it feels excessively warm.
- Avoid continuous heavy-duty use without breaks.
If problems persist after following these steps, please contact BAOSHISHAN customer support for assistance.
