1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your hOmeLabs HME020396N Evaporative Cooler. Please read it thoroughly before initial use and retain it for future reference.
The hOmeLabs Evaporative Cooler is designed to provide cooling for rooms up to 200 square feet. It functions by drawing in warm, dry air, passing it over water-saturated cooling pads, and releasing cooler, humidified air. This process is most effective in dry climates, as indicated by the humidity map below.
A map illustrating the effectiveness of evaporative cooling based on regional humidity levels. Areas with very low humidity are ideal, low humidity areas offer acceptable performance, and moderate humidity areas are not recommended for this type of cooler.
2. Important Safety Instructions
- Read all instructions before using the appliance.
- Do not operate any appliance with a damaged cord or plug.
- Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
- Always unplug the appliance from the power outlet before filling, cleaning, or servicing.
- Do not immerse the appliance in water or other liquids.
- Use only on a level surface.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Do not use outdoors.
- Do not use in bathrooms or other wet environments.
3. Package Contents
Upon unpacking, ensure all items listed below are present and undamaged:
- hOmeLabs Evaporative Cooler Unit
- Remote Control (with 2 AAA batteries included)
- Instruction Manual
4. Product Diagram
Front view of the hOmeLabs Evaporative Cooler, showing the control panel, air vents, and water level indicator.
Key components include:
- Control Panel
- Air Vents (with oscillating louvers)
- Water Level Indicator
- Water Tank (10-liter capacity)
- Casters for portability
- Removable Air Filter (located at the rear)
5. Setup
5.1 Initial Placement
Place the evaporative cooler on a firm, level surface in the desired room. Ensure there is adequate space around the unit for proper airflow.
5.2 Filling the Water Tank
- Gently pull out the water tank from the bottom rear of the unit.
- Fill the tank with clean water. For enhanced cooling, you may add ice or ice packs to the water. The tank has a 10-liter capacity.
- Do not overfill the tank beyond the 'MAX' line.
- Carefully slide the water tank back into the unit until it is securely in place.
The 10-liter water tank with a visible water level indicator and an icon representing the auto shut-off function for low water levels.
5.3 Power Connection
Plug the power cord into a standard 120V AC electrical outlet.
6. Operating Instructions
Your evaporative cooler can be operated using the control panel on the unit or the included remote control.
6.1 Control Panel Overview

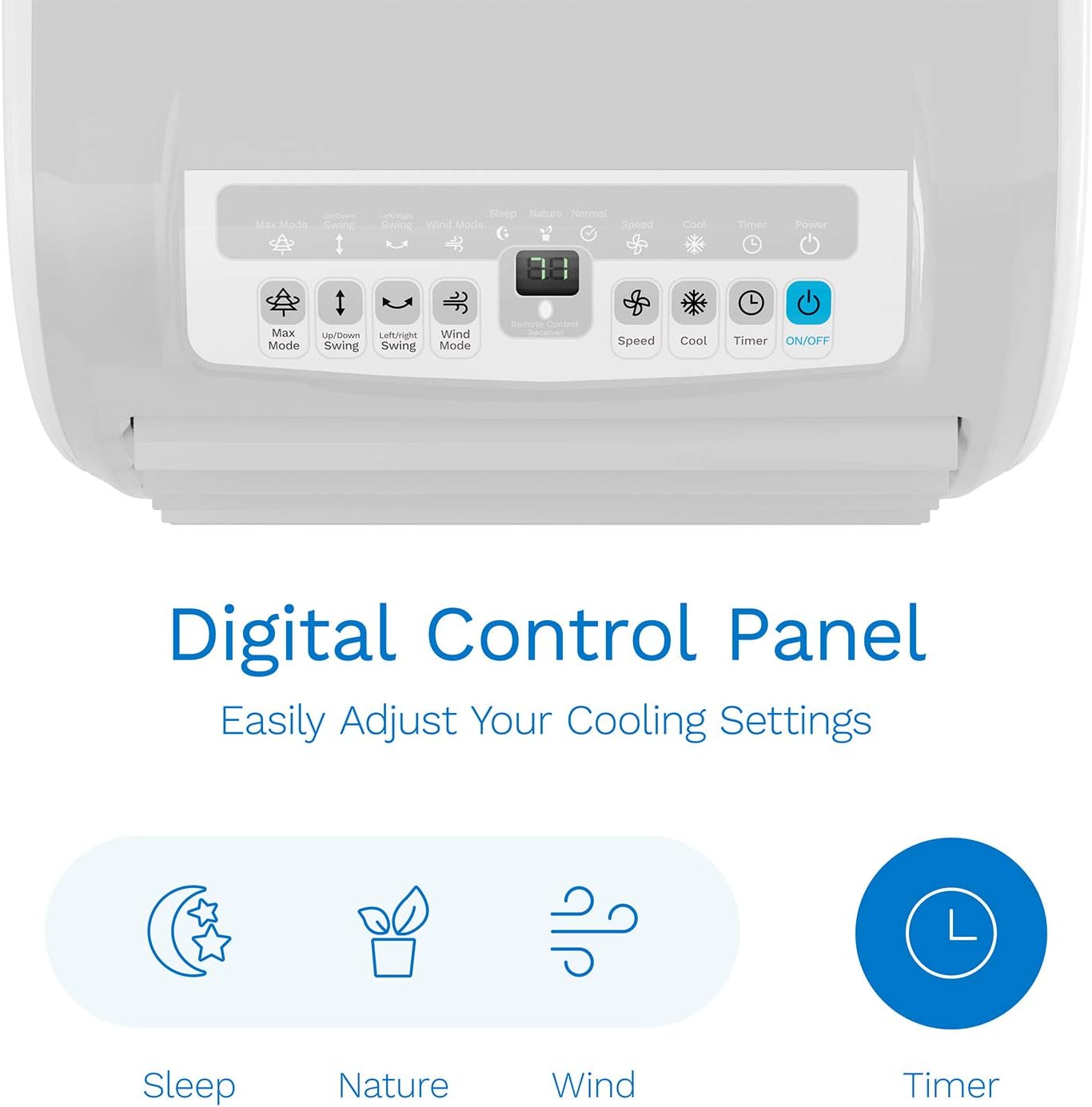

Detailed view of the digital control panel, highlighting buttons for various functions such as Sleep mode, Nature mode, Wind mode, and Timer settings.
6.2 Remote Control
The remote control allows you to adjust all settings from a distance. Ensure the included AAA batteries are correctly installed.
The remote control for the evaporative cooler, allowing users to adjust settings conveniently from a distance.
6.3 Functions
- Power (ON/OFF): Press to turn the unit on or off.
- Speed: Select from Low, Mid, or High fan speeds.
- Cool: Activates the evaporative cooling function, utilizing water from the tank.
- Wind Mode: Choose between Natural, Sleep, or Normal wind modes for varied airflow patterns.
- Swing: Activates the oscillating vents for wider air distribution. You can adjust both up/down and left/right swing.
- Timer: Set a 24-hour programmable timer for automatic shut-off.
- Max Mode: Engages the highest cooling performance setting.
The evaporative cooler's adjustable vents for directing airflow and the 'Max Mode' setting for enhanced cooling performance.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your evaporative cooler.
7.1 Water Tank
- Monitor the water level using the visible indicator. The unit features an audible low-water indicator and auto shut-off function.
- Empty and clean the water tank regularly to prevent mold and mildew growth.
7.2 Air Filter Cleaning
The unit is equipped with a removable and reusable nylon air filter to protect against dust and pet hairs. It is recommended to clean the filter weekly.
- Unplug the unit from the power outlet.
- Locate the air filter at the rear of the unit.
- Slide the filter out.
- Clean the filter with mild detergent and a soft brush.
- Rinse thoroughly and allow to air dry completely before reinserting.
The back of the evaporative cooler, displaying the removable and reusable nylon air filter designed to capture dust and pet hairs.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power supply. | Check if the power cord is securely plugged into a working outlet. |
| No cool air. | Water tank is empty or low. | Fill the water tank to the appropriate level. Ensure 'Cool' function is activated. |
| Reduced airflow. | Air filter is dirty. | Clean the nylon air filter as per maintenance instructions. |
| Unpleasant odor. | Stagnant water in the tank or dirty cooling pads. | Empty and clean the water tank. Replace cooling pads if necessary (refer to manufacturer for replacement parts). |
| Unit is noisy. | Unit not on a level surface or internal component obstruction. | Ensure the unit is on a stable, level surface. Check for any foreign objects inside the air intake or vents. |
9. Specifications
A visual representation of the evaporative cooler's dimensions, including its height, width, depth, power cord length, and 10-liter water tank capacity.
| Feature | Detail |
|---|---|
| Brand | hOmeLabs |
| Model Name | HME020396N |
| Mounting Type | Freestanding |
| Special Feature | Removable (filter) |
| Color | White |
| Controls Type | Remote, Digital Panel |
| Reservoir Capacity | 10 Liters (2.6 Gallons) |
| Floor Area Coverage | Up to 200 Square Feet |
| Noise Level | 64 Decibels |
| Number of Speeds | 3 |
| Product Dimensions | 12.5"D x 15"W x 34.5"H |
| Amperage | 1.08 Amps |
| Voltage | 120 Volts |
| Operation Mode | Automatic |
| Item Weight | 18.45 Pounds |
| Material | Nylon (filter) |
| Batteries Required | 2 AAA (included for remote) |
| UPC | 850000941885 |
10. Warranty and Support
For warranty information, product registration, or technical support, please visit the official hOmeLabs website or contact their customer service. Keep your purchase receipt for warranty claims.
For further assistance, please refer to the contact information provided on the hOmeLabs official website: hOmeLabs Store
