Mazda Genuine Flair Wagon MM32/MM42 Series Hybrid Battery (Model MM42S) Instruction Manual

1. Introduction

This instruction manual provides essential information for the safe and effective use of the Mazda Genuine Flair Wagon MM32/MM42 Series Hybrid Battery, specifically for model MM42S. This battery is a critical component of your vehicle's hybrid system, designed to provide reliable power. Please read this manual thoroughly before installation or operation to ensure proper handling and to prevent damage or injury.

Figure 1: Mazda Flair Wagon MM42S Hybrid Battery. This image shows the overall appearance of the hybrid battery unit.

2. Safety Information

Hybrid batteries contain high voltage components and hazardous materials. Improper handling can lead to severe injury, electric shock, or fire. Always adhere to the following safety precautions:

• Professional Installation Required: Installation, removal, or any servicing of this hybrid battery must be performed exclusively by a certified mechanic at a certified automotive workshop. Attempting to service the battery without proper training and equipment can be extremely dangerous.
• High Voltage: The battery operates at high voltage. Never touch exposed terminals or wiring.
• Avoid Short Circuits: Do not allow metal objects to come into contact with the battery terminals.
• Chemical Hazards: The battery contains lithium-ion cells. In case of damage, leakage, or fire, avoid contact with any released substances. Consult emergency services immediately.
• Temperature: Do not expose the battery to extreme temperatures, direct sunlight for prolonged periods, or open flames.
• Physical Damage: Do not drop, puncture, or apply excessive force to the battery. Any physical damage can compromise its safety and performance.

3. Setup and Installation

As stated in the safety guidelines, installation of this hybrid battery requires specialized knowledge and tools. It must be performed by a qualified professional.

1. Professional Service: Ensure that installation is carried out by a certified mechanic at an authorized service center.
2. Compatibility Check: The service professional must verify the compatibility of this specific battery (Part Number P70400-20004980, Model MM42S) with your vehicle's chassis and specifications before installation. The seller cannot confirm product compatibility; this is the responsibility of the installer.
3. Handling Large Items: This battery may be classified as a large item (over 160cm total dimensions or 30kg). Direct delivery to individual residences may not be possible. In such cases, delivery will be arranged to the nearest delivery service branch for customer pickup. However, if the recipient is a corporation, company, or a repair shop, direct delivery may be possible. Please provide accurate delivery details, including company/shop name, during the order process if applicable.
4. Connection Points: The battery features specific connectors for integration into the vehicle's electrical system. Proper connection is crucial for functionality and safety.

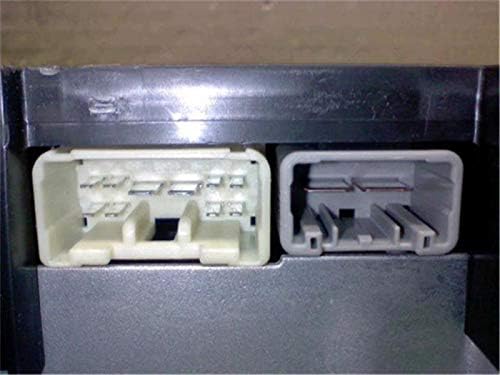

Figure 2: Hybrid Battery Connectors. This image displays the electrical connectors on the hybrid battery unit, which must be correctly interfaced with the vehicle's wiring harness.

4. Operating Principles

The Mazda Flair Wagon MM42S hybrid battery is an integral part of the vehicle's hybrid powertrain. It stores electrical energy generated during deceleration (regenerative braking) and provides power to assist the engine during acceleration, as well as powering auxiliary systems when the engine is off (e.g., during idle stop). The vehicle's onboard computer manages the charging and discharging cycles of the battery automatically to optimize fuel efficiency and performance.

• Automatic Management: The battery's operation is fully automated by the vehicle's hybrid control system. No manual intervention is required for charging or discharging during normal driving.
• Energy Regeneration: During braking or coasting, kinetic energy is converted into electrical energy and stored in the hybrid battery.
• Power Assist: When additional power is needed, such as during acceleration, the hybrid battery supplements the engine's output.

5. Maintenance

The hybrid battery system is designed for long-term reliability with minimal user maintenance. However, regular professional inspections are crucial to ensure its optimal performance and longevity.

• Scheduled Inspections: Follow your vehicle's manufacturer-recommended maintenance schedule for hybrid system checks. These inspections should be performed by a certified Mazda service center.
• Cleaning: Keep the battery compartment and cooling vents free from dust, debris, and obstructions. Do not use water or cleaning solutions directly on the battery.
• Avoid Extreme Conditions: While the battery is designed for automotive use, prolonged exposure to extreme heat or cold can affect its lifespan. Park your vehicle in shaded areas during hot weather and consider garaging in severe cold.
• Warning Lights: If any hybrid system warning lights illuminate on your dashboard, consult a certified mechanic immediately. Do not ignore these warnings.

6. Troubleshooting

Most issues related to the hybrid battery system will be indicated by warning lights on the vehicle's dashboard. Due to the complexity and high voltage of the system, user-level troubleshooting is not recommended. Always seek professional assistance.

• Hybrid System Warning Light: If the hybrid system warning light illuminates, it indicates a potential issue with the hybrid battery or related components. Drive cautiously to the nearest authorized service center.
• Reduced Performance: A noticeable decrease in fuel efficiency or vehicle power may suggest a problem with the hybrid battery.
• Unusual Noises or Odors: Any unusual noises, burning smells, or smoke emanating from the battery area require immediate attention. Safely pull over, turn off the vehicle, and contact emergency services and a tow truck.

Important: Do not attempt to diagnose or repair the hybrid battery system yourself. This can lead to serious injury or further damage to the vehicle.

7. Specifications

Key specifications for the Mazda Genuine Flair Wagon MM32/MM42 Series Hybrid Battery (Model MM42S):

Figure 3: Hybrid Battery Identification Label. This label shows key specifications including part numbers (96510-85PA2, 210500-0072, H3U10451), voltage (12V), energy capacity (36Wh), and manufacturer (DENSO).

8. Warranty and Support

This product is a genuine Mazda part. For warranty information, please refer to the official Mazda warranty policy applicable to genuine replacement parts in your region. Warranty claims and technical support should be directed to an authorized Mazda service center.

• Product Compatibility: The seller cannot confirm product compatibility. It is the buyer's responsibility to ensure the part is suitable for their vehicle before purchase.
• Returns/Cancellations: Cancellations due to customer convenience are not accepted after the product has been shipped.
• Availability: Products listed may also be sold in physical stores and might be out of stock at the time of your order.
• Contact for Inquiries: When making inquiries about the product, please include the Management Number (P70400-20004980) in your communication.

For official support and service, please visit the Mazda Official Service Website or contact your local authorized Mazda dealer.
