1. Introduction
Thank you for choosing the COOKLEE All-Metal Series 6.5 Qt. Stand Mixer. This versatile kitchen appliance is designed to simplify your baking and cooking tasks with its powerful motor and durable construction. Please read this manual thoroughly before first use to ensure safe and optimal operation.
Figure 1: COOKLEE SM-1515 Stand Mixer in Pearl Grey.
2. Product Components
Your COOKLEE Stand Mixer comes with the following components:
- Mixer Body with Tilt-up Knob and Speed Control
- 6.5-Quart Stainless Steel Mixing Bowl with Handle
- Dough Hook (All-Metal)
- Flat Beater (All-Metal)
- Whisk (All-Metal)
- Pouring Shield
Figure 2: Key components of the COOKLEE Stand Mixer, including the mixing bowl, pouring shield, flat beater, whisk, and dough hook.
Figure 3: The COOKLEE Stand Mixer features an all-metal shell and a large 6.5-quart mixing bowl, ideal for various cooking needs.
3. Setup
- Before first use, clean the mixing bowl, pouring shield, dough hook, flat beater, and whisk with warm soapy water. Rinse thoroughly and dry. The bowl and attachments are dishwasher-safe.
- Place the mixer body on a clean, dry, and stable surface. Ensure the non-slip suction feet are firmly attached to the countertop for stability during operation.
- Lift the mixer head by pushing the tilt-up knob.
- Place the mixing bowl onto the base and turn it clockwise until it locks securely into place.
- Attach the desired accessory (dough hook, flat beater, or whisk) by pushing it upwards into the attachment shaft and turning it slightly until it clicks into place.
- Lower the mixer head by pushing the tilt-up knob and gently guiding the head down until it locks.
- Plug the power cord into a standard 120V outlet.

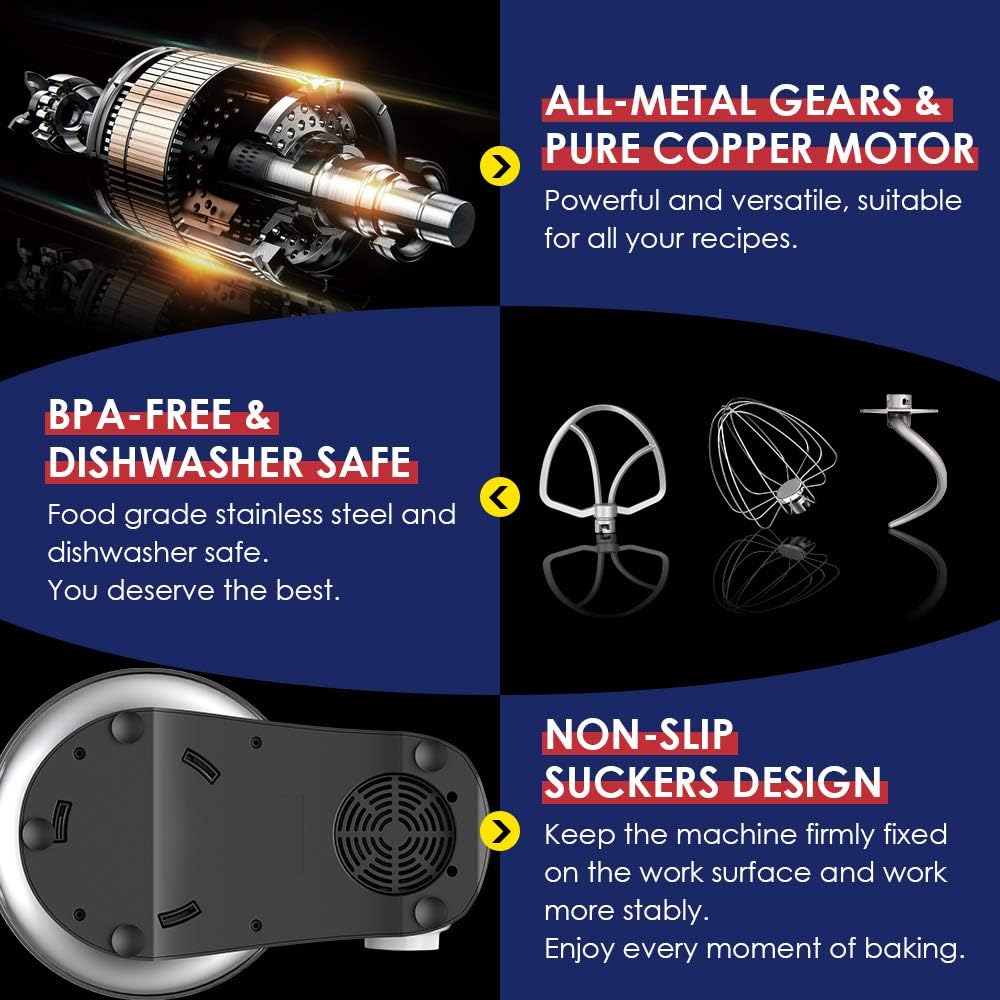

Figure 4: The mixer features all-metal gears, a pure copper motor for powerful performance, and non-slip suction feet for stability.
4. Operating Instructions
The COOKLEE Stand Mixer features a 10-speed control knob for precise mixing. Always start at a lower speed and gradually increase as needed.
Figure 5: The illuminated speed control knob allows for easy adjustment of mixing intensity.
Using the Pouring Shield
The pouring shield helps prevent splashes and allows for easy addition of ingredients during mixing. Simply place it over the mixing bowl before lowering the mixer head.
Figure 6: The pouring shield facilitates adding ingredients while preventing splatters.
Recommended Speeds for Attachments:
- Whisk: Ideal for whipping egg whites, cream, and light batters. Use speeds 8-10 for best results.
- Flat Beater: Suitable for mixing cake batter, cookie dough, mashed potatoes, and frostings. Use speeds 4-7.
- Dough Hook: Designed for kneading yeast doughs for bread, pizza, and pasta. Use speeds 1-3.
5. Maintenance and Cleaning
- Always unplug the mixer from the power outlet before cleaning or attaching/removing accessories.
- The stainless steel mixing bowl, dough hook, flat beater, and whisk are dishwasher-safe for easy cleaning.
- Wipe the mixer body with a damp cloth. Do not immerse the mixer body in water or any other liquid.
- Ensure all parts are completely dry before reassembling or storing the mixer.
Figure 7: The mixing bowl and attachments are designed to be dishwasher-safe for convenient cleaning.
6. Troubleshooting
If your COOKLEE Stand Mixer is not operating as expected, please check the following:
- Ensure the mixer is properly plugged into a working power outlet.
- Verify that the mixer head is fully lowered and locked into place.
- Check that the mixing bowl is securely locked onto the base.
- Confirm that the attachment is correctly installed and locked into the shaft.
- If the motor overheats during prolonged heavy use, the mixer may automatically shut off. Unplug the unit and let it cool down for at least 30 minutes before resuming use.
7. Specifications
| Brand | COOKLEE (SanLidA) |
| Model Number | SM-1515 |
| Color | Pearl Grey |
| Product Dimensions | 13.9"D x 9.2"W x 11.1"H |
| Blade Material | Stainless Steel |
| Special Feature | Adjustable Speed Control |
| Capacity | 6.5 Quarts (5 Liters) |
| Controls Type | Knob |
| Dishwasher Safe | Yes (Bowl & Attachments) |
| Item Weight | 10.7 pounds |
8. Warranty and Support
Your COOKLEE Stand Mixer comes with a 5-year limited warranty, ensuring peace of mind with your purchase. For warranty claims, technical support, or any inquiries, please visit the official COOKLEE store on Amazon or contact customer service through the provided channels.
Visit the COOKLEE Store on Amazon
Figure 8: Some COOKLEE mixers may include a recipe book to help you get started with your new appliance.
