Easytry123 Replacement Remote Control User Manual

1. Introduction

This manual provides instructions for the Easytry123 replacement remote control, designed for use with various Fujitsu ARCTIC and ASY/ASTG series wall-mounted air conditioners. This remote offers essential functions for controlling your air conditioning unit.

2. Compatibility

This replacement remote control is compatible with the following Fujitsu air conditioner models:

• ARCTIC12LGC
• ARCTIC14LGC
• ASYB09LDC
• ASYB12LDC
• ASTG18LVCC
• ASYA30LCC
• AOU36RML1
• ARCTIC9LGC
• AOTG30LFC
• ASTG22LVCC

Note: While designed to replace your original remote, some advanced or specific functions of your original unit may not be supported by this replacement remote.

3. Setup: Battery Installation

The remote control requires two (2) AAA batteries (not included) for operation. Follow these steps to install the batteries:

1. Locate the battery compartment cover on the back of the remote control.
2. Slide the cover downwards or press the release tab (if present) and lift the cover off.
3. Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals match the diagrams inside the compartment.
4. Replace the battery compartment cover by sliding it back into place until it clicks securely.

Figure 1: View of the remote control's open battery compartment, ready for AAA battery insertion.

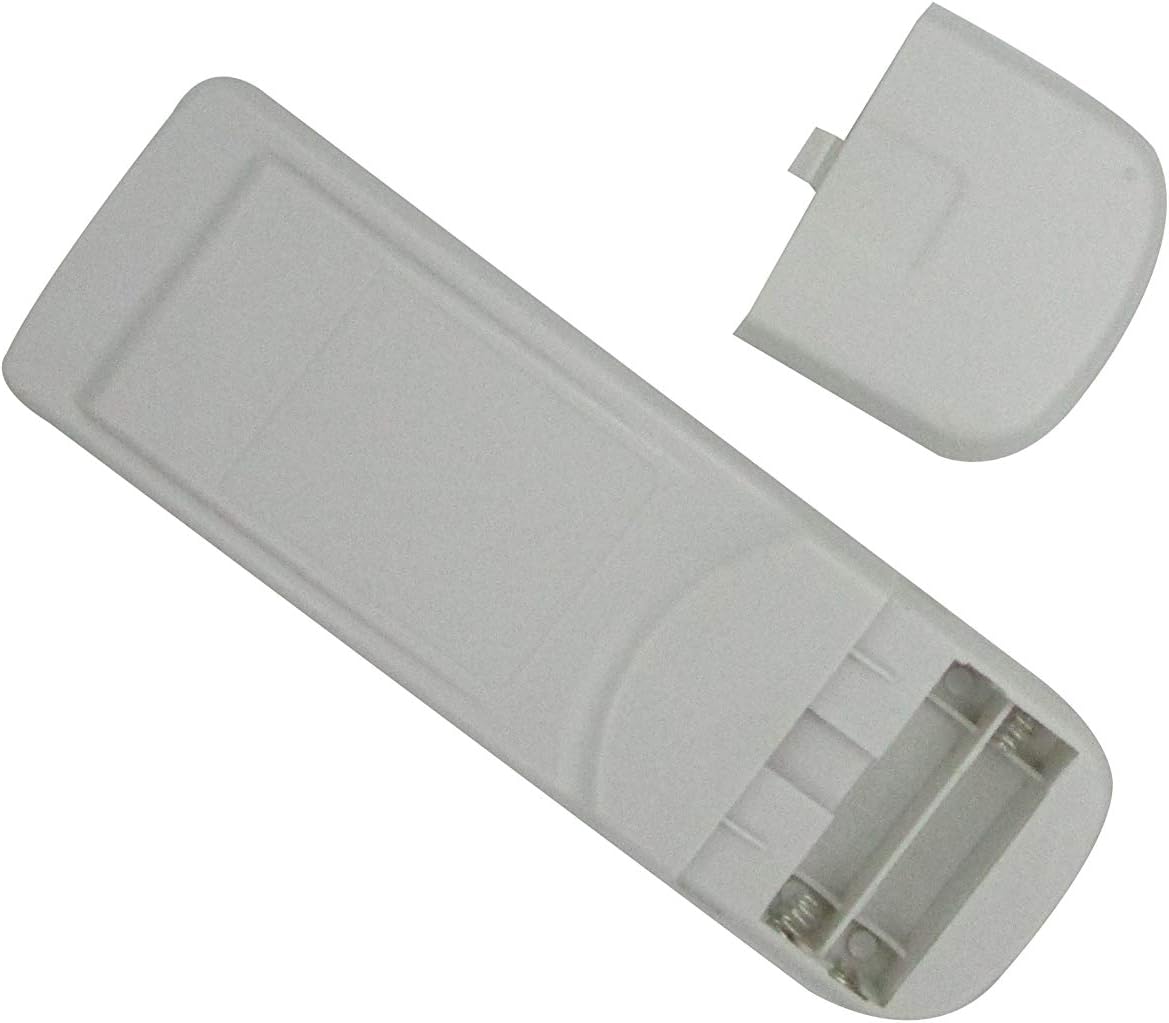

Figure 2: The remote control's back with the battery cover detached, revealing the battery slots.

4. Operating Instructions

Point the remote control directly at the air conditioner unit's receiver. Ensure there are no obstructions between the remote and the unit.

• Power Button: Press to turn the air conditioner ON or OFF.
• Mode Button: Cycle through operating modes such as Cool, Heat, Fan, Dry, or Auto.
• Temperature Adjustment: Use the ▲ (Up) and ▼ (Down) buttons to increase or decrease the desired temperature.
• Fan Speed Button: Adjust the fan speed (e.g., Low, Medium, High, Auto).
• Swing/Vane Button: Control the direction of the airflow or activate the swing function.
• Timer Button: Set a timer for the unit to turn on or off (functionality may vary).
• Sleep Button: Activates a quiet, energy-saving mode for comfortable sleep.

Note: Button labels and specific functions may vary slightly depending on the original remote it replaces. Refer to your air conditioner's original manual for detailed function descriptions if needed.

5. Maintenance

• Battery Replacement: Replace batteries when the remote's range decreases or if the air conditioner does not respond to commands. Always replace both batteries simultaneously with new AAA batteries. Do not mix old and new batteries, or different types of batteries.
• Cleaning: Wipe the remote control with a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as these can damage the remote's surface or internal components.
• Storage: If the remote will not be used for an extended period, remove the batteries to prevent leakage and potential damage.

6. Troubleshooting

• Remote not responding:
  • Check if the batteries are inserted correctly with the correct polarity.
  • Replace the batteries with new ones.
  • Ensure there are no obstructions between the remote and the air conditioner's receiver.
  • Verify that the remote is pointed directly at the air conditioner.
• Air conditioner not performing a specific function:
  • Confirm that the function is available on your specific air conditioner model.
  • As a replacement remote, some advanced functions of your original unit may not be supported.

7. Specifications

8. Warranty and Support

This product is manufactured by Easytry123. For information regarding returns or replacements, please refer to the retailer's return policy where the product was purchased. Typically, a return policy allows for returns or replacements within 30 days of purchase.

For further assistance or inquiries, please contact the seller directly through the platform where the purchase was made.
