Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your WOODBRIDGE 67" Freestanding Acrylic Soaking Bathtub, Model BTA1813. Please read this manual thoroughly before beginning installation or use to ensure proper function and longevity of your product. Retain this manual for future reference.
Important Safety Information
- Installation must be performed by a certified professional to ensure compliance with local plumbing and building codes.
- Always wear appropriate personal protective equipment (PPE) during installation.
- Ensure the floor structure can support the weight of the bathtub when filled with water and a person.
- Do not use abrasive cleaners or harsh chemicals on the bathtub surface, as this may damage the finish.
- Avoid dropping heavy or sharp objects into the tub to prevent chipping or cracking.
- This bathtub is designed for soaking. Do not use it for purposes other than intended.
Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- WOODBRIDGE 67" Freestanding Acrylic Bathtub (Model BTA1813)
- Solid brass Matte Black drain
- Stainless steel Matte Black overflow
- User & Instruction Manual
Image: Close-up view of the included Matte Black overflow and drain components.
Specifications
| Feature | Detail |
|---|---|
| Brand | WOODBRIDGE |
| Model Number | BTA1813 |
| Exterior Dimensions | 67" L x 31.5" W x 22.8" H |
| Material | 100% High Gloss LUCITE Acrylic, ASHLAND Resin & Fiberglass reinforced |
| Color | Black/Matte Black (exterior), White (interior) |
| Finish Type | Matte Black (drain/overflow) |
| Installation Type | Freestanding |
| Capacity | 60 Gallons |
| Item Weight | 104 Pounds |
| Certifications | CSA B45.5-17/IAPMO Z124-2017, Massachusetts Plumbing & Gas Code |

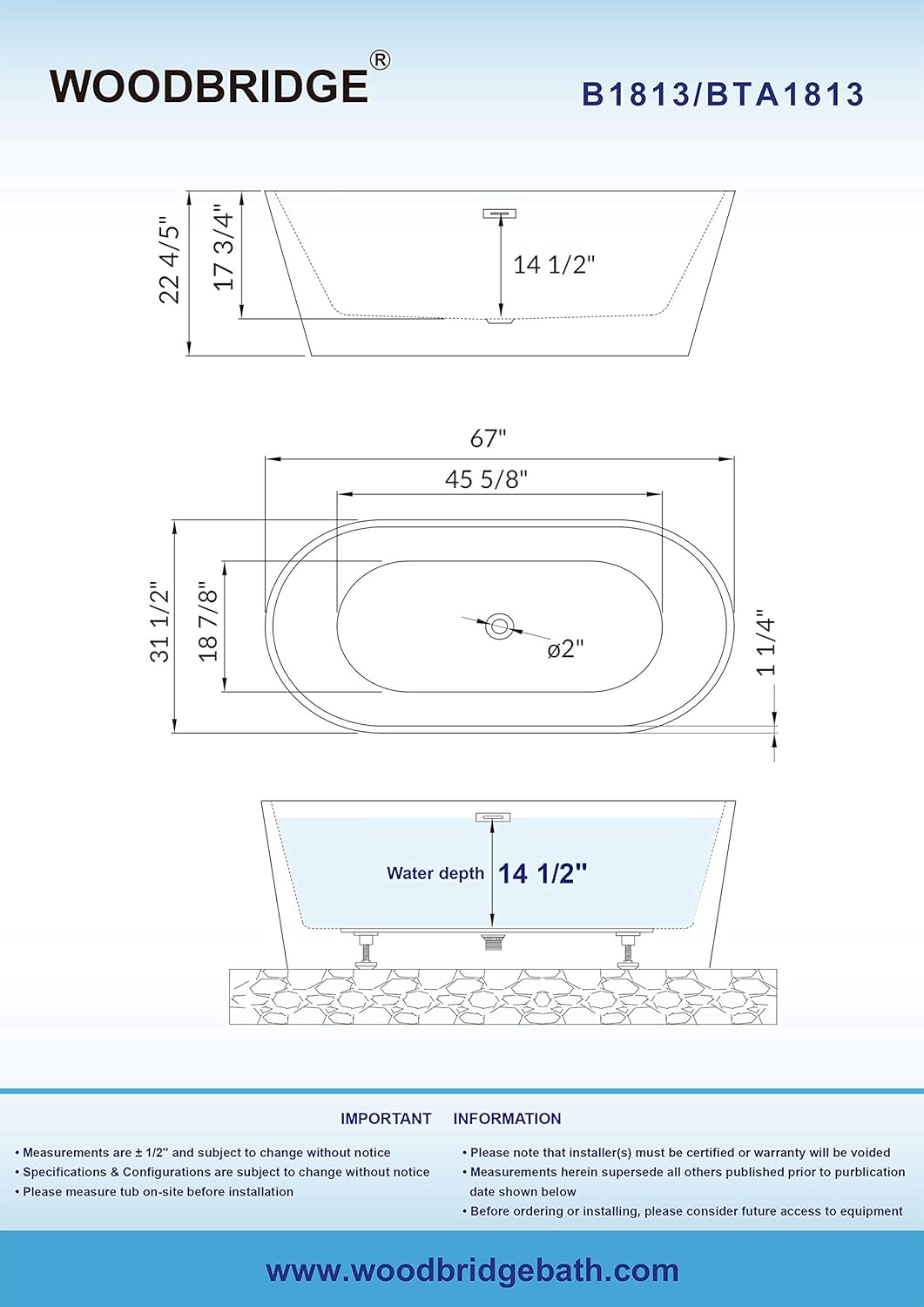

Image: Detailed dimensions and water depth for the WOODBRIDGE BTA1813 bathtub.
Image: Certifications for WOODBRIDGE freestanding bathtubs, including compliance with UPC, IPC, IRC, CSA, and IAPMO standards.
Setup and Installation
It is highly recommended that installation be performed by a qualified professional. Refer to the installation video for a visual guide.
Video: Installation guide for WOODBRIDGE freestanding bathtubs. This video demonstrates the general installation process applicable to various WOODBRIDGE freestanding models.
Step-by-Step Installation:
- Prepare the Area: Ensure the installation area is clean, level, and has adequate structural support for the filled tub. Mark the desired finished location of the tub on the floor with an erasable pencil.
- Install Overflow Trim: Apply clear silicone caulking to the tub overflow trim piece. Hold it in place and confirm it is inserted flat and appears level from all angles. Secure with blue painter's tape until cured (approx. 24 hours).
- Install Drain Assembly: Fill the grooved gasket with silicone and install it with the groove and silicone facing up. Tighten the drain nut in place, being careful not to overtighten; it only needs to be snug.
- Level the Bathtub: Carefully turn the tub upside down on a protective surface. Use a 24" level to adjust the legs, leaving a 1/8" to 1/4" gap between the rim of the tub and the level. Loosen the nuts to adjust legs down, and tighten to secure.
- Connect to Floor Drain:
- Plan A: Installation with Underfloor Access: Attach your flanged tail piece (provided by installer) to the tub drain and tighten. Connect this to the floor drain pipe.
- Plan B: Installation on Slab Floor (No Underfloor Access): Attach your flanged tail piece (provided by installer) to the tub drain and tighten. Connect this to the floor drain pipe.
- Leak Test: Push the pop-up drain into a closed position. Fill the bathtub with cold water above the overflow level. Check for any leaks around the drain and pipe connections.
- Final Placement and Sealing: Once leak-free, apply silicone caulking to the base rim of the tub and carefully lower the tub into its final position, aligning with the marked outline.
Image: Comparison of WOODBRIDGE's sealed drain system, designed to prevent leaks, versus exposed drain systems.
Operating Instructions
Using your WOODBRIDGE freestanding bathtub is straightforward:
- Filling the Tub: Ensure the drain is closed. Turn on the water faucet to fill the tub to your desired level. The overflow will prevent overfilling.
- Draining the Tub: To drain the tub, open the pop-up drain.
Image: The WOODBRIDGE BTA1813 bathtub filled with water, showcasing its depth and design.
Maintenance and Care
Proper care will maintain the beauty and longevity of your WOODBRIDGE bathtub.
- Cleaning: The tub features an EnduraClean, stain-resistant, and scratch-resistant surface. Clean regularly with a soft cloth and non-abrasive, mild liquid detergent. Avoid harsh chemicals, abrasive pads, or scouring powders.
- Non-Slip Bottom: The non-slip design bottom provides added safety. Clean this area gently to maintain its texture.
- Material Benefits: Made from genuine Lucite acrylic, the tub is non-porous, making it easy to clean and resistant to bacteria growth. It also retains warmth longer.
Image: The non-slip textured bottom of the bathtub, designed for added safety.
Image: The easy-to-clean surface of the WOODBRIDGE Lucite acrylic bathtub.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water Leakage | Loose drain connection, insufficient sealant, damaged gasket. | Check and tighten drain nuts. Reapply silicone sealant if necessary. Inspect gaskets for damage and replace if found. |
| Tub is not level | Uneven floor, improperly adjusted leveling feet. | Adjust the leveling feet on the bottom of the tub until it is perfectly level. |
| Slow Draining | Drain blockage (hair, debris). | Remove the drain cover and clear any obstructions. Use a drain snake if necessary. |
Warranty and Support
WOODBRIDGE warrants a 1 Year limited warranty to be free of defects in material and workmanship. For any sales or product-oriented queries, our US-based product support team is available to assist you.
For support, please visit the WOODBRIDGE Store on Amazon or refer to the contact information provided in your product packaging.
