1. Safety Information
Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or other injuries.
- This product operates on 12V AC. Ensure your power supply matches this requirement.
- Important: This light works ONLY with a double-wound safety isolating transformer. It is NOT compatible with electronic transformers. Using an incompatible transformer can damage the light and pose a safety risk.
- Installation should be performed by a qualified electrician in accordance with local electrical codes and regulations.
- The light must be installed at a minimum depth of 300mm from the junction box to the water level and a minimum of 450mm from the water level to the lamp.
- Ensure all connections are waterproof and secure to prevent water ingress.
- Do not operate the light out of water for extended periods, as this can lead to overheating and damage.
- This product is IP68 rated, meaning it is fully protected against dust and can withstand continuous immersion in water under specified conditions.
- The product is certified CE, RoHS, FCC, EMC, and LVD, ensuring compliance with relevant safety and environmental standards.
Transformer Compatibility
It is crucial to use the correct type of transformer for safe and proper operation.
Figure 1: Compatible (top row) and Incompatible (bottom row) Transformer Types. Only use double-wound safety isolating transformers.
2. Product Overview
The LyLmLe 35W Resin-Filled RGB LED Pool Light is an ultra-thin, high-performance lighting solution designed for swimming pools. Its resin-filled construction ensures exceptional durability and 100% waterproofing, preventing leaks and breakage.
Figure 2: LyLmLe 35W RGB LED Pool Light.
Key Features:
- Exceptional Durability: Ultra-thin, resin-filled design for 100% waterproofing (IP68 rated), preventing leaks and breakage.
- Vibrant Color Modes: Features 14 color modes, including 7 static colors (with adjustable brightness) and 7 dynamic modes (with adjustable speed), such as color transition, fade, change, and jump.
- Wide Beam Angle: A 140° beam angle provides uniform and expansive illumination for your pool.
- Energy Efficient: 35W LED light provides bright illumination with lower energy consumption compared to traditional halogen bulbs.
- Long Lifespan: Designed for a lifespan of approximately 50,000 hours.
- Easy Installation: Designed for standard cross brace installation, making it ideal for replacing old bulbs without re-drilling.
Product Dimensions:

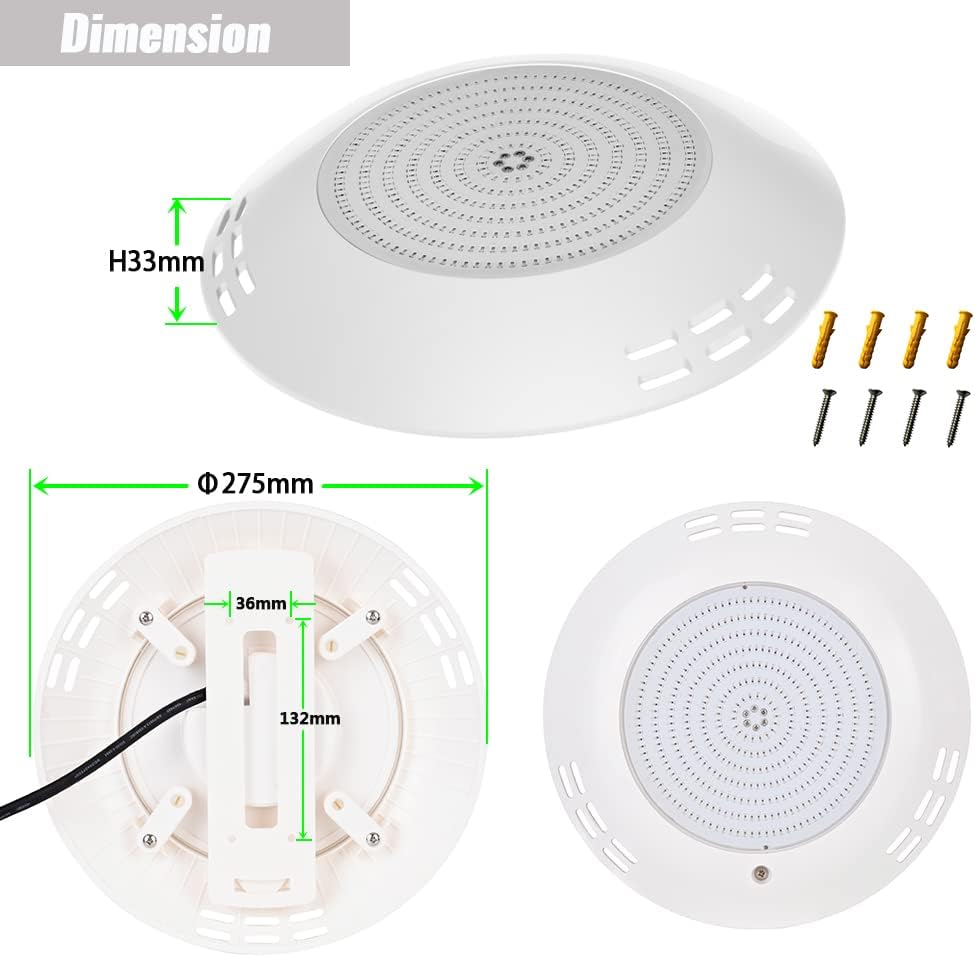

Figure 3: Product Dimensions. Diameter: 275mm, Thickness: 33mm.
Energy Efficiency:
Figure 4: EU Energy Label. This product has an energy efficiency rating of F. For more details, visit the EPREL database.
3. Setup and Installation
Follow these steps for proper installation of your LyLmLe LED pool light. Professional installation is highly recommended.
Wiring Diagram:
Figure 5: Wiring Diagram. Connect AC 220V input to a compatible transformer, then 12V AC output to the sync controller, and finally to the pool lights. Ensure total cable length (L1+L2) is less than 50m and copper core diameter is at least 1.5mm².
Installation Steps:
- Prepare the Installation Area: Ensure the pool wall is clean and free of debris. The light should be installed at the recommended depth (min 450mm from water level).
- Mount the Cross Brace: Secure the standard cross brace to the pool wall using appropriate screws.
- Connect Wiring: Route the electrical cable through the designated opening in the cross brace. Connect the light's cable to the 12V AC output from your transformer/sync controller, ensuring waterproof connections.
- Attach the Light: Align the light with the mounted cross brace and secure it firmly by tightening the screws.

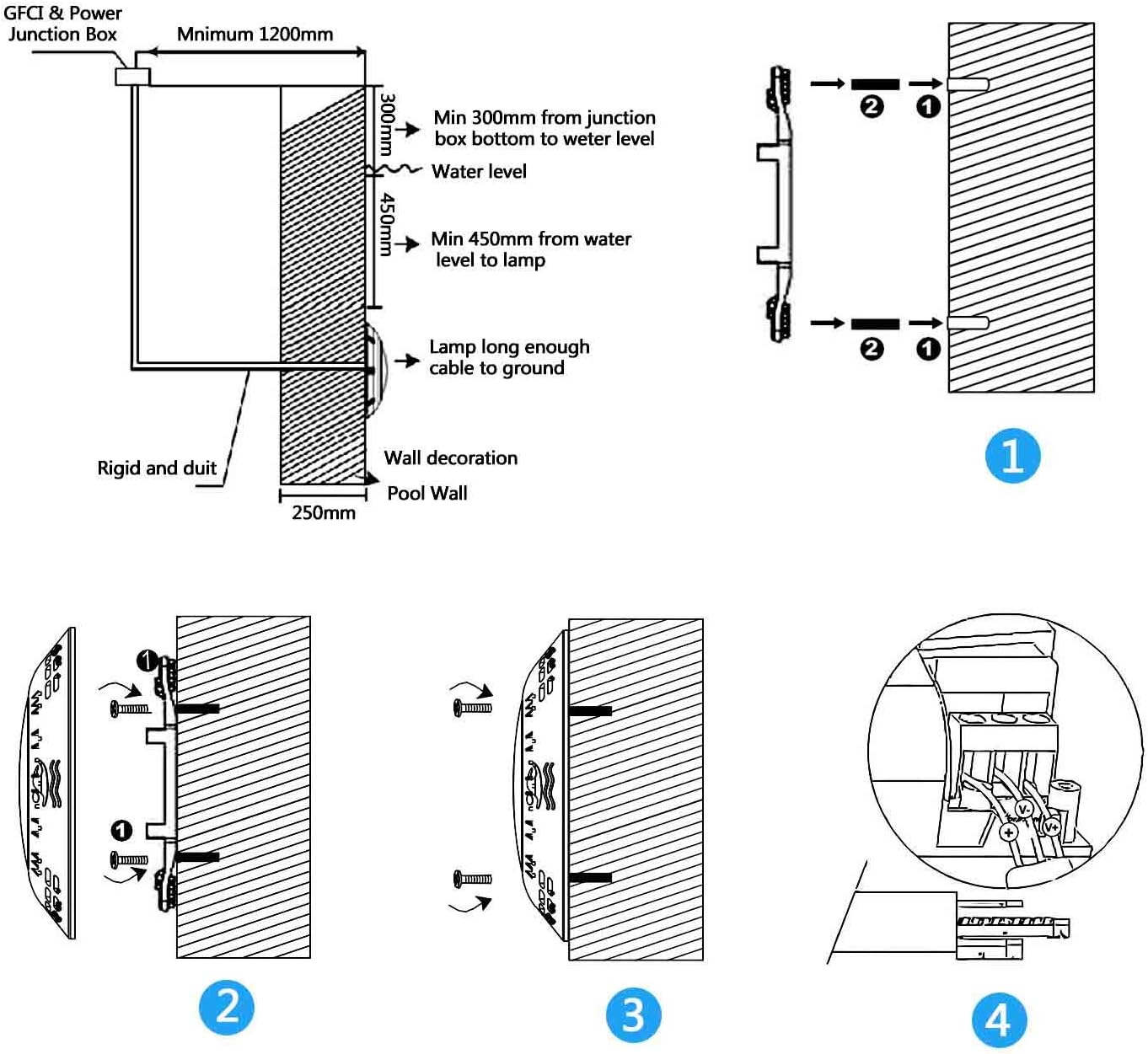

Figure 6: Detailed Installation Steps.
4. Operating Instructions
The LyLmLe LED pool light offers 14 distinct color modes for a customizable lighting experience. While the lamp itself does not include a controller, it is designed to work with an external synchronous controller (e.g., models RF433C and R-RF433R, available separately from LyLmLe).
Color Modes and Control:

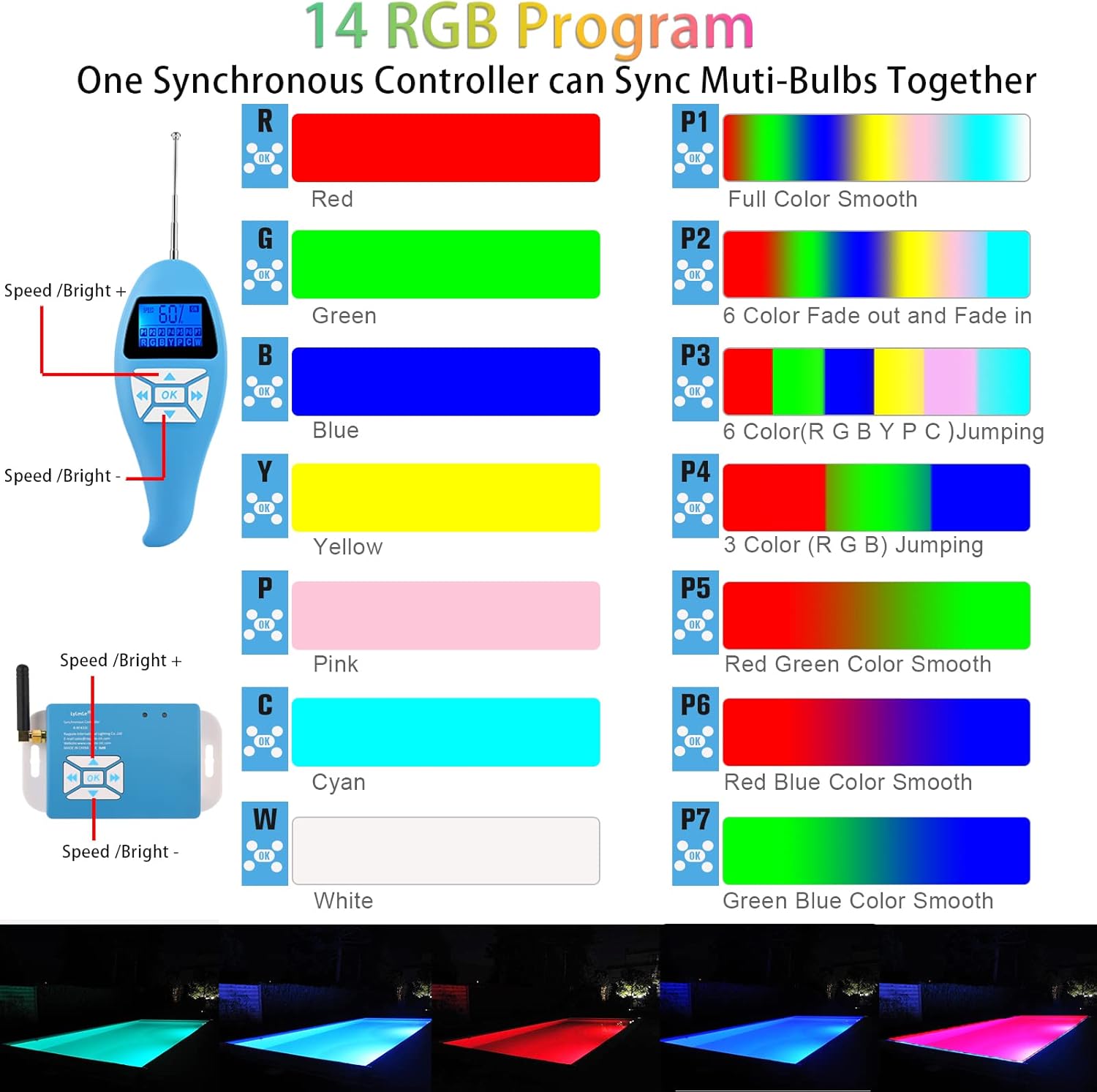

Figure 7: 14 RGB Program Modes and Remote Control.
- Static Modes (7): Red, Green, Blue, Yellow, Pink, Cyan, White. Brightness is adjustable for these modes.
- Dynamic Modes (7): Full Color Smooth, 6 Color Fade out and Fade in, 6 Color (RGBYPC) Jumping, 3 Color (RGB) Jumping, Red Green Color Smooth, Red Blue Color Smooth, Green Blue Color Smooth. Speed is adjustable for these modes.
- Synchronization: If you have multiple LyLmLe synchronous pool lights connected to the same controller, they will synchronize their color changes.
- Control: Use the external synchronous controller (remote or wall-mounted unit) to switch between modes, adjust brightness, and change speed. Refer to the controller's specific instructions for detailed operation.
5. Maintenance
The LyLmLe LED pool light is designed for minimal maintenance due to its robust construction.
Cleaning:
- Periodically clean the surface of the light to remove any algae, mineral deposits, or debris that may accumulate and affect light output.
- Use a soft cloth or sponge and mild, non-abrasive cleaning solutions specifically designed for pool equipment. Avoid harsh chemicals that could damage the light's resin or plastic components.
- For information on recycling your bulbs, please refer to local recycling guidelines.
Durability and Waterproofing:
The light's resin-filled interior provides superior protection against water intrusion.
Figure 8: IP68 Waterproof Test. Each lamp undergoes rigorous testing to ensure compliance with IP68 standards for reliable underwater use.
6. Troubleshooting
If you encounter issues with your LyLmLe LED pool light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply; Incorrect transformer; Loose wiring; Faulty light. | Check power source and circuit breaker. Verify transformer type (must be double-wound safety isolating). Inspect all wiring connections for tightness. If issues persist, contact support. |
| Colors are incorrect or not changing. | Controller issue; Synchronization issue (multiple lights); Power cycle needed. | Ensure the external controller is functioning correctly and within range. For multiple lights, ensure they are properly synchronized. Try turning the power off to the light for 10 seconds, then back on. |
| Remote control not working. | Battery low/dead; Remote out of range; Interference. | Replace remote batteries. Ensure remote is within effective range of the sync controller. Minimize potential signal interference. |
| Light flickers or dims unexpectedly. | Unstable power supply; Voltage drop; Overheating. | Verify stable 12V AC power. Check cable length and gauge (L1+L2 < 50m, copper core ≥ 1.5mm²). Ensure adequate water circulation around the light to prevent overheating. |
7. Specifications
| Specification | Value |
|---|---|
| Brand | LyLmLe |
| Model Number | R-PL34-CS35W-S |
| Dimensions (L x W x H) | 27.5 x 27.5 x 3.3 cm |
| Weight | 1.09 Kilograms |
| Ingress Protection (IP) Rating | IP68 |
| Style | Transitional |
| Color | RGB (35w) |
| Material | Acrylonitrile Butadiene Styrene (ABS), Resin |
| Number of Bulbs | 441 (LEDs) |
| Voltage | 12 Volts AC |
| Specific Uses | Pool |
| Special Features | Sync Control, Dimmable, Underwater Use Only, Corded, Waterproof |
| Luminous Flux | 1400 lm |
| Wattage | 35 Watts |
| Beam Angle | 140° |
| Color Rendering Index (CRI) | 80.00 |
| Average Lifespan | 50,000 Hours |
| Power Source | Corded Electric |
| Installation Type | Surface Mount |
8. Warranty and Support
LyLmLe is a professional LED manufacturer committed to quality and customer satisfaction. Your investment in our product is backed by our promise of quality.
- The product is manufactured with high-quality components and undergoes strict quality control.
- For any technical assistance, product inquiries, or support needs, please refer to the contact information provided with your purchase or visit the official LyLmLe brand store on Amazon.
