EXZEIT 3.5'' LED Fog Light Instruction Manual

Introduction

Thank you for choosing the EXZEIT 3.5'' LED Fog Light. This manual provides essential information for the safe and effective installation, operation, and maintenance of your new LED lights. Please read this manual thoroughly before installation and keep it for future reference.

These versatile LED light pods are designed for various applications, including off-road driving lights, daytime running lights, or fog lights on trucks, ATVs, and UTVs. They are also suitable for industrial and marine lighting.

Safety Information

• Always disconnect power before installing or servicing the lights.
• Ensure proper wiring connections to prevent short circuits or electrical hazards.
• Do not look directly into the light when it is illuminated, as it can cause eye strain or damage.
• Install lights securely to prevent vibration or detachment during vehicle operation.
• Consult a professional if you are unsure about any installation steps.

Package Contents

Verify that all components are present before beginning installation:

• EXZEIT 3.5'' LED Fog Light Pods (Quantity: 2)
• Stainless Steel Mounting Brackets (Quantity: 2 sets)
• Mounting Hardware (Bolts, Nuts, Washers)

Image: Two EXZEIT 3.5 inch LED fog light pods, showing the front view with nine LED elements and the attached mounting brackets.

Specifications

Image: Product dimensions diagram, illustrating the approximate measurements of the light pod.

Setup and Installation

The EXZEIT LED Fog Lights are designed for universal fit and easy installation. Follow these steps for proper setup:

1. Mounting the Lights

1. Identify a suitable mounting location on your vehicle (e.g., bumper, grille guard, roof rack). Ensure the location provides a clear path for the light beam and does not obstruct vehicle functions.
2. Attach the stainless steel mounting brackets to the light pods using the provided bolts. The brackets allow for angle adjustment.
3. Secure the assembled light and bracket to your chosen mounting surface using the remaining hardware. Tighten all bolts firmly to prevent movement.

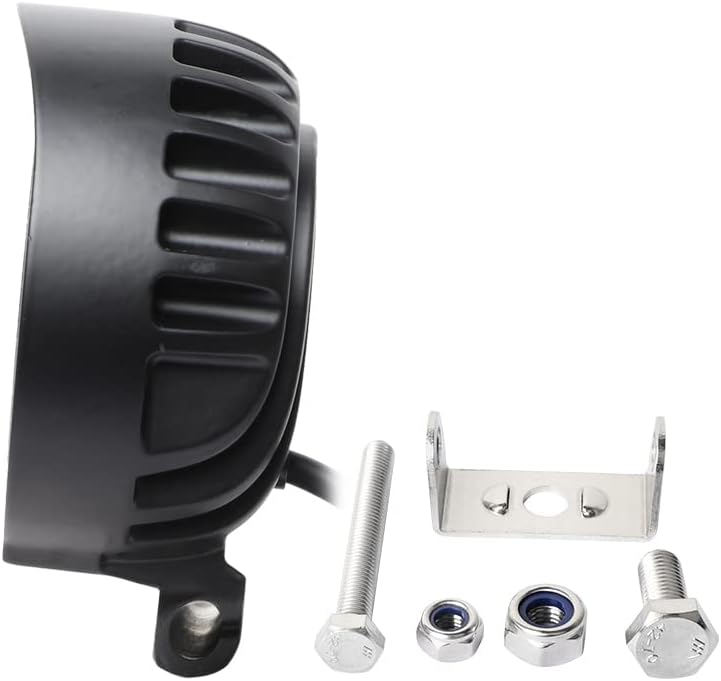

Image: Side view of the light pod with its mounting bracket and individual hardware components (bolts, nuts) for assembly.

Image: Rear view of the light pod, highlighting the robust aluminum housing and heat dissipation fins.

2. Wiring the Lights

The lights operate on a 10-30V DC system. Proper wiring is crucial for performance and safety.

1. Identify the positive (+) and negative (-) wires from the light pod. Typically, the red wire is positive and the black wire is negative.
2. Connect the positive wire of the light to a fused 12V/24V power source (e.g., battery, auxiliary switch panel) through a relay if necessary, depending on your vehicle's electrical system and desired control.
3. Connect the negative wire of the light to a suitable ground point on the vehicle chassis.
4. Ensure all connections are secure and insulated to prevent short circuits and corrosion.

Image: A single light pod with its red (positive) and black (negative) power wires ready for electrical connection.

Operating Instructions

Once installed and wired correctly, operate your EXZEIT LED Fog Lights as follows:

• Activate the lights using the switch connected to your wiring harness.
• Adjust the angle of the light pods as needed to achieve the desired beam direction. The 30° spot beam is designed for focused, long-distance illumination.
• These lights are intended for off-road use or as auxiliary lighting where permitted by local regulations. Always be mindful of other drivers and pedestrians.

Image: Live demonstration of the 30-degree spot beam, showing its focused and powerful illumination.

Maintenance

To ensure the longevity and optimal performance of your EXZEIT LED Fog Lights, follow these simple maintenance guidelines:

• Cleaning: Clean the lens and housing regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners or solvents that could damage the polycarbonate lens or aluminum finish.
• Inspection: Periodically check all mounting hardware for tightness. Vibrations from vehicle operation can loosen bolts over time.
• Wiring: Inspect wiring for any signs of wear, fraying, or corrosion. Repair or replace damaged wiring immediately.
• Waterproof Seal: While rated IP67 waterproof, avoid directing high-pressure water jets directly at the light for extended periods, especially near the cable entry point.

Troubleshooting

If you encounter issues with your EXZEIT LED Fog Lights, refer to the following common problems and solutions:

Warranty and Support

Warranty: The EXZEIT 3.5'' LED Fog Light comes with a One Year Manufacturer Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, accident, abuse, modification, or natural disasters.

Support: For technical assistance, warranty claims, or any questions regarding your EXZEIT product, please contact EXZEIT customer support through the retailer where you purchased the product or visit the official EXZEIT store page on Amazon:

Visit the EXZEIT Store on Amazon
