1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your OUKANING Low Profile Ceiling Fan with Lighting. This product integrates a ceiling fan and an LED light source, designed for efficient air circulation and illumination in indoor spaces. Please read this manual thoroughly before installation and use to ensure safe and correct operation.

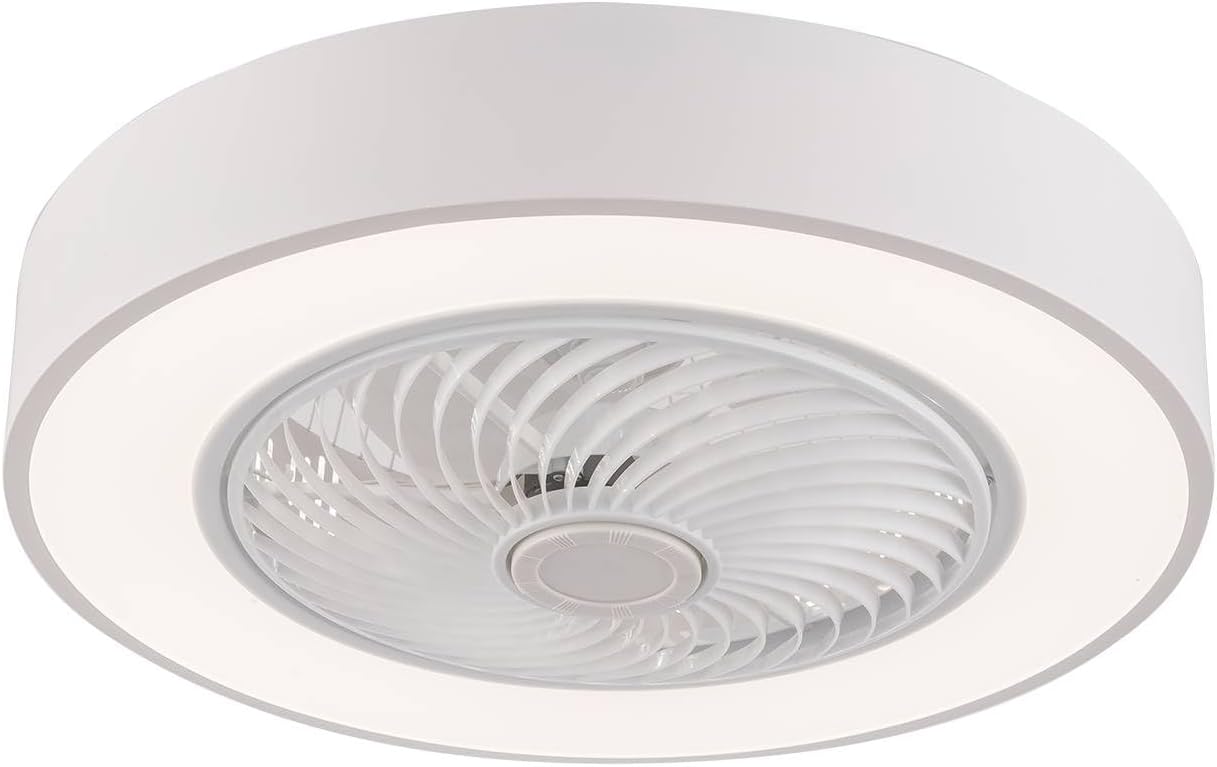

Image 1.1: The OUKANING Low Profile Ceiling Fan with Lighting, showcasing its compact design.
2. Safety Information
To reduce the risk of electric shock, fire, or injury to persons, observe the following safety precautions:
- Always disconnect power at the circuit breaker or fuse box before beginning installation or performing any maintenance.
- All electrical connections must be in accordance with local codes, ordinances, or national electrical codes. If you are unfamiliar with electrical wiring, consult a qualified electrician.
- Ensure the installation location can support the weight of the fan and light fixture.
- Do not insert objects into the fan blades while the fan is operating.
- Keep children away from the fan during operation and maintenance.
- Do not use this product with a dimmer switch not specifically designed for ceiling fans with integrated LED lighting.
3. Package Contents
Verify that all components are present before beginning installation:
- 1x Ceiling Fan with Integrated Light
- 1x Remote Control
- 1x User Manual (this document)
- Installation Accessories (screws, wire nuts, etc.)
4. Setup and Installation
This ceiling fan is designed for Flush Mount or Surface Mount installation. English installation instructions and necessary accessories are included. Installation may require two people for safety and ease of handling.
4.1 Pre-Installation
- Turn off power at the main circuit breaker.
- Ensure the mounting surface is structurally sound to support the fixture's weight.
- Unpack all components and inspect for any damage.
4.2 Mounting the Fixture
The fan and light unit is a single piece. Wire connections and mounting are performed concurrently. It is recommended to have one person hold the fixture near the electrical box while another connects the wiring.
Image 4.1: Internal view of the fan's wiring and mounting plate.
Image 4.2: View of the internal fan blades and motor assembly.
4.3 Electrical Connections
- Connect the household supply wires to the fan's wires according to standard electrical codes (e.g., black to black, white to white, ground to ground).
- Secure all connections with wire nuts and ensure they are properly insulated.
- Carefully tuck all wires into the junction box.
4.4 Securing the Fixture
- Align the fixture with the mounting holes in the junction box and secure it with the provided screws.
- Ensure the fixture is flush against the ceiling and securely fastened.
5. Operating Instructions
The OUKANING Ceiling Fan with Lighting is controlled via the included remote control. Ensure the remote has batteries installed (not included, typically 2x AAA).
5.1 Light Control
- The light offers three color temperatures: white light, natural light, and warm light.
- Press the light button on the remote control to cycle through the available light colors. The light temperature can be adjusted, but the brightness is not dimmable.
5.2 Fan Speed Control
The fan features three adjustable wind speeds: Low, Medium, and High.
- Use the fan speed buttons on the remote control to select your desired airflow.
Image 5.1: Graphic illustrating the adjustable wind speed settings of the fan.
5.3 Timer Function
The remote control includes a timer function for automatic shutdown.
- Press the timer buttons (1H, 2H, 4H) on the remote control to set the fan and light to automatically turn off after 1, 2, or 4 hours, respectively.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: The fan is designed for easy disassembly and cleaning. Before cleaning, always cut off the power supply at the circuit breaker. Use a soft, damp cloth to wipe down the exterior surfaces. Do not use abrasive cleaners or solvents.
- Inspection: Periodically check all connections and mounting screws to ensure they are secure.
7. Troubleshooting
If you encounter issues with your ceiling fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not operate | No power supply; Loose wiring; Remote control battery low or not paired. | Check circuit breaker; Verify all wire connections; Replace remote batteries or re-pair remote. |
| Light does not turn on | No power supply; Loose wiring; LED module failure; Remote control battery low. | Check circuit breaker; Verify all wire connections; Contact customer support if LED module is faulty; Replace remote batteries. |
| Fan makes excessive noise | Loose mounting screws; Unbalanced fan blades. | Ensure all mounting screws are tightened; Check for any obstructions or damage to fan blades. |
| Remote control not responding | Low or dead batteries; Remote not paired with fan. | Replace batteries; Refer to remote control pairing instructions (if applicable, not detailed in product info). |
8. Specifications
Detailed technical specifications for the OUKANING Low Profile Ceiling Fan with Lighting:
- Model: 6374abb4-5bf4-4499-8665-c2acccf57c25
- Brand: OUKANING
- Voltage: 110V, 60Hz
- Power: 36W (with light source)
- Light Source Type: LED
- Light Colors: White, Natural, Warm Yellow (adjustable temperature)
- Wind Speed: Three adjustable levels (Low, Medium, High)
- Lamp Body Material: Acrylic
- Lampshade Material: PMMA High Transmittance Lampshade
- Chassis Material: ABS Hardware Chassis
- Irradiation Area: 15m² - 30m²
- Size: 22 inches (Diameter 55cm × Height 20.8cm)
- Control Method: Remote Control
- Brightness: 6000 Lumens (Maximum Light Output)
- Efficiency: 166.67 lumens per watt
- Item Weight: 13.27 pounds
- Package Dimensions: 24 x 24 x 11 inches
- Installation Type: Flush Mount or Surface Mount
- Indoor/Outdoor Usage: Indoor
Image 8.1: Diagram showing product dimensions and key specifications.

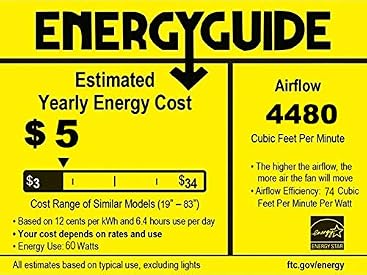

Image 8.2: Energy Guide label providing estimated yearly energy cost and airflow information.
9. Warranty and Support
OUKANING provides comprehensive after-sales service for this product.
- Parts Replacement: 60 days of parts replacement from the date of purchase.
- Technical Support: Lifetime technical support is available.
For any questions or assistance regarding your product, please contact our customer service team via email. We are committed to providing you with the best possible solution.
