Mayer MMAF80 Air Fryer Instruction Manual

1. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions carefully before operating this appliance.

• Do not immerse the appliance, cord, or plug in water or other liquids to prevent electric shock.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
• Always unplug the appliance from the outlet when not in use and before cleaning. Allow it to cool before handling parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Keep the appliance and its cord out of reach of children.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place the appliance on or near a hot gas or electric burner, or in a heated oven.
• Always ensure the frying basket is properly inserted before operating the appliance.
• Hot air is released through the air outlet opening during operation. Keep your hands and face at a safe distance from the air outlet.
• Do not cover the air inlet or air outlet openings while the appliance is operating.
• The surfaces may become hot during use. Only touch the handle and control knobs.
• This appliance is intended for household use only.

2. Product Overview

Familiarize yourself with the components of your Mayer MMAF80 Air Fryer.

Figure 2.1: The Mayer MMAF80 Air Fryer showing the main unit and the detachable frying basket. This image highlights the ease of removing the basket for loading food and cleaning.

Figure 2.2: Front view of the Mayer MMAF80 Air Fryer, displaying its sleek black finish and the handle for the frying basket.

Key Features:

• Adjustable Thermostat: Control cooking temperature up to 200°C.
• 30-Minute Timer: Set precise cooking times with automatic shut-off.
• Detachable Frying Basket: Easy to remove for loading, shaking, and cleaning.
• Power Light Indicator: Indicates when the appliance is powered on.
• Automatic Shut-Off: Enhances safety and prevents overcooking.
• Non-Slip Feet: Ensures stability during operation.

3. Setup and First Use

3.1 Unpacking

1. Carefully remove the air fryer and all packaging materials from the box.
2. Remove any stickers or labels from the appliance.
3. Retain packaging for future storage or disposal.

3.2 Placement

• Place the air fryer on a stable, heat-resistant, and level surface.
• Ensure there is at least 10 cm (4 inches) of free space around the back and sides of the appliance for proper air circulation.
• Do not place the appliance directly against a wall or under cabinets during operation, as hot steam may cause damage.

Figure 3.1: Rear view of the Mayer MMAF80 Air Fryer, illustrating the power cord connection and the air outlet vent. Ensure this area is clear for ventilation.

3.3 Initial Cleaning

1. Wipe the exterior of the appliance with a damp cloth.
2. Remove the frying basket and pan. Wash them thoroughly with hot water, dish soap, and a non-abrasive sponge.
3. Rinse and dry all parts completely before reassembling.

3.4 First Use (Burn-in)

During the first use, a slight odor or smoke may be emitted due to manufacturing residues. This is normal and will dissipate quickly.

1. Plug the air fryer into a grounded wall outlet.
2. Set the temperature to 200°C and the timer to 10 minutes.
3. Allow the appliance to run empty for 10 minutes in a well-ventilated area.
4. Once complete, unplug and let it cool down completely.

4. Operating Instructions

4.1 Controls Overview

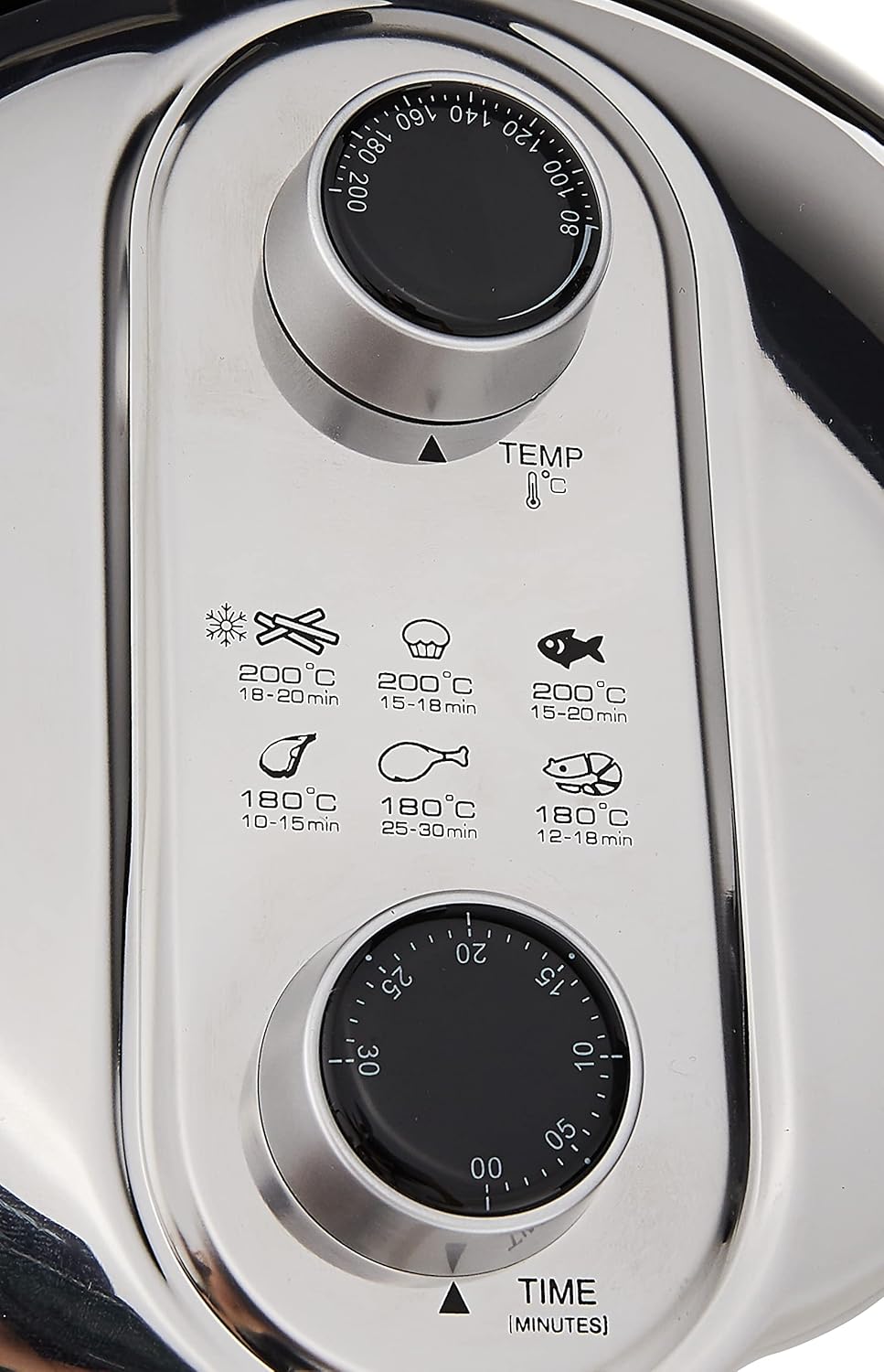

Figure 4.1: The control panel features a temperature dial (top) and a timer dial (bottom). Recommended cooking settings for various foods are also displayed.

• Temperature Dial: Located at the top, used to set the desired cooking temperature from 80°C to 200°C.
• Timer Dial: Located at the bottom, used to set the cooking time up to 30 minutes. The appliance will automatically shut off when the timer reaches zero.

4.2 General Operation

1. Prepare Food: Prepare your ingredients as desired. For best results, pat dry foods like chicken or fish. Lightly oiling some foods can enhance crispiness.
2. Place Food: Pull out the frying basket by its handle. Place the food into the basket. Do not overfill the basket; ensure there is enough space for air to circulate.
3. Insert Basket: Slide the frying basket back into the air fryer until it clicks securely into place.
4. Set Temperature: Turn the temperature dial to your desired cooking temperature. Refer to the cooking guide on the appliance or a recipe for recommendations.
5. Set Timer: Turn the timer dial to the required cooking time. The air fryer will begin heating. The power indicator light will illuminate.
6. Shake Basket (Optional): For some foods, especially smaller items like fries, it is recommended to shake the basket halfway through the cooking time to ensure even cooking. Carefully pull out the basket, shake, and reinsert. The air fryer will resume cooking.
7. Completion: When the timer reaches zero, the air fryer will automatically shut off and a bell will sound.
8. Remove Food: Carefully pull out the frying basket. Use heat-resistant tongs to remove the cooked food. Be cautious of hot steam.
9. Cool Down: Allow the appliance to cool down completely before cleaning or storing.

4.3 Cooking Guide (Approximate)

The following table provides approximate cooking times and temperatures. Adjust as needed based on food quantity and desired crispiness.

5. Maintenance and Cleaning

Regular cleaning will ensure optimal performance and extend the lifespan of your air fryer.

1. Unplug and Cool: Always unplug the air fryer and allow it to cool down completely before cleaning.
2. Clean Frying Basket and Pan: Remove the frying basket and pan. Wash them with hot water, dish soap, and a non-abrasive sponge. For stubborn food residues, soak them in hot water with dish soap for about 10 minutes. The basket and pan are non-stick, avoid using metal utensils or abrasive cleaning materials.
3. Clean Exterior: Wipe the exterior of the air fryer with a damp cloth. Do not use harsh abrasive cleaners or scouring pads.
4. Clean Interior: Wipe the inside of the appliance with a damp cloth. For any food residue on the heating element, use a soft brush to gently remove it after the appliance has cooled.
5. Dry Thoroughly: Ensure all parts are completely dry before reassembling and storing the appliance.
6. Storage: Store the cleaned and dried air fryer in a cool, dry place.

6. Troubleshooting

Refer to this section for common issues and their solutions.

7. Specifications

• Brand: Mayer
• Model: MMAF80
• Wattage: 1500 watts
• Product Dimensions: 29 x 35.2 x 36.2 cm (L x W x H)
• Weight: Approximately 5.96 kg
• Special Features: Automatic Shut-Off, Adjustable Thermostat

Figure 7.1: Dimensional view of the Mayer MMAF80 Air Fryer, indicating its approximate height and width for placement considerations.

8. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Mayer customer service through their official website or authorized retailers.

Please have your model number (MMAF80) and purchase details ready when contacting support.
