tectake® Mini Portable 2-in-1 Washing Machine with Spin Function

1. Introduction and Overview

Thank you for choosing the tectake® Mini Portable 2-in-1 Washing Machine. This compact and versatile appliance is designed to provide efficient washing and spinning for small loads, making it ideal for apartments, student dorms, camping, RVs, or any space where a full-sized washing machine is impractical. Its dual-functionality allows for simultaneous washing and spinning, saving you time and resources.

Figure 1: The tectake Mini Portable 2-in-1 Washing Machine, showcasing its compact design and the included accessories such as the drain hose and spin basket cover.

2. Safety Instructions

Please read all safety instructions carefully before operating the appliance to ensure safe and proper use. Keep this manual for future reference.

• Electrical Safety: Ensure the power supply matches the voltage specified on the appliance. Do not use if the power cord or plug is damaged. Always plug into a grounded outlet.
• Overheating Protection: The machine is equipped with an automatic shut-off function in case of excessively high water temperature to prevent damage and ensure safety.
• Water Safety: Do not immerse the appliance in water. Ensure proper drainage to prevent water accumulation.
• Supervision: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Placement: Place the machine on a stable, level surface to prevent tipping during operation.
• Maintenance: Always unplug the machine before cleaning or performing any maintenance.

3. Product Features

The tectake® Mini Portable Washing Machine offers a range of features designed for convenience and efficiency:

• 2-in-1 Functionality: Separate compartments allow for simultaneous washing and spinning.
• Economical Operation: Designed to save water, energy, and time.
• High-Quality Construction: Made from durable, robust plastic for stability and longevity.
• Safety Features: Includes automatic shut-off for high water temperature and secure electrical consumption.
• Timer Function: Separate timer functions for both the wash drum and spin drum.
• Compact and Portable: Small footprint, ideal for limited spaces and easy to transport with integrated handles.
• Generous Capacity: 4.5 kg wash capacity and 3.5 kg spin capacity.
• User-Friendly: Features 2 wash programs (Normal, Delicate) and intuitive controls.
• Efficient Dirt Filter: Removable and cleanable filter to prevent blockages.
• Quiet Operation: Operates at 62 dB during washing and 72 dB during spinning.

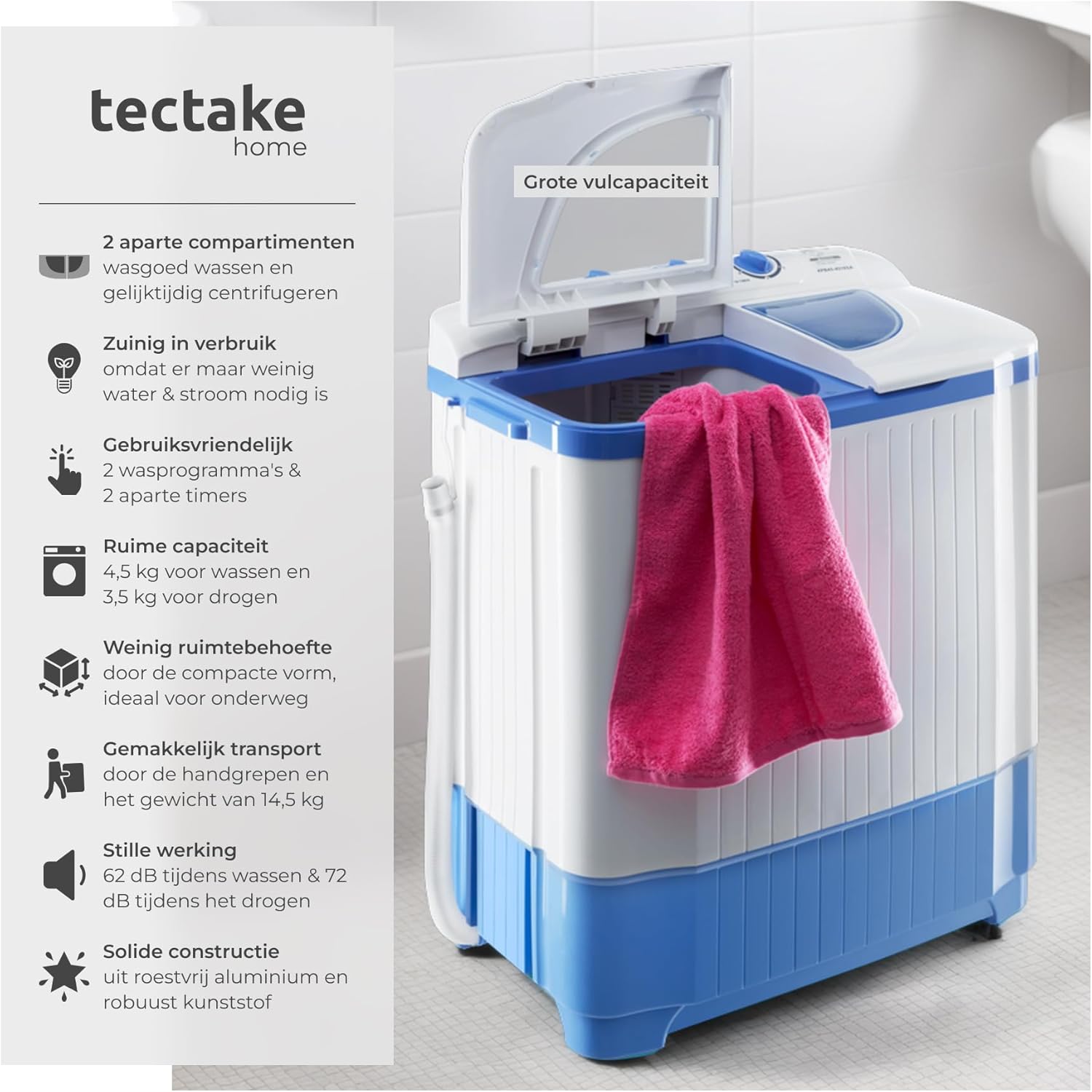

Figure 2: Key features of the tectake washing machine, highlighting its dual compartments, energy efficiency, and compact design.

Figure 3: The machine's compact size and powerful performance, detailing its wash and spin capacities and power consumption.

4. Package Contents

Upon unpacking, please ensure all the following items are included:

• 1 x tectake® Mini Portable 2-in-1 Washing Machine
• 1 x Inlet Hose (approx. 117 cm)
• 1 x Drain Hose (approx. 51 cm)
• 1 x Spin Basket Cover / Sieve for wash drum
• 1 x User Manual (this document)

5. Setup

5.1 Unpacking

Carefully remove the washing machine and all accessories from the packaging. Retain the packaging for future transport or storage if needed.

5.2 Placement

Place the washing machine on a firm, level, and stable surface. Ensure there is enough space around the machine for ventilation and access to the hoses and power cord. Avoid placing it in direct sunlight or in excessively humid environments.

5.3 Connecting Hoses

1. Inlet Hose: Connect the inlet hose to a water tap. Place the other end into the wash drum's water inlet opening.
2. Drain Hose: Position the drain hose to direct wastewater into a sink, bucket, or drain. Ensure the hose is not kinked or blocked. The flexible drain hose can be attached to the side of the machine with a hook for transport.

Figure 4: Details of the removable dirt filter, the safety cover for the spin basket, and the flexible drain hose.

6. Operating Instructions

6.1 Control Panel Overview

The control panel features intuitive dials for easy operation:

Figure 5: The control panel with labeled components: Wash Timer, Wash/Drain Selector, Spin Timer, Water Inlets, Wash Drum, Spin Drum, and Spin Drum Cover.

• Wash Timer: Sets the duration for the washing cycle.
• Wash/Drain Selector: Selects between wash programs (Normal/Delicate) or activates the drain function.
• Spin Timer: Sets the duration for the spin cycle.
• Water Inlet: Points to the openings for water input into each drum.

6.2 Washing Process

1. Load Laundry: Open the lid of the wash drum and place your laundry inside. Do not overload the machine; adhere to the maximum wash capacity of 4.5 kg.
2. Add Detergent: Add the appropriate amount of laundry detergent directly into the wash drum with the clothes.
3. Add Water: Fill the wash drum with water through the water inlet. You can use the inlet hose connected to a tap or manually pour water.
4. Select Program: Turn the Wash/Drain Selector to the desired wash program (e.g., Normal or Delicate) based on your laundry type and soil level.
5. Set Wash Timer: Turn the Wash Timer dial to set the desired washing duration. The machine will start automatically.
6. Drain Water: Once the wash cycle is complete, turn the Wash/Drain Selector to the 'Drain' position to empty the water from the wash drum.

6.3 Spin Drying Process

1. Transfer Laundry: Carefully transfer the washed laundry from the wash drum to the spin drum. Ensure the laundry is evenly distributed to prevent imbalance.
2. Place Cover: Place the provided spin basket cover (sieve) on top of the laundry in the spin drum. This keeps the laundry in place during spinning for safety.
3. Set Spin Timer: Close the spin drum lid and turn the Spin Timer dial to set the desired spinning duration. The machine will start spinning.
4. Remove Laundry: Once the spin cycle is complete and the drum has stopped, open the lid and remove your spun laundry.

7. Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your washing machine.

7.1 Cleaning the Exterior

Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the plastic surface.

7.2 Cleaning the Interior

After each use, rinse the wash and spin drums with clean water. Leave the lids open for a while to allow the interior to air dry and prevent odors.

7.3 Cleaning the Dirt Filter

The machine is equipped with an efficient dirt filter to catch lint and debris. This filter should be removed and cleaned regularly to prevent blockages and maintain washing performance. Refer to Figure 4 for the location of the dirt filter.

8. Troubleshooting

If you encounter any issues with your washing machine, please refer to the following common troubleshooting tips:

If the problem persists after trying these solutions, please contact customer support.

9. Technical Specifications

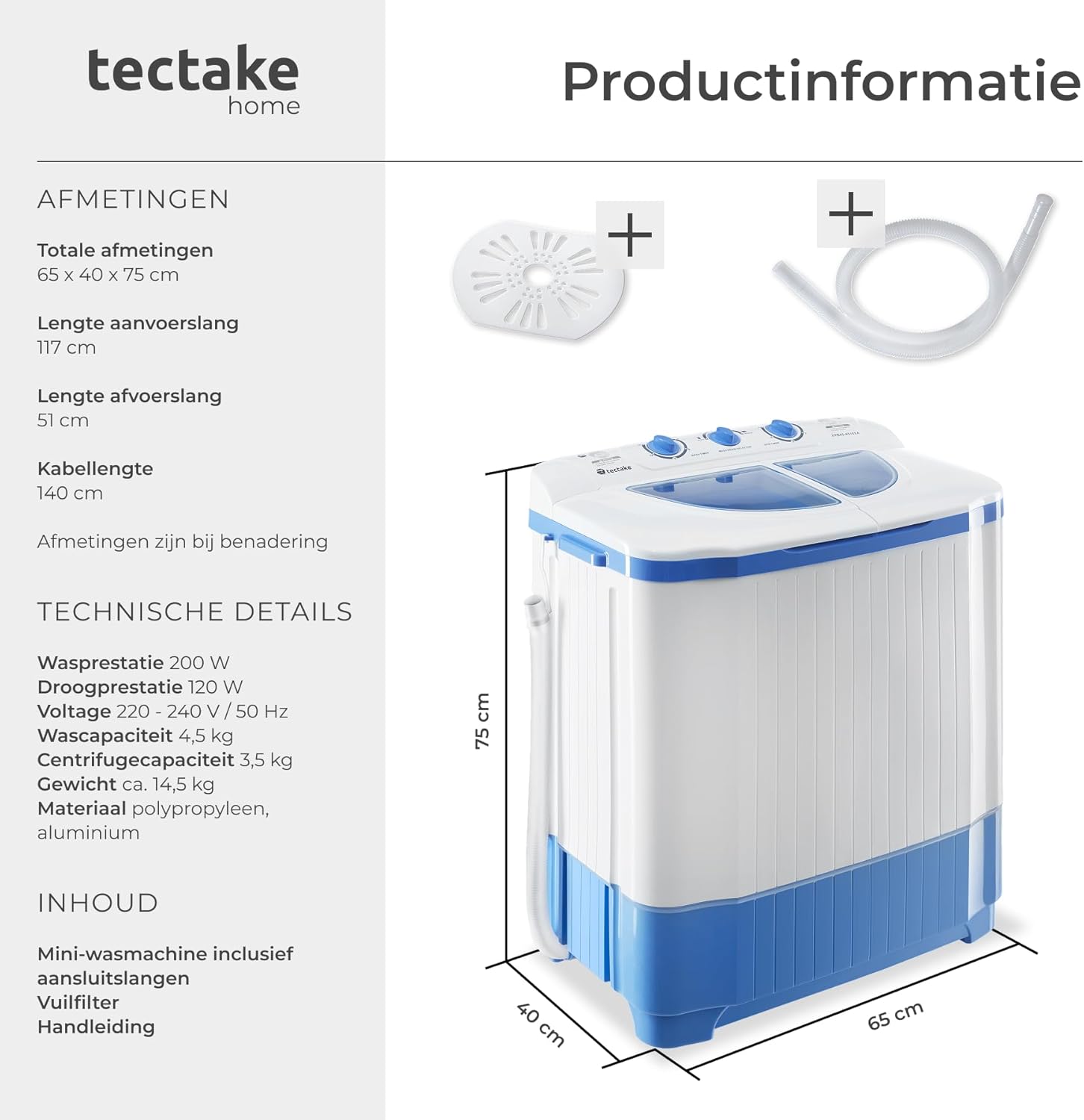

Figure 6: Detailed dimensions and technical specifications of the washing machine.

10. Warranty and Support

Specific warranty details and direct support contact information are not provided within this manual. For warranty claims, technical support, or inquiries regarding spare parts, please refer to the purchase documentation or contact your retailer or the manufacturer, TecTake, directly through their official website or customer service channels.
