1. Introduction and Overview
The Kranzle HD9-80 is a robust and efficient high-pressure washer designed for professional and demanding cleaning tasks. Its compact design, durable motor, and high-quality components ensure reliable performance for various applications, from vehicle cleaning to maintaining outdoor areas. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Kranzle HD9-80 pressure washer.
2. Safety Instructions
Always prioritize safety when operating any high-pressure equipment. Failure to follow these instructions could result in serious injury or property damage.
- Read the Manual: Always read and understand this entire user manual before operating the pressure washer.
- Personal Protective Equipment (PPE): Wear appropriate PPE, including eye protection (safety glasses or goggles), hearing protection, and sturdy, non-slip footwear.
- Electrical Safety: Ensure the power source matches the unit's requirements (voltage and frequency). Always plug the unit into a grounded outlet protected by a Ground Fault Circuit Interrupter (GFCI). Do not operate with damaged cords or plugs.
- Water Pressure Hazards: Never point the spray gun at people, pets, or electrical equipment. The high-pressure spray can cause severe injuries.
- Stable Surface: Operate the pressure washer on a stable, level surface to prevent tipping.
- Children and Pets: Keep children and pets away from the operating area.
- Ventilation: Ensure adequate ventilation if operating in an enclosed space, especially if using a model with a combustion engine (though this model is electric).
- Chemicals: Use only detergents approved for pressure washers. Follow detergent manufacturer's instructions for use and disposal.
- Maintenance: Disconnect the power supply before performing any maintenance or cleaning.
3. Package Contents
Carefully unpack all components and ensure all items are present and undamaged. If any items are missing or damaged, contact your retailer immediately.
- Kranzle HD9-80 Pressure Washer Unit
- High-Pressure Hose (10 meters)
- Spray Gun
- Lance with Nozzle
Image 1: Components of the Kranzle HD9-80 High Pressure Washer, including the main unit, high-pressure hose, and spray gun with lance, shown separately before assembly.

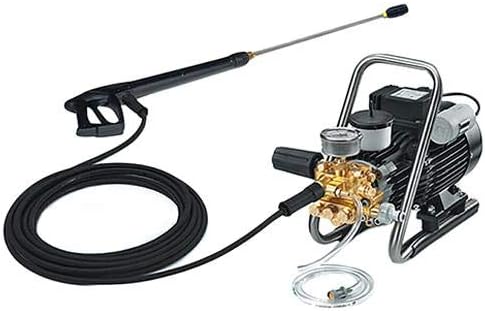

Image 2: The Kranzle HD9-80 High Pressure Washer fully assembled, showing the main unit connected to the high-pressure hose and spray gun with lance.
4. Setup
Follow these steps to set up your pressure washer before first use.
- Connect Water Supply: Connect a garden hose (not supplied) to the water inlet of the pressure washer. Ensure the water source is clean and provides sufficient flow (minimum 8 liters per minute). Turn on the water supply fully.
- Attach High-Pressure Hose: Securely connect one end of the 10-meter high-pressure hose to the high-pressure outlet on the washer unit. Connect the other end to the inlet on the spray gun.
- Assemble Spray Gun and Lance: Attach the lance firmly to the spray gun handle. Ensure it clicks into place or is securely threaded, depending on the connection type.
- Purge Air from System: Before plugging in the unit, squeeze the trigger on the spray gun and allow water to flow through the system for about 30 seconds until a steady stream of water emerges without air bubbles. This primes the pump and prevents damage.
- Electrical Connection: Plug the power cord into a suitable grounded electrical outlet. Ensure the outlet is protected by a GFCI (Ground Fault Circuit Interrupter).
5. Operating Instructions
Once set up, your Kranzle HD9-80 is ready for operation.
- Starting the Unit: With the water supply on and the system purged of air, turn the power switch on. The motor will start.
- Using the Spray Gun: Squeeze the trigger on the spray gun to begin spraying. The motor will run continuously or cycle on/off depending on the model's auto-stop feature.
- Cleaning Technique: Hold the spray gun firmly with both hands. Start spraying from a distance of approximately 30 cm (12 inches) from the surface and gradually move closer if needed, being careful not to damage the surface. Use sweeping motions to ensure even cleaning.
- Applying Detergent (if applicable): If your model supports detergent application, follow the specific instructions for your unit and the detergent product.
- Shutting Down:
- Release the spray gun trigger.
- Turn off the power switch on the unit.
- Turn off the water supply at the faucet.
- Squeeze the spray gun trigger again to release any remaining pressure in the hose and pump. This is crucial for safe disconnection and storage.
- Disconnect the high-pressure hose and store it properly.
6. Maintenance
Regular maintenance is essential for the longevity and optimal performance of your Kranzle HD9-80 pressure washer.
- After Each Use: Disconnect the water supply and power. Drain all water from the pump and hose, especially before storing in freezing temperatures to prevent damage from ice expansion.
- Inspect Hoses and Cords: Regularly check the high-pressure hose, power cord, and all connections for any signs of wear, cuts, kinks, or leaks. Replace damaged components immediately.
- Clean Water Inlet Filter: Periodically check and clean the water inlet filter to prevent debris from entering the pump. A clogged filter can reduce performance and damage the pump.
- Nozzle Maintenance: If the spray pattern becomes irregular or pressure drops, the nozzle may be partially clogged. Clean the nozzle using the provided nozzle cleaning tool or a thin wire.
- Storage: Store the pressure washer in a dry, frost-free environment. Coil the high-pressure hose and power cord neatly.
7. Troubleshooting
This section provides solutions to common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not start | No power supply; Power switch off; GFCI tripped | Check power cord connection; Turn power switch on; Reset GFCI |
| No pressure or low pressure | Insufficient water supply; Air in pump; Clogged nozzle; Leaks in hose/connections | Ensure full water flow; Purge air from system; Clean nozzle; Check for leaks and tighten connections |
| Motor pulsates or cycles on/off frequently | Air in pump; Clogged nozzle; Water supply restriction; Leak in system | Purge air; Clean nozzle; Check water inlet filter and supply hose; Inspect for leaks |
| Water leaking from pump | Loose connection; Damaged seal/O-ring | Tighten connections; Contact service for seal replacement |
8. Specifications
Technical details for the Kranzle HD9-80 High Pressure Washer.
| Specification | Detail |
|---|---|
| Manufacturer | Kranzle |
| Model Number | HD9-80 |
| Item Weight | 19 Kilograms |
| Power Source | Corded Electric |
| Hose Length | 10 Meters |
| Specification Met | CE, CSA |
9. Warranty and Support
For warranty information, technical support, or to purchase replacement parts, please contact Kranzle customer service or visit the official Kranzle website. Keep your purchase receipt as proof of purchase for any warranty claims.
Kranzle Official Website: www.kraenzle.com
