1. Safety Instructions
Please read all instructions carefully before using this elliptical trainer. Retain this manual for future reference.
- Consult your physician before starting any exercise program.
- Keep children and pets away from the equipment during use.
- Place the elliptical on a flat, stable surface with adequate clearance around it.
- Inspect the equipment for loose or worn parts before each use. Do not use if damaged.
- Wear appropriate exercise clothing and footwear.
- The maximum user weight capacity for this elliptical is 220 pounds (approximately 100 kg).
- Stop exercising immediately if you feel faint, dizzy, or experience pain.
2. Product Overview
The inSPORTline Elliptical Trainer provides a low-impact cardiovascular workout. It features an LCD display for tracking workout metrics and a magnetic resistance system for adjustable intensity.
Figure 2.1: Side view of the inSPORTline elliptical trainer, showing the main frame, pedals, handlebars, and flywheel cover.
Figure 2.2: Front view of the inSPORTline elliptical trainer, highlighting the console, handlebars, and front stabilizer.
Figure 2.3: Close-up view of the textured, non-slip pedals on the elliptical trainer.
3. Setup and Assembly
Unpack all components and ensure all parts are present before beginning assembly. Refer to the included hardware pack and assembly diagram.
3.1 Required Tools
- Adjustable wrench
- Allen keys (usually included)
- Screwdriver
3.2 Assembly Steps
- Attach the front and rear stabilizer bars to the main frame using the provided bolts and washers.
- Secure the upright post to the main frame.
- Connect the resistance cable and sensor wire from the main frame to the upright post.
- Install the handlebars and pedal arms. Ensure all connections are tight and secure.
- Mount the LCD console onto the upright post and connect the sensor wires.
- Insert batteries into the LCD console (if applicable).

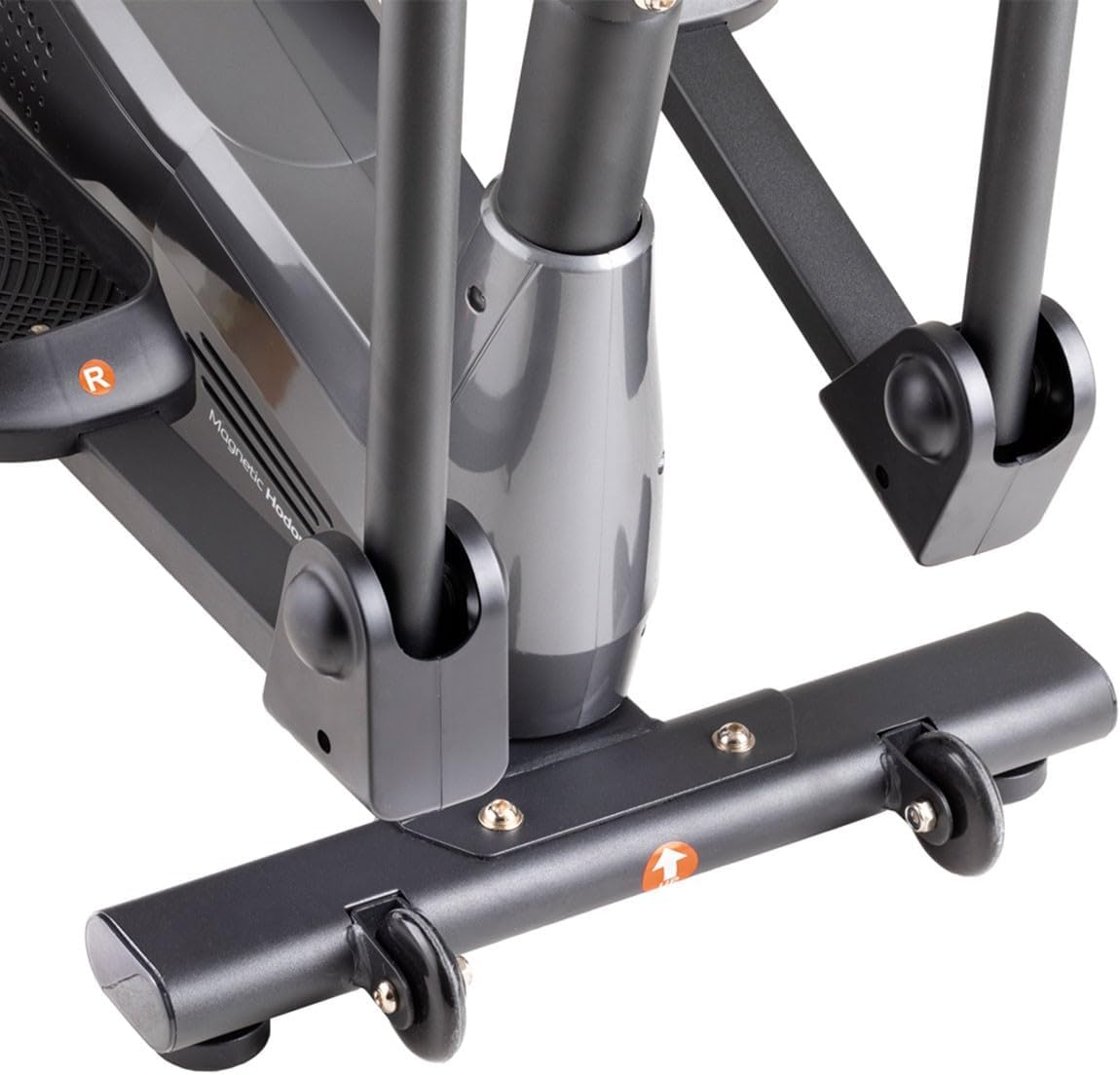

Figure 3.1: Detail of the rear stabilizer bar with transport wheels, facilitating movement of the elliptical.

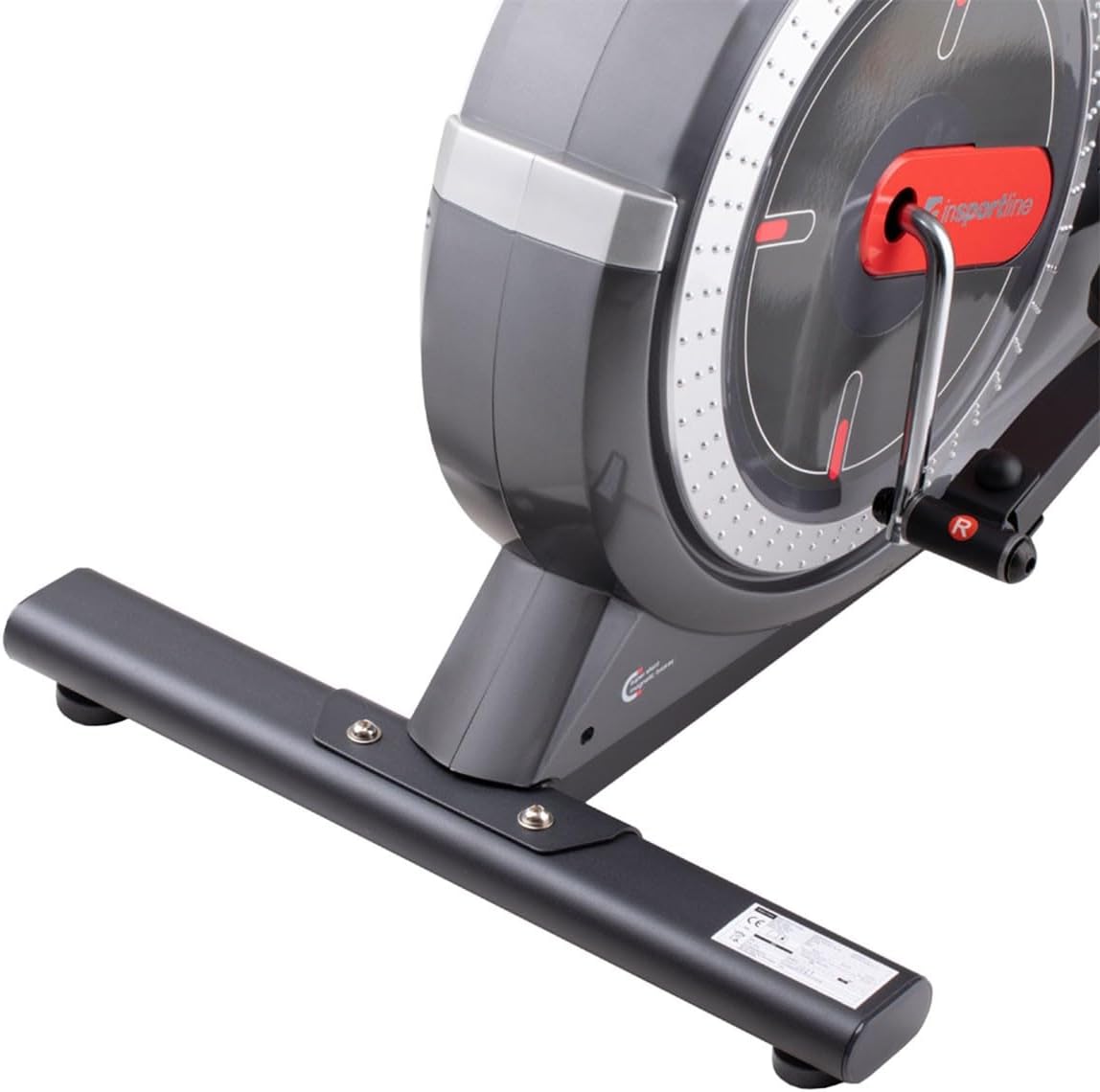

Figure 3.2: Detail of the front stabilizer bar, providing stability during use.
4. Operating Instructions
4.1 Console Functions
Figure 4.1: The LCD console displaying workout metrics and control buttons.
Figure 4.2: Overview of the console area, including the fixed and moving handlebars.
The LCD console displays various workout data:
- TIME: Duration of your workout.
- SPEED: Current speed.
- DISTANCE: Total distance covered.
- CALORIES: Estimated calories burned.
- PULSE: Heart rate (if equipped with pulse sensors on handlebars).
Use the MODE button to cycle through display functions. Press RESET to clear all workout data.
4.2 Adjusting Resistance
Figure 4.3: The manual tension knob for adjusting resistance levels.
The elliptical features a manual magnetic resistance system. To adjust the workout intensity, turn the tension knob located on the upright post. Turn clockwise for higher resistance, and counter-clockwise for lower resistance.
4.3 Starting a Workout
- Step onto the pedals, ensuring your feet are centered and secure.
- Grasp the handlebars firmly.
- Begin pedaling in a smooth, elliptical motion. The console will automatically activate.
- Adjust resistance as desired using the tension knob.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your elliptical trainer.
- Cleaning: Wipe down the equipment with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
- Lubrication: Periodically check moving parts for friction. Apply a silicone-based lubricant to pivot points if squeaking occurs.
- Inspection: Regularly check all bolts, nuts, and connections to ensure they are tight. Tighten any loose fasteners.
- Storage: Store the elliptical in a dry, clean environment away from direct sunlight and extreme temperatures.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Console not displaying data | Dead batteries; Loose sensor cable | Replace batteries; Check and secure sensor cable connections. |
| Squeaking or grinding noise | Loose bolts; Lack of lubrication; Worn parts | Tighten all bolts; Lubricate pivot points; Contact support if noise persists. |
| Resistance not changing | Resistance cable disconnected or damaged | Check resistance cable connection; Contact support for repair. |
7. Specifications
- Brand: inSPORTline
- Model: B088Q2TG1L
- Resistance Mechanism: Magnetic
- Maximum Recommended Weight: 220 lbs (100 kg)
- Item Weight: 7 kg
- ASIN: B088Q2TG1L
- GTIN/UPC: 301658815474
- Country of Origin: Portugal
8. Warranty and Support
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you require technical assistance or have questions regarding your inSPORTline Elliptical Trainer, please contact the customer support of your authorized dealer.
