Bololo BL-1008S Baby Bottle and Pacifier Sterilizer and Dryer User Manual

1. Introduction and Overview

Thank you for choosing the Bololo BL-1008S Baby Bottle and Pacifier Sterilizer and Dryer. This appliance is designed to sterilize and dry baby bottles, pacifiers, and other feeding accessories efficiently and safely, ensuring a hygienic environment for your baby's essentials. It features a powerful 600W sterilization system, a large capacity for up to 12 bottles, and an easy-to-use one-dial control for steam sterilization and automatic drying.

The unit is constructed from durable PP material and includes a Teflon-coated heating plate for easy cleaning. For your safety, the device is equipped with an automatic shut-off function to prevent overheating.

Image: The Bololo Baby Bottle Sterilizer and Dryer, highlighting its one-dial control for both sterilizing and drying functions.

Image: A visual representation of the sterilizer's effectiveness, indicating a 99.99% sterilization rate against germs.

2. Safety Information

Please read all safety instructions carefully before using the appliance to prevent injury or damage.

• Always place the sterilizer on a stable, heat-resistant, and level surface, away from the reach of children.
• Do not immerse the base unit in water or any other liquid. Clean only with a damp cloth.
• Exercise caution when handling the appliance during and immediately after operation, as steam and surfaces can become very hot. The plastic above the base can get very warm; allow for a cooldown period before lifting components.
• Do not operate the appliance if the power cord or plug is damaged, or if the appliance malfunctions or has been damaged in any way.
• Use only distilled water to minimize mineral buildup on the heating plate.
• Ensure the lid is properly secured during operation.
• The appliance features an automatic shut-off function. Do not attempt to override this safety feature.
• Unplug the sterilizer from the power outlet when not in use and before cleaning.

3. Product Components

The Bololo BL-1008S Sterilizer and Dryer consists of the following main parts:

• Base Unit: Contains the heating plate and control dial.
• Lower Rack: For holding bottles.
• Upper Rack/Accessory Tray: For holding pacifiers, bottle nipples, and other small accessories.
• Lid: Covers the sterilization chamber.

4. Setup

Before first use, and after each use, ensure all components are clean.

1. Unpack all components from the packaging.
2. Wash the lower rack, upper rack, and lid with warm soapy water, then rinse thoroughly and dry.
3. Wipe the base unit with a damp cloth. Do not submerge the base unit in water.
4. Place the base unit on a clean, dry, level, and heat-resistant surface.
5. Ensure the power cord is easily accessible and not obstructed.

5. Operating Instructions

Follow these steps for effective sterilization and drying:

1. Prepare Items: Thoroughly wash all bottles, pacifiers, and accessories with warm soapy water and rinse them before placing them in the sterilizer.
2. Add Water: Pour approximately 150ml (about 2/3 cup) of distilled water onto the heating plate in the base unit. Avoid overfilling.
3. Load Items:
   • Place bottles upside down on the lower rack. The large barrel can hold up to 12 bottles, including 9 oz bottles.
   • Place smaller items like nipples, pacifiers, and bottle caps on the upper rack/accessory tray.
4. Assemble: Place the lower rack onto the base unit, then the upper rack onto the lower rack, and finally secure the lid.
5. Select Mode: Plug the sterilizer into a power outlet. Use the control dial to select your desired function:
   • Sterilize Only: Rotate the dial to the lowest setting for steam sterilization.
   • Sterilize and Dry: Rotate the dial to the second or third setting for combined sterilization and drying.
6. Operation: The appliance will begin its cycle. The 600W power ensures thorough sterilization.
7. Completion: The sterilizer will automatically shut off once the cycle is complete.
8. Cool Down: Allow the unit to cool down for several minutes before carefully removing the lid and contents. Surfaces will be hot.

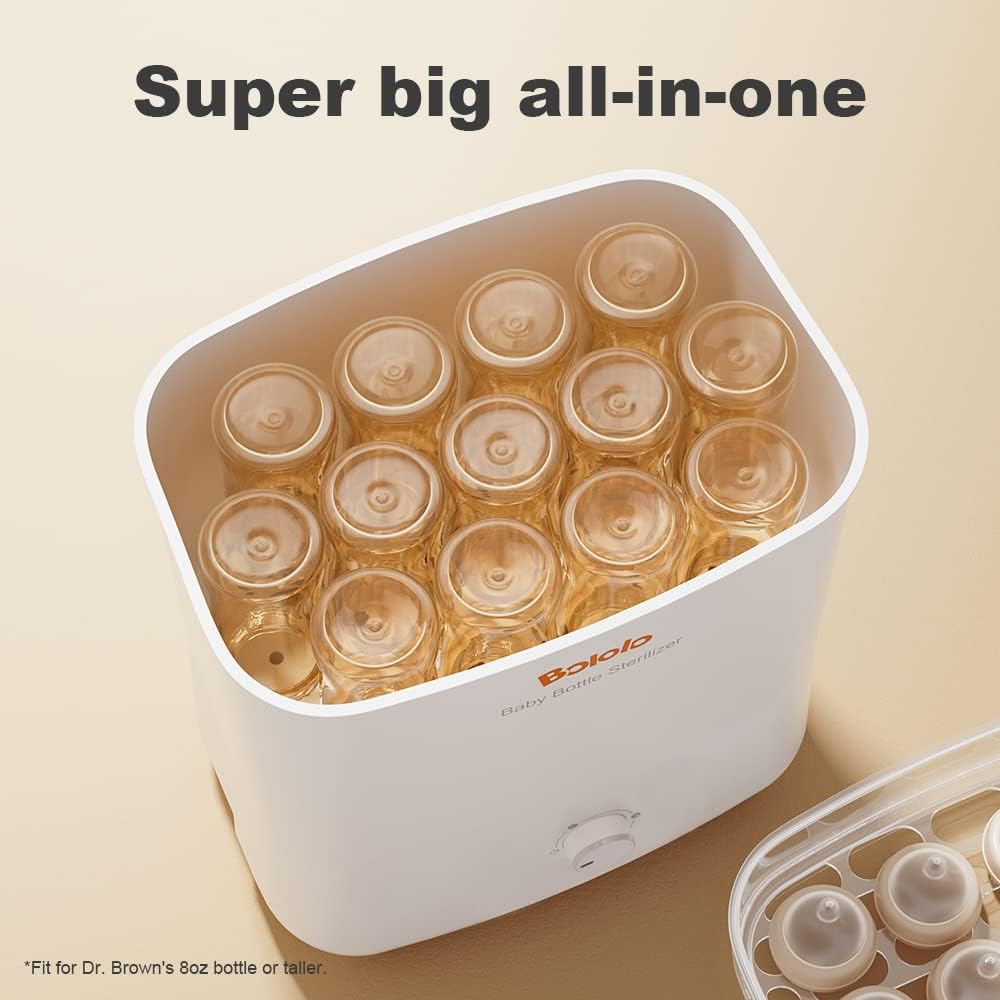

Image: The sterilizer's interior, showcasing its 'super big all-in-one' capacity, capable of holding numerous bottles.

Image: A side-by-side comparison illustrating the effectiveness of the 30-minute fast dry function, showing bottles before and after drying.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and longevity of your sterilizer.

1. Daily Cleaning: After each use, unplug the unit and allow it to cool completely.
2. Heating Plate: The unique Teflon coating design allows the heating plate to be easily wiped clean with a damp cloth. Remove any water residue or mineral deposits.
3. Racks and Lid: Wash the lower rack, upper rack, and lid with warm soapy water, rinse thoroughly, and dry. These components are typically top-rack dishwasher safe, but hand washing is recommended for best care.
4. Descaling: Over time, mineral deposits (limescale) may build up on the heating plate, especially if tap water is used. To descale, mix 50ml of white vinegar with 100ml of water and pour it onto the heating plate. Let it soak for 30 minutes, then scrub gently with a brush or sponge. Rinse thoroughly. Perform descaling monthly or as needed.
5. Storage: Store the clean and dry sterilizer in a cool, dry place away from direct sunlight when not in use.

7. Troubleshooting

If you encounter issues with your Bololo BL-1008S, refer to the following common solutions:

• Appliance not turning on:
  • Ensure the power cord is securely plugged into a working electrical outlet.
  • Check if the control dial is set to an active cycle.
• Sterilization not effective / Items still wet after drying:
  • Ensure the correct amount of water (approx. 150ml) was added to the heating plate.
  • Verify that the lid is properly sealed during operation.
  • Do not overload the sterilizer; ensure steam can circulate freely.
  • For drying, ensure the dial is set to a sterilize and dry cycle.
  • Check for excessive mineral buildup on the heating plate and descale if necessary.
• Unusual odors:
  • Ensure all components are thoroughly cleaned before use.
  • Use distilled water to prevent mineral odors.
• Unit automatically shuts off prematurely:
  • This is a safety feature. Ensure sufficient water is added for the cycle duration.
  • If the issue persists, contact customer support.

8. Specifications

Image: The sterilizer operating quietly next to a sleeping baby, illustrating its low noise level suitable for nighttime use.

9. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact the retailer/manufacturer directly. Keep your proof of purchase for any warranty claims.
