1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your Fagor IF-3BS Double Induction Coil. This product is designed as a component for induction cooktops, featuring two heating zones of 16 cm and 21 cm diameter. Please read this manual thoroughly before proceeding with any installation or use.
2. Safety Information
Your safety and the safety of others are paramount. Please observe all safety precautions outlined below:
- Electrical Hazard: Installation and servicing must be performed by a qualified electrician or authorized service technician. Disconnect power before servicing.
- Heat Hazard: Induction coils generate significant heat. Avoid touching the coils or surrounding components immediately after operation.
- Magnetic Fields: Individuals with pacemakers or other medical implants should consult their doctor before working near induction coils.
- Proper Ventilation: Ensure adequate ventilation around the induction coil to prevent overheating.
- Use Only as Intended: This product is designed for integration into compatible induction cooktops. Do not modify or use for purposes other than its intended function.
3. Product Components
The Fagor IF-3BS Double Induction Coil unit consists of the following primary components:
- One (1) Fagor IF-3BS Double Induction Coil unit.
- Integrated wiring for electrical connection.

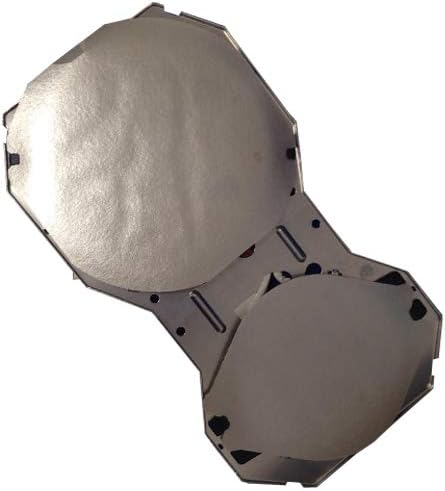

Image 1: This image displays the Fagor IF-3BS double induction coil unit, featuring two distinct circular heating elements, one larger (approximately 21 cm) and one smaller (approximately 16 cm), mounted on a metal frame. The coils are designed for integration into an induction cooktop.
4. Setup and Installation
Installation of the Fagor IF-3BS Double Induction Coil should only be performed by a qualified professional to ensure proper function and safety. Incorrect installation can lead to electrical hazards, product damage, or fire.
- Power Disconnection: Ensure the main power supply to the cooktop area is completely disconnected before beginning installation.
- Mounting: Securely mount the induction coil unit within the designated cavity of the cooktop frame, following the cooktop manufacturer's instructions.
- Electrical Connections: Connect the coil's wiring to the cooktop's control board according to the wiring diagram provided by the cooktop manufacturer. Pay close attention to polarity and grounding.
- Ventilation: Verify that all ventilation pathways for the cooktop are clear and unobstructed after installation.
- Testing: After installation, restore power and perform a functional test of both induction zones as per the cooktop's user manual.
5. Operating Instructions
The Fagor IF-3BS Double Induction Coil functions as a heating element within an induction cooktop. Its operation is controlled by the cooktop's main control panel. Refer to your specific cooktop's user manual for detailed instructions on how to:
- Turn the cooktop on and off.
- Select the desired heating zone (16 cm or 21 cm).
- Adjust power levels.
- Utilize any special functions (e.g., boost, timer).
- Identify compatible cookware.
Ensure that only induction-compatible cookware is placed on the cooktop surface above the coils for proper heating.
6. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your induction coil. Always disconnect power to the cooktop before performing any maintenance.
- Cleaning: Keep the area around the induction coils free from dust, debris, and food spills. Use a soft, dry cloth to gently wipe surfaces. Do not use abrasive cleaners or solvents.
- Inspection: Periodically inspect the coil unit for any signs of damage, loose connections, or unusual wear. If any issues are found, contact a qualified technician.
- Ventilation: Ensure that the cooktop's ventilation system remains clear to prevent overheating of the coils and associated electronics.
7. Troubleshooting
If you experience issues with your induction cooktop that you suspect are related to the induction coil, consider the following common scenarios. For complex issues, contact a qualified service technician.
- No Heat from a Zone:
- Verify that the cookware is induction-compatible and correctly positioned.
- Check if the cooktop's control panel displays any error codes. Refer to your cooktop manual for error code interpretations.
- Ensure the cooktop's power supply is stable.
- Unusual Noises:
- A slight humming sound during operation is normal for induction cooktops.
- Loud or unusual noises may indicate a problem. Discontinue use and contact a technician.
- Cooktop Not Turning On:
- Check the circuit breaker for the cooktop.
- Ensure all electrical connections are secure (professional inspection recommended).
8. Specifications
| Feature | Specification |
|---|---|
| Model | IF-3BS |
| Brand | Fagor |
| Type | Double Induction Coil |
| Coil Sizes | 16 cm and 21 cm diameter |
| Special Feature | Induction heating |
| ASIN | B088MM2V3V |
| Manufacturer | FAGOR |
9. Warranty and Support
Specific warranty terms and conditions for the Fagor IF-3BS Double Induction Coil are typically provided by the manufacturer or the seller at the time of purchase. Please retain your proof of purchase for warranty claims.
For technical support, service, or to inquire about replacement parts, please contact the Fagor customer service department or the authorized dealer from whom you purchased this product. Information regarding spare parts availability is not provided in this document.
