1. Important Safety Instructions
Please read all instructions carefully before using your Hometech WB-30 Electric Hot Water Bottle. Failure to follow these safety guidelines may result in electric shock, fire, or injury. Keep this manual for future reference.
- Do Not Open or Fill: The hot water bottle is pre-filled with a special liquid. Never attempt to open, refill, or replace the liquid inside.
- Inspect Before Use: Always check the hot water bottle and charging unit for any signs of damage, cracks, or leaks before each use. Do not use if damaged.
- Proper Charging: Only use the provided charging unit. Ensure the charging port on the bottle is dry and clean before connecting. Plug the charging unit into a standard electrical outlet.
- Avoid Overcharging: Disconnect the charging unit once the indicator light turns off or after the recommended charging time (approximately 7-10 minutes). Do not leave unattended while charging.
- Keep Dry: Do not immerse the hot water bottle or charging unit in water or any other liquid. Avoid contact with water during use and storage.
- Temperature Control: The device heats to a specific temperature. Do not attempt to modify or bypass its internal heating mechanism.
- Avoid Sharp Objects: Keep the hot water bottle away from sharp objects that could puncture or damage its surface.
- Not for Sleeping: Do not use the hot water bottle while sleeping or for extended periods without supervision, especially for individuals with reduced physical, sensory, or mental capabilities.
- Children and Pets: Keep out of reach of children and pets. This is not a toy.
- Storage: Store in a cool, dry place when not in use.
2. Product Overview
The Hometech WB-30 is an electric hot water bottle designed for warmth and comfort. It features a soft, plush exterior and an internal heating element that quickly warms the pre-filled liquid.

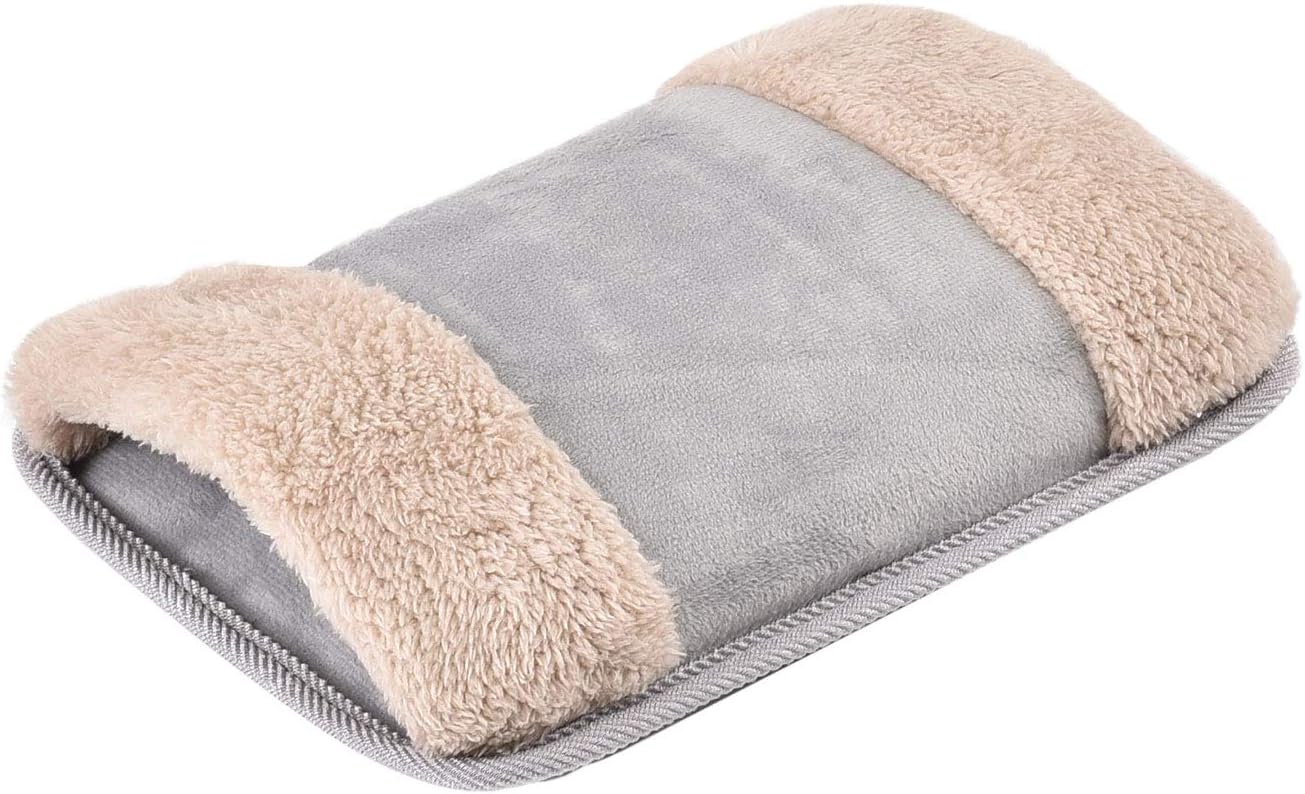

Figure 2.1: Front view of the Hometech WB-30 Electric Hot Water Bottle, showcasing its soft grey fabric and beige faux fur ends.
Figure 2.2: Rear view of the Hometech WB-30 Electric Hot Water Bottle with the white charging unit securely connected to the charging port.
Figure 2.3: A composite image showing both the front of the hot water bottle and its rear with the charging unit attached, providing a complete view of the product.
Figure 2.4: A user gently holding the Hometech WB-30 Electric Hot Water Bottle to their face, illustrating its soft texture and comfortable application.
Figure 2.5: A detailed view of the white charging unit for the Hometech WB-30, including its integrated power cord and two-pin plug.
3. Setup
The Hometech WB-30 Electric Hot Water Bottle comes pre-filled and ready for its first charge.
- Unpack: Carefully remove the hot water bottle and its charging unit from the packaging.
- Initial Inspection: Visually inspect the hot water bottle for any damage or leaks. Ensure the charging port is clean and dry.
- Connect Charger: Firmly insert the charging unit into the charging port on the hot water bottle. Ensure a secure connection.
- Plug In: Plug the charging unit's power cord into a suitable electrical outlet.
- First Charge: Allow the unit to charge until the indicator light on the charging unit turns off, typically 7-10 minutes. This indicates a full charge.
4. Operating Instructions
Using your Hometech WB-30 Electric Hot Water Bottle is straightforward:
- Charge the Bottle: Connect the charging unit to the hot water bottle and plug it into an electrical outlet. A red indicator light on the charging unit will illuminate, signifying that charging is in progress.
- Monitor Charging: The indicator light will turn off automatically when the bottle has reached its optimal temperature and is fully charged. This usually takes between 7 to 10 minutes.
- Disconnect: Once fully charged, unplug the charging unit from the electrical outlet, then carefully disconnect it from the hot water bottle.
- Apply: The hot water bottle is now ready for use. Apply it to the desired area of your body for warmth and comfort.
- Heat Retention: The bottle typically stays hot for approximately 1 hour and remains warm for an additional 2-3 hours, depending on ambient temperature and usage.
5. Maintenance and Care
Proper care will extend the life of your Hometech WB-30 Electric Hot Water Bottle:
- Cleaning: To clean the exterior, wipe gently with a soft, damp cloth. Do not use abrasive cleaners or immerse the bottle in water. Ensure the charging port is dry before charging.
- Storage: When not in use, store the hot water bottle in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure it is completely cool before storing.
- Avoid Punctures: Protect the bottle from sharp objects and excessive pressure that could cause damage or leaks.
- No Disassembly: Do not attempt to open, repair, or modify the hot water bottle or its charging unit. This will void any potential warranty and could be dangerous.
6. Troubleshooting
If you encounter issues with your Hometech WB-30, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bottle not heating | Charging unit not properly connected; Power outlet issue; Internal fault. | Ensure charging unit is securely connected and plugged into a working outlet. Check if the indicator light illuminates. If not, try a different outlet. If the problem persists, the unit may be faulty. |
| Indicator light not turning off | Overcharging; Faulty charging unit or bottle. | Disconnect after 10-15 minutes even if the light is still on to prevent overcharging. If this happens consistently, the unit may be faulty. |
| Bottle not retaining heat for long | Incomplete charge; Normal wear and tear; Environmental factors. | Ensure the bottle is fully charged until the indicator light turns off. Heat retention can decrease over time with regular use. Cold ambient temperatures may also reduce heat retention. |
| Visible damage or leakage | Physical impact; Material fatigue. | Discontinue use immediately. Do not attempt to repair. Contact customer support or the retailer for assistance. |
If these steps do not resolve the issue, please contact the retailer or manufacturer for further assistance.
7. Specifications
- Model: WB-30
- Brand: Hometech
- Product Dimensions: Approximately 54 x 54 x 54 cm (Note: This dimension may refer to packaging or an aggregate measurement, actual product dimensions are smaller for a hot water bottle)
- Item Weight: 2 Kilograms
- Batteries Required: No
- First Available Date: May 13, 2020
8. Warranty and Support
Specific warranty details for the Hometech WB-30 Electric Hot Water Bottle may vary depending on your region and the retailer from whom you purchased the product. Please refer to your purchase documentation or contact your retailer directly for information regarding warranty coverage and support services.
For technical assistance or inquiries not covered in this manual, please reach out to the customer service department of your retailer or the Hometech support channels, if available.
