Is there supposed to be a large O-ring between the impeller housing and the motor on the LANCHEZ JGP11007WUINOX-G shallow well pump?

Yes, there is supposed to be an O-ring between the pump casing (impeller housing) and the motor adapter. According to the Maintenance section of the LANCHEZ manual (specifically under Reassembly, step 6), you must "Replace the casing making sure that the o-ring is not damaged and is in place."Regarding why your pump did not start initially but worked after reassembly, there are a few likely reasons:Air Leaks: If the O-ring was missing or improperly seated, the pump would likely fail to prime or maintain pressure due to an air leak in the suction line. Reassembling it may have temporarily created a tight enough seal for the pump to function.Mechanical Obstruction: The impeller or diffuser may have been slightly misaligned or bound against the casing. Taking it apart and putting it back together often clears these minor physical obstructions.Thermal Overload: If the pump was dry-run or struggled to start, the built-in thermal protection might have tripped. The time taken to disassemble and reassemble the unit would have allowed the motor to cool down and reset.Recommendation: If the O-ring is truly missing, you should obtain a replacement. Operating without it will eventually lead to suction leaks, preventing the pump from priming, or causing water to leak from the housing, which could damage the motor over time.

LANCHEZ 1.6 HP Portable Shallow Well Pump User Manual

1. Introduction and Overview

The LANCHEZ 1.6 HP Portable Shallow Well Pump is designed for efficient water transfer, garden draining, and lawn irrigation. Its powerful 1.6 HP motor ensures strong performance with low energy consumption, offering a maximum flow rate of up to 1162 GPH and a maximum lift of 147 feet. This manual provides essential information for safe and effective use of your pump.

LANCHEZ 1.6 HP Portable Shallow Well Pump with pressure gauge and thread seal tape

Figure 1: LANCHEZ 1.6 HP Portable Shallow Well Pump

2. Safety Information

Your safety is paramount. Please read and understand all safety instructions before operating the pump.

Electrical Safety: Ensure the pump is connected to a properly grounded outlet. Do not operate with wet hands or in standing water.
Thermal Overload Protection: The pump features built-in thermal overload protection. If the pump overheats, it will automatically stop and restart once it cools down. However, continuous dry running or operation without water flow can damage the motor.
Prevent Cavitation: Always prime the pump by filling the pump head and inlet pipe with water before starting to prevent air buildup (cavitation), which can damage the seals and impeller.
Water Flow: Do not leave the pump running if water is not flowing through it. This can lead to motor seizure and damage.
Installation Location: Install the pump in a clean, dry, and ventilated location, protected from freezing temperatures.

Diagram showing internal motor components and a shield icon with 'Overload Protection' text.

Figure 2: Built-in Thermal Protection for Safe Operation

3. Product Features

Strong and Reliable Performance: 1.6 HP motor, max flow rate up to 1162 GPH, max lift to 147 feet.
Portable and Durable Design: Easy-to-carry handle for portability. Corrosion-resistant stainless steel pump head for extended product life and easy cleaning.
Safety Features: Full corrosion-resistant and reinforced thermoplastic construction with thermal overload protection.
Versatile Application: Suitable for pressure boosting, small underground sprinkler systems, operating lawn sprinklers, and various general-purpose water transfer applications in gardens, lawns, farms, and rural homes.

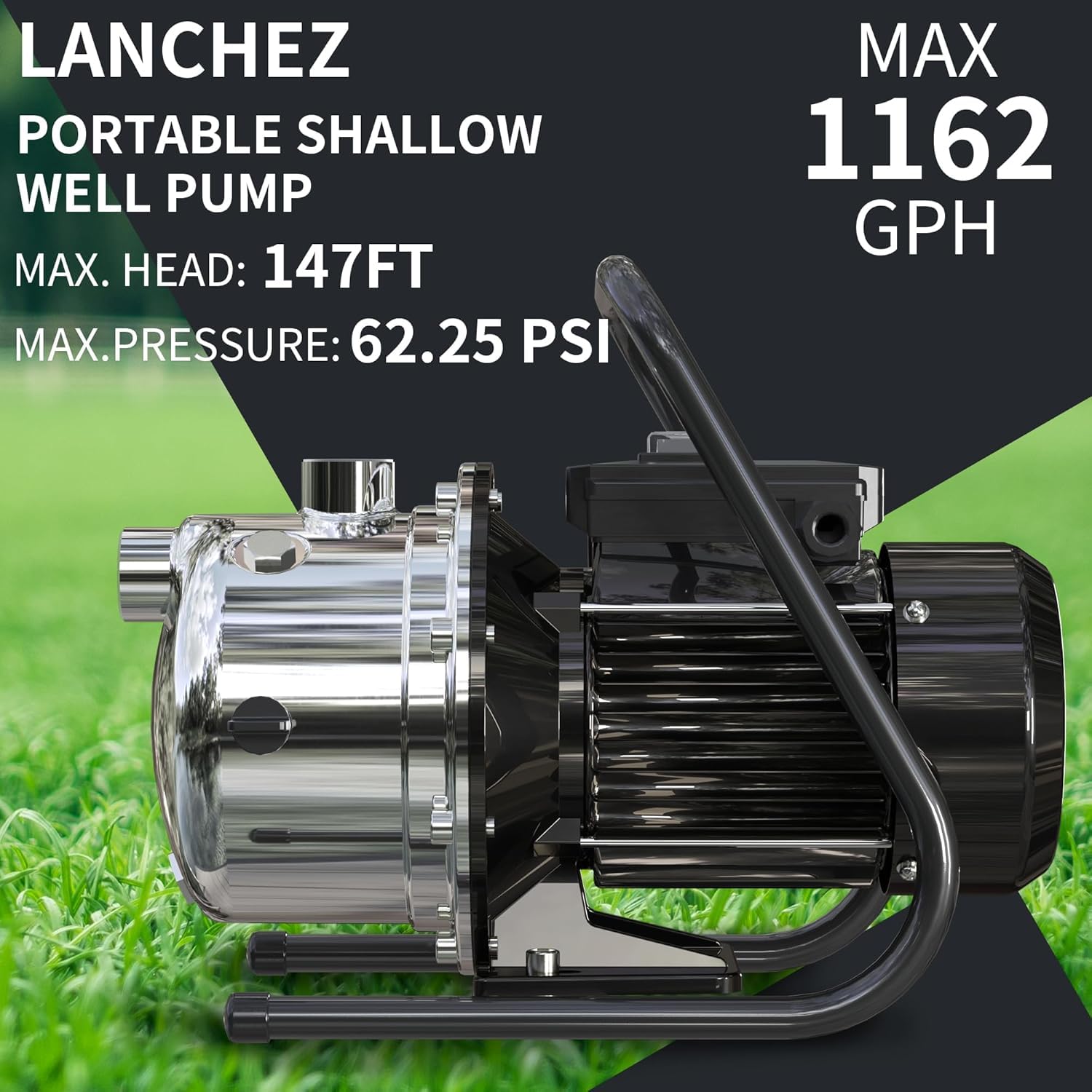

LANCHEZ Portable Shallow Well Pump with specifications: Max Head 147FT, Max Pressure 62.25 PSI, Max 1162 GPH

Figure 3: Performance Overview

Diagram of the pump with labels for Stainless Steel head (304), Inlet NPT1

Figure 4: Key Components of the Pump

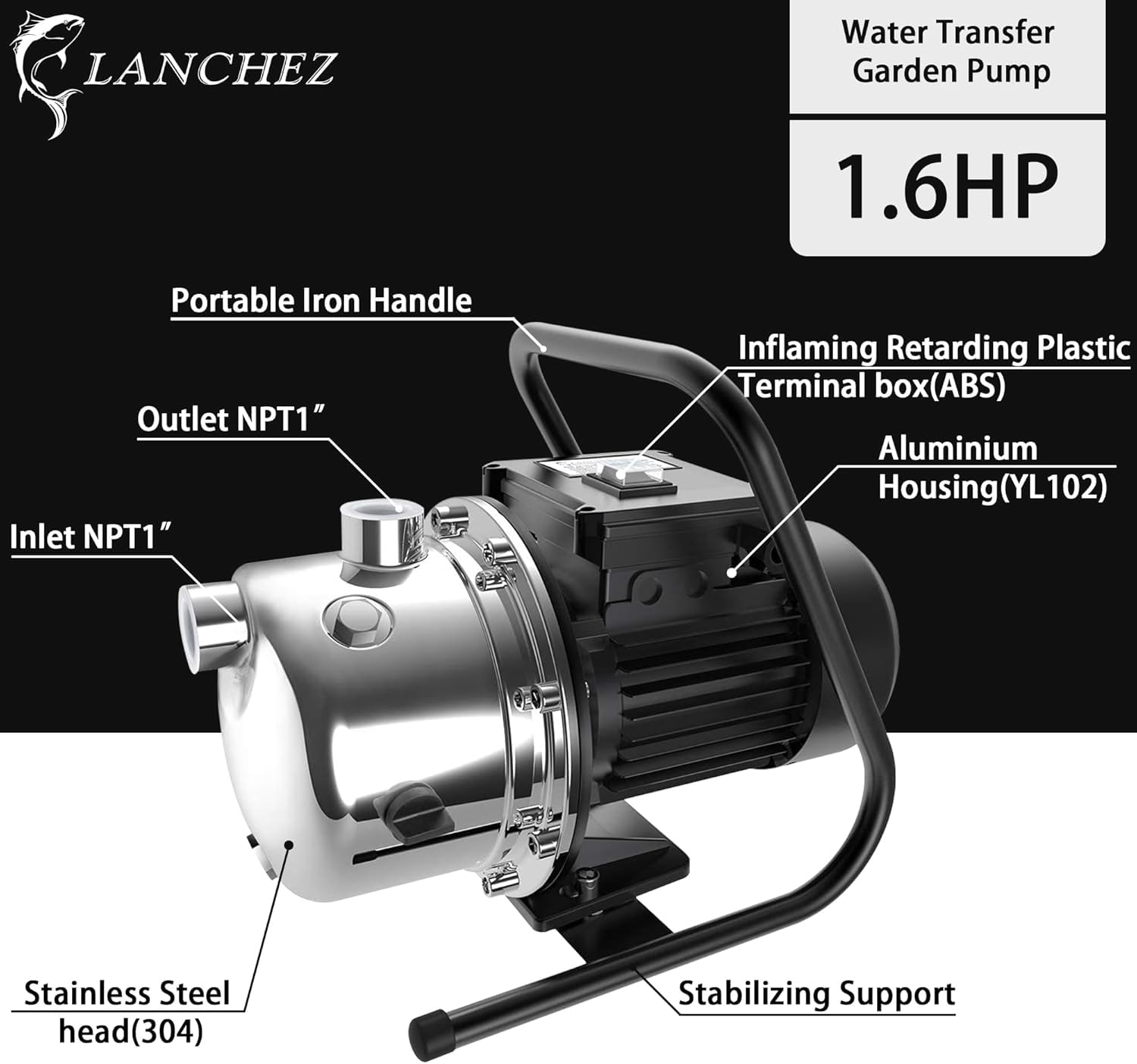

Image showing the portable iron handle, fast cooling module, and powerful motor for stability and quietness.

Figure 5: Portable Handle and Motor Design

4. Setup

Placement: Install the pump in a clean, dry, and well-ventilated area. Ensure adequate space for servicing and protection from freezing temperatures. Bolt the pump to a stable foundation, preferably concrete, and provide adequate drainage.
Connections: The pump features 1-inch NPT (National Pipe Thread) inlet and outlet ports. You may need adapters for connecting to standard garden hoses.
Inlet Hose: For the inlet, it is crucial to use a rigid suction/intake type hose. A standard garden hose may collapse under the pump's suction, restricting water flow.
Outlet Hose: The outlet can be connected to a garden hose, or a Y-splitter with shutoffs for multiple connections.
Pressure Gauge Installation: The included pressure gauge can be installed on the designated port on the pump head. Use the provided thread seal tape for a secure, leak-free connection.
Priming the Pump: Before first use or after the pump has been drained, fill the pump head and inlet pipe completely with water. This prevents cavitation and ensures proper operation.

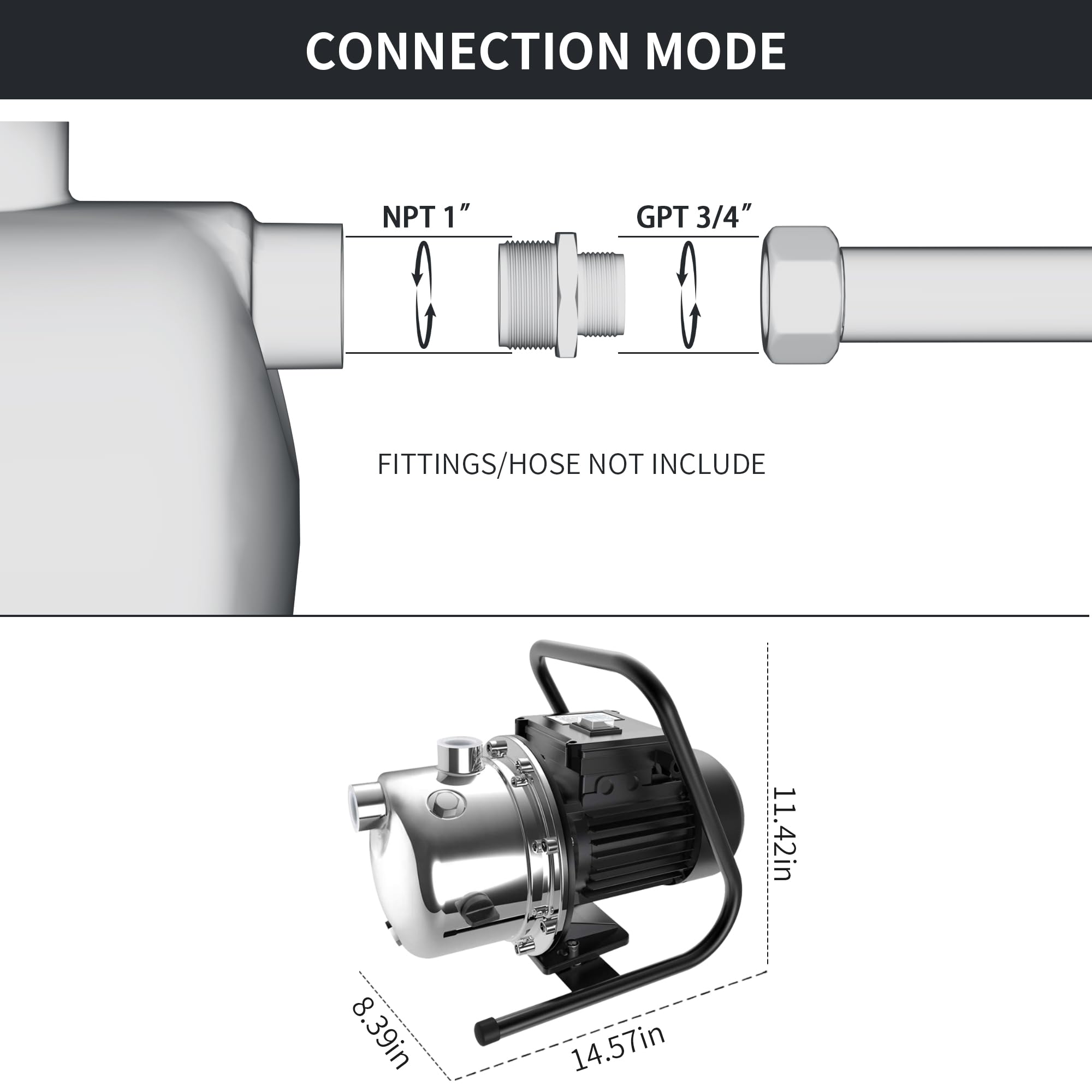

Diagram showing NPT 1 inch and GPT 3/4 inch connections, with pump dimensions of 14.57in length, 8.39in width, and 11.42in height.

Figure 6: Connection Mode and Dimensions

Diagram illustrating the correct method of filling the pump head and inlet pipe with water before use to prevent damage.

Figure 7: Priming the Pump Before Use

5. Operating Instructions

Ensure Proper Setup: Verify all connections are secure and the pump has been properly primed.
Power On: Plug the pump into a grounded 115V power outlet. The pump features an ON/OFF switch for safe and convenient operation.
Monitor Water Flow: Once powered on, the pump will begin transferring water. Observe the water flow and the pressure gauge (if installed).
Continuous Operation: This is a continuous duty pump, meaning it can operate for extended periods without needing to be shut off, provided there is a continuous water supply.
Avoid Dry Running: Never allow the pump to run without water flowing through it. This can cause severe damage to the motor and internal components. If water flow stops, immediately turn off the pump.

Diagram illustrating the working performance of the pump, showing max height, max suction, max pressure, and flow rates at different heights. Also shows setups for water taps and self-priming.

Figure 8: Working Performance and Application Examples

6. Maintenance

After Use: Always turn off the switch and drain all water from the pump after each use, especially before storing or in freezing conditions.
Regular Cleaning: Keep the pump exterior clean. Periodically check the inlet screen for debris and clear any blockages to maintain optimal flow.
Storage: Store the pump in a dry, protected area when not in use.

Diagram illustrating the correct method of draining water from the pump after use.

Figure 9: Draining the Pump After Use

7. Troubleshooting

If you encounter issues with your LANCHEZ pump, refer to the following common problems and solutions:

Problem	Possible Cause	Solution
Pump does not start or stops unexpectedly.	No power; Thermal overload activated; Motor seized.	Check power connection. Allow pump to cool down if overheated. Ensure pump is primed and not running dry. If motor is seized, professional service may be required.
Low or no water flow.	Pump not primed; Inlet hose collapsed/restricted; Clogged inlet screen; Air leak in suction line.	Re-prime the pump. Use a rigid suction hose. Clean inlet screen. Check all connections for air leaks.
Unusual noise during operation.	Cavitation (air in pump); Debris in impeller; Worn bearings.	Ensure pump is fully primed. Check for and remove any debris. If noise persists, contact support.

For more detailed troubleshooting, please refer to the official Troubleshooting Guide (PDF).

8. Specifications

Specification	Value
Brand	LANCHEZ
Model Number	JGP11007WUINOX-G
Horsepower	1.6 HP
Wattage	1100 watts
Voltage	115 Volts
Power Source	AC
Maximum Flow Rate	1162 GPH (19.3 Gallons Per Minute)
Maximum Lifting Height	147 Feet
Max Suction Height	26 Feet
Max Water Temperature	95°F
Protection Type	IPX4
Discharge	NPT1-1"
Item Weight	26.7 pounds
Product Dimensions	14.57 x 8.39 x 11.42 inches
Material	Stainless Steel
Included Components	Thread Sealing Tape, Pressure Gauge, 1.6 HP Shallow Well Pump
UPC	784848013087

9. Warranty and Support

LANCHEZ provides 3 years of technical support for this product. For any inquiries or assistance, please contact Lanchez Pumps Industry Inc. directly.

You can also find additional information and resources on the LANCHEZ Brand Store.

For a comprehensive guide, download the official Instructions for Use (IFU) (PDF).

LANCHEZ JGP11007WUINOX-G
