Bubos Baby Bottle Warmer Instruction Manual

1. Important Safety Instructions

Please read all instructions carefully before using the Bubos Baby Bottle Warmer. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Electrical Safety: Ensure the voltage used corresponds to the voltage indicated on the appliance. Do not immerse the cord, plug, or appliance in water or other liquids. Unplug from outlet when not in use and before cleaning.
• Burn Hazard: Steam released during warming is hot. Exercise caution when removing bottles or food jars. Always check the temperature of the milk or food before feeding to a baby.
• Child Safety: This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Keep out of reach of children.
• Appliance Care: Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for assistance.
• Intended Use: Use this appliance only for its intended purpose as described in this manual. Do not use outdoors.

2. Product Overview

The Bubos Baby Bottle Warmer is designed for efficient and safe warming of baby bottles and food jars. It features a pre-filled water reservoir, smart memory program, and an LED display for ease of use.

Figure 2.1: Bubos Baby Bottle Warmer with its main components labeled. This includes the hinged lid, main housing, removable water reservoir, removable riser, removable basket, and the control panel with LCD timer display.

Components:

• Main Housing: The primary unit containing the heating element and electronics.
• Hinged Lid: Covers the warming chamber, retaining steam for efficient heating.
• Removable Water Reservoir: Stores water for multiple warming cycles, automatically refilling the chamber.
• Removable Basket: Holds bottles and food jars securely in the warming chamber.
• Removable Riser: Used to adjust the height of the bottle or jar within the warming chamber.
• Control Panel & LCD Timer Display: For setting and monitoring warming cycles.

3. Setup

3.1 Initial Cleaning

1. Before first use, wipe the exterior of the warmer with a damp cloth.
2. Wash the removable basket, riser, and water reservoir with warm, soapy water. Rinse thoroughly and allow to air dry.
3. Do not immerse the main housing in water.

3.2 Placement

Place the bottle warmer on a stable, flat, heat-resistant surface, away from direct sunlight or heat sources. Ensure there is adequate ventilation around the unit.

3.3 Filling the Water Reservoir

Figure 3.1: Illustrates the process of filling the unique water reservoir of the Bubos Baby Bottle Warmer. The reservoir automatically fills the warming chamber to the correct level.

1. Ensure the warmer is unplugged.
2. Locate the removable water reservoir on the side of the unit.
3. Fill the reservoir with distilled or purified water up to the maximum fill line. The reservoir acts as a gauge and will automatically fill the internal chamber to the proper level for warming.
4. The reservoir typically needs refilling after 6 to 12 warming cycles, depending on usage.

4. Operating Instructions

4.1 General Operation

The Bubos Baby Bottle Warmer uses steam to heat bottles and food jars quickly and efficiently. It features a smart memory program that remembers your last used setting.

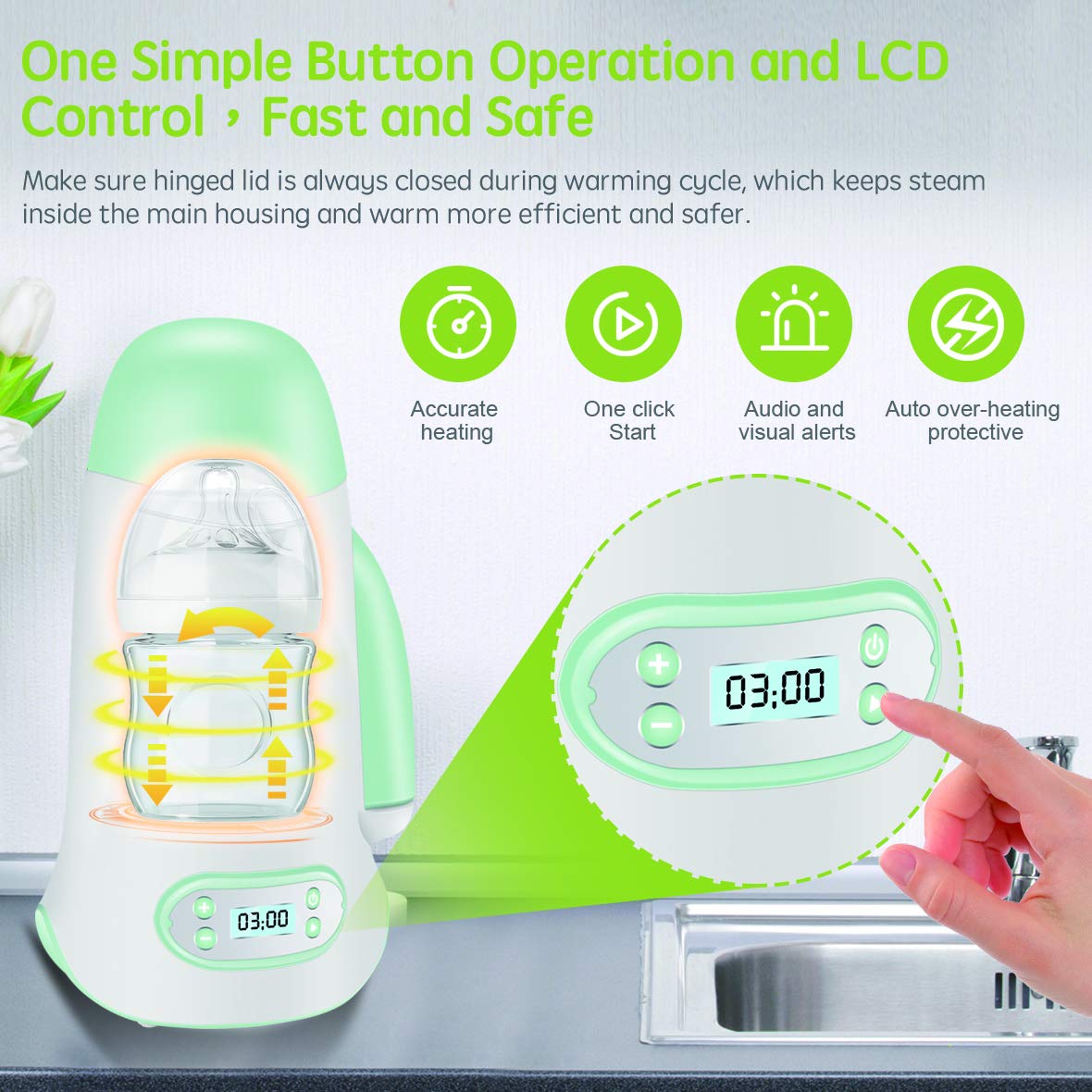

Figure 4.1: Detailed view of the control panel, showing the plus (+) and minus (-) buttons for time adjustment, the power button, and the play/start button, along with the digital LCD timer display.

4.2 Warming a Bottle or Food Jar

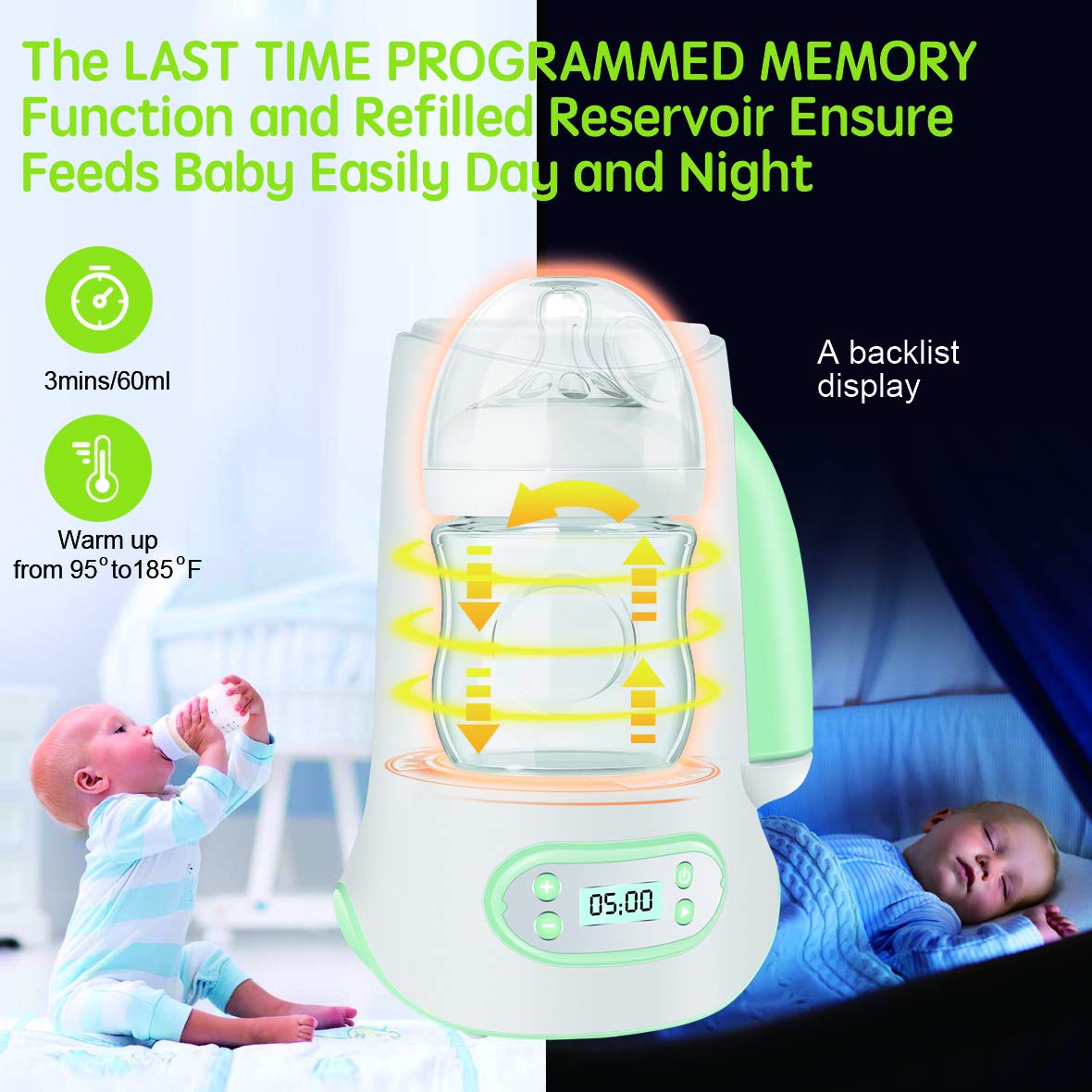

Figure 4.2: Depicts the steam-based warming mechanism within the Bubos Baby Bottle Warmer, showing heat circulating around a bottle. It also highlights the smart memory function and the ability to warm milk from 95°F to 185°F.

Figure 4.3: Illustrates the versatility of the Bubos Baby Bottle Warmer, demonstrating its adjustable basket that accommodates various sizes and materials of baby bottles, including plastic, silicone, and glass.

1. Prepare Bottle/Jar: Place the baby bottle or food jar into the removable basket. Ensure the bottle is sealed to prevent water from entering the contents.
2. Insert into Warmer: Place the basket with the bottle/jar into the warming chamber. Close the hinged lid.
3. Power On: Plug the warmer into a power outlet. The LCD display will illuminate.
4. Select Time: The warmer will recall the last used setting. If this is suitable, proceed to the next step. To adjust the warming time, use the '+' and '-' buttons on the control panel. Refer to the warming guide (often located on the back of the unit or in a quick start guide) for recommended times based on bottle size and milk volume.
5. Start Warming: Press the play/start button to begin the warming cycle. The LCD display will count down the remaining time.
6. Cycle Completion: Once the warming cycle is complete, the warmer will emit an audible 5-beep alarm, and the LCD will flash. The unit will automatically shut off after 2 minutes of idle time.
7. Remove and Check: Carefully open the hinged lid and remove the bottle/jar using the basket handle. Always shake the bottle gently and check the temperature of the milk or food on your wrist before feeding to ensure it is not too hot.

4.3 Smart Memory Program

The Bubos Baby Bottle Warmer is equipped with a smart memory function. After you set a warming time and complete a cycle, the warmer will store this setting. The next time you turn on the device, it will automatically display the last used setting, allowing for quick and convenient one-button start for recurring warming needs.

5. Cleaning and Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Bubos Baby Bottle Warmer.

5.1 Daily Cleaning

1. Always unplug the warmer and allow it to cool completely before cleaning.
2. Empty any remaining water from the warming chamber and reservoir.
3. Wipe the interior and exterior of the main housing with a damp cloth. Do not use abrasive cleaners or scourers.
4. Wash the removable basket, riser, and water reservoir with warm, soapy water. Rinse thoroughly and dry.

5.2 Descaling

Mineral deposits (limescale) can build up in the warming chamber over time, especially with hard water. Descaling is recommended every 2-4 weeks, or more frequently if you notice slower warming or increased noise.

1. Ensure the warmer is unplugged and cool.
2. Mix 2 oz (60ml) of white vinegar with 4 oz (120ml) of cold water.
3. Pour the solution into the warming chamber (not the reservoir).
4. Allow the solution to stand in the chamber for 30 minutes. Do not turn on the warmer.
5. Pour out the solution. Rinse the warming chamber thoroughly with clean water several times to remove any vinegar residue.
6. Wipe dry with a soft cloth.

6. Troubleshooting

If you encounter issues with your Bubos Baby Bottle Warmer, please refer to the following common problems and solutions:

7. Specifications

• Model: Bubos Baby Bottle Warmer
• ASIN: B088JTX8QJ
• Package Dimensions: 12.13 x 5.79 x 5.79 inches
• Item Weight: 1.94 pounds
• Number of Items: 1
• Batteries Required: No
• Material: BPA Free

8. Customer Support and Warranty

Bubos is committed to providing high-quality products and excellent customer service. If you have any questions, concerns, or require assistance with your Bubos Baby Bottle Warmer, please do not hesitate to contact our customer support team.

Warranty Information: This product comes with a standard manufacturer's warranty. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, or to initiate a warranty claim, please contact Bubos customer service.

Contact Information:

• For North America local service, please refer to the contact details provided with your product packaging or visit the official Bubos website.
