WellToBe Automatic Pet Feeder User Manual

Introduction

Thank you for choosing the WellToBe Automatic Pet Feeder. This device is designed to provide convenient and precise feeding for your cats and small dogs, ensuring they receive their meals on schedule, whether you are home or away. With its intelligent features and user-friendly design, maintaining your pet's healthy eating habits has never been easier.

The WellToBe Automatic Pet Feeder, ready for use with its dual feeding bowls.

Product Components

The WellToBe Automatic Pet Feeder comes with several key components for easy assembly and maintenance:

• Main Feeder Unit
• Removable Food Container (13 cups capacity)
• Two-Way Splitter
• 2 Stainless Steel Food Bowls
• Removable Raised Base
• Power Adapter
• User Manual

An exploded view showing the removable food container, stainless steel bowls, two-way splitter, and raised base for easy cleaning and configuration.

Setup Guide

1. Unpack and Assemble: Carefully remove all components from the packaging.
2. Install Desiccant Bag: Open the lid of the main feeder unit and place the desiccant bag (if included) into its designated slot to keep food fresh.
3. Power Connection: Connect the power adapter to the feeder and plug it into a wall outlet. For backup power, insert 4 D-size alkaline batteries (not included) into the battery compartment at the bottom of the unit. It is highly recommended to use both power sources to ensure uninterrupted feeding during power outages.
4. Configure for Single or Dual Feeding:
   • For two pets: Attach the two-way splitter to the dispenser outlet and place both stainless steel bowls on the raised base.
   • For one pet: Remove the two-way splitter and use a single bowl directly under the dispenser.
5. Fill Food Container: Open the top lid and pour dry pet kibble into the food container. Ensure the kibble size does not exceed 0.47 inches (1.2 cm) to prevent jamming. Close the lid securely.
6. Place Feeder: Position the feeder on a flat, stable surface in a suitable location for your pets.

Visual guide for setting up the feeder, including opening the lid, placing desiccant, connecting power, and filling with kibble.

The feeder can be configured for single or dual pet feeding by adjusting the two-way splitter and base.

The feeder supports dual power options: a power adapter for regular use and D-size batteries for backup during outages.

Operating Instructions

Setting Meal Schedules

The feeder allows you to program up to 6 meals per day. Each meal can be customized with 1 to 48 portions, where 1 portion is approximately 0.28 oz (5g). This flexibility helps establish a consistent and healthy eating routine for your pet.

Voice Recorder Function

Record a personalized 10-second voice message to call your pet at each feeding time. This feature helps your pet feel more comfortable and aware when it's time to eat. You can also disable the voice recording if preferred, especially for quiet environments or during weekends.

Manual Feeding

A manual feeding button is available on the control panel, allowing you to dispense one unit of food instantly outside of the scheduled meal times.

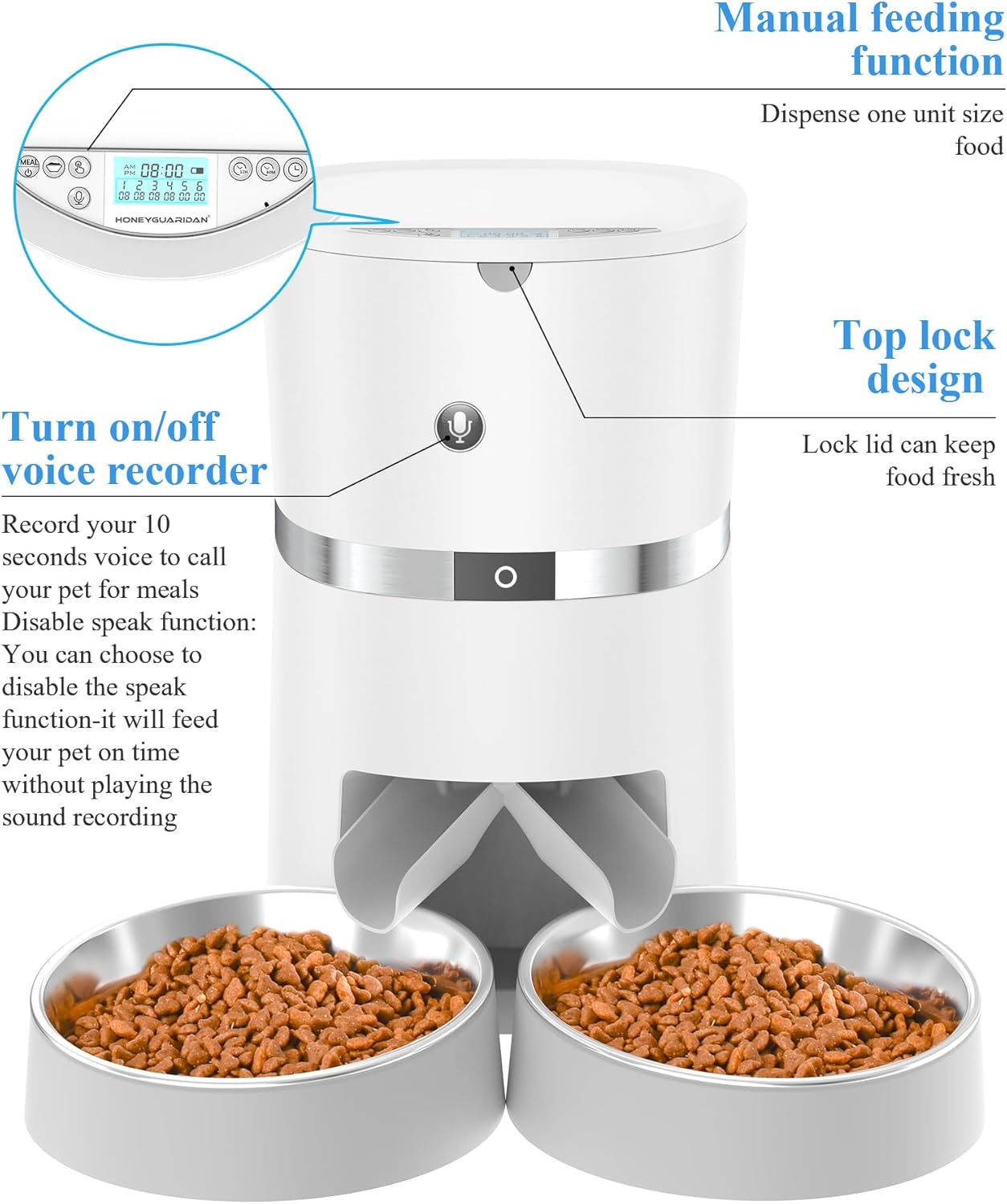

The control panel features buttons for setting schedules, a voice recorder, and a manual feeding function.

Low Food Alarm & Pet-Proof Design

A built-in infrared sensor detects when the food bowl is full, preventing overflow. Additionally, a blue light indicator flashes when the food level in the container is low, reminding you to refill. The dispenser is designed to prevent pets from prying open the food outlet and stealing food.

Features include an infrared detector to prevent overfilling, a low food alarm, and a pet-proof dispenser to deter unauthorized access to food.

Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your WellToBe Automatic Pet Feeder.

• Cleaning: The food container, two-way splitter, and stainless steel bowls are all removable for easy cleaning. Wash these components with mild soap and water, then rinse thoroughly and dry completely before reassembling. Do not immerse the main feeder unit in water.
• Desiccant Replacement: For optimal food freshness, replace the desiccant bag periodically, especially in humid environments.
• Anti-Blocking Design: The feeder incorporates an advanced automatic reversal mechanism to prevent food jams. If a jam occurs, gently shake the unit or clear the dispenser outlet.

Overview of key features including anti-blocking design, low food warning, desiccant for freshness, non-slip foot pads, 304 food-grade stainless steel bowls, and a tilted bowl design for pet comfort.

Troubleshooting

For more detailed troubleshooting, please refer to the official User Manual PDF: WellToBe Automatic Pet Feeder User Manual (PDF)

Specifications

• Brand: WellToBe
• Model Number: 36
• Item Weight: 4.84 pounds (2.2 Kilograms)
• Item Dimensions (LxWxH): 10.04 x 7.8 x 14.17 inches
• Food Storage Capacity: 13 cups (approx. 4L)
• Material: Stainless Steel, Acrylonitrile Butadiene Styrene (Food Grade)
• Color: White
• Meals Per Day: Up to 6
• Portions Per Meal: 1 to 48 (approx. 0.28 oz/5g per portion)
• Kibble Size Limit: Max 0.47 inch (1.2 cm)
• Power Supply: DC Power Adapter and 4 x D-size Alkaline Batteries (not included)
• Special Features: Two-way splitter, Voice Recorder, Anti-Clog Design, Infrared Sensor, Low Food Alarm, Pet-Proof Dispenser
• Target Species: Cat, Small Dog
• Recommended Uses: Multiple Pets, Indoor

Warranty and Support

WellToBe is committed to providing high-quality products and customer satisfaction. For any questions, concerns, or technical support regarding your Automatic Pet Feeder, please contact WellToBe customer service through the retailer where you purchased the product or visit the official WellToBe website for contact information.

Please retain your proof of purchase for any warranty claims. Specific warranty terms and conditions may vary by region and retailer.
