1. Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your CLP Lucy V2 Ergonomic Bar Stool. Designed for comfort and functionality, this bar stool features a generous faux leather upholstery, a high backrest, integrated armrests, and a footrest. It is height-adjustable and swivels 360 degrees, making it suitable for various counter heights and user preferences.
Please read this manual thoroughly before assembly and use to ensure safe and correct operation.
2. Safety Instructions
- Ensure all components are present and undamaged before assembly. Do not use if any parts are missing or damaged.
- Assemble the bar stool on a soft, clean surface to prevent scratches.
- Tighten all screws and bolts securely. Periodically check and re-tighten as necessary.
- Do not stand on the bar stool. It is designed for seating only.
- Do not exceed the maximum weight recommendation of 115 kg (253 lbs).
- Keep children away from the assembly area. Small parts can be a choking hazard.
- Use the height adjustment lever carefully. Avoid sudden movements when adjusting height.
- Avoid placing the stool on uneven surfaces to prevent tipping.
3. Package Contents
Before beginning assembly, verify that all the following components are included in your package:
- Seat with backrest and armrests (1)
- Gas lift cylinder (1)
- Base (1)
- Footrest ring (1)
- Assembly hardware (screws, washers, Allen key) (1 set)
If any parts are missing or damaged, please contact customer support.
4. Setup and Assembly
Follow these steps to assemble your CLP Lucy V2 Bar Stool:
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a soft, clean surface to prevent damage.
- Attach Footrest to Gas Lift: Slide the footrest ring onto the gas lift cylinder. Ensure it is oriented correctly.
- Insert Gas Lift into Base: Place the base on a flat surface. Insert the wider end of the gas lift cylinder into the central hole of the base. The gas lift should fit snugly.
- Attach Seat to Gas Lift: Align the mounting plate under the seat with the top of the gas lift cylinder. Gently press the seat down onto the gas lift until it is securely seated. You may need to apply some weight to ensure it locks into place.
- Final Check: Ensure all connections are secure and the stool is stable before use.

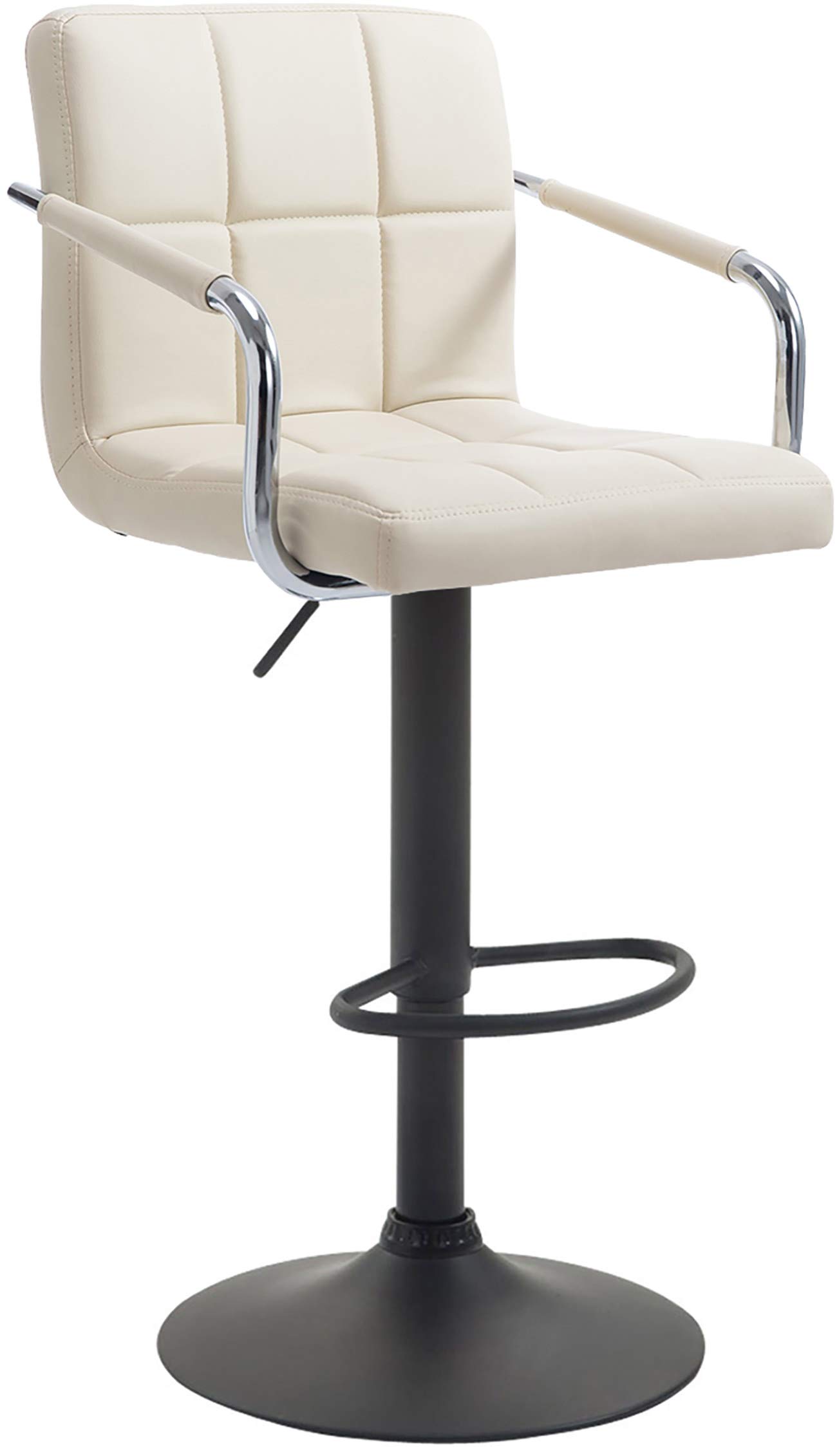

Image 1: Fully assembled CLP Lucy V2 Ergonomic Bar Stool. This image shows the cream faux leather seat with quilted stitching, chrome armrests, a black gas lift, and a round black base.
5. Operating Instructions
- Height Adjustment: To adjust the seat height, locate the lever under the seat on the right side.
- To raise the seat: While standing, pull the lever upwards. The seat will automatically rise. Release the lever at the desired height.
- To lower the seat: While seated, pull the lever upwards. The seat will lower under your weight. Release the lever at the desired height.
- Swivel Function: The seat of the bar stool is designed to swivel 360 degrees. Simply rotate the seat to your desired position.
6. Maintenance
Proper care will extend the life and appearance of your bar stool:
- Cleaning the Faux Leather: For general cleaning, wipe the faux leather surface with a lightly damp cotton cloth. Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the material.
- Vacuuming: If using a vacuum cleaner for the seat surface, use an appropriate soft brush attachment to prevent scratching or damage to the upholstery.
- Frame and Base: Wipe the metal frame and base with a soft, dry cloth. For stubborn marks, a slightly damp cloth can be used, followed by immediate drying.
- Regular Checks: Periodically check all screws and bolts to ensure they remain tight. Re-tighten if necessary to maintain stability and safety.
7. Troubleshooting
If you encounter any issues with your bar stool, refer to the following common problems and solutions:
- Stool is unstable or wobbly:
- Ensure all assembly screws and bolts are securely tightened.
- Verify the gas lift is fully inserted into the base and the seat.
- Ensure the stool is placed on a flat, even surface.
- Difficulty adjusting height:
- Check if the height adjustment lever is functioning correctly and not obstructed.
- Ensure you are applying sufficient weight (to lower) or no weight (to raise) as instructed.
- The gas lift cylinder might be faulty. Contact support if the issue persists.
- Squeaking noise:
- Re-tighten all screws and bolts.
- Apply a small amount of silicone lubricant to moving parts if the noise persists, avoiding contact with upholstery.
8. Specifications
| Feature | Detail |
|---|---|
| Model | Lucy V2 |
| Model Number | 315648 |
| Brand | CLP |
| Overall Height | 91 - 112 cm (35.8 - 44.1 inches) |
| Overall Width | 54 cm (21.3 inches) |
| Overall Depth | 46 cm (18.1 inches) |
| Seat Height | 61 - 81 cm (24 - 31.9 inches) |
| Seat Surface (WxD) | 45 x 39 cm (17.7 x 15.4 inches) |
| Backrest Height | 30.5 cm (12 inches) |
| Padding Thickness | 8 cm (3.1 inches) |
| Seat Material | Faux Leather |
| Frame/Base Material | Metal (Chrome, Black matte, or White matte finish) |
| Item Weight | 9 kg (19.8 lbs) |
| Maximum Weight Recommendation | 115 kg (253 lbs) |
9. Warranty Information
Specific warranty details for the CLP Lucy V2 Ergonomic Bar Stool are not provided in the product information. Please refer to your purchase receipt or contact the retailer directly for warranty terms and conditions.
10. Support
For further assistance, missing parts, or troubleshooting not covered in this manual, please contact your retailer or the manufacturer, CLP. Contact information may be available on their official website or through your purchase documentation.
