1. Introduction
This manual provides detailed instructions for the safe and efficient use of your Electrolux Refine 700 Steam Iron, model E7SI1-8DB. Please read this manual thoroughly before first use and keep it for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your appliance.

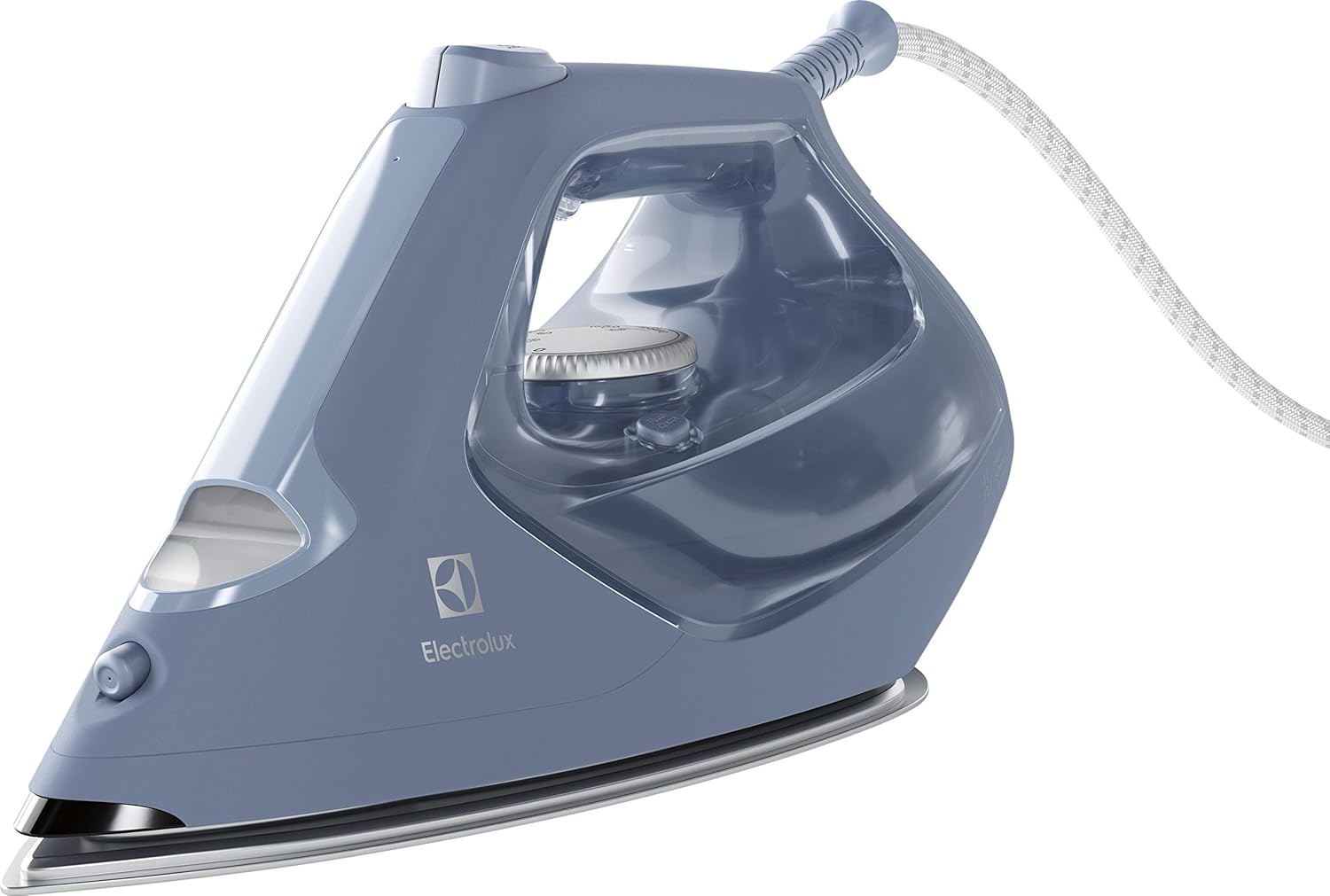

Image 1.1: The Electrolux Refine 700 Steam Iron, showcasing its design and color.
2. Safety Information
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.
- Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
- Do not immerse the iron, power cord, or plug in water or other liquids.
- Keep the iron out of reach of children and pets.
- Never leave the iron unattended while it is switched on or connected to the power supply.
- Always unplug the iron from the electrical outlet before filling or emptying water, and when not in use.
- Do not operate the iron with a damaged cord or plug, or if the iron has been dropped or damaged.
- Place the iron on a stable, heat-resistant surface when resting.
3. Product Overview
Familiarize yourself with the components of your Electrolux Refine 700 Steam Iron:
- Soleplate: The heated surface that glides over fabrics.
- Water Tank: Reservoir for water used to generate steam.
- Temperature/Fabric Selector Dial: Adjusts heat and steam settings based on fabric type.
- Steam Button/Trigger: Activates steam release.
- Spray Nozzle: For misting water onto stubborn creases.
- Water Filling Inlet: Opening for adding water to the tank.
- FlushClean Button: For descaling and cleaning the steam system.
Image 3.1: Detail of the fabric selector dial, showing settings for Linen, Cotton, Wool, and Outdoor.
4. Setup
- Unpacking: Carefully remove the iron from its packaging. Remove any protective films or stickers from the soleplate.
- First Use: Before first use, iron an old piece of fabric to ensure any manufacturing residues are removed.
- Filling the Water Tank:
- Ensure the iron is unplugged.
- Open the water filling inlet, located at the rear of the iron.
- Using a measuring cup or the integrated funnel, slowly pour clean tap water into the 370 ml water tank. Do not overfill.
- Close the water filling inlet securely.
- Connecting to Power: Plug the power cord into a suitable electrical outlet (230V).
Image 4.1: The water filling port, designed for easy and splash-free refilling.
5. Operating Instructions
The Electrolux Refine 700 Steam Iron features customized programs for various fabric types, automatically adjusting heat and steam for optimal results.
- Sorting Laundry: Sort garments according to fabric type and recommended ironing temperature. Always check garment care labels.
- Selecting Fabric Program: Turn the Temperature/Fabric Selector Dial to the desired fabric setting (e.g., Linen, Cotton, Wool). The iron will heat up to the appropriate temperature.
- Ironing:
- Once the indicator light signals the iron has reached the set temperature, you can begin ironing.
- For steam ironing, press the steam button/trigger as you glide the iron over the fabric.
- For dry ironing, do not press the steam button.
- Use the spray nozzle for stubborn creases by pressing the spray button.
- Outdoor Care Program:
- Select the 'Outdoor' setting on the dial. This program is designed to reactivate the water-repellent properties of technical garments.
- Follow the garment care label instructions for technical fabrics. This treatment helps maintain protection and extends the life of your outdoor wear.
- Vertical Steaming: The iron can be used for vertical steaming of hanging garments or drapes. Hold the iron vertically and press the steam button.
Image 5.1: The steam iron in operation, smoothing out a garment on an ironing board.
Image 5.2: A close-up of fabric showing water beading, illustrating the renewed water-repellent properties after using the Outdoor Care program.
6. Maintenance
Regular maintenance ensures the longevity and performance of your steam iron.
- Cleaning the Soleplate:
- After use, allow the iron to cool completely.
- Wipe the soleplate with a damp cloth. Do not use abrasive cleaners or metal scouring pads.
- Descaling (FlushClean System):
- The iron features a water descaling system with an activator filter and FlushClean function to maintain clean steam.
- To perform a FlushClean cycle, fill the water tank, heat the iron, then hold it over a sink and press the FlushClean button. Steam and hot water will flush out mineral deposits.
- Perform this regularly, especially in areas with hard water, to prevent limescale buildup.
- Water Softener System: The integrated water softener system helps reduce mineral buildup. Check the manual for specific instructions on filter replacement if applicable.
- Storage: Always empty the water tank after each use. Allow the iron to cool down completely before storing it vertically in a safe, dry place.
Image 6.1: A view into the water tank, highlighting the water softener system designed to reduce mineral deposits.
7. Troubleshooting
If you encounter issues with your iron, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Iron does not heat up. | Not plugged in; power outlet fault; thermostat set to 'Off'. | Check power connection; test outlet with another appliance; adjust temperature dial. |
| No steam or insufficient steam. | Water tank empty; temperature too low for steam; steam vents blocked. | Fill water tank; set to a higher temperature (e.g., Cotton or Linen); perform FlushClean cycle. |
| Water leaks from soleplate. | Temperature too low for steam; water tank overfilled; iron left horizontal when hot. | Increase temperature; do not overfill tank; store iron vertically when hot. |
| Brown stains on fabric. | Mineral deposits in steam vents; using scented water. | Perform FlushClean cycle; use only clean tap water. |
If the problem persists after attempting these solutions, please contact Electrolux customer support.
8. Specifications
- Brand: Electrolux
- Model Number: E7SI1-8DB (910003548)
- Color: Denim Blue
- Product Dimensions (L x W x H): 26 x 28 x 36 cm
- Power: 2700 Watts
- Voltage: 230 Volts
- Material: Steel (Body), Stainless Steel (Soleplate)
- Special Feature: Outdoor program for functional garments
- Item Weight: 2.36 Kilograms
- Water Tank Capacity: 0.37 Liters
- Model Year: 2020
9. Warranty and Support
For warranty information, product registration, or technical support, please refer to the warranty card included with your product or visit the official Electrolux website. Keep your proof of purchase for warranty claims.
Electrolux Official Website: www.electrolux.com
