1. Safety Information
Please read and follow all instructions carefully before assembly and use of the Dancover Santa Cruz Pergola Pavilion. Failure to do so may result in injury or damage to the product.
- Important: In case of heavy rain and strong winds, the roof cover must be removed to prevent damage. Damage caused by strong wind and rain is not covered by the warranty.
- Ensure all components are securely fastened during assembly.
- Do not hang heavy objects from the pergola frame.
- Keep children and pets away from the assembly area.
- Regularly inspect the pergola for any loose parts or damage.
2. Product Overview
The Dancover Santa Cruz Pergola Pavilion is a high-quality outdoor structure designed to provide shade and a stylish focal point for your garden, patio, or courtyard. It features a robust aluminum frame and a retractable polyester canopy.
Image: The Dancover Santa Cruz Pergola Pavilion with its canopy extended, situated next to a swimming pool with a scenic ocean and mountain backdrop.
Image: A wide shot of the Dancover Santa Cruz Pergola Pavilion, showcasing its structure and extended canopy in an outdoor environment.
3. Specifications
Detailed specifications for the Santa Cruz Pergola Pavilion:
| Feature | Specification |
|---|---|
| Width | 2.96 m |
| Length | 3.96 m |
| Height | 2.28 m |
| Inner Dimensions | 2.66 m x 3.48 m |
| Roof Fabric | 200g/m² 300Dx300D Polyester with PU backing |
| Frame Material | Black powder-coated aluminum |
| Tube/Fittings | 90x90mm + 60x30mm |
| Color | Black/Grey |
| Water Resistance | Water-repellent |
| Weight | 38.05 kg |
| Assembly Required | Yes |
Image: A line drawing illustrating the key dimensions of the pergola, including width (396cm), length (296cm), height (228cm), and internal dimensions (348cm x 266cm).
4. Setup Instructions
Assembly of the Dancover Santa Cruz Pergola Pavilion is straightforward. It is recommended that two people perform the assembly. Ensure you have all parts listed in the packing list before beginning.
4.1 Unpacking and Part Identification
- Carefully unpack all components from the packaging.
- Identify and sort all frame pieces, connectors, and the fabric canopy. Refer to the included parts diagram (if available in your package) to ensure all items are present.
4.2 Frame Assembly
- Begin by assembling the main vertical support posts (90x90mm) and horizontal beams (60x30mm) according to the diagram.
- Secure all connections using the provided hardware. Do not overtighten until the entire frame is loosely assembled.
- Once the main frame is standing, tighten all bolts and screws to ensure stability.

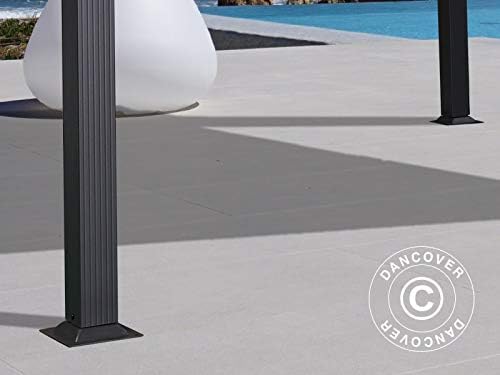

Image: This image focuses on the sturdy base plate of one of the pergola's support posts, designed for stable ground mounting.
4.3 Canopy Installation
- Unfold the fabric canopy (200g/m² PU-coated polyester).
- Attach the canopy to the designated runners or attachment points on the horizontal beams. The canopy is designed to run in the same direction as the roof beams.
- Ensure the canopy is evenly distributed and secured to allow for smooth retraction and extension.

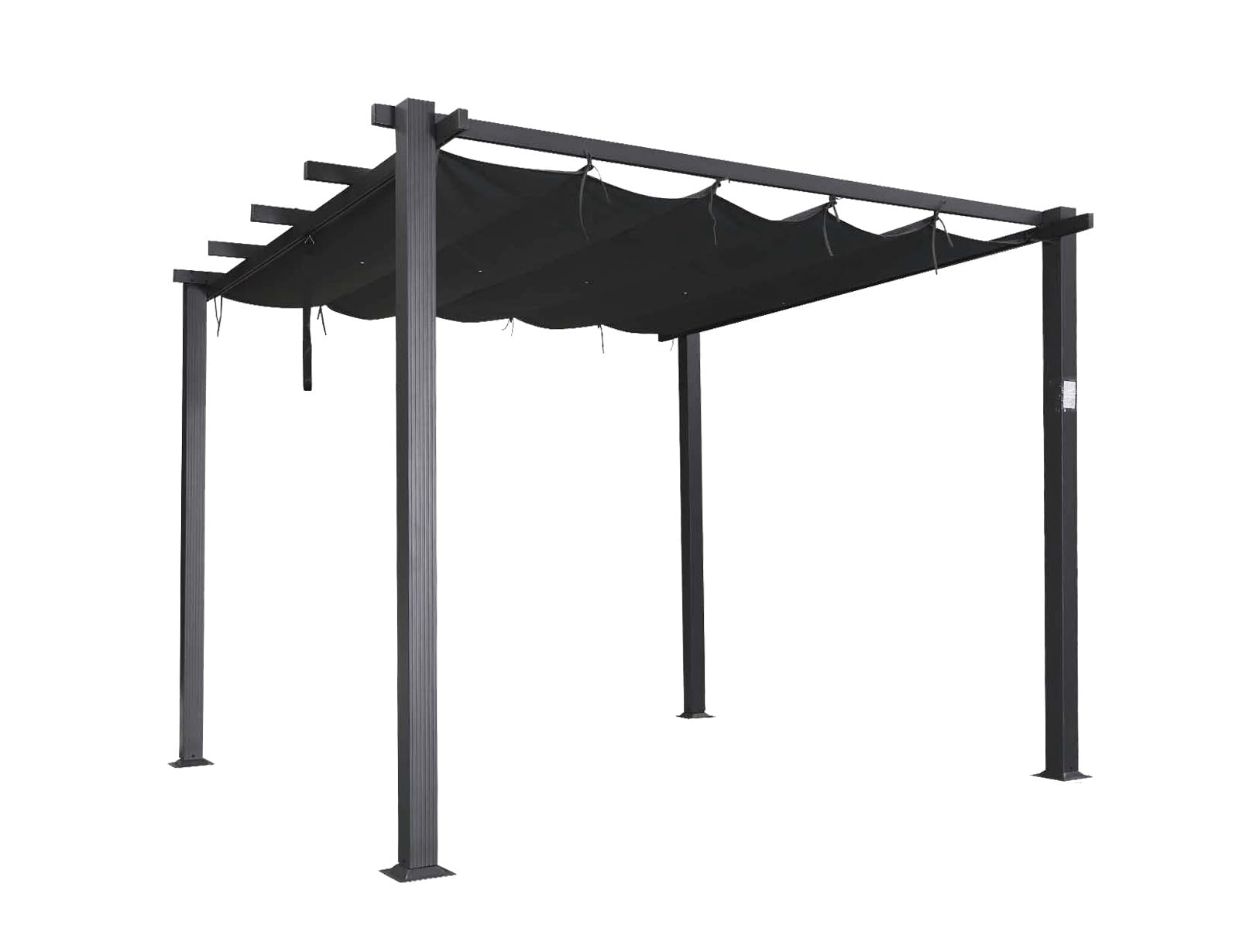

Image: This image displays the pergola with its fabric canopy fully extended, providing shade over the area beneath.

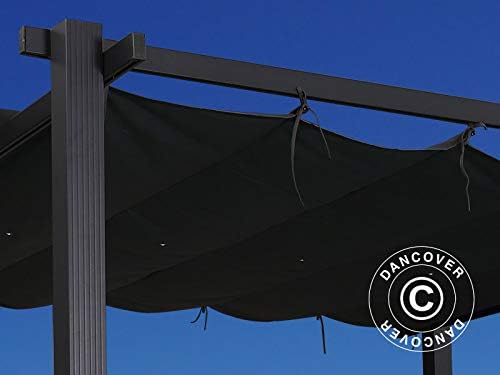

Image: A detailed view of how the fabric canopy is secured to the pergola's frame using ties, showing the wavy design when extended.
5. Operating Instructions
The Santa Cruz Pergola features an easy-to-use retractable canopy for adjustable shade.
5.1 Extending the Canopy
- Gently pull the canopy fabric from its retracted position.
- Guide the canopy along the support beams until it reaches the desired extension.
- Secure the canopy in place using any provided ties or locking mechanisms.
5.2 Retracting the Canopy
- Release any securing ties or locks.
- Gently push or pull the canopy back towards its retracted position.
- Ensure the fabric folds neatly to prevent damage or creasing.
Image: The pergola is shown with its fabric canopy neatly retracted to one side, allowing full sun exposure.

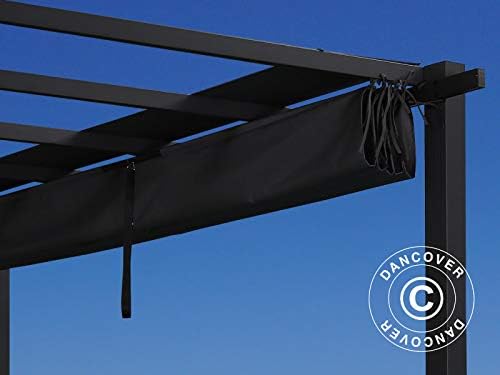

Image: A detailed view of the side of the pergola, showing the horizontal beams and the mechanism for retracting the fabric canopy.
6. Maintenance
Proper maintenance will extend the life and appearance of your pergola.
- Frame: The aluminum frame is maintenance-free and resistant to rust. Clean with a damp cloth and mild soap as needed. Avoid abrasive cleaners.
- Canopy: The polyester canopy is water-repellent. Clean with a soft brush and water. For stubborn stains, use a mild soap solution. Ensure the canopy is completely dry before retracting for extended periods to prevent mildew.
- Seasonal Care: During periods of heavy snow or extreme weather, it is advisable to remove the canopy to prevent damage from weight or strong winds. Store the canopy in a dry, protected area during the off-season.
7. Troubleshooting
If you encounter issues with your pergola, refer to the following common solutions:
- Canopy not retracting/extending smoothly: Check for any obstructions in the runners or along the beams. Ensure the fabric is not twisted or caught. Lubricate runners if necessary with a silicone-based spray.
- Pergola feels unstable: Re-check all frame connections and ensure bolts are tightened. Verify that the base plates are securely anchored to the ground (anchoring hardware not included, typically).
- Water pooling on canopy: Ensure the canopy is fully extended and taut. If pooling persists, it may indicate improper installation or excessive rain. Retract the canopy during heavy rainfall.
8. Warranty and Support
Dancover provides a warranty for manufacturing defects. Damage resulting from improper assembly, misuse, neglect, or extreme weather conditions (such as heavy rain and strong winds) is not covered by the warranty. Always remove the roof cover in such conditions.
For further assistance, spare parts, or warranty claims, please contact Dancover customer support through their official website or your retailer.
