Grundig 24 GCH 5900B HD Ready TV User Manual

Introduction

This manual provides essential information for the safe and efficient use of your Grundig 24 GCH 5900B HD Ready TV. Please read these instructions carefully before operating the device and retain them for future reference. This television features HDR technology for enhanced contrast, Dolby Digital sound for clear audio, and a built-in satellite receiver for convenience.

Safety Information

• Ensure the television is placed on a stable surface to prevent tipping.
• Do not expose the TV to rain or moisture to avoid electric shock.
• Keep ventilation openings clear to prevent overheating.
• Unplug the TV from the power outlet during lightning storms or when unused for long periods.
• Refer all servicing to qualified service personnel.

Setup

1. Unpacking

Carefully remove the TV and all accessories from the packaging. Check for any damage during transit. Keep packaging materials for future transport or storage.

2. Stand Installation

If you are not wall-mounting the TV, attach the stand according to the diagrams provided in the separate assembly guide. Ensure all screws are securely tightened.

Image: Front view of the Grundig 24 GCH 5900B HD Ready TV with its stand attached. The screen displays a vibrant image of cherries on a plate.

3. Connecting Cables

• Power Cable: Connect the power cable to the TV's power input and then to a wall outlet.
• Antenna/Satellite: Connect your antenna or satellite cable to the appropriate input on the TV. This model includes a built-in satellite receiver.
• External Devices: Use HDMI or other available ports to connect devices like DVD players, game consoles, or sound systems.

4. First-Time Setup Wizard

Upon first power-on, the TV will guide you through an initial setup process. This includes language selection, country, and channel scanning. Follow the on-screen prompts to complete the setup.

Operating

1. Remote Control Overview

The remote control allows you to access all TV functions. Familiarize yourself with the button layout.

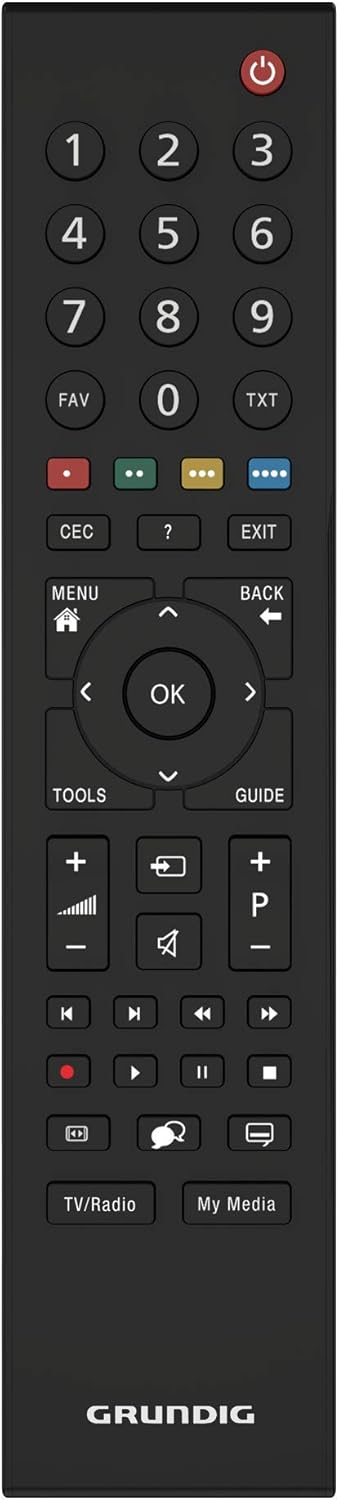

Image: A top-down view of the black Grundig TV remote control. Key buttons include Power, Number Pad, Volume Up/Down, Channel Up/Down, Menu, OK, and navigation arrows.

2. Basic Functions

• Power: Press the red power button to turn the TV on or off.
• Volume: Use the VOL +/- buttons to adjust the sound level.
• Channel: Use the CH +/- buttons to change channels.
• Input Selection: Press the SOURCE button (if available, or similar icon) to select between different input sources (HDMI, AV, TV, Satellite).

3. Menu Navigation

Press the MENU button to access the main menu. Use the arrow buttons (Up, Down, Left, Right) to navigate through options and the OK button to confirm selections. The BACK or EXIT button will return you to the previous screen or exit the menu.

4. Advanced Features

• HDR Technology: Your Grundig TV utilizes HDR (High Dynamic Range) technology to enhance contrast and deliver more realistic images. This technology increases the contrast between bright whites and deep blacks, providing a more immersive viewing experience.
• Dolby Digital Sound: The integrated Dolby Digital sound technology ensures natural and clear audio, even at high volumes.
• Built-in Satellite Receiver: The TV includes a built-in satellite receiver, eliminating the need for an external set-top box and reducing cable clutter. This allows for easy and seamless viewing of satellite channels.

Maintenance

1. Cleaning the Screen

Gently wipe the screen with a soft, dry, lint-free cloth. For stubborn marks, slightly dampen the cloth with water or a specialized screen cleaner. Do not spray liquid directly onto the screen.

2. Cleaning the TV Body

Use a soft, dry cloth to wipe the exterior of the TV. Avoid using abrasive cleaners or solvents.

Troubleshooting

If you encounter issues with your TV, refer to the following common problems and solutions:

• No Power: Ensure the power cable is securely connected to both the TV and the wall outlet. Check if the outlet is functioning by plugging in another device.
• No Picture, But Sound: Check the input source selection. Ensure the connected device (e.g., DVD player) is powered on and functioning correctly.
• No Sound, But Picture: Check the volume level and ensure the TV is not muted. If using external audio, verify connections and settings.
• Remote Control Not Working: Check the batteries and replace them if necessary. Ensure there are no obstructions between the remote and the TV's IR sensor.
• Poor Picture Quality: Check antenna/cable connections. If using an external device, try a different HDMI cable or input port.

For persistent issues, please contact Grundig customer support.

Specifications

Warranty and Support

Your Grundig 24 GCH 5900B HD Ready TV comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, service, or warranty claims, please contact your local Grundig service center or authorized dealer. Keep your purchase receipt as proof of purchase.
