Brewferm High Striker Crown Corker Instruction Manual

Introduction

Thank you for choosing the Brewferm High Striker Crown Corker. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new bottle capper. Please read this manual thoroughly before first use and retain it for future reference.

The Brewferm High Striker is a stand-model crown corker designed for easy and efficient capping of beer bottles using 26 mm diameter crown corks. It features an adjustable height mechanism, a magnetic crown cork holder, and a durable construction for reliable performance.

Safety Instructions

• Always operate the corker on a stable, flat surface to prevent tipping.
• Keep hands and fingers clear of moving parts during operation.
• Ensure the bottle is correctly seated before applying pressure.
• Do not use excessive force; the design allows for effortless capping.
• Store the corker in a dry, safe place away from children.
• This device is not dishwasher safe. Clean according to maintenance instructions.

Product Components

Familiarize yourself with the main parts of your Brewferm High Striker Crown Corker:

1. Base: Provides stability for the corker.
2. Vertical Column: The main support structure with height adjustment holes.
3. Capping Head Assembly: Contains the lever, spring mechanism, and magnetic crown cork holder.
4. Lever with Rubber Grip: Used to apply pressure for capping.
5. Height Adjustment Button/Pin: Allows for adjusting the capping height for different bottle sizes.
6. Magnetic Crown Cork Holder: Secures the crown cork in place before capping.

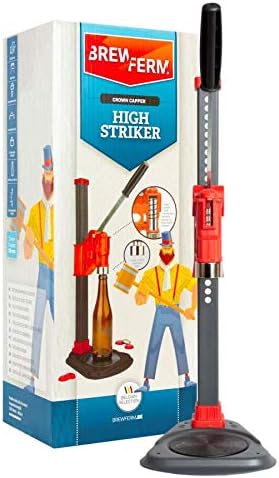

Image 1: Full view of the Brewferm High Striker Crown Corker. This image displays the complete assembly, including the stable base, vertical column, red capping head, and the lever with a black rubber grip.

Image 2: Close-up view of the red capping head mechanism. This shows the internal spring, the magnetic crown cork holder at the bottom, and the attachment point for the lever.

Setup Instructions

1. Unpacking: Carefully remove all components from the packaging. Ensure all parts are present and undamaged.
2. Placement: Place the corker on a sturdy, level surface. The base should be stable and not wobble.
3. Adjusting Height:
   • Identify the height adjustment button/pin on the side of the capping head assembly.
   • Press the button to disengage the pin from the vertical column.
   • Slide the capping head assembly up or down to the desired height. The height should be adjusted so that there is enough clearance for your bottle, but not too much, to ensure efficient capping.
   • Release the button, ensuring the pin securely locks into one of the holes on the vertical column.

Operating Instructions

Follow these steps to effectively crown cork your bottles:

1. Prepare Bottle and Cork: Ensure your bottle is clean and filled to the appropriate level. Use standard 26 mm crown corks.
2. Place Crown Cork: Place a crown cork into the magnetic holder located at the bottom of the capping head. The magnet will hold it in place.
3. Position Bottle: Place the bottle centrally on the base of the corker, directly beneath the crown cork.
4. Adjust Height (if necessary): If you haven't already, adjust the height of the capping head so that it sits just above the bottle opening, allowing for a snug fit when the lever is depressed.
5. Capping:


   Image 3: A user positioning a brown beer bottle on the base of the corker, aligning it under the capping head.



   Image 4: A user pressing down the lever of the corker to securely attach a crown cork onto the bottle. The bottle is held steady by the other hand.
   • With one hand, hold the bottle steady on the base.
   • With the other hand, firmly and smoothly pull the lever downwards. You will feel the crown cork being pressed onto the bottle.
   • Apply sufficient pressure until the cork is securely crimped around the bottle neck. The reinforced spring ensures an easy release.
   • Release the lever and remove the capped bottle.
6. Check Seal: Always check the seal of the crown cork to ensure it is tight and secure.

Maintenance and Care

• Cleaning: After each use, wipe down the corker with a damp cloth to remove any spills or residue. Do not immerse the corker in water. This product is not dishwasher safe.
• Lubrication: Periodically, a small amount of food-grade lubricant can be applied to the moving parts (e.g., the pivot points of the lever and the sliding mechanism) to ensure smooth operation.
• Storage: Store the corker in a clean, dry environment to prevent rust or damage.
• Inspection: Regularly inspect the corker for any signs of wear or damage. If any part appears damaged, discontinue use and contact customer support.

Troubleshooting

Specifications

Warranty and Support

The product features a 3-year warranty. For warranty claims, technical support, or replacement parts, please contact your retailer or Brewferm customer service. Please have your model number (5420069833114) and date of purchase available when contacting support.
