YISSVIC 4-in-1 Hand Blender 1000W (Model LB2108-de) Instruction Manual

1. Important Safety Instructions

Please read all instructions carefully before using the appliance and retain them for future reference. Incorrect operation can cause damage to the appliance and injury to the user.

• Always ensure the voltage indicated on the rating label corresponds to your mains voltage.
• Do not immerse the motor unit in water or any other liquid. Clean with a damp cloth only.
• Keep hands, hair, clothing, and utensils away from moving parts during operation to prevent injury.
• Unplug the appliance from the power outlet before assembling, disassembling, cleaning, or when not in use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• Blades are sharp. Handle with extreme care when assembling, disassembling, and cleaning.
• Do not use attachments not recommended or sold by the manufacturer.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Avoid contact with moving parts.

2. Product Components

The YISSVIC 4-in-1 Hand Blender comes with several attachments to assist with various kitchen tasks. Familiarize yourself with each component before use.

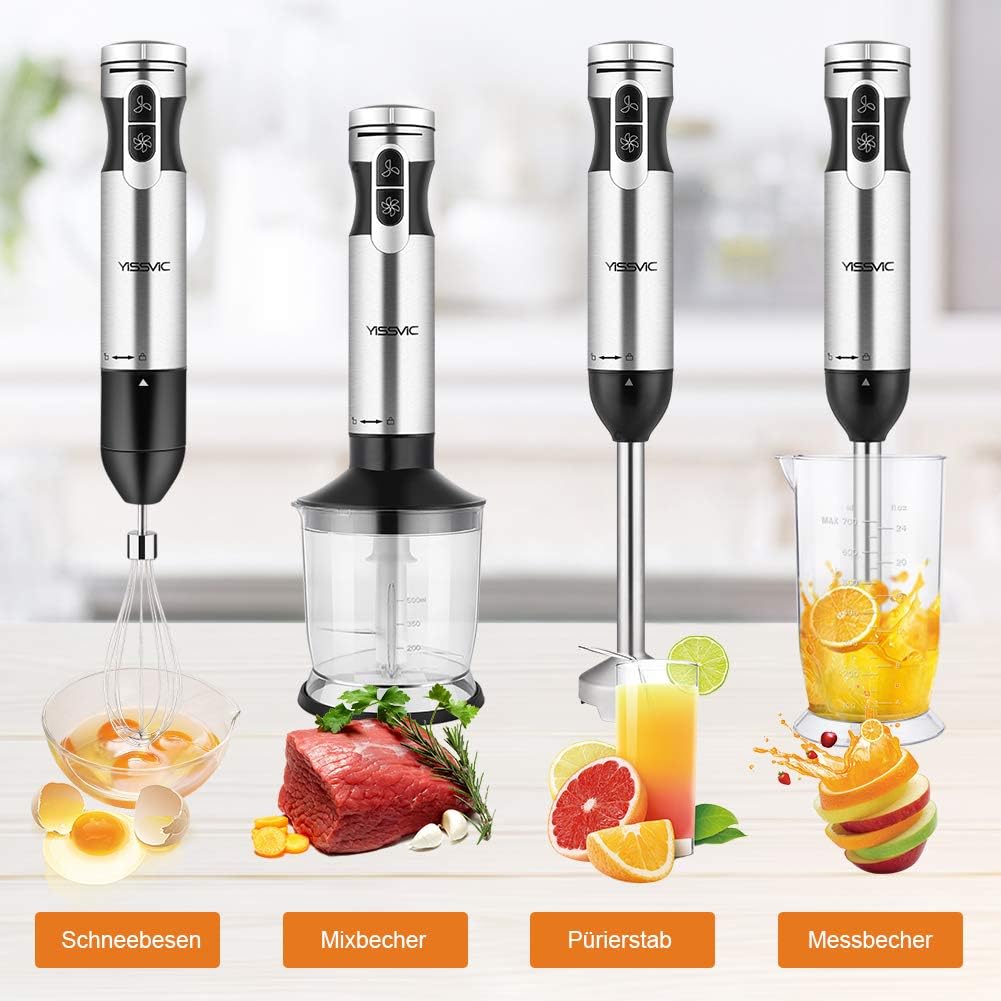

Image 2.1: Overview of the YISSVIC 4-in-1 Hand Blender and its accessories.

• Motor Unit: The main body containing the 1000W motor and speed controls.
• Immersion Blender Shaft: Stainless steel shaft with a 4-blade design for blending liquids and soft foods.
• Whisk Attachment: For whipping cream, beating eggs, and mixing light batters.
• Chopper Bowl (500ml): With a sharp blade for chopping nuts, herbs, vegetables, and meat.
• Measuring Cup (700ml): For blending liquids and measuring ingredients.

Image 2.2: All components of the YISSVIC Hand Blender set.

Image 2.3: The measuring cup lid can also function as a non-slip base.

3. Assembly and Setup

Proper assembly ensures safe and effective operation of your hand blender.

3.1 Attaching Accessories

1. For Immersion Blender: Align the motor unit with the immersion blender shaft. Push them together and twist clockwise until they lock securely into place.
2. For Whisk: Insert the whisk into the whisk gear box. Then, align the whisk gear box with the motor unit and twist clockwise to lock.
3. For Chopper: Place the chopper blade onto the central pin inside the chopper bowl. Add ingredients. Place the chopper lid onto the bowl, ensuring it is properly seated. Finally, align the motor unit with the chopper lid and twist clockwise to lock.

Image 3.1: Easy assembly and disassembly of attachments.

3.2 Before First Use

• Wash all detachable parts (immersion blender shaft, whisk, chopper bowl, chopper blade, measuring cup) in warm soapy water, then rinse and dry thoroughly.
• Wipe the motor unit with a damp cloth. Do not immerse it in water.

4. Operating Instructions

The YISSVIC Hand Blender features a powerful 1000W motor with 9-speed settings and a Turbo function for optimal control.

Image 4.1: Speed control buttons and rotary dial.

Image 4.2: Adjusting the 9-speed rotary dial.

4.1 Speed Control

• Rotary Dial (9 Speeds): Turn the dial on top of the motor unit to select one of the 9 variable speeds. Lower speeds are suitable for soft ingredients or small quantities, while higher speeds are for harder ingredients or larger volumes.
• Low Speed Button: Press and hold this button for continuous low-speed operation. Ideal for delicate mixing.
• High Speed / Turbo Button: Press and hold this button for maximum power. Use for tough ingredients or when a quick burst of power is needed.

4.2 Using the Immersion Blender

The immersion blender is ideal for blending soups, sauces, smoothies, and baby food directly in pots, bowls, or the provided measuring cup.

1. Attach the immersion blender shaft to the motor unit.
2. Place the blender into the ingredients. Ensure the liquid level is below the maximum fill line to prevent splashing.
3. Plug in the appliance.
4. Press and hold either the Low Speed or High Speed/Turbo button, or select a speed with the rotary dial and then press the corresponding button to start.
5. Move the blender gently up and down to ensure even blending.
6. Release the button to stop. Unplug after use.

Image 4.3: Immersion blender in use for various tasks.

Image 4.4: Blending directly in a pot.

4.3 Using the Whisk Attachment

The whisk is suitable for whipping cream, beating egg whites, and mixing light batters.

1. Attach the whisk to the whisk gear box, then attach the gear box to the motor unit.
2. Place the whisk into the ingredients in a bowl.
3. Plug in the appliance.
4. Press and hold the desired speed button to start. Start with a lower speed and gradually increase if needed.
5. Move the whisk in a circular motion to incorporate air.
6. Release the button to stop. Unplug after use.

4.4 Using the Chopper Attachment

The chopper is designed for processing smaller quantities of food such as herbs, nuts, cheese, and cooked meats.

Image 4.5: Chopper bowl and measuring cup with ingredients.

1. Place the chopper blade onto the central pin in the chopper bowl.
2. Add ingredients to the chopper bowl. Do not overfill.
3. Secure the chopper lid onto the bowl, then attach the motor unit to the lid.
4. Plug in the appliance.
5. Press and hold the desired speed button to start. Use short pulses for coarse chopping, or hold longer for finer results.
6. Release the button to stop. Unplug after use.

5. Cleaning and Maintenance

Regular cleaning and proper maintenance will extend the life of your YISSVIC Hand Blender.

5.1 Cleaning

• Always unplug the appliance before cleaning.
• Motor Unit: Wipe the motor unit with a damp cloth. Never immerse it in water or other liquids.
• Detachable Parts (Immersion Blender Shaft, Whisk, Chopper Bowl, Chopper Blade, Measuring Cup): These parts are dishwasher safe. Alternatively, they can be washed by hand in warm soapy water, then rinsed and dried thoroughly.
• Blades: Handle the chopper blade and immersion blender blades with extreme care as they are very sharp.
• The immersion blender shaft features a splash-resistant design to keep your kitchen clean during use.

Image 5.1: Detachable design for easy cleaning.

Image 5.2: Anti-splash 4-blade design for efficient blending.

5.2 Storage

Store the appliance and its accessories in a dry, safe place, out of reach of children.

6. Troubleshooting

If you encounter any issues with your YISSVIC Hand Blender, refer to the following common problems and solutions.

7. Specifications

Technical details for the YISSVIC 4-in-1 Hand Blender.

Image 7.1: Product dimensions of the main components.

Image 7.2: Detail of the full copper motor.

8. Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or contact YISSVIC customer service directly. Contact details can typically be found on the manufacturer's official website or on the product packaging.
