DEERC D50 Drone User Manual

Introduction

Welcome to the DEERC D50 Drone User Manual. This guide provides essential information for setting up, operating, and maintaining your DEERC D50 drone. The D50 is a feature-rich RC quadcopter designed for adults, equipped with a 2K UHD camera for FPV live video, offering a 120° FOV and 4MP resolution. It includes intelligent flight modes such as Waypoints, Altitude Hold, Headless Mode, Gesture Selfie, and 4 Speed Modes, along with a Gravity Sensor for enhanced control.

Image: The DEERC D50 drone, its remote controller, and two modular batteries, ready for use.

Setup and Assembly

Unboxing and Components

Carefully unpack all components from the box. Ensure you have the following items:

• DEERC D50 Drone
• Remote Controller
• 2 Modular Batteries
• USB Charging Cable
• Spare Propellers
• Propeller Guards
• Screwdriver
• User Manual

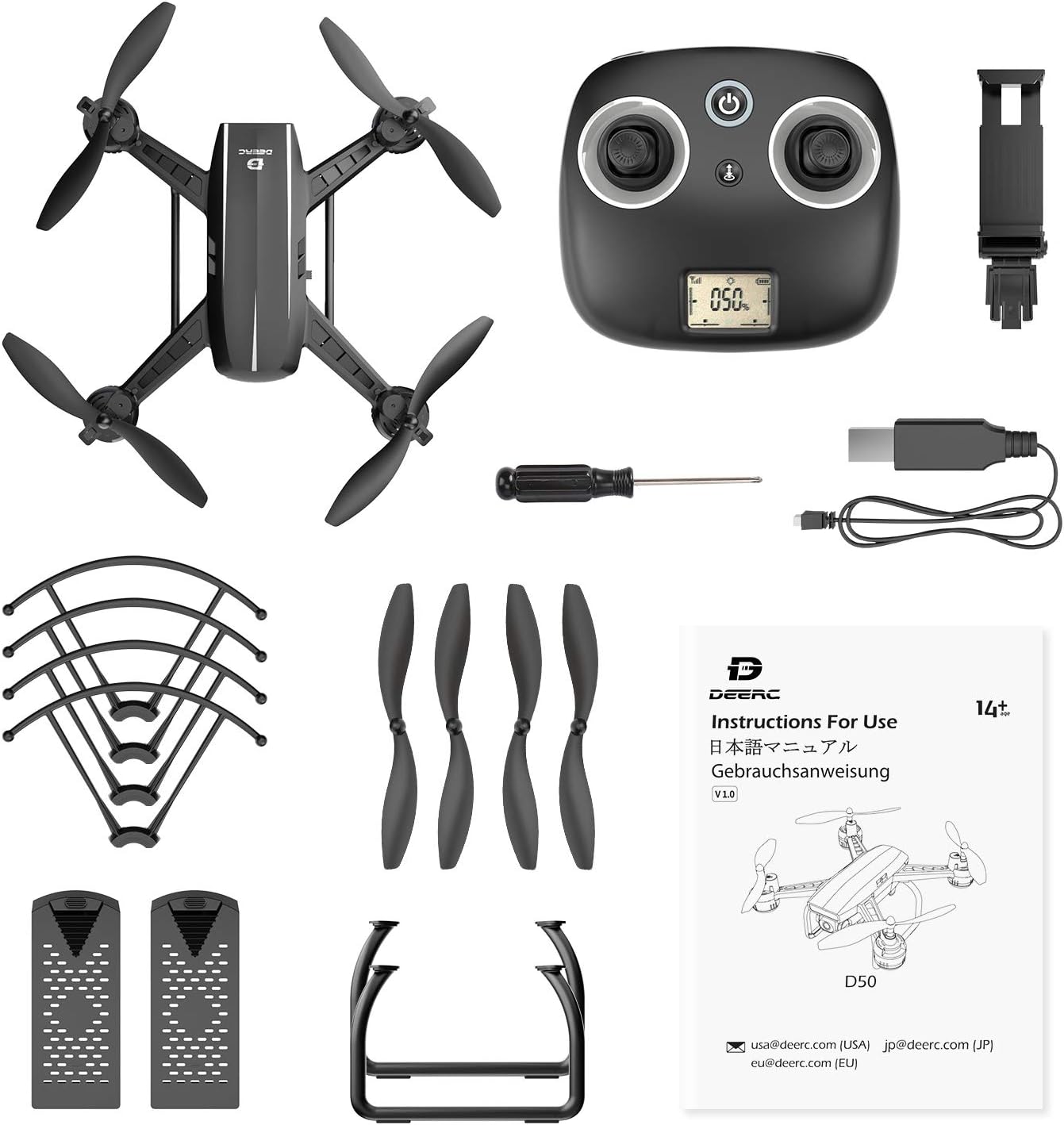

Image: A comprehensive view of all items included in the DEERC D50 drone package, including the drone, controller, batteries, and accessories.

Battery Installation and Charging

1. Insert the modular batteries into the designated slots on the drone until they click into place.
2. Connect the USB charging cable to the battery and a suitable USB power source (e.g., computer USB port, USB wall adapter).
3. Allow batteries to fully charge before first use. Charging typically takes less than an hour, providing up to 24 minutes of flight time per battery.

Propeller Installation

Attach the propeller guards to the drone's arms for added protection, especially for beginners. Ensure propellers are securely fastened according to the markings (A/B) on the propellers and motor arms.

Controller Setup

Install batteries into the remote controller. Extend the phone holder on the controller to securely mount your smartphone for FPV viewing and app control.

Operating Instructions

Basic Flight Controls

• One Key Start/Landing: Tap the dedicated button on the controller or in the app for automatic take-off or landing.
• Altitude Hold: The drone maintains a stable altitude, allowing for easier control of horizontal movement.
• Headless Mode: Eliminates the need to adjust the drone's position before flight, as the forward direction is relative to the pilot.
• 4 Speed Mode: Adjust flight speed from beginner to racing mode to suit your skill level and environment.

Image: Visual representation of the D50 drone's user-friendly features: Altitude Hold, Headless Mode, and One Key Start/Landing.

Image: An infographic showing the four distinct speed modes available on the DEERC D50 drone, from beginner to racing.

Advanced Features

• Waypoints Fly: Define a precise flight route on the app's map, and the drone will automatically follow it.
• Gesture Selfie: Pose to the camera, and the drone will automatically take a photo or video.
• Voice Control: Control the drone with simple voice commands like "take off" or "landing."
• Gravity Control: Use your smartphone's gravity sensor to control the drone's flight direction.
• 360° Flips and Rolls: Perform aerial acrobatics with a single button press.

Image: The DEERC D50 drone executing a Waypoints Fly mission, following a green line on a map displayed on a smartphone.

Image: Individuals posing for a photo, demonstrating the Gesture Selfie feature of the DEERC D50 drone.

Image: A smartphone screen displaying the DEERC D50 control interface, highlighting voice and gravity control functionalities.

Camera Operation

The DEERC D50 is equipped with a 2K Ultra HD camera, offering a 120-degree field of view and an adjustable angle. It captures 2048 x 1152p footage and provides FPV (First Person View) live video directly to your connected smartphone.

Image: A comparison showing the wider and clearer footage captured by the DEERC D50's 2K camera with 120-degree wide angle, contrasted with standard 1080p.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your DEERC D50 drone.

• Propeller Inspection: Regularly check propellers for any damage (cracks, bends). Replace damaged propellers immediately using the provided spares.
• Cleaning: Use a soft, dry cloth to clean the drone body and camera lens. Avoid using harsh chemicals or liquids.
• Battery Care: Store batteries in a cool, dry place. Do not overcharge or over-discharge. If storing for extended periods, charge them to about 50% capacity.
• Motor Check: Ensure motors are free from debris and spin smoothly.

Troubleshooting

If you encounter issues with your DEERC D50 drone, refer to the following common troubleshooting tips:

• Drone Drifts: Calibrate the gyroscope and trim the controls using the remote controller or app settings. Ensure propellers are correctly installed and undamaged.
• No Connection: Ensure both the drone and controller are powered on and fully charged. Re-pair the drone and controller according to the quick start guide. Check Wi-Fi connection for FPV.
• Short Flight Time: Ensure batteries are fully charged before each flight. Battery performance can decrease over time; consider replacing old batteries.
• Motors Not Spinning: Check for any obstructions around the propellers or motors. Ensure the drone is properly paired and calibrated.
• App Issues: Ensure your smartphone's operating system is up to date and the DEERC app is the latest version. Restart the app and drone if issues persist.

Product Specifications

Warranty and Support

DEERC products are designed for reliability and performance. For specific warranty details, please refer to the warranty card included in your product packaging or visit the official DEERC website.

For technical support, troubleshooting assistance, or inquiries regarding your DEERC D50 drone, please contact DEERC customer service through the following channels:

• Email: Refer to the contact information provided in your product manual or on the DEERC official website.
• Online Support: Visit the DEERC brand store on Amazon or their official website for FAQs and support resources.

Please have your model number (D50) and purchase information ready when contacting support.
